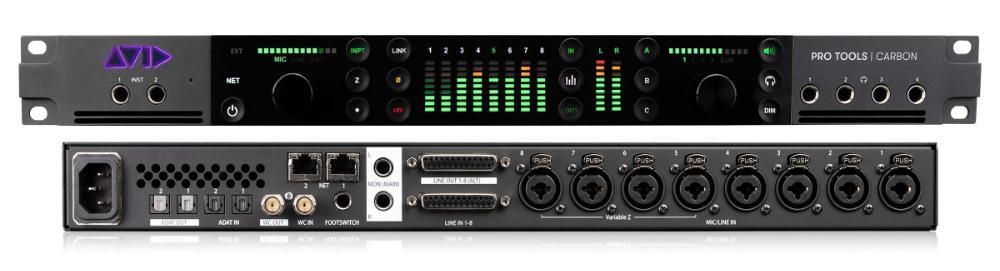

Avid Pro Tools Carbon Hyrbid Audio Production System

*EOFY DEAL - This unit is hardware only and does not include any Pro Tools Licensing*

For artists, bands, and producers, Pro Tools | Carbon is a new breed of audio interface—built to capture brilliance. It’s a hybrid audio production system that features incredible sound quality and combines the power of your native CPU with onboard HDX DSP acceleration. So you can push your computer to the limit when you mix and record through AAX DSP plugins with near-zero latency monitoring. All at the touch of a button. All in Pro Tools.

Hardware and software.  Made for each other.

With intelligent Pro Tools integration, you’ll work smoothly all in one creative environment. The Hybrid Engine lets you offload real-time AAX DSP plugin processing to Carbon at will. This means you can record with a polished sound that brings out the best in your performance. No more third-party apps to slow you down. Just focus on the music you’re making—not what you’re making it with.

The best in both worlds.

The Hybrid Engine maximizes the performance of Pro Tools by using your native CPU and HDX DSP processing at the same time. When you put a track in DSP Mode, Carbon accelerates real-time AAX DSP plugins while your CPU plays back the rest of your mix. And because every AAX DSP plugin has a native counterpart, you can move seamlessly between worlds—just click a button. Record with HDX DSP power for near-zero latency monitoring. And work natively with the same plugins.

SYSTEM REQUIREMENTS

Avid-qualified Ethernet or Thunderbolt-equipped Mac computer (see details)

INPUTS

Combo Mic/Line Inputs
8 balanced XLR/TRS with Variable Z (impedance) on inputs 5–8

DB25 Line Inputs
8 balanced via 25-pin D-sub

Instrument (Variable Z) Inputs
2 unbalanced ¼-inch TS

Digital Inputs
ADAT: 16 channels @ 44.1–96 kHz
ADAT: 8 channels @ 176.4–192 kHz

A/D CONVERSION

Mic Preamps
Dynamic Range: 126 dB (A-weighted), THD+N: -105 dB (0.00056%)
Frequency Response: 20 Hz–20 kHz, ±0.1 dB, EIN: -129 dB (A-weighted)

Line Inputs
Dynamic Range: 125 dB (A-weighted), THD+N: -106 dB (0.0005%)
Frequency Response: 20 Hz–20 kHz, ±0.1 dB

Line Inputs (True Bypass)
Dynamic Range: 126 dB (A-weighted), THD+N: -113 dB (0.00022%)
Frequency Response: 20 Hz–20 kHz, ±0.1 dB

Instrument Inputs
Dynamic Range: 125 dB (A-weighted), THD+N: -103 dB (0.0007%)
Frequency Response: 20 Hz–20 kHz, ±0.1 dB

OUTPUTS

DB25 Line Outputs
8 balanced via 25-pin D-sub

Monitor Outputs
2 balanced ¼-inch TRS

Headphone Outputs
4 stereo ¼-inch TRS

Digital Outputs
ADAT: 16 channels @ 44.1–96 kHz
ADAT: 8 channels @ 176.4–192 kHz

D/A CONVERSION

Line Outputs
Dynamic Range: 120 dB (A-weighted), THD+N: -110 dB (0.0003%)
Frequency Response: 20 Hz–20 kHz, ±0.1 dB

Monitor Outputs
Dynamic Range: 120 dB (A-weighted), THD+N: -110 dB (0.0003%)
Frequency Response: 20 Hz–20 kHz, ±0.1dB

Headphone Outputs
Power: 100 mW into 300 ohm; 200 mW into 32 ohm
Dynamic Range: 116 dB (A-weighted)
THD+N (32 ohm): -87 dB (0.0045%)
THD+N (300 ohm): -100 dB (0.001%)
Frequency Response: 20 Hz–20 kHz, ±0.1 dB

DSP ACCELERATION

HDX DSP
8 HDX DSP processors
(2.8 GHz aggregated processing)

WHAT’S INCLUDED

Pro Tools | Carbon audio interface

Accessories

Power cable
Ethernet cable
Rackmount screws and desktop feet
