8% off

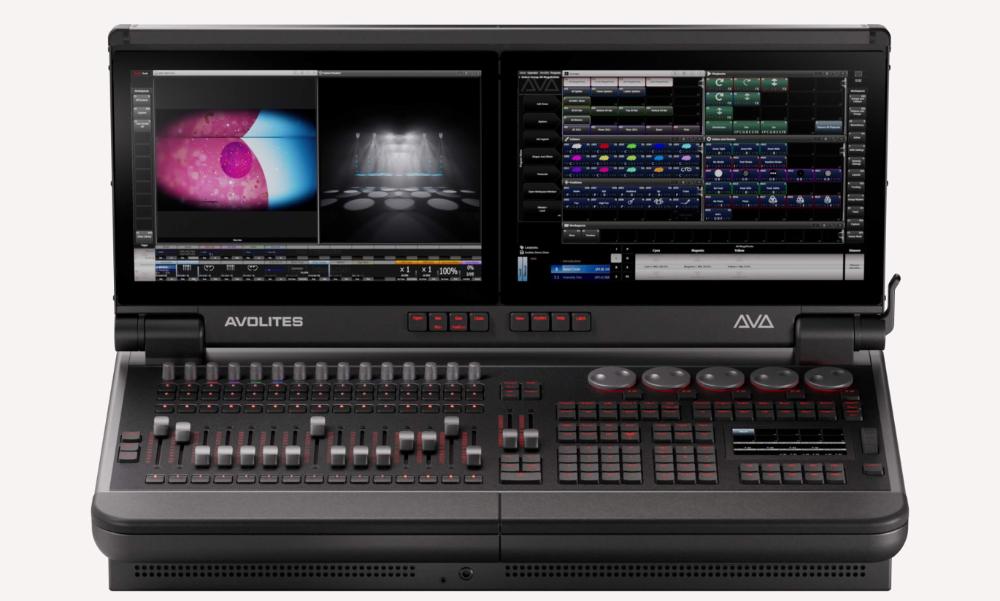

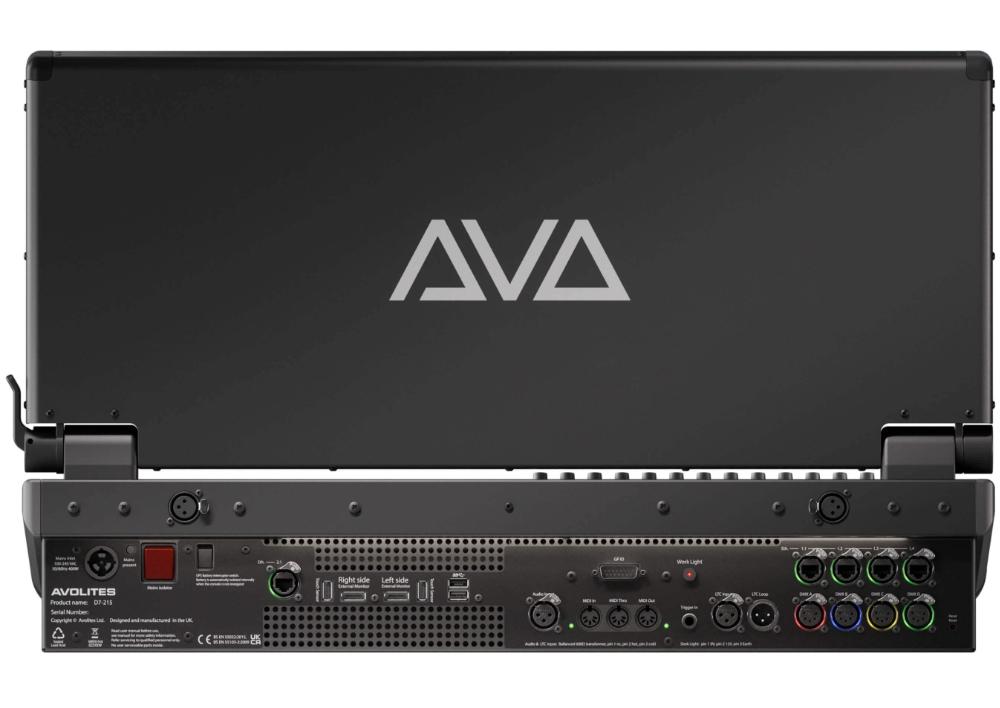

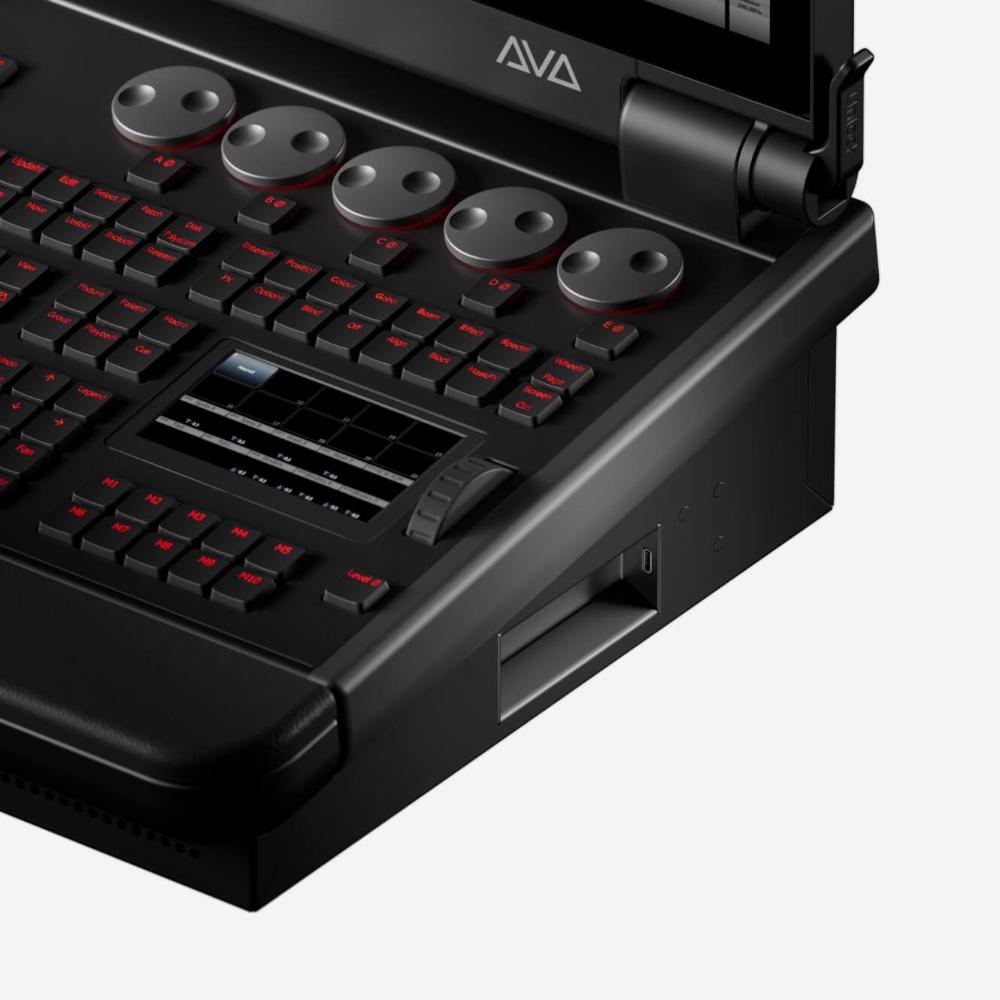

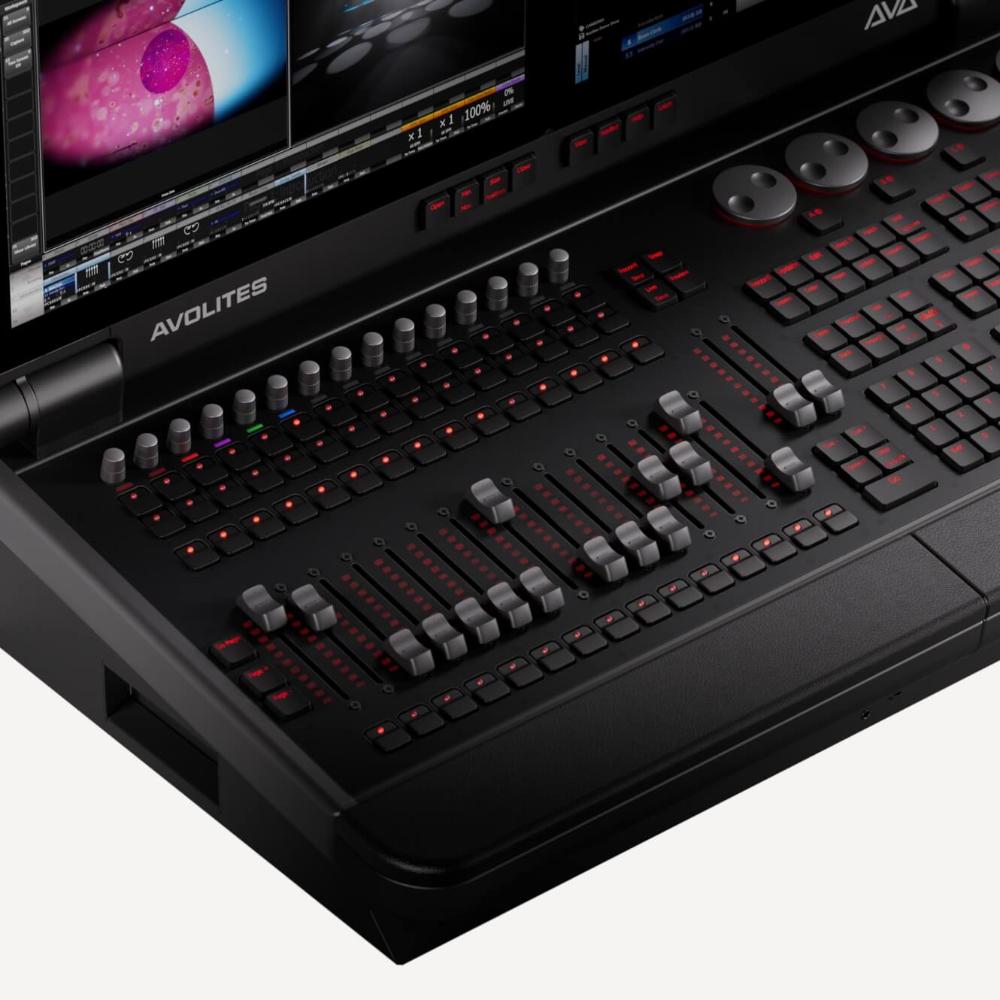

Avolites - D7-215 console - 2 screens, 15 faders Lighting Console

SKU: AVO30-01-7202
$47,999.00 $51,900.00
Out of Stock, contact for ETA
By Avolites
NOTIFY ME WHEN BACK IN STOCK
Description

The ultimate travel and performance console, the D7 has been designed for lighting designers, by lighting designers. Offering maximum control and programming power for minimal weight, at under 32kg the D7-215 can be packed in a standard Peli Air case and checked in as hold luggage to fly anywhere with you.

Note: Must be purchased with either Pelican Air case or flight case accessory

  • Robust clam shell LCD panel design reduces transport size, with quick positive locking mechanism and adjustable screen panel
  • 15 + 2 motorised touch-sensitive faders – designer fader cap
  • 2 x 14” 850 nits 1920 x 1200 capacitive touch main screens with adjustable brightness
  • 1 x 4.3” 850 nits 800x480 capacitive touch macro and workspace screen with adjustable brightness

Features

Control Surface

  • 11-segment RGB LED level indicator alongside each fader
  • Halo RGB indicator for each playback
  • 60 C&K playback function buttons with positive haptics for timing designer key cap
  • 2 x 14” 850 nits 1920 x 1200 capacitive touch main screens with adjustable brightness
  • 1 x 4.3” 850 nits 800x480 capacitive touch macro and workspace screen with adjustable brightness

Software

Platform - Avolites Titan
DMX Channels per Device - 16,384
DMX Channels per System - 32,768
Max Fixtures - 32,000
Keyframe Effect Engine - Custom Effects with any number of Keyframes
Pixel Mapping - Video via Synergy, pixel animations from Titan
Playback Control - User defined using multiple faders, encoders and buttons
External Control - Web API, SMPTE, MIDI, DMX, S-ACN, GPIO
Titan Net - Multi-User & DMX Expansion
Output Formats - Artnet, S-ACN, DMX512

More Details Right
