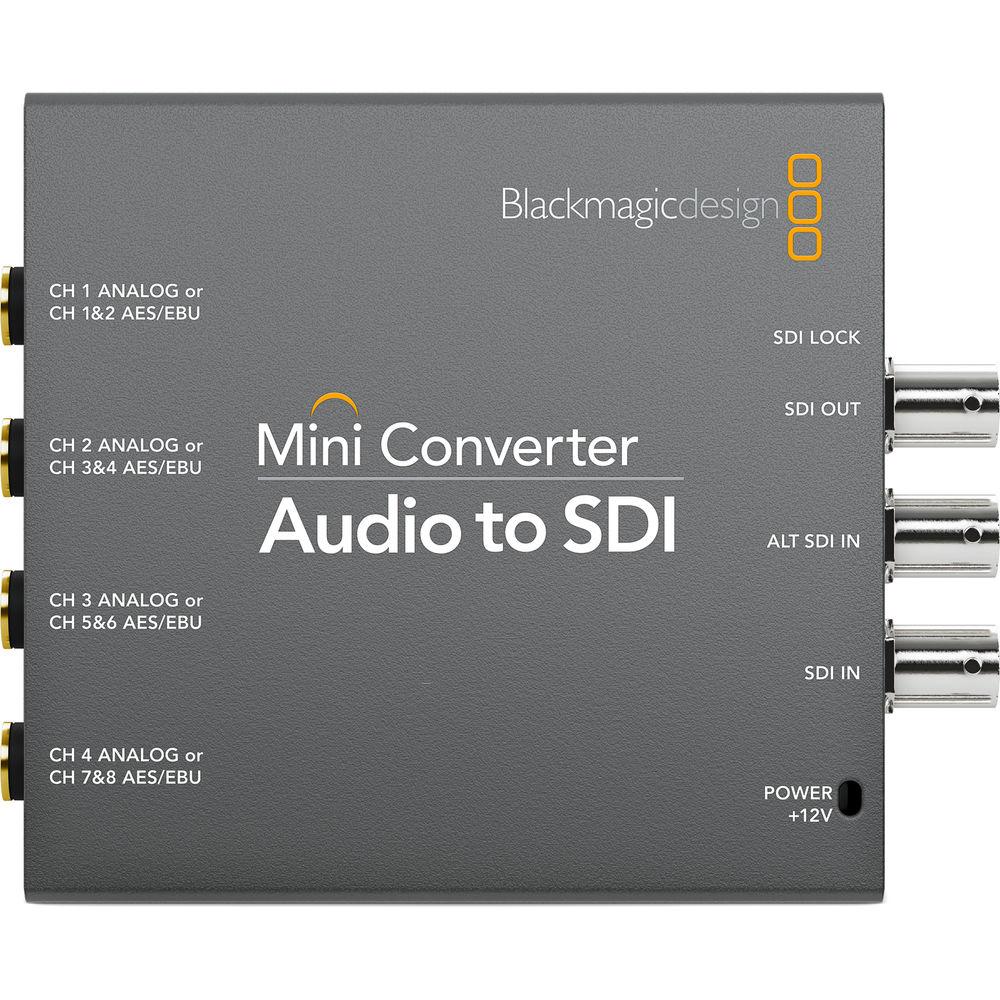

Blackmagic CONVMCAUDS2 Mini Converter - Audio To SDI 2
Description
Embed audio into any SDI source in SD and HD formats up to 1080p60! Audio is input as balanced analog or AES/EBU using ¼" connectors from equipment such as mixers and analog decks. Mini Converter Audio to SDI is the ideal SD/HD SDI audio embedder for when you don’t need the cost of theUltra HD model!
Connections
SDI Video Input: Switchable between SD, HD, and3G-SDI.
SDI Video Output: Automatically matches the SD, HD, and3G-SDI video input.
Analog Audio: 4 channels of professional balanced analog audio with standard 1/4 inchjack connections.
AES/EBU Digital Audio: 8 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input: Automatically switches over if main SDI input is lost.
Multi Rate Support: Auto detection of SD, HD, 2K or 3G-SDI.
Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
Reclocking: Yes
Standards
SDI Compliance
SMPTE 292M, SMPTE 259M,
SMPTE 296M, SMPTE 372M,
SMPTE 424M‐B, SMPTE 425M,
ITU‐R BT.656, ITU-R BT.601
SDI Video Rates
SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling
4:2:2, 4:4:4
SDI Audio Sampling
Television standard sample rate of48 kHz and 24 bit.
SDI Color Precision
4:2:2, 4:4:4
SDI Color Space
YUV, RGB
SDI Auto Switching
Automatically selects between SD, HD, and 3G-SDI.
SDI Format Support
525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.
