Chamsys MagicQ Mini Connect

SKU: CS-0200-027
$2,249.00 $3,239.50
Low Stock: 1 - Contact us to confirm!
NOTIFY ME WHEN BACK IN STOCK
By Chamsys
Description

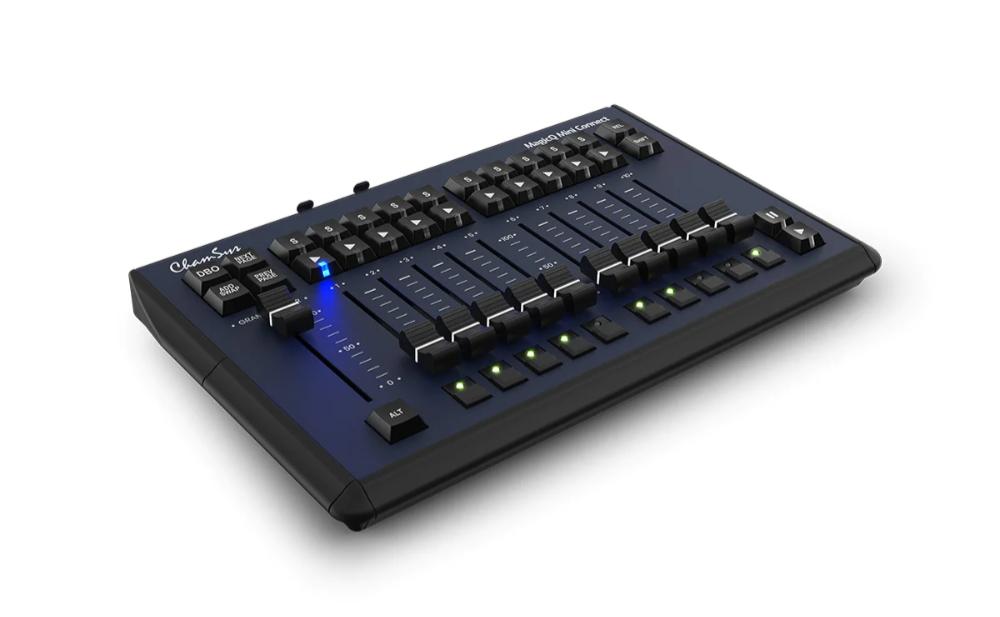

The MagicQ Compact Mini Connect is a highly portable USB-powered control surface that couples physical playback with the power of MagicQ software.

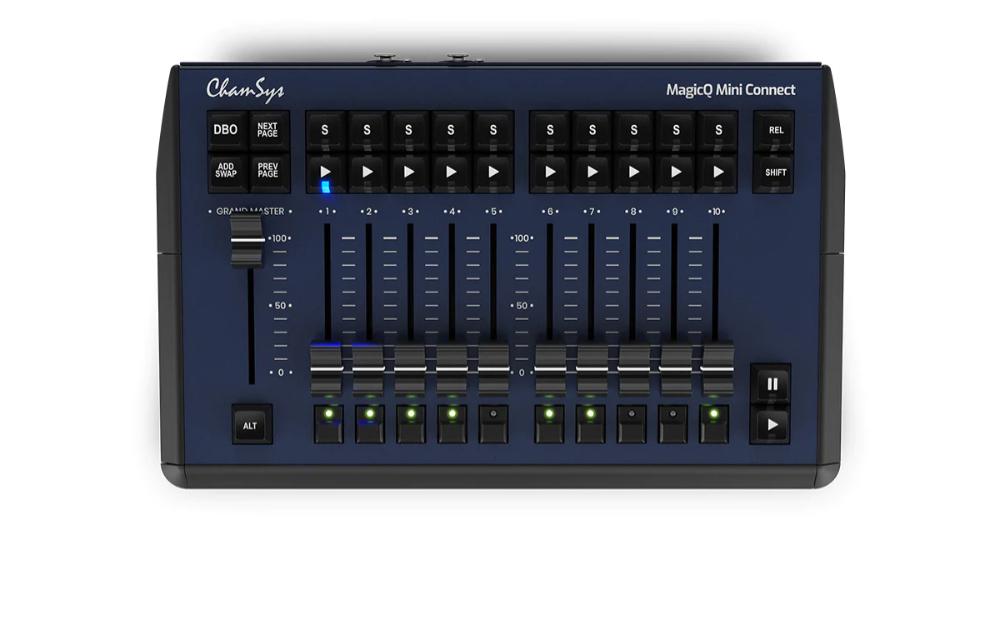

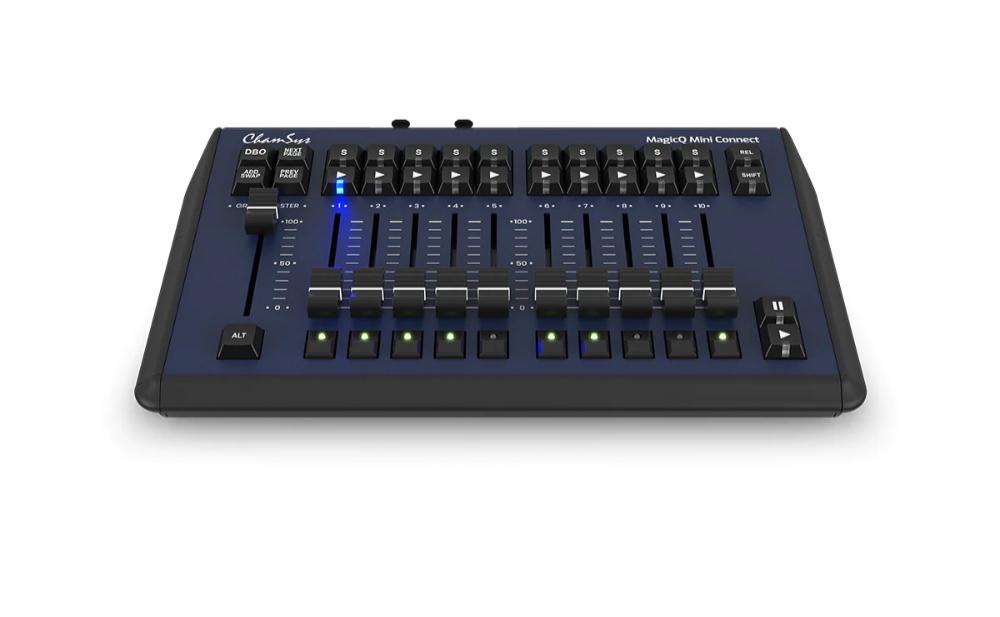

Attached to a Windows, macOS or Linux system running MagicQ software, the Compact Mini Connect turns your computer into a powerful lighting, media and LED control center. Live show controls include 10 playback faders, Flash, Go and Select buttons, and a dedicated Grand Master fader.

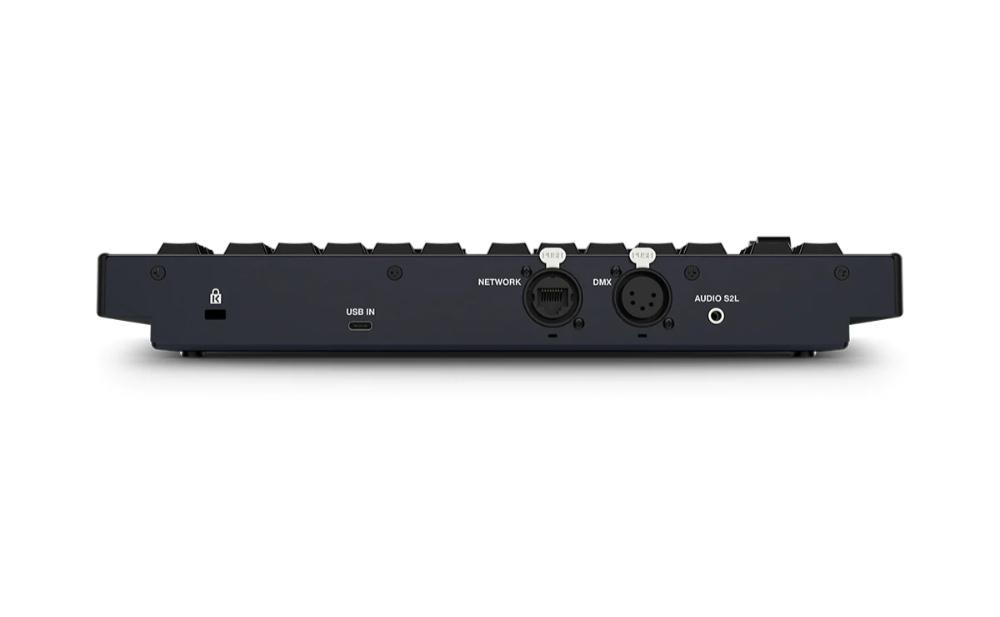

The Compact Mini Connect is ideal for theatres, venues, clubs and installations. With 1 direct DMX512 output and an onboard network port that sends up to 64 universes of ArtNet and sACN, the Compact Mini Connect is also capable of commanding large shows as well as offering a cost-effective backup solution for users of larger MagicQ consoles.

Hardware Specifications:

  • Fader Playbacks: 10
  • Direct DMX Outputs: 1
  • Network Ports: 1
  • Kensington Security Lock Fixing: 1
  • USB Connector: Yes - USB-C
  • USB Powered: Yes
  • Lightweight Durable Case Included

Software Specifications:

  • Universes: 64
  • Max Number of DMX Channels: 32768
  • Max Number of Fixtures Supported: 32768
  • Max Number of Cues: 5000
  • Max Number of Cue Stacks: 2000
  • Max Number of Groups: 5000
  • Max Number of Palettes: 4096

Number of Media Server Layers Supported: 50 (Each different content)
