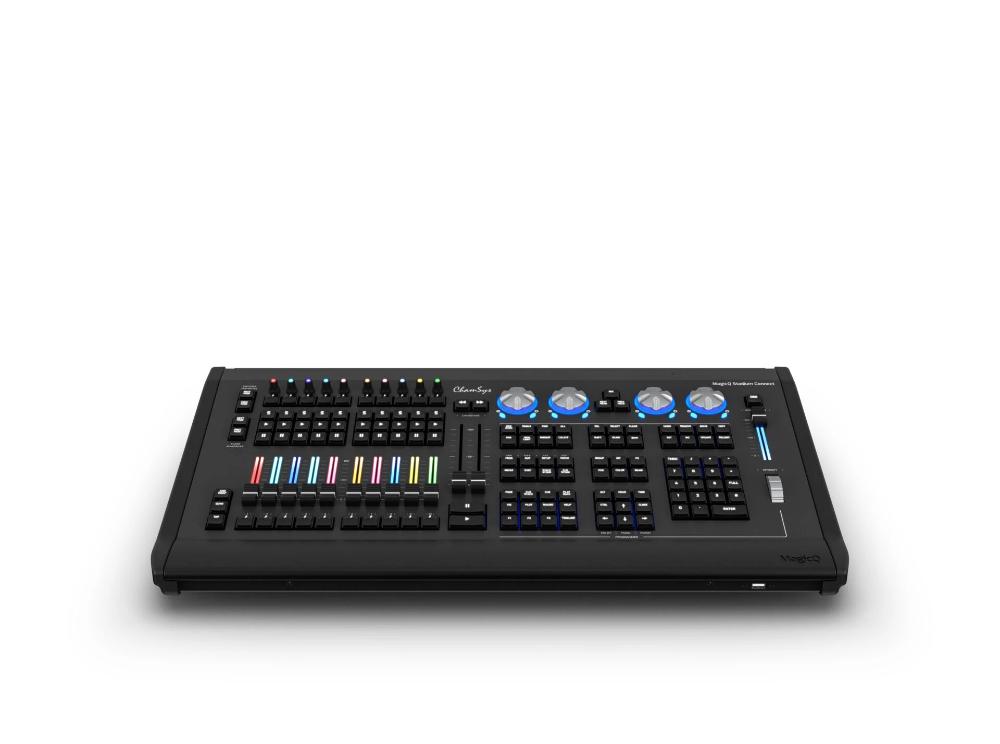

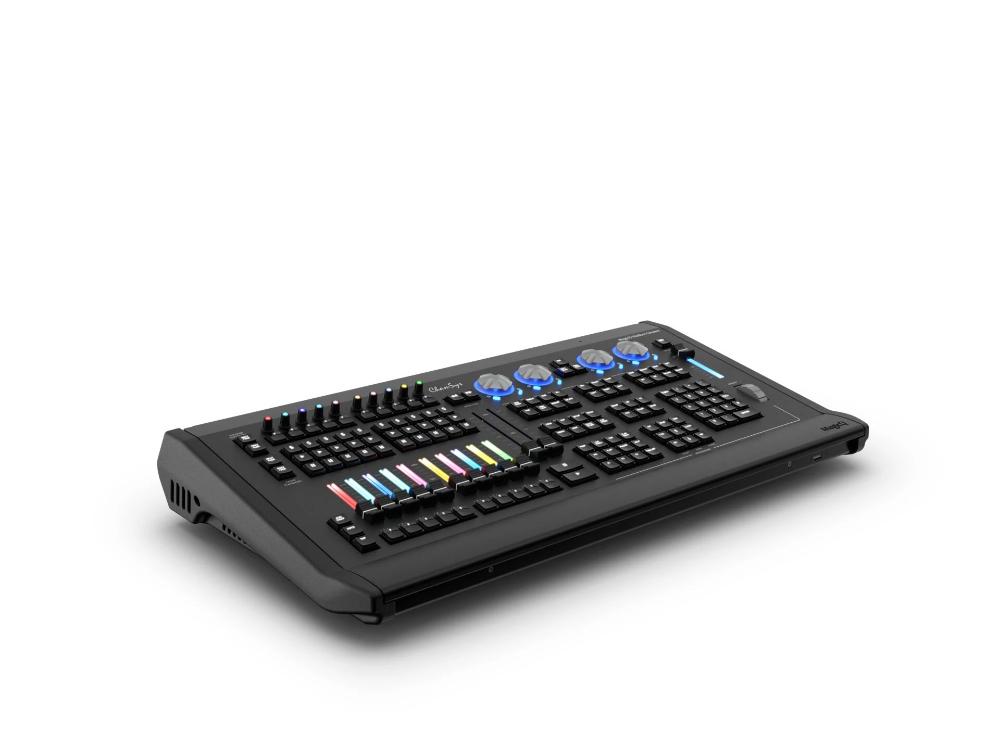

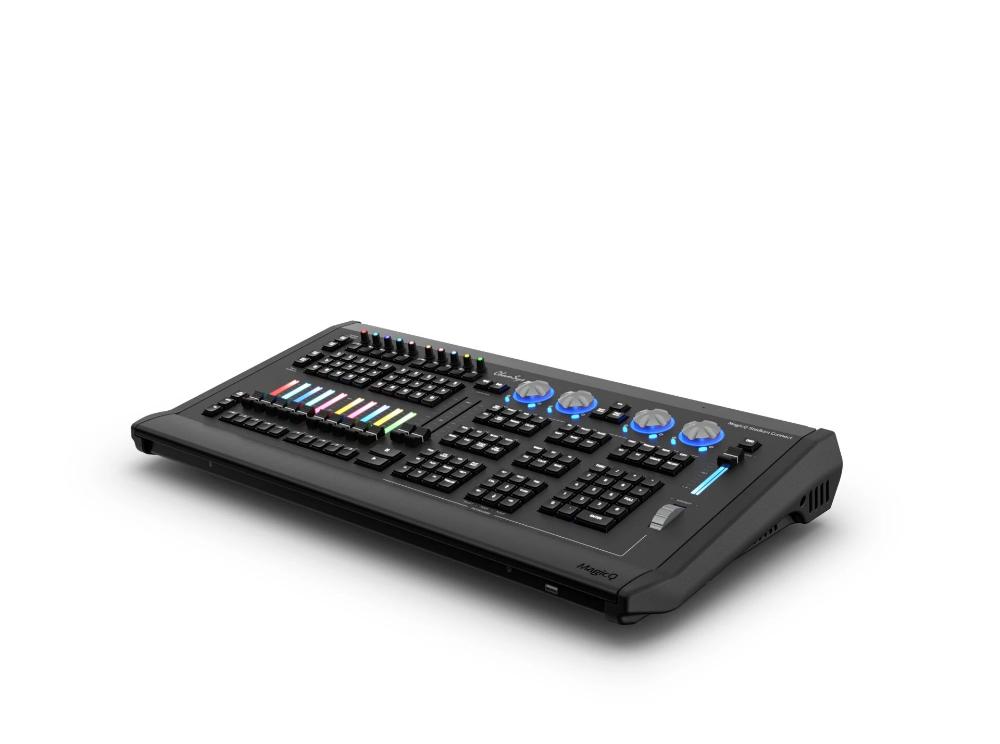

Chamsys MagicQ Stadium Connect Console

SKU: CS-0200-025
$13,999.00 $19,172.45
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By Chamsys
Description

MagicQ Stadium Connect is a PC-based programming interface with the same programming keyset and dual crossfaders as the MQ250M and MQ500M. Outputting 64 universes directly from the Connect, and the ability to pre-vis up to 256 universes, MagicQ Stadium Connect is the ultimate solution for complete control on-the-go. With 10 backlit and motorised faders and 10 backlit playback encoders with executors, the MagicQ Stadium Connect provides plenty of programmable real estate for your show.

Overview:

  • 10 fully motorised fader playbacks
  • 10 encoder playbacks
  • RGB illumination of playbacks
  • Backlit buttons
  • 64 universes direct from MagicQ for Art-net/sACN output
  • 256 visualisation universes for pre-programming
  • Network port acts as network interface for PC
  • Dual 100mm Manual Cross Faders
  • 2 dedicated high power USBs for charging of phones/tablets

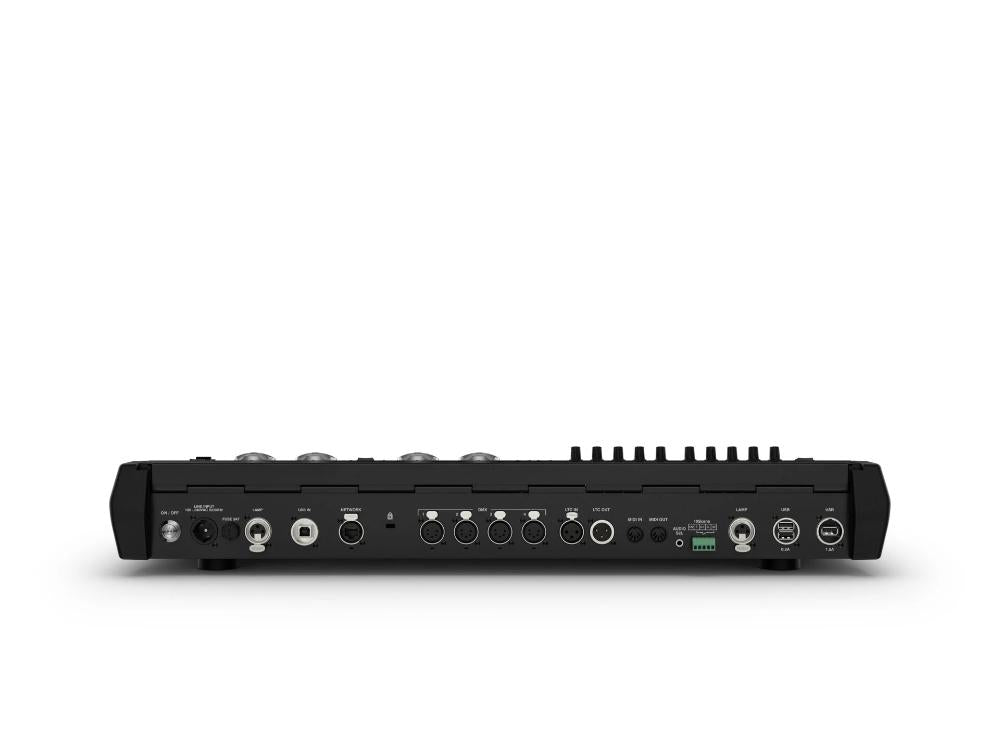

Hardware Specifications:

  • Direct DMX Outputs: 4
  • Motorised Playbacks: 10
  • Encoder Playbacks: 10
  • Total no of Playbacks: 20 (10+10)
  • Dual Cross Faders: Yes
  • Attribute Encoders: 4
  • Backlit Keys: Yes
  • Illuminated Playback/Encoders with RGB control: Yes
  • Intensity Wheel: 1
  • Network Ports: 1
  • USB Ports : 4
  • Audio Input Sound to Light: Yes
  • MIDI Ports 1 in and out: Yes
  • LTC Timecode Ports in and out: Yes
  • 10Scene Port: 1
  • Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:

  • Universes direct from software (via Artnet/sACN/Pathport): 64
  • Visualisation Universes: 256
  • Max Number of DMX Channels: 32,768
  • Max Number of Fixtures Supported: 32,768
  • Max Number of Cues: 5000
  • Max Number of Cue Stacks: 2000
  • Max Number of Groups: 5000
  • Max Number of Palettes: 4096
  • Number of Media Server Layers Supported: 50 (each different content)

Included Accessories:

  • Dual Colour Desk lights: 2
  • Dust cover: 1
  • Neutrik powerCON TRUE1 Power Cable: 1
  • USB Cable: 1

Stadium Connect Weights and Dimensions:

  • Width: 680mm (26.8")
  • Depth: 364mm (14.3")
  • Height: 85mm (3.3")
  • Weight: 8.7kg (19.1bs)
