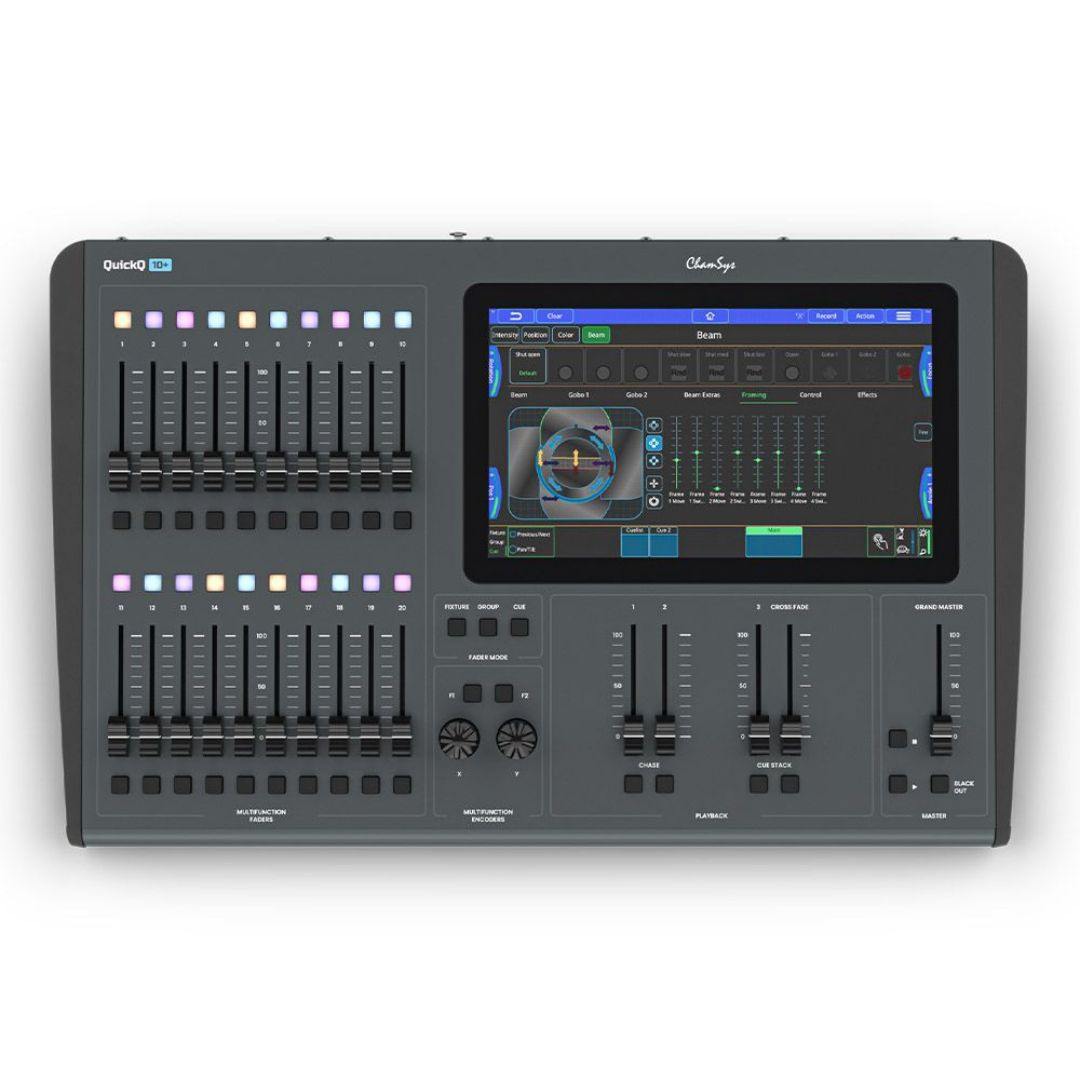

Chamsys QuickQ 10+ 1-Universe Compact Lighting Console
SKU: CS100715
Out of Stock, contact for ETA
By Chamsys
Description
The Chamsys QuickQ 10+ is a lighting control console for dimmer and LED colour mixing fixtures. It provides one universe of control through direct DMX or Art-Net/sACN, with 512 maximum DMX channels and support for up to 512 fixtures. The console combines an 11.6” multi-touch display, 20 multifunction fixture faders, two multifunction encoders and simple cue and chase playback controls. In-built Wi-Fi supports connection to the remote app on iOS and Android devices, while RDM Autopatch and a fixture library of over 60,000 fixture files support show setup. This is a great compact LX console.
- 1 Universe output via direct DMX or Art-Net/sACN
- In-Built Wi-Fi for easy connection to the remote app on iOS & Android devices
- Inbuilt 11.6” Multi-touch Display
- Dual Network ports allowing separation of Lighting and Control Data
- RDM Autopatch for fast show patching
- Fixture library of over 60,000 fixture files
| Universes supported | 1 |
| Direct DMX Outputs 5-Pin XLR | 1 |
| Master Playback Faders | 2 Chase, 1 Cue Stack, 1 Crossfader |
| Multifunction Fixture Faders | 20 |
| Bump Buttons | Yes |
| Attribute Encoders | 0 |
| Multifunction Encoders | 2 (Colour/Intensity control options) |
| Inbuilt 11.6” Multi-touch Display | Yes |
| External Monitor | 1920 x 1080 HDMI |
| Inbuilt Wi-Fi | Yes |
| Network Port | 2 |
| USB Ports | 2 |
| Audio Input | 1 |
| Audio Output | 1 |
| MIDI Ports in/out | No |
| Max Power Consumption (mains) | 60w |
| Max Number of DMX Channels | 512 |
| Max Number of Fixtures Supported | 512 |
| Max Number of Cue Stacks | 1 |
| Max Number of Chases | 2 |
| Midi & Midi Timecode Supported | No |
| OSC Supported | Yes |
| RDM Autopatch for fast show patching | Yes |
| Fixture library of over 60,000 fixture files | Yes |
| Built in FX generator | Yes |
| Colour picker and Gel inbuilt Gel library | Yes |
| Offline designer software available for Windows and Mac | Yes |
| Included Accessories | 1x USB Desk light 1x Dust cover 1x Tablet stand 1x 12V power supply 1x IEC power cable |
| Width | 570mm |
| Depth | 350mm |
| Height | 106mm |
| Weight | 5.2kg |
