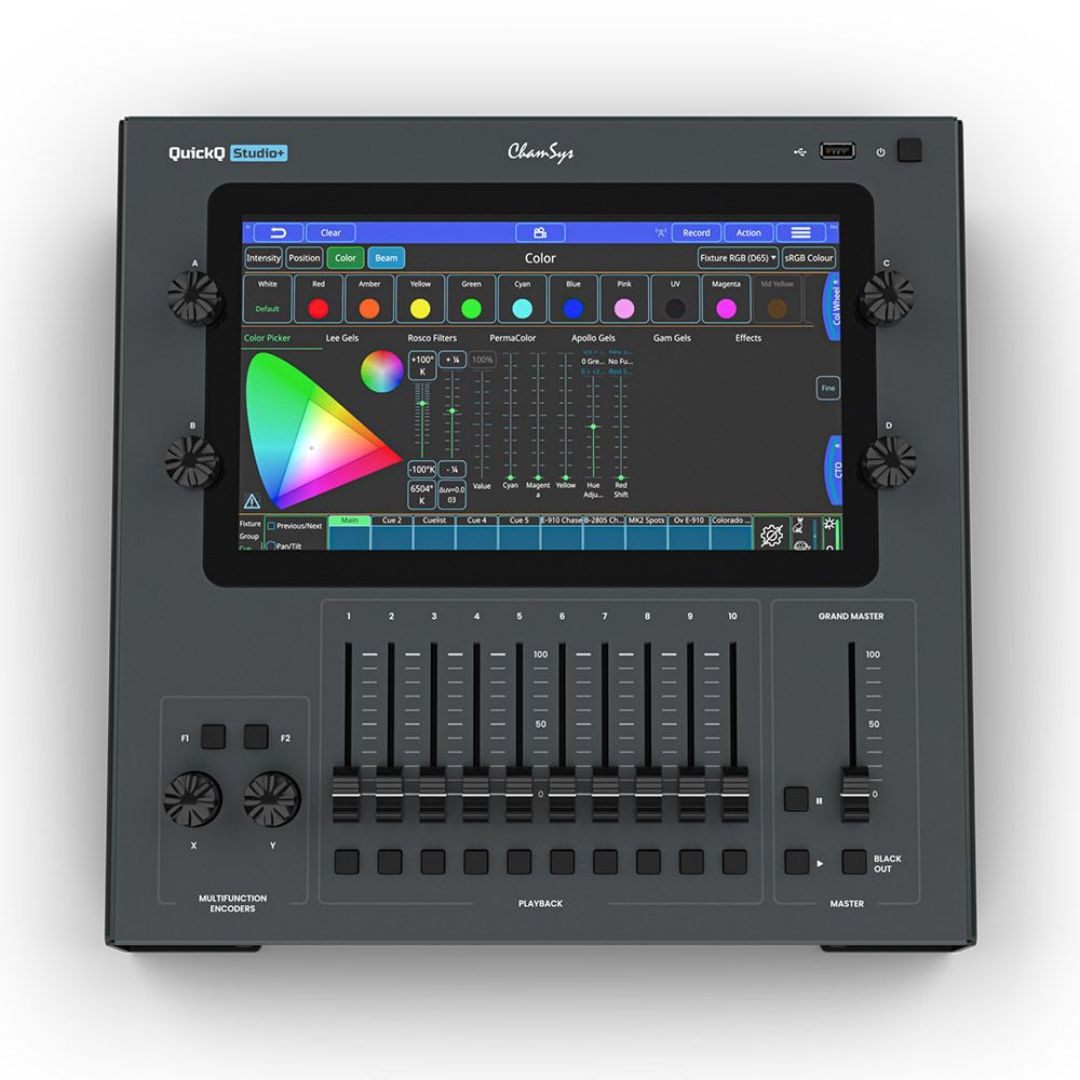

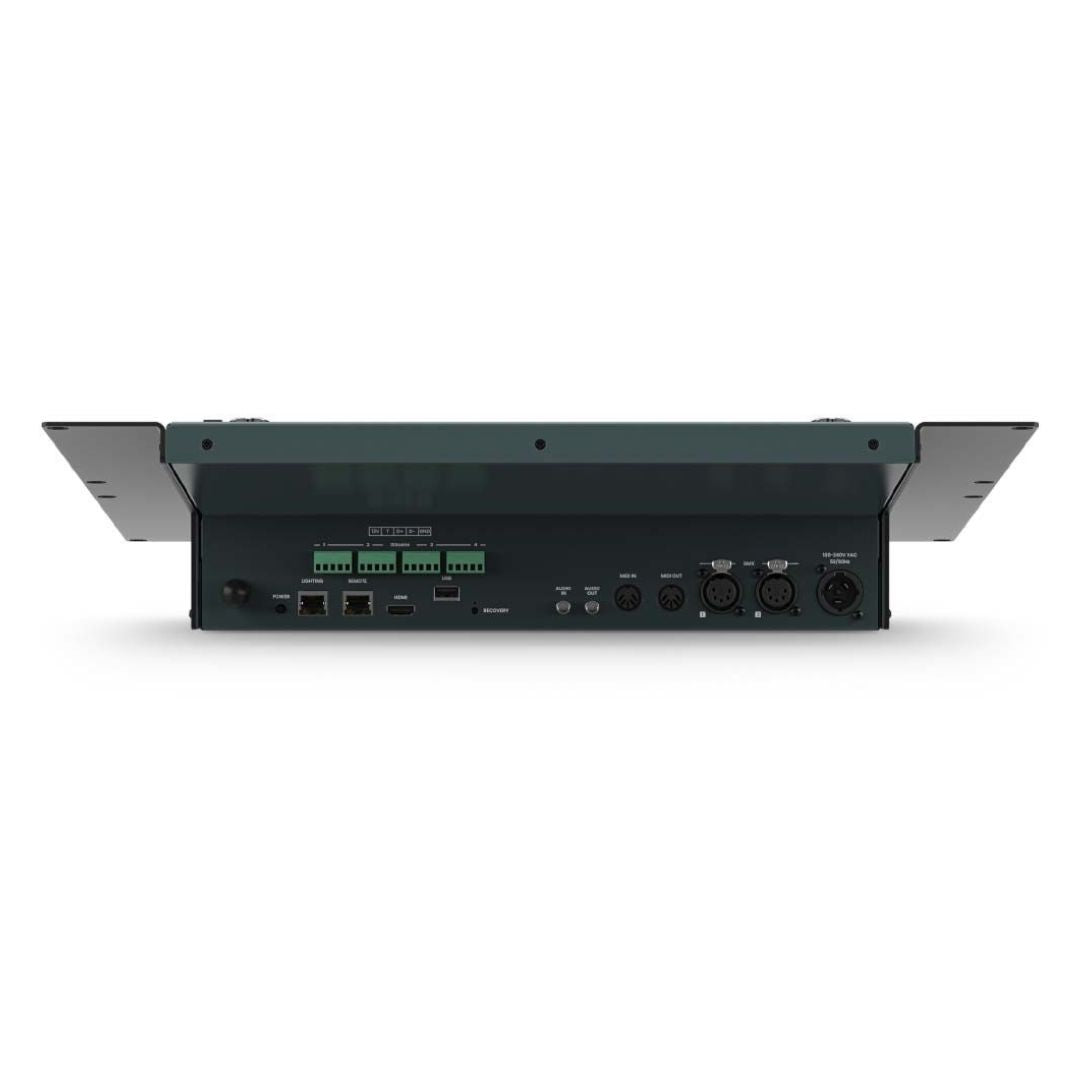

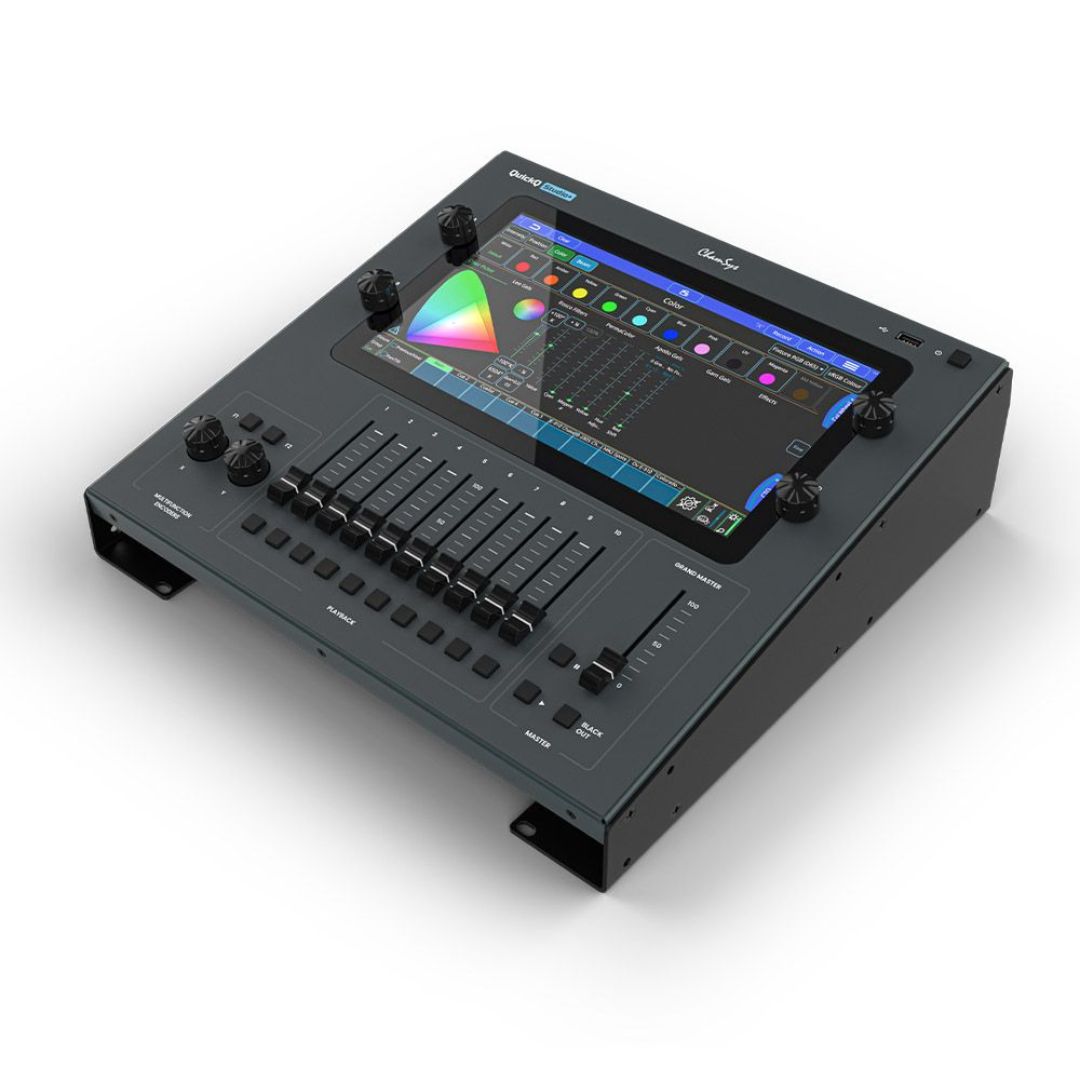

Chamsys QuickQ Studio+ 4-Universe Studio Lighting Console
SKU: CS100705
Out of Stock, contact for ETA
By Chamsys
Description
The Chamsys QuickQ Studio+ is a lighting control console for installations, studios, houses of worship, and education spaces. It provides four universes via Art-Net/sACN and two direct DMX outputs, with RDM-enabled automatic detection and patching. The console has a smartphone-style interface on an inbuilt 11.6” multi-touch display, plus playback faders, attribute encoders, and multifunction controls. Reversible rack ears support 8U rack mounting or table-top use, while dual network ports, inbuilt Wi-Fi, MIDI, audio, scene trigger ports, and external monitor support provide additional system connections. Need a rack mount LX console? The Studio+ is the easy choice.
- 4 Universe output via Art-Net/sACN
- 2 RDM Enabled DMX Outputs

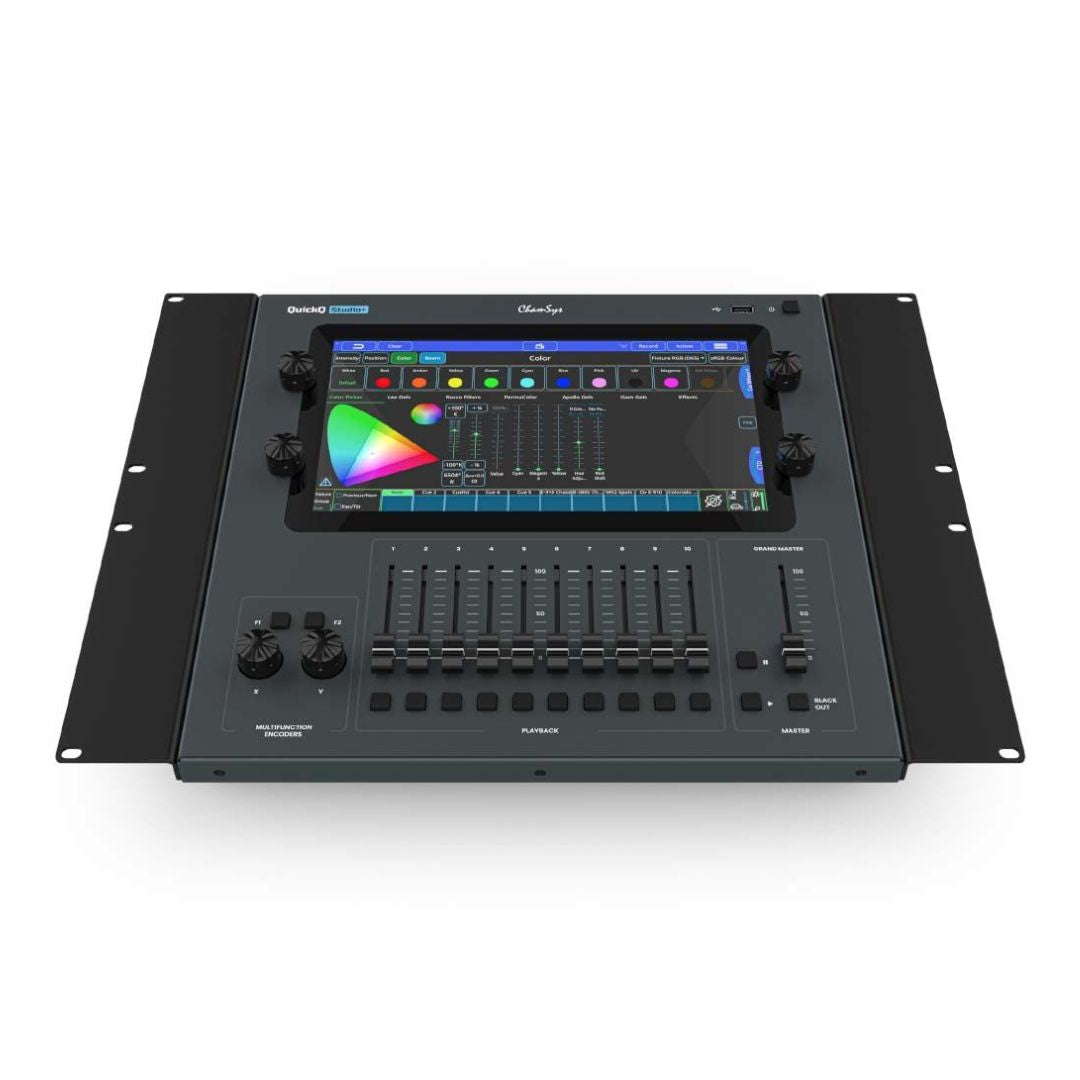

- 19″ Rack (8U) mountable Console with reversible ears to make into desktop console
- User Interface Modelled on smartphone icon interfaces for ease of use
- In-Built Wi-Fi for easy connection to the remote app on iOS & Android devices
- Intuitive interface allowing simple control of all fixture attributes
- Dual Network ports allowing separation of Lighting and Control Data
| Rack Size | 8U |
| Universes supported | 4 |
| Direct DMX Outputs 5-Pin XLR | 2 |
| Master Playback Faders | 10 |
| Bump Buttons | Yes |
| Attribute Encoders | 4 |
| Multifunction Encoders | 2 (Colour/Intensity/Position control options) |
| Inbuilt 11.6” Multi-touch Display | Yes |
| External Monitor | 1920 x 1080 HDMI |
| Inbuilt Wi-Fi | Yes |
| Network Port | 2 |
| USB Ports | 2 |
| Audio Input | 1 |
| Audio Output | 1 |
| 10Scene Ports | 4 |
| MIDI Ports in/out | Yes |
| Max Power Consumption (mains) | 60w |
| Max Number of DMX Channels | 2048 |
| Max Number of Fixtures Supported | 2048 |
| Max Number of Cue Stacks | 2000 |
| Max Number of Chases | 2000 |
| Midi & Midi Timecode Supported | Yes |
| OSC Supported | Yes |
| RDM Autopatch for fast show patching | Yes |
| Fixture library of over 60,000 fixture files | Yes |
| Built in FX generator | Yes |
| Colour picker and Gel inbuilt Gel library | Yes |
| Offline designer software available for Windows and Mac | Yes |
| Included Accessories | 1x USB Desk light 1x Dust cover 1x True1 power cable |
| Width (Rack Mount) | 480mm |
| Depth (Rack Mount) | 355mm |
| Height (Rack Mount) | 115mm |
| Weight (Rack Mount) | 4.5kg |
| Width (Table Top) | 365mm |
| Depth (Table Top) | 355mm |
| Height (Table Top) | 115mm |
| Weight (Table Top) | 4.5kg |
