DiGiCo S31 Digital Mixing Console

SKU: XS31WS
$19,979.00 $22,200.00
Out of Stock, contact for ETA
By DiGiCo
Minus Plus
Description

Take DiGiCo's S21, give it a third touchscreen and more faders, and you have the S31. A robust ARM quad-core RISC processor puts an abundance of power under the hood. The touchscreens supply intuitive tactile control and instant visual feedback. 24 mic/line inputs and 12 analog outputs give you enough I/O to get started, while dual DMI option card slots provide room for expansion. The S31 delivers 24-bit/96kHz digital audio for world-class sound and comes with an arsenal of digital effects. A built-in 48-channel USB interface makes capturing any performance easy. Featuring an aerospace-graded aluminum extrusion and rugged polycarbonate overlay, the DiGiCo S31 is a full-featured digital mixer that's built for the road.

Touchscreens provide intuitive tactile control

The S31 employs three state-of-the-art P-CAP touchscreens to provide instantaneous feedback and control on 30 simultaneous channels. And it's as easy to use as a smartphone. If you can drag, swipe, and drop, you can use the S31. Creating custom fader layouts is as simple as moving channels and buses across a touchscreen's surface. An interactive meter supplies you with at-a-glance access to information, while helpful color coding identifies channels, auxes, and groups. Visual feedback is reinforced with the encoder rings' HTL functionality, and anything not in use is automatically grayed out so you won't get distracted.

Having three touchscreens gives you lots of visual real estate. You can view multiple channels simultaneously, or use one screen as a setup or master screen while working on the others. To tweak parameters on the S31's touchscreens, you use familiar pinch, touch, and drag gestures. Or if you want a more hands-on feeling, grab a rotary encoder to fine-tune your settings. Despite its drag-and-drop simplicity, the S31 gives you plenty of opportunities for customization. You can modify where channel banks are located, and mix and match any channel, aux, group, control group, or matrix within a bank.

Ultra-fast processing in a surprisingly compact unit

The DiGiCo S31 fits a whole lot of power into a surprisingly compact unit. A powerful quad-core SoC (System on Chip), associated with high-bandwidth memory, connects the S31 to a low-power 484-ball array FPGA. This then couples with fourth-generation control SHARC DSP. The SHARC processor not only controls the S31's FPGA, it also frees up processing power for future expansion. Beyond that, the S31 boasts low power consumption, despite its ultra-fast processing. At Sweetwater, we're shocked by the level of processing power going on under the S31's rugged polycarbonate surface.

Loads of expandable I/O

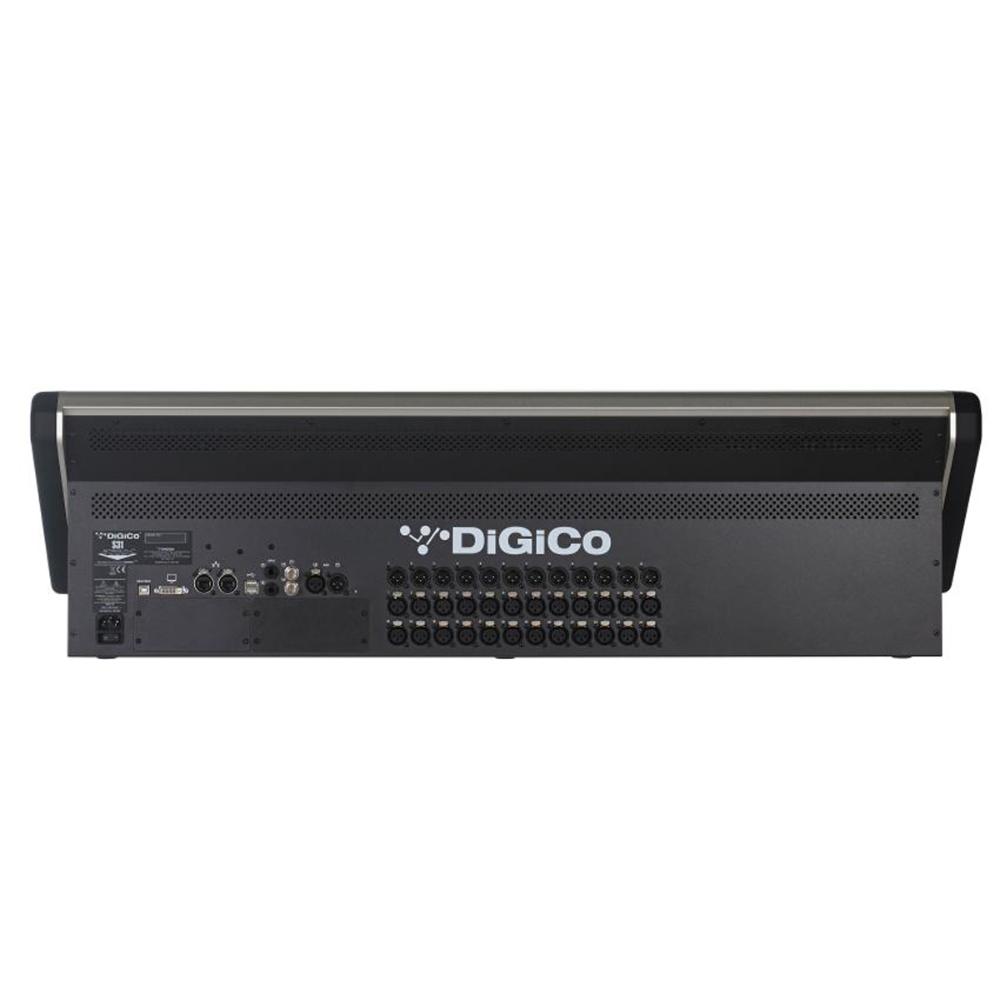

The S31 is loaded with I/O. It all starts with 24 mic/line inputs and 12 analog outputs. You also get two channels of AES I/O, word clock I/O, one GPI/GPO, a DVI output, and two Ethernet ports for networking. Beyond that, dual DMI (DiGiCo Multichannel Interface) option card slots supply you with plenty of room for expansion (modules sold separately). The S31 can accommodate just about everything — analog, MADI, Dante, Waves SoundGrid, Calrec Hydra2, and more — all your bases are covered.

Available DMI modules:

  • DMI-MIC
  • DMI-DANTE
  • DMI-HYDRA 2
  • DMI-MADI-B
  • DMI-MADI-C
  • DMI-AVIOM
  • DMI-ADC
  • DMI-AES
  • DMI-DAC
  • DMI-SOUNDGRID
Expansion modules sold separately.

DiGiCo S31 Features:

  • 24 mic/line inputs and 12 analog outputs
  • 2-channel AES I/O, word clock I/O, GPI/GPO, DVI output, and 2 Ethernet ports
  • Dual DMI (DiGiCo Multichannel Interface) option card slots for expanding your I/O (modules sold separately)
  • 48 Flexi channels can be configured as mono or stereo without reducing channel count (equivalent of 96 DSP channels)
  • 16 Flexi mono/stereo aux/sub-group buses (equivalent of 32 DSP channels)
  • Stereo master bus (2), solo busses (2 stereo, 4 total), and 10 x 8 matrix (8)
  • 21 dynamic EQs, assignable DiGiTuBes, and assignable multiband compressors, plus 8 digital FX, and 16 assignable graphic EQs
  • 24-bit/96kHz native operation for world-class sound (can be set to 24-bit/48kHz)
  • 3 touchscreens provide instantaneous feedback and control on 30 simultaneous channels
  • Take command with intuitive pinch, touch, and drag gestures
  • 31 faders and 30 rotary encoders provide you with a more hands-on feeling
  • Interactive meter supplies you with at-a-glance access to information
  • Helpful color coding identifies channels, auxes, and groups
  • Encoder rings' HTL functionality reinforces visual feedback
  • Built-in 48-in/48-out USB audio interface
  • Wireless control via iPad and the S-Series app
  • Aerospace-graded aluminum extrusion and rugged polycarbonate overlay
