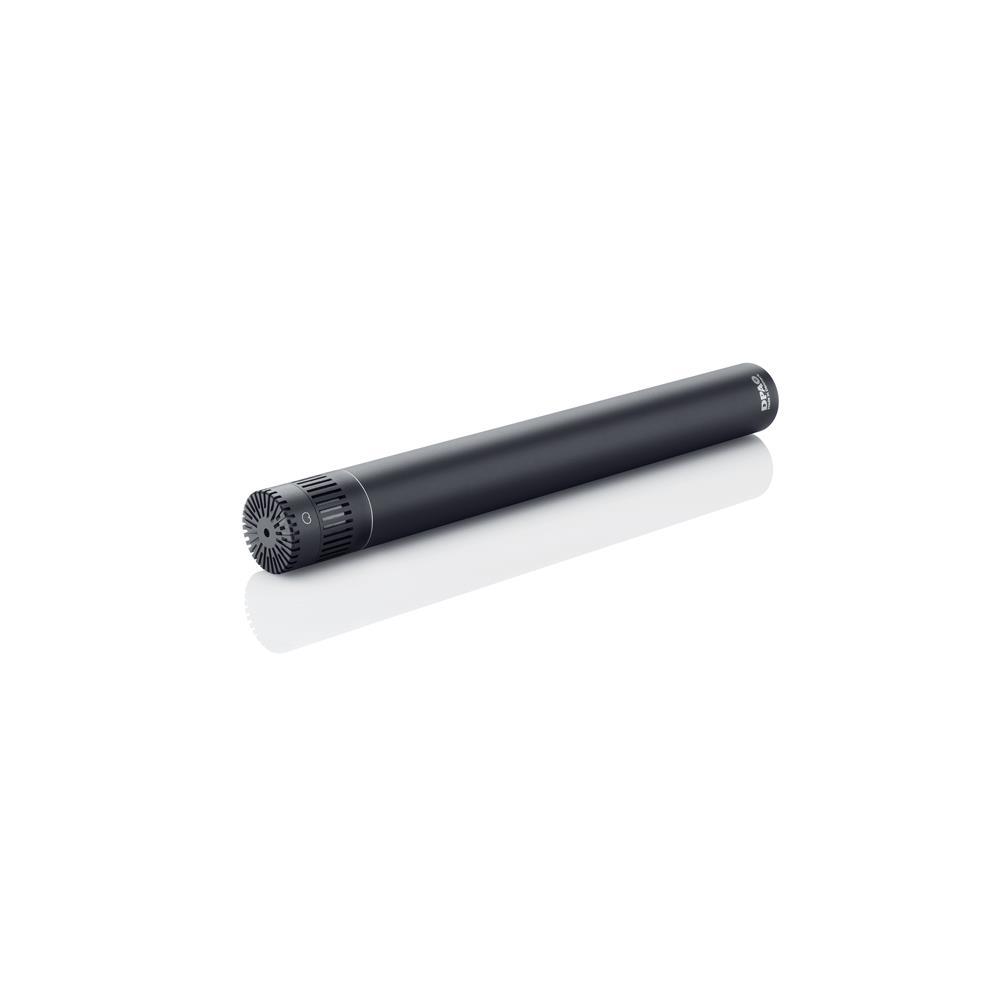

DPA 4011A d:dicate Cardioid Microphone
SKU: DP-4011A
Out of Stock, contact for ETA
By DPA
Description
This condenser microphone is renowned in recording studios and live applications around the world as an exceptional mic. State-of-the-art components have been carefully selected to provide optimal neutrality, accuracy and extremely low distortion.
- Ultra-compact spot or hanging mic
- Close-miking
- Great for high sound pressure levels
- Accurate sound
- Colorless sound
- Modular flexibility
SPECIFICATIONS
Directional characteristics: | Cardioid |
---|---|
Principle of operation: | Pressure gradient |
Cartridge type: | Pre-polarized condenser |
Frequency range: | 20 Hz to 20 kHz |
Frequency range, ±2 dB: | 40 Hz to 20 kHz |
Sensitivity, nominal ±2 dB at 1 kHz: | 10 mV/Pa; -40 dB re. 1 V/Pa |
Equivalent noise level, A-weighted, re. 20 µPa: | Typ. 18 dB(A) re. 20 µPa (max. 20 dB) |
Equivalent noise level, ITU-R BS.468-4: | Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting) |
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | Typ. 76 dB(A) |
Total Harmonic Distortion (THD): | < 1 % up to 139 dB SPL peak |
Minimum load impedance: | 2 kohm |
Dynamic range: | Typ. 121 dB |
Max. SPL, peak before clipping: | 159 dB |
Switchable attenuator: | 0 dB / -20 dB |
Output impedance: | < 200 ohm |
Cable drive capability: | 100 m (328 ft) |
Output balance principle: | Impedance balancing with Active Drive |
Common Mode Rejection Ratio (CMRR): | > 60 dB |
Power supply (for full specifications): | 48 V Phantom power (± 4 V) |
Current consumption: | 2.8 mA |
Connector: | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
Color: | Matte black |
Weight: | 158 g (5.6 oz) |
Microphone diameter: | 19 mm (0.75 in) |
Capsule diameter: | 19 mm (0.75 in) |
Length: | 170 mm (6.7 in) |
Output voltage, RMS: | > 5 V |
Polarity: | +V at Pin 2 for positive sound pressure |
Temperature range: | -40 °C to 45 °C (14 °F to 113 °F) |
Relative Humidity (RH): | Up to 90 % |
Matching tolerance: | ± 1 dB |
Phase deviation for kit: | < 10° |
