Event Lighting SPLIT124 1 In And 4 Out And 1 Through Optical DMX Splitter

SKU: SPLIT124
$219.00
Out of Stock, contact for ETA
By Event Lighting
NOTIFY ME WHEN BACK IN STOCK
Description
"

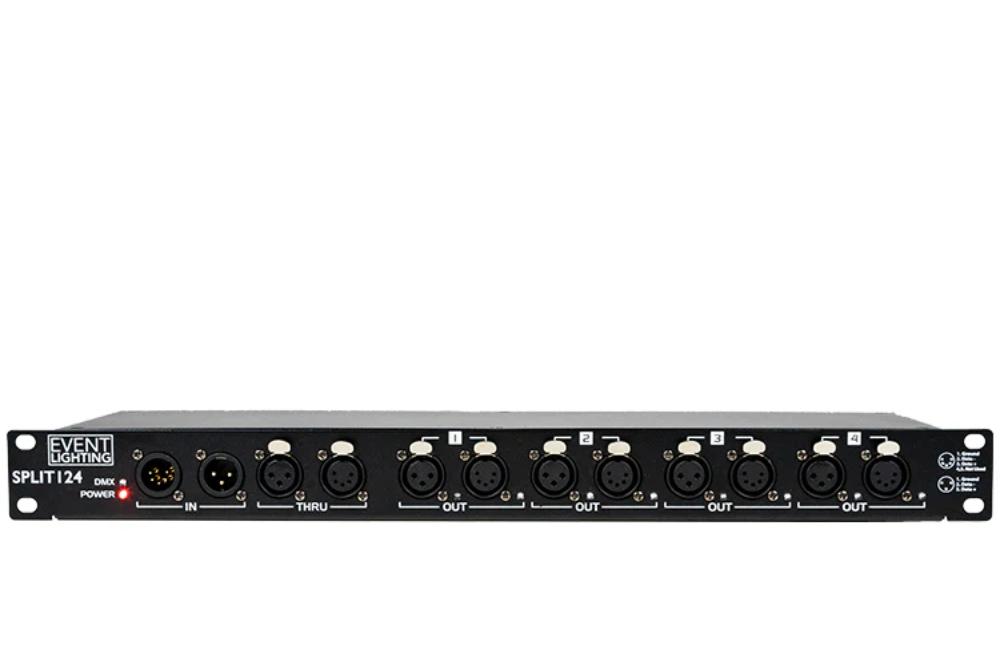

The SPLIT124 is a rack or truss mountable DMX splitter designed to re transmit and distribute a DMX signal into 4 outputs and one throughput. Both 3 and 5 pin XLR connectors are included for maximum flexibility when connecting DMX controlled devices. The optically isolated circuitry protects your controller from electrical surges while maintaining the integrity of the signal.

  • DMX512 Protocol
  • 4x Optically Isolated Outputs
  • Power: 100-240V AC, 50/60Hz
  • Power Consumption: 5W

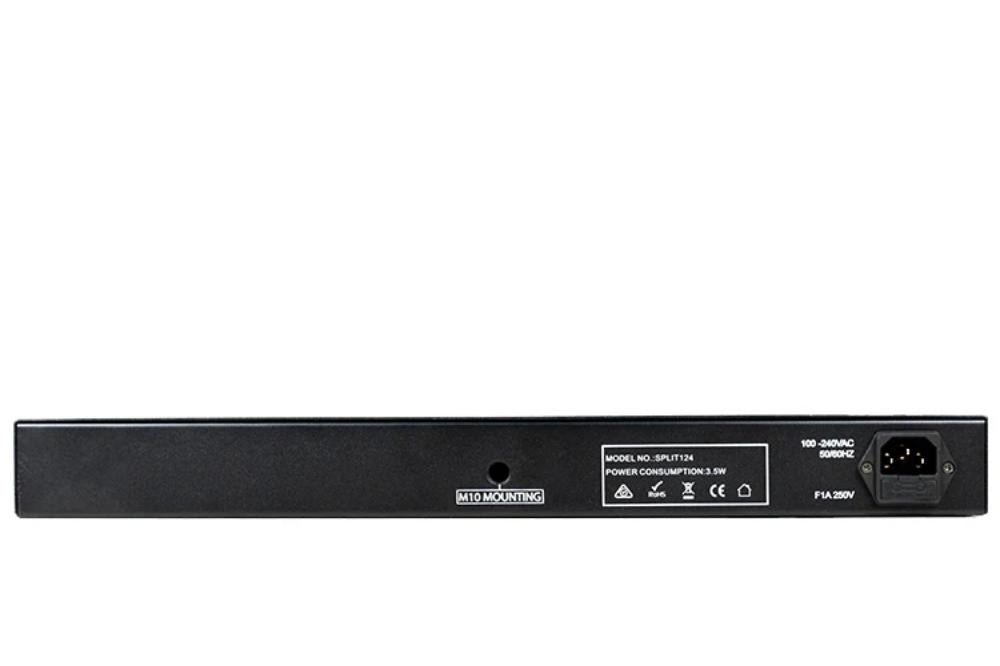

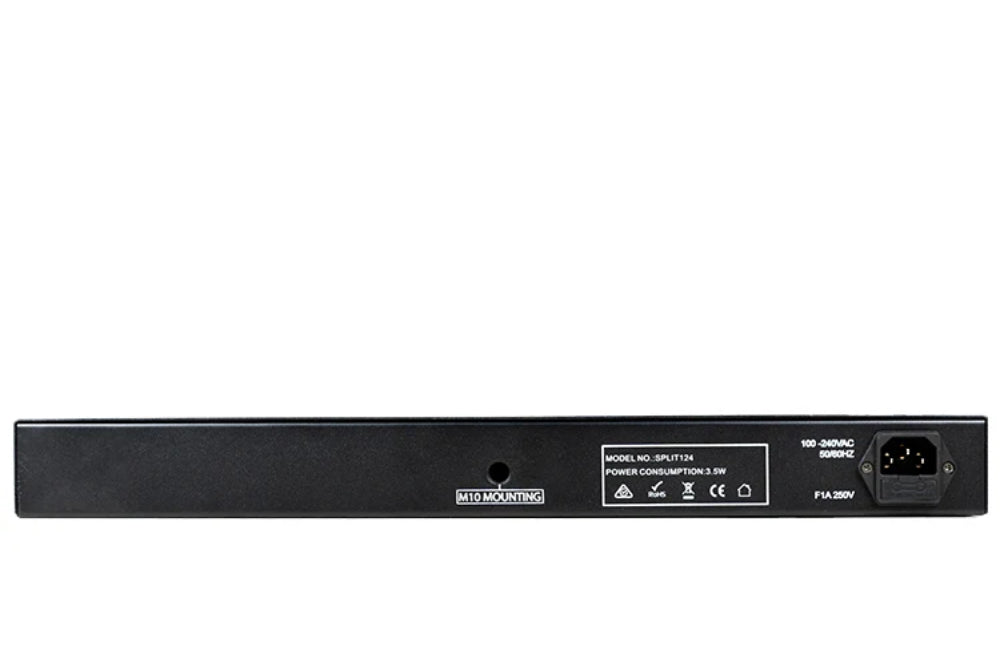

  • Power Connections: IEC input
  • Connections: 1 input, 4 outputs, 1 through, 3 and 5 pin XLR
  • Dimensions: 483 x 131 x 45mm (1U)
  • Weight: 2.6kg
"
