Event Lighting - SPLIT6 - Indoor 6-way 5-pin DMX Splitter
SKU: SPLIT6
Out of Stock, contact for ETA
Description

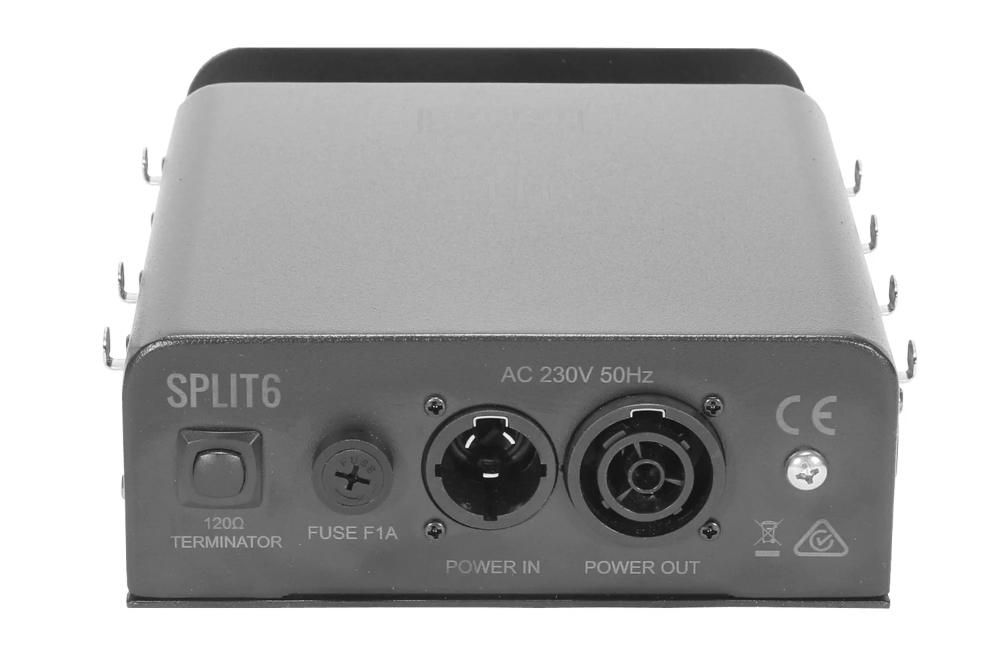

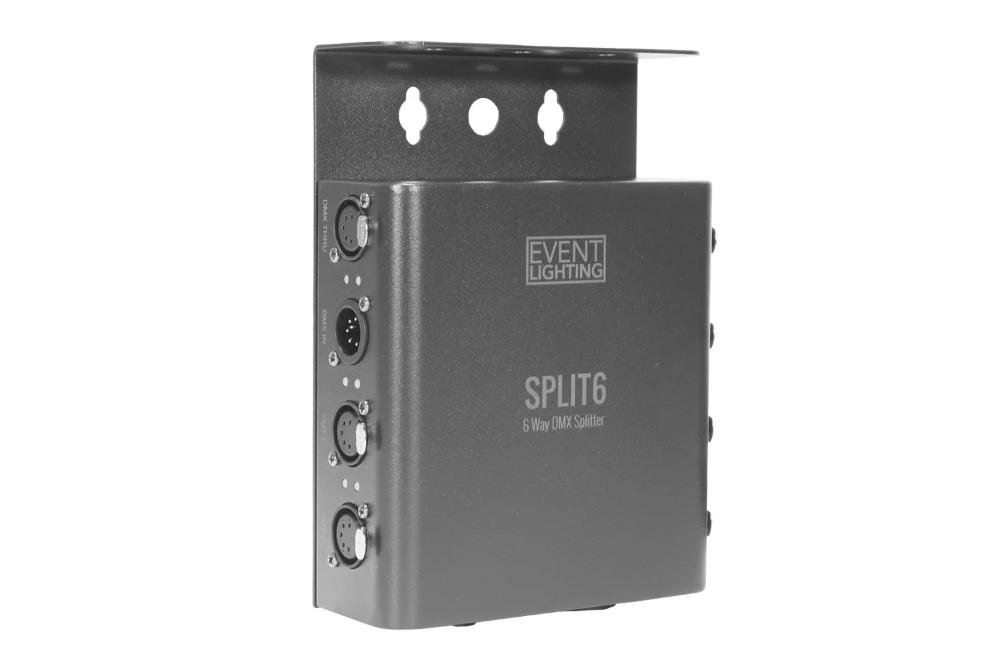

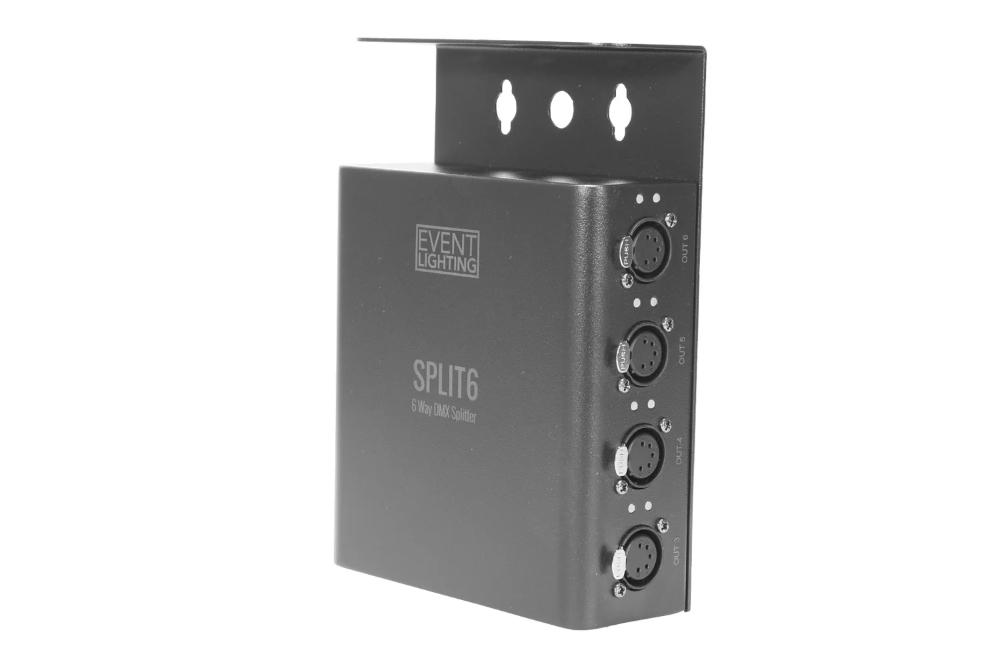

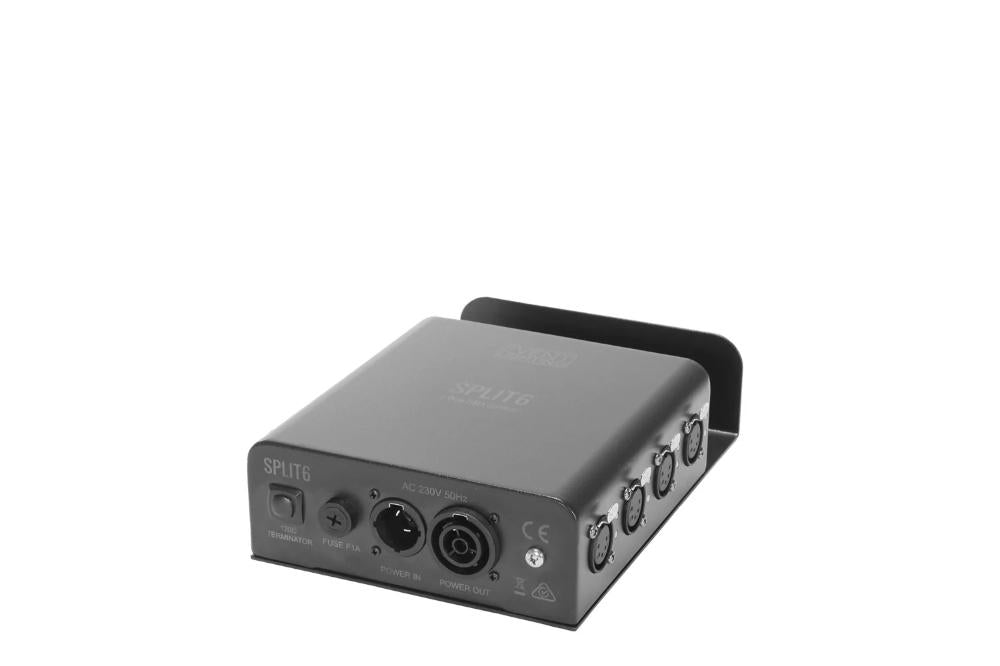

SPLIT6 - 6 way Indoor Splitter with 5 pin XLR in/thru and 6 outputs, true1 in/out and built in terminator
| Control: | |
| Signal connector: | 1 x 5Pin XLR in |
| 1 x 5Pin XLR thru | |
| 6 x 5Pin XLR splitter | |
| Indication: | Signal & Power LED for each output |
| Isolation: | 100% for all inputs and outputs |
| Power: | |
| Power connector: | Powercon In |
| Power input: | 240V |
| Power consumption: | 6W |
| Housing | |
| IP rate: | IP20 |
| Mounting: | Wall or Truss mounting |
| Dimensions: | 242 x 140 x 55 mm |
| Weight: | 1.4 kg |
