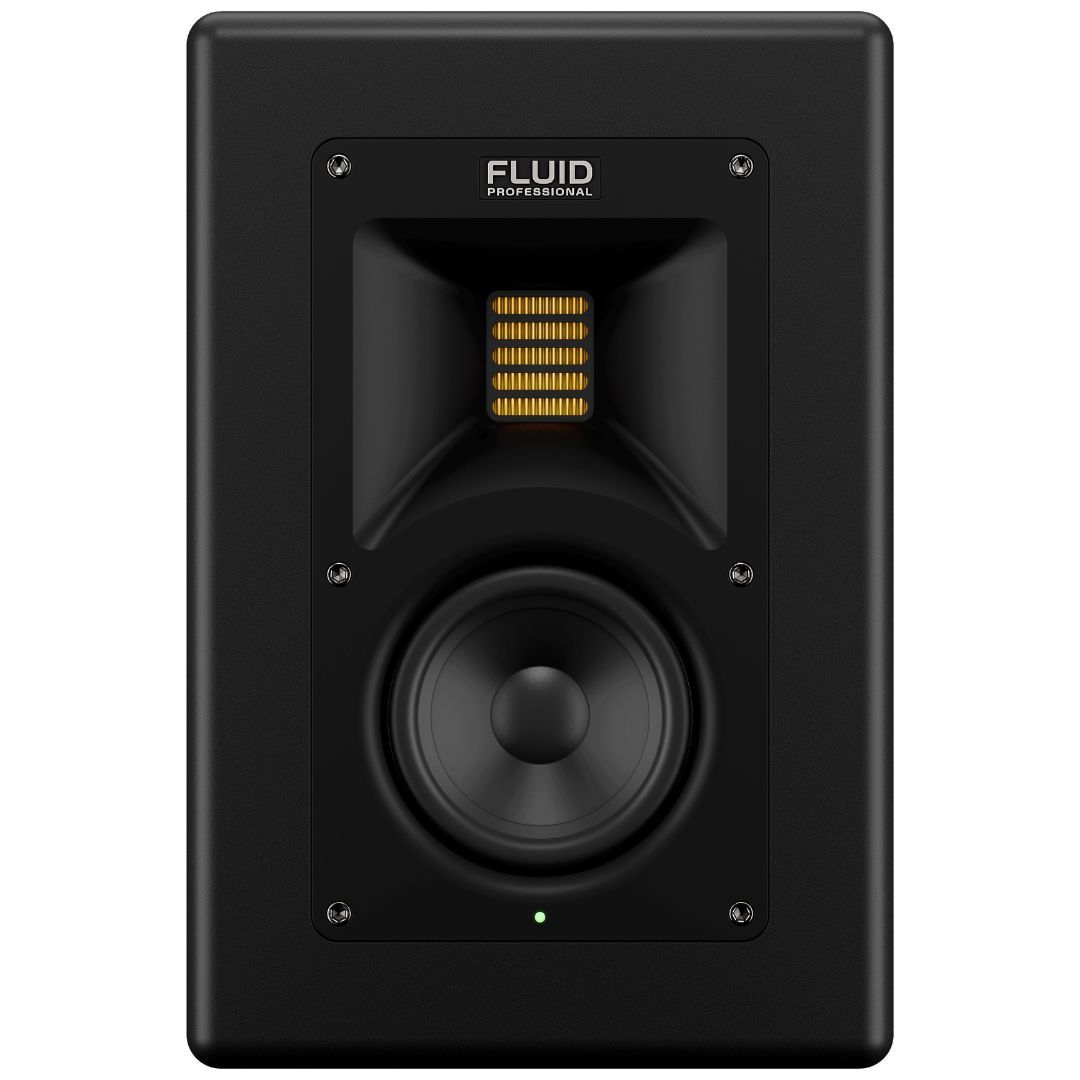

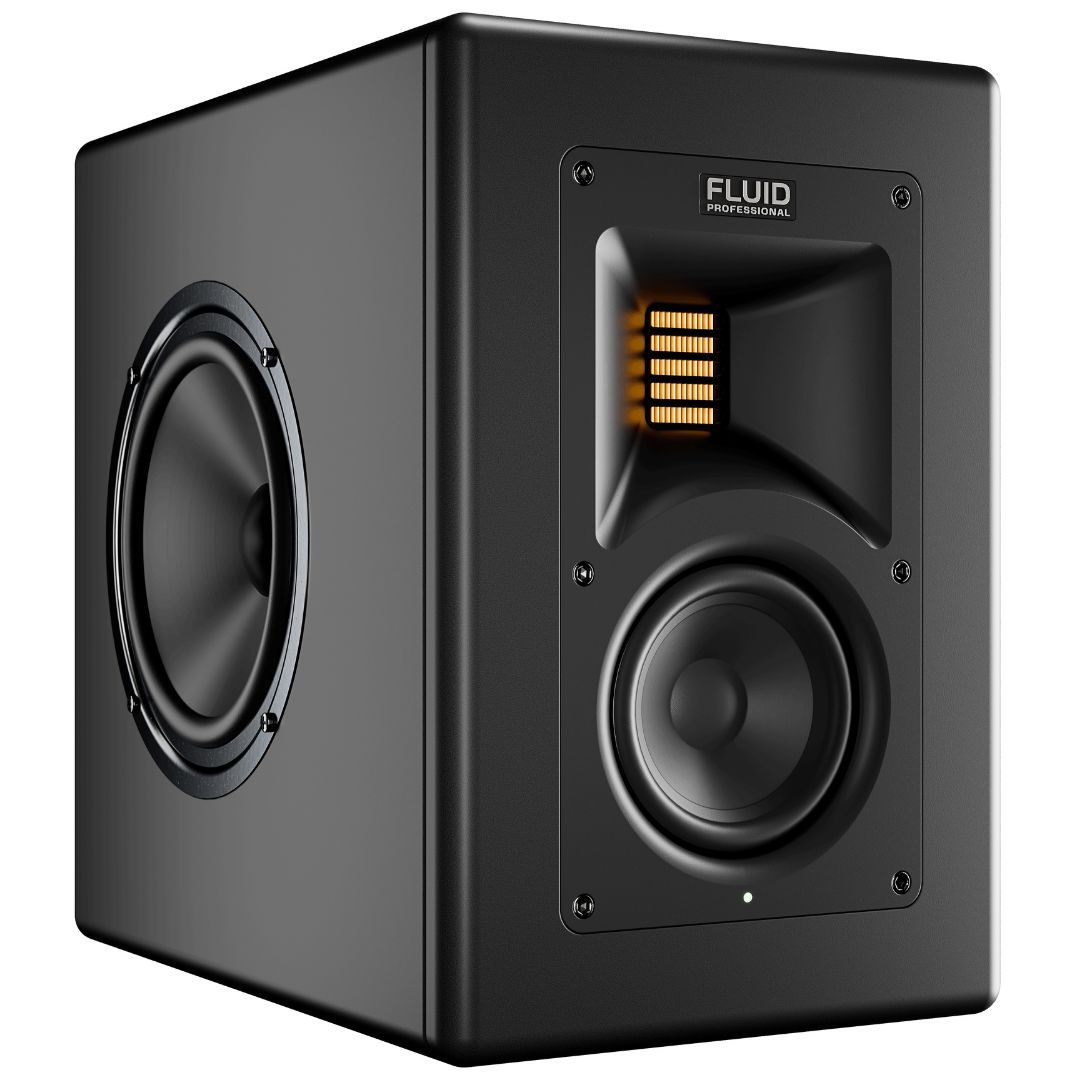

Fluid Audio Image 1 Active 3-way 475W Studio Reference Monitor with Dual 6.5" Woofers (Black)
Description
Compact reference monitor featuring a dedicated midrange driver, AMT tweeter, and dual-opposed woofers for detailed imaging and controlled low-end performance in smaller studios and production rooms.
-
Dual 6.5" active LF Driver, 4" MF Driver and AMT HF Driver
- 475 Watts
Compact 3-Way Reference Monitoring for Serious Mix Decisions
Image 1 is built for engineers, producers, and professional rooms that need accurate imaging, controlled low end, detailed midrange, and reliable translation from a compact reference monitor.
With a true 3-way layout, dedicated midrange driver, AMT tweeter, DSP control, SoundID Reference support, and dual-opposed low-frequency architecture, Image 1 is designed for critical mix, mastering, and immersive monitoring decisions in smaller and mid-sized rooms.
- Dedicated midrange Improves vocal, guitar, snare, and mix-balance decisions.
- AMT high-frequency detail Reveals transient detail, ambience, and movement without harshness.
- Controlled low end Dual-opposed woofers provide tight, stable bass from a compact cabinet.
- DSP and calibration ready Load SoundID Reference profiles directly into the monitor system.
Modern Monitoring Workflow with Integrated DSP
Image 1 combines onboard DSP processing, AES/EBU, SPDIF digital connectivity, analog XLR input, room adjustment controls, and SoundID Reference integration into a compact professional monitoring platform.
Instead of relying entirely on external correction hardware or software-only workflows, Image 1 allows engineers to store calibration profiles directly inside the monitor system for repeatable translation across rooms and production environments.
SoundID Reference Ready
Store up to four calibration profiles directly in the monitor and switch between setups without rebuilding your workflow.
AES/EBU Digital Input
Connect directly to professional digital monitoring systems while maintaining signal integrity throughout the chain.
CubeMix Monitoring Mode
Quickly evaluate mid-focused playback behavior and translation balance directly through the DCT control software.

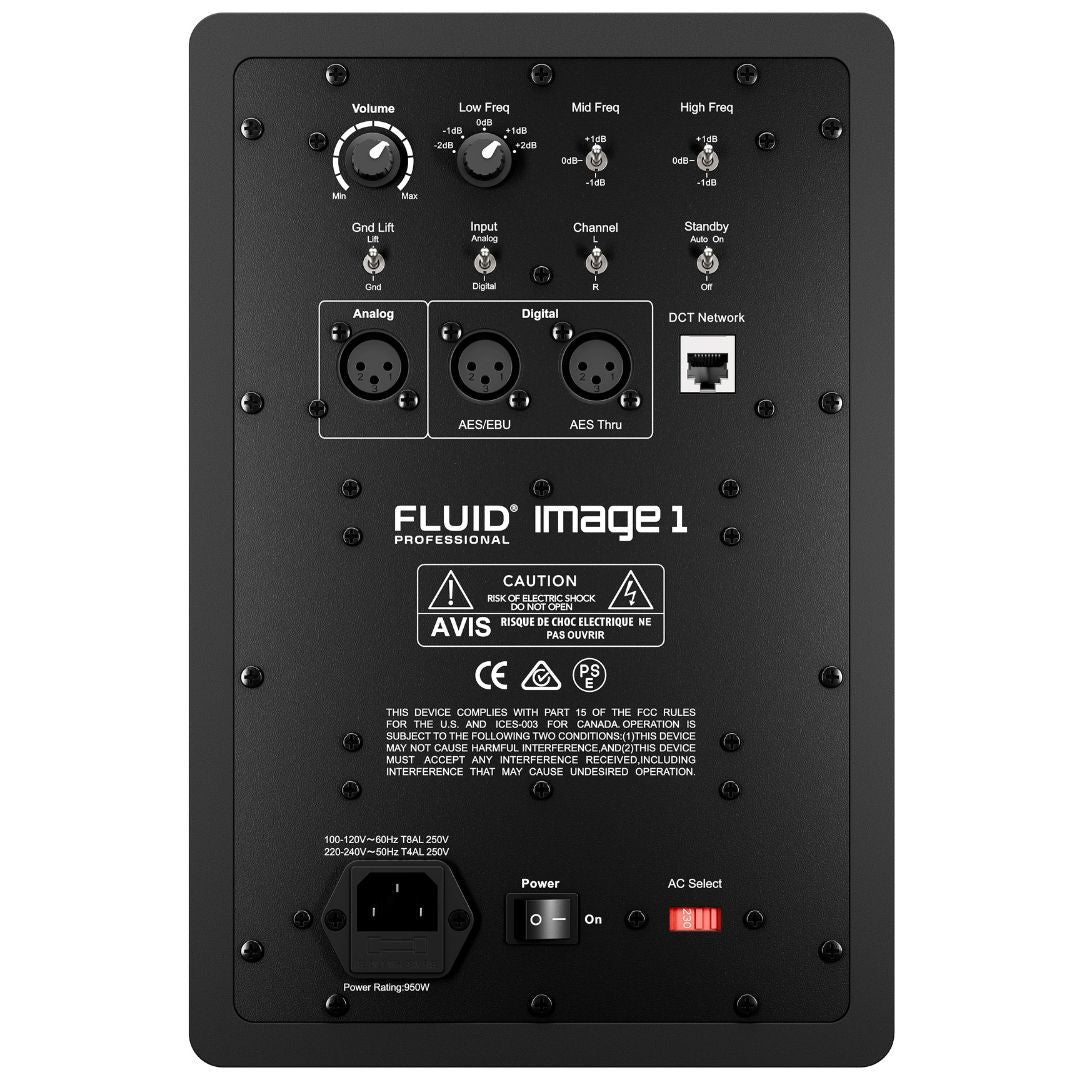

Rear Panel EQ Controls
Adjust boundary compensation and room interaction to optimize monitoring performance in different acoustic environments.
Dedicated Midrange Precision and Controlled Low-Frequency Performance
Image 1 combines a dedicated aluminum cone midrange driver, AMT tweeter, sealed cabinet design, and dual-opposed woofer architecture to deliver detailed imaging, stable translation, and controlled monitoring performance from a compact enclosure.
Instead of forcing one driver to reproduce too much of the critical vocal and instrument range, the dedicated midrange system improves clarity, separation, and mix balance while reducing listening fatigue during long sessions.
Dedicated Midrange Driver
The dedicated aluminum midrange improves vocal placement, instrument separation, snare definition, and mix translation in the most critical frequency range.

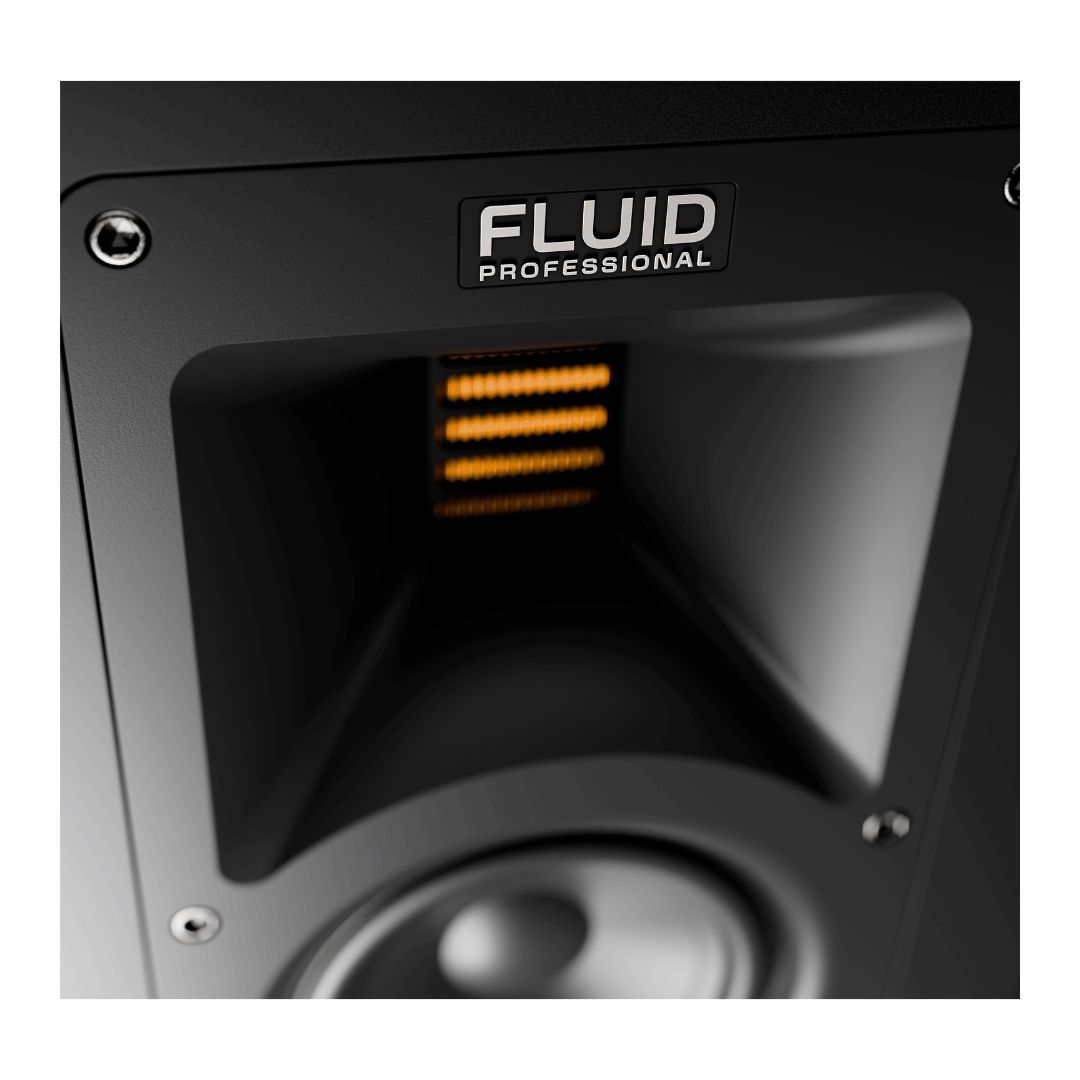

AMT High-Frequency Detail
The AMT tweeter delivers fast transient response, improved detail retrieval, and extended high-frequency clarity with low distortion.
Vi-bracer Low-Frequency System
Dual-opposed woofers are mechanically coupled through the Fluid Professional Vi-bracer system to reduce cabinet reaction forces and improve low-frequency stability.
Sealed Cabinet Control
The sealed enclosure provides tighter and more controlled low-frequency behavior with reduced room interaction compared to many ported designs.
Built for Dolby Atmos, Compact Rooms, and Scalable Systems
Image 1 is designed for modern immersive production workflows, including Dolby Atmos music mixing, post-production, and multi-channel monitoring systems where translation, consistency, and compact placement matter.
Compact 3-Way Monitoring
Image 1 is the better fit when room size, listening distance, or speaker count demands a compact monitor without giving up the Image Series 3-way monitoring philosophy.
Description
3-way active monitor with room correction file upload
Max SPL
108 dB
Sensitivity
87 dB @ 1 meter with -15 dBV input signal
Level control set to 0 dB
Frequency Response
+/-4.6 dB 40 Hz - 20 kHz
+/-2.0 dB 80 Hz - 20 kHz
Bass Response
-3 dB @ 45 Hz
Q = 0.707
Slope = 24 dB/octave
Crossover Frequencies
190 Hz / 3000 Hz
Controlled by onboard DSP
Cabinet
14.5 liters total internal volume
Sealed woofer and midrange enclosures
Tweeter
AMT (Air Motion Transformer)
66 x 66 x 27 mm
Midrange
4-inch aluminum cone
Low-distortion motor with shorting ring
Woofers
Dual 6.5-inch paper cone woofers
+/-5.0 mm linear excursion
Amplifier Power
High frequency: 75 W RMS
Mid frequency: 100 W RMS
Low frequency: 150 W x 2 RMS
Total amplifier power: 475 W per monitor
Controls
Input level stepped attenuator
Input Impedance
Balanced XLR
20K ohm impedance
Signal Processing
Room correction file upload
SoundID Reference profile support
CubeMix mode via DCT software

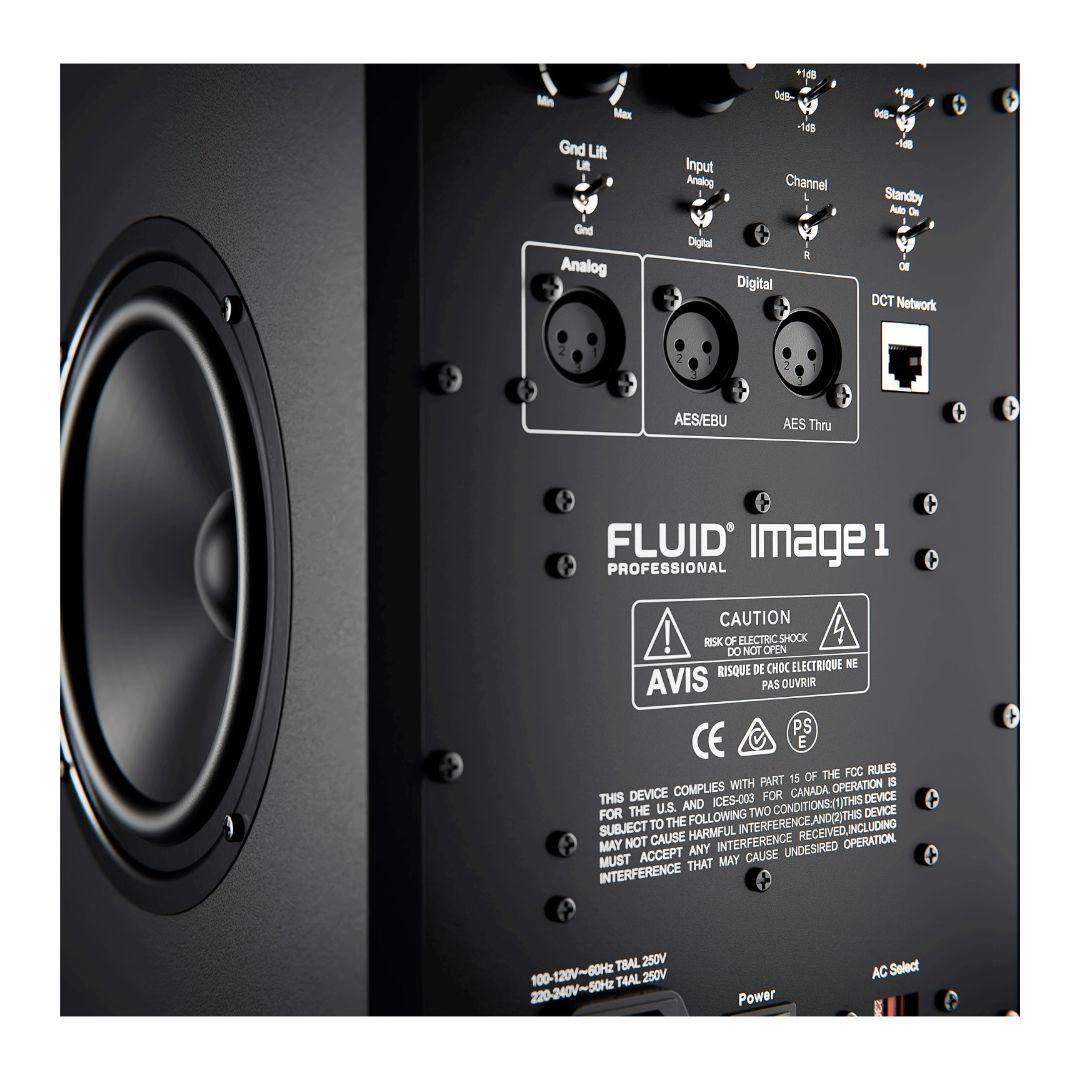

Audio Input Connectors
Analog XLR
Digital AES/EBU input and thru
Rear Panel Acoustic Controls
Rear panel EQ adjustments
Weight
Net weight: 21.8 lbs each (9.9 kg)
Shipping weight: 28.2 lbs each (12.8 kg)
Shipping Dimensions 438 x 335 x 453 mm
Product Dimensions 206 x 308 x 308 mm
