Fluid Audio Image 2 Active 3-way 675W Studio Reference Monitor with Dual 8" Woofers (White)
Description
Built for engineers, producers, and immersive rooms that need higher output, extended low-frequency control, detailed midrange, and confident translation across professional playback systems.
-
Dual 8" active LF Driver, 5" MF Driver and AMT HF Driver
- 675 Watts
Full-Range 3-Way Reference Monitoring for Larger Rooms
Image 2 is built for engineers, producers, and immersive rooms that need higher output, extended low-frequency control, detailed midrange, and confident translation across professional playback systems.
With a true 3-way layout, dedicated midrange driver, AMT tweeter, DSP control, SoundID Reference support, and dual-opposed low-frequency architecture, Image 2 is designed for critical mix, mastering, and immersive monitoring decisions.
- Dedicated midrange Improves vocal, guitar, snare, and mix-balance decisions.
- AMT high-frequency detail Reveals transient detail, ambience, and movement without harshness.
- Extended low end Dual-opposed woofers provide deeper extension and more authority.
- DSP and calibration ready Load SoundID Reference profiles directly into the monitor system.
Modern Monitoring Workflow with Integrated DSP
Image 2 combines onboard DSP processing, AES/EBU/SPDIF digital connectivity, analog XLR input, room adjustment controls, and SoundID Reference integration into a single professional monitoring platform.
Instead of relying entirely on external correction hardware or software-only workflows, Image 2 allows engineers to store calibration profiles directly inside the monitor system for repeatable translation across rooms and production environments.
SoundID Reference Ready
Store up to four calibration profiles directly in the monitor and switch between setups without rebuilding your workflow.
AES/EBU Digital Input
Connect directly to professional digital monitoring systems while maintaining signal integrity throughout the chain.
CubeMix Monitoring Mode
Quickly evaluate mid-focused playback behavior and translation balance directly through the DCT control software.
Rear Panel EQ Controls
Adjust boundary compensation and room interaction to optimize monitoring performance in different acoustic environments.
Dedicated Midrange Precision and Controlled Low-Frequency Performance
Image 2 combines a dedicated aluminum cone midrange driver, AMT tweeter, sealed cabinet design, and dual-opposed woofer architecture to deliver detailed imaging, stable translation, and full-range monitoring performance for larger production rooms.
Instead of forcing one driver to reproduce too much of the critical vocal and instrument range, the dedicated midrange system improves clarity, separation, and mix balance while reducing listening fatigue during long sessions.
Dedicated Midrange Driver
The dedicated aluminum midrange improves vocal placement, instrument separation, snare definition, and mix translation in the most critical frequency range.
AMT High-Frequency Detail
The AMT tweeter delivers fast transient response, improved detail retrieval, and extended high-frequency clarity with low distortion.

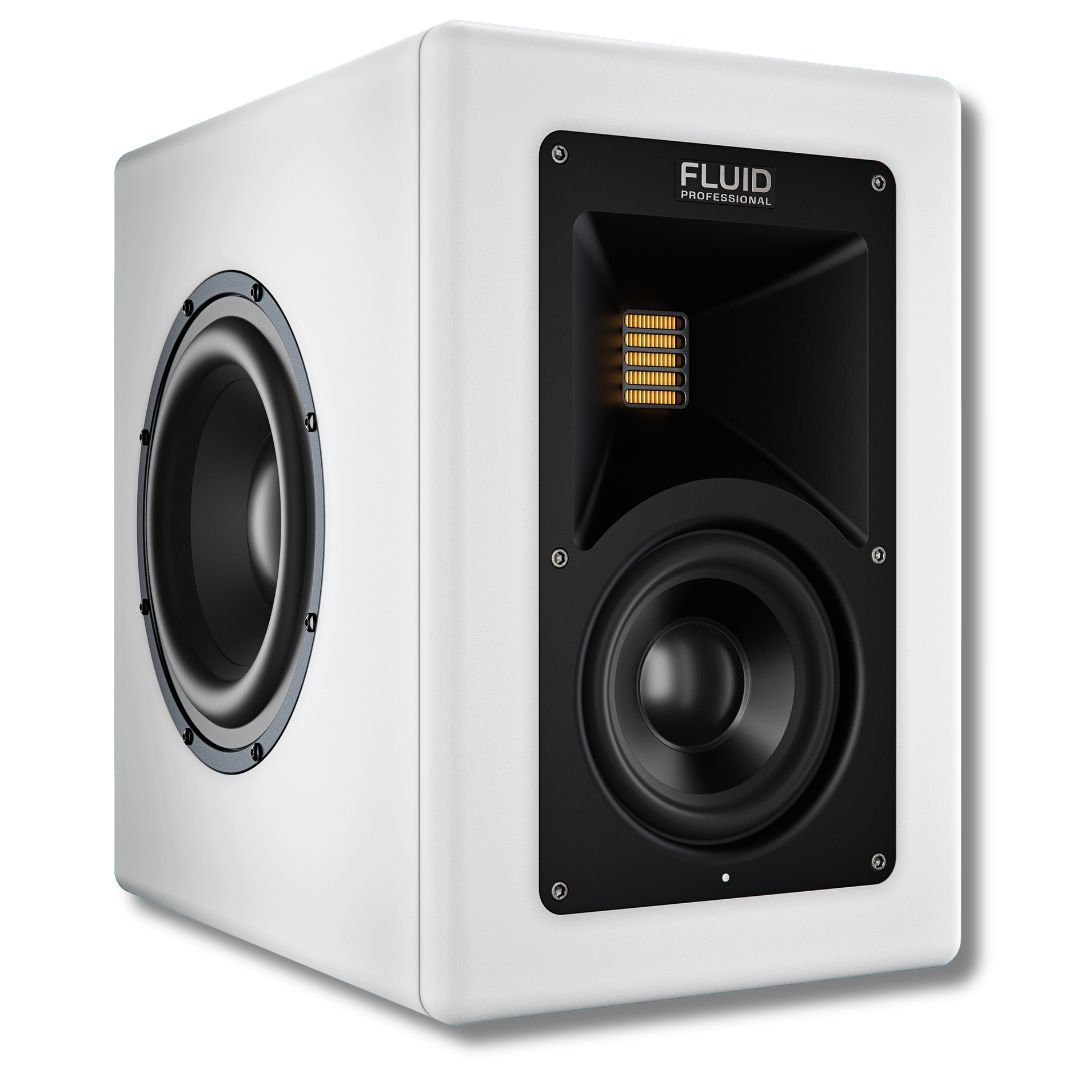

Vi-bracer Low-Frequency System
Dual-opposed woofers are mechanically coupled through the Fluid Professional Vi-bracer system to reduce cabinet reaction forces and improve low-frequency stability.
Sealed Cabinet Control
The sealed enclosure provides tighter and more controlled low-frequency behavior with reduced room interaction compared to many ported designs.
Built for Dolby Atmos, Larger Rooms, and Full-Range Systems
Image 2 is designed for modern immersive production workflows, including Dolby Atmos music mixing, post-production, and multi-channel monitoring systems that need output, headroom, and full-range confidence.
Higher Output for Larger Rooms
Image 2 is the better fit when room size, listening distance, or production workflow demands more low-frequency authority and SPL than a compact monitor can provide.
Details:
Max SPL
115 dB (dual monitors)
112 dB (single)
Frequency Response
±2.2 dB 40 Hz - 27 kHz
-3 dB @ 38.1 Hz
-6 dB @ 35.2 Hz
Bass Response
-3 dB @ 40 Hz
Q = 0.707
Slope = 24 dB/octave
Crossover
Bass / Mid: 154 Hz
Mid / Treble: 2800 Hz
Driver Dimensions
2 x 8-inch bass drivers
1 x 5-inch midrange driver
1.1 x 1.7-inch AMT tweeter
2 x 203 mm bass
130 mm midrange
28 x 43 mm AMT tweeter
AMT unfolded size:
4.5 x 1.1 inches
114 x 28 mm radiation area
Amplifier Power
2 x 225 W bass (Class D)
150 W midrange (Class D)
75 W treble (Class D)
Signal Processing
AD converter: 24-bit
Internal sample rate: 192 kHz
Audio Inputs
Analog XLR/TRS
Digital AES (AES/EBU supported)
SPDIF connection
Rear Panel Acoustic Controls
High Freq: -1 / 0 / +1
Mid Freq: -1 / 0 / +1
Low Freq: -2 / -1 / 0 / +1 / +2

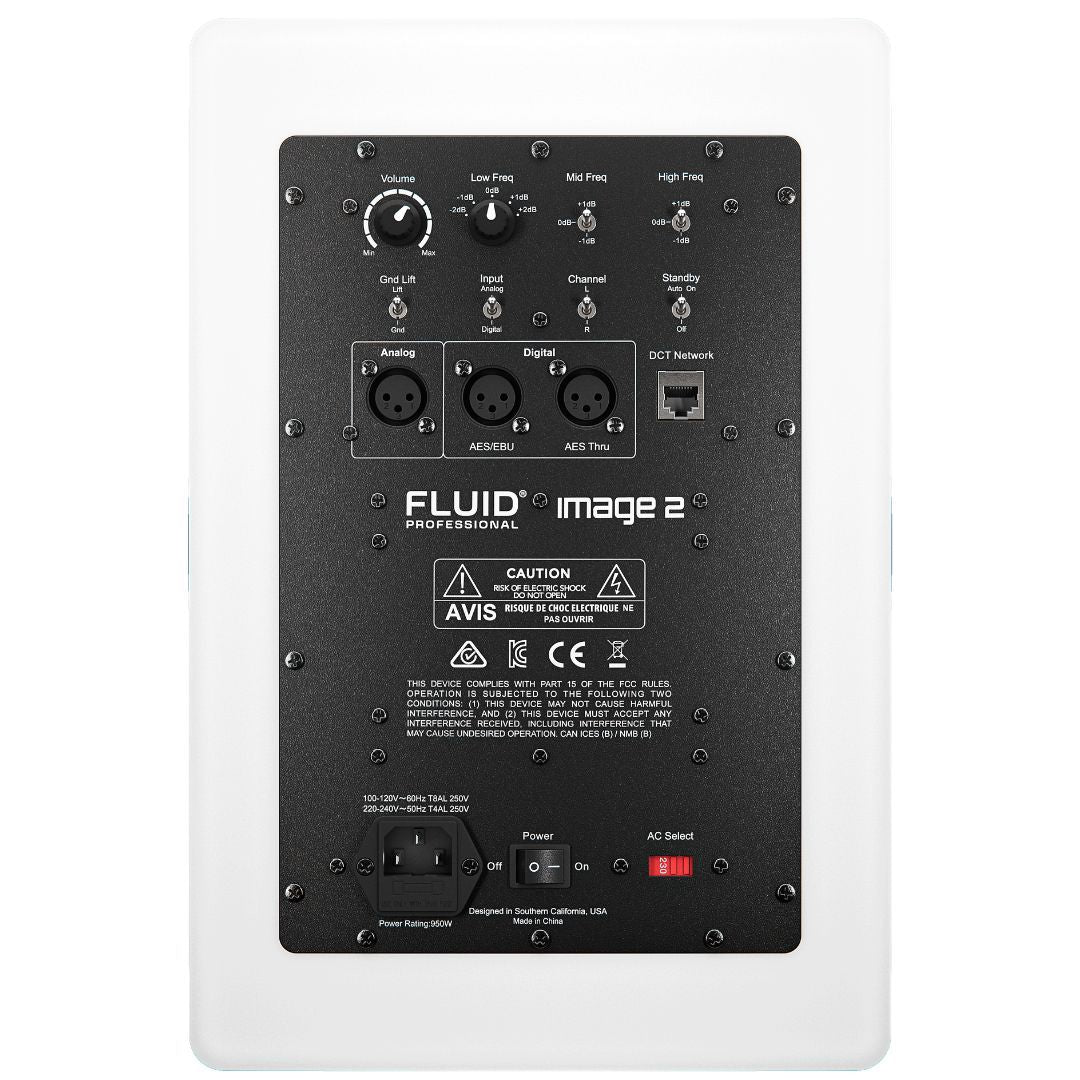

Rear Panel Features
Digital / Analog selector
Digital input channel select L/R
Auto standby On/Off
Ground lift
Footswitch input for CubeMix mode
Weight
Net weight: 28.4 lbs each (12.8 kg)
Shipping weight: 31.5 lbs each (15.5 kg)
Shipping Dimensions
18.9 x 14.6 x 20.4 inches
480 x 372 x 518 mm
Product Dimensions
9.5 x 14.3 x 13.8 inches
242 x 363 x 350 mm
