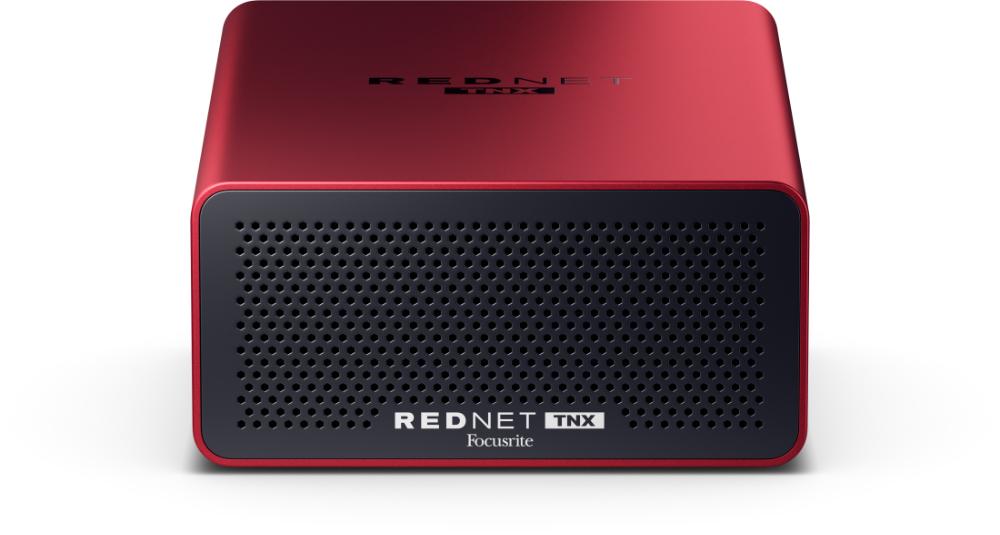

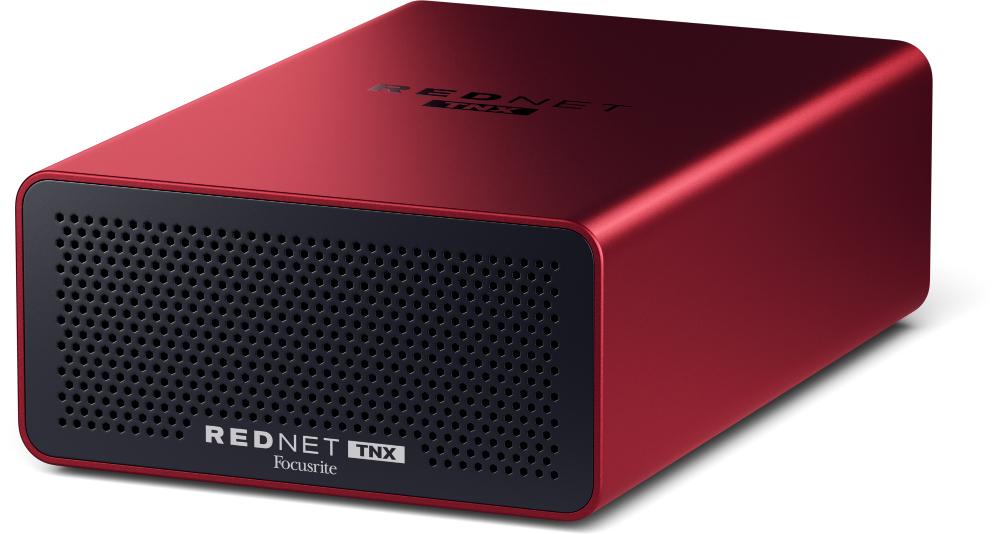

Focusrite RedNet TNX Thunderbolt Dante interface with 128x128 channels at 24-bit/192kHz

Powerful, flexible audio workflows
Harness the capabilities of extensive Dante networks with 128x128 channels at 192 kHz sampling rates and minimal latency through a single Thunderbolt™ port. The Focusrite RedNet TNX delivers streamlined operation and adaptability for complex recording environments, post-production facilities, and broadcast infrastructures.

Room to expand
The RedNet TNX provides scalable connection options through Dante Ready™ technology, enabling professionals to enhance capacity from the standard configuration to an impressive 256x256 channel count at 24bit/96kHz via an optional upgrade path.

Ready for recording
The RedNet TNX offers professional audio environments unparalleled technical specifications, adaptability, and expansion capabilities, supporting a maximum of 256x256 channels of pristine, full-resolution audio transmission with exceptionally minimal latency—ideal for demanding studio and production applications.

Effortless Setup
The RedNet TNX facilitates seamless integration with any Thunderbolt™-equipped Windows or Mac platform, eliminating complex setup procedures. Its sophisticated architecture incorporates an embedded network interface that streamlines connectivity, enabling comprehensive network management through a single-cable configuration.

Perfect for post
RedNet TNX enables post-production specialists to effortlessly incorporate extensive Dante audio channels with Dolby Renderer for Atmos workflows. Its broadcast-grade engineering supports industry standards including AES67, Dante Domain Manager, and SMPTE ST 2110 protocols, making it optimal for broadcast infrastructure while maintaining sufficient portability for field deployment scenarios.

Flexibility meets reliability
Dual RJ-45 Ethernet ports provide configurable switched or redundant operational modes, delivering versatile connectivity options alongside critical failover capability for high-reliability environments where uninterrupted signal flow is imperative.

Simple, integrated network control
The RedNet TNX integrates with the comprehensive RedNet Control software platform, enabling centralized administration and performance monitoring of all networked RedNet devices through a unified interface application.

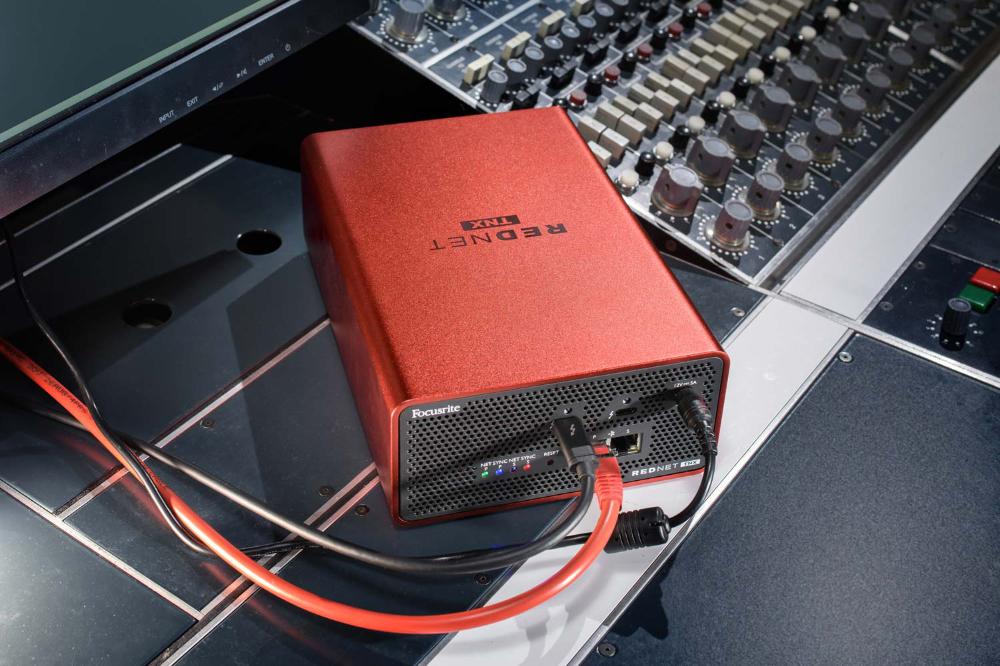

Integrate within your setup

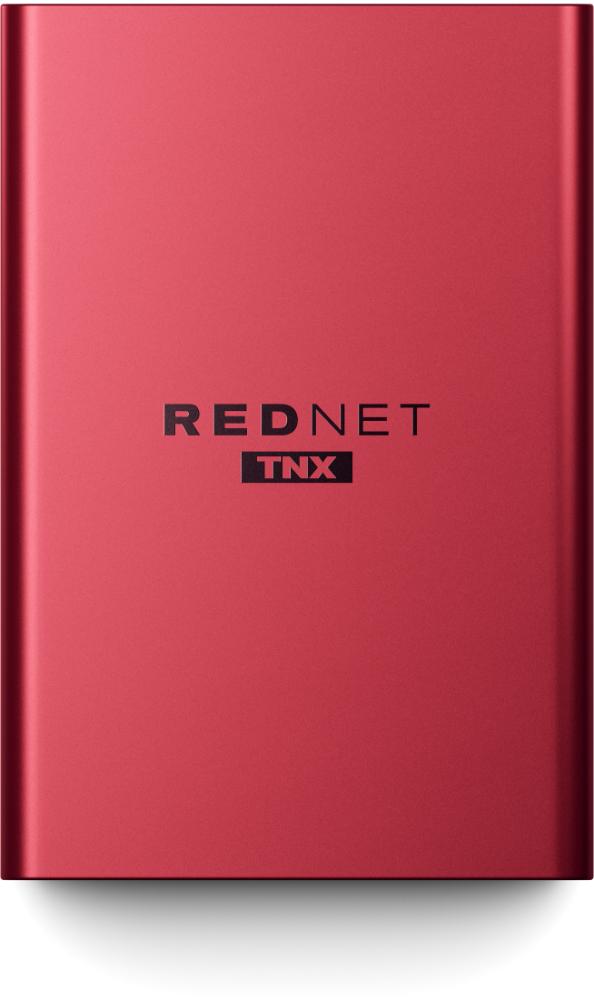

Both Thunderbolt™ interfaces deliver 15W power capacity while supporting daisy-chained device configurations for expanded connectivity options. The chassis design incorporates accessible M5 x 12mm threaded mounting points on the underside, facilitating secure rack integration with standard shelf hardware.

Backed by Focusrite
Engineered for longevity and operational stability, the RedNet TNX represents a forward-compatible investment, reinforced by Focusrite's comprehensive three-year warranty coverage and industry-leading continuous technical support infrastructure available at all hours throughout the year, ensuring maximum operational confidence.

Technical Specifications

• Simultaneous Inputs & Outputs
  • 128x128 (all sample rates)
  • 256x256 (up to 96kHz)
• Digital Performance
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
• Dante Connectivity
  • 2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
• Driver Compatibility
  • Multi-client ASIO and WDM (Windows)
  • CoreAudio (Mac)
• Rear Panel
  • 2x Thunderbolt™ 3 ports (Provide 15W of power)
  • 2 x Sonnet ThunderLok™
  • 2x Network Active LED indicators (Primary/Secondary)
  • 2x Network Lock LED indicators (Primary/Secondary)
  • 1x DC power inlet
  • 1x Factory Reset button
• Power
  • Powered by external DC power supply
• Heat Performance
  • Max ambient temperature: 50 degrees Celsius/122 degrees Fahrenheit

What's In the Bow

• Focusrite RedNet TNX unit
• 2m Thunderbolt™ 3 cable
• 2m cat6A Ethernet cable
• External power supply and cable
• Focusrite Pro Important Information Guide
• Safety Information Sheet
