JBL BRX308LA Dual 8” Line Array Element

SKU: JBL-BRX308LA
$2,079.00 $2,549.00
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By JBL
This product is unavailable
Description

The BRX300 Series is a versatile line array for bands, DJs, rental firms, houses of worship and anyone who needs a compact, portable system that provides superior fidelity, high output and consistent coverage in a range of sound-reinforcement scenarios.

The modular BRX300 Series makes the power of line array technology accessible to customers who are not trained audio engineers, thanks to its plug-and-play simplicity, built-in corrective signal processing, smart transport system and hassle-free rigging hardware. Deploy in minutes and enjoy optimal sound out of the box with components engineered for fidelity and ease of use:

Systems are available in minimum one-subwoofer/two-top or one-subwoofer/four-top configurations and can be stacked, pole mounted or hung to provide seamless coverage in a range of applications.

Legendary JBL Tour Sound
The BRX308-LA Line Array Element and BRX325SP Powered Subwoofer draw from JBL’s legendary touring technologies to deliver wide coverage and class-leading SPLs while reproducing every sonic detail with superior depth and clarity, thanks to proprietary drivers that are engineered for maximum performance matched with the built-in amplifier.


Throw That Goes the Distance
Line array technology delivers seamless front-to-back coverage for a consistent sonic experience anywhere in the audience. BRX308-LA Line Array Elements provide ultra-wide 110° horizontal dispersion and 12° vertical dispersion; multiple boxes can be arrayed to optimize coverage.


Power That Packs a Punch
You don’t need to sacrifice power for size: BRX308-LA Line Array Elements put out 136 dB SPL; the BRX325SP Powered Subwoofer delivers 136 dB SPL and offers six channels of built-in amplification—the highest channel count in its class—effortlessly powering up to four BRX308-LA Line Array Elements.


Versatile, Variable Coverage
The BRX300 Series can scale to accommodate any small or midsize application including live music events, receptions, corporate functions and house-of-worship services. Systems can be configured three ways:

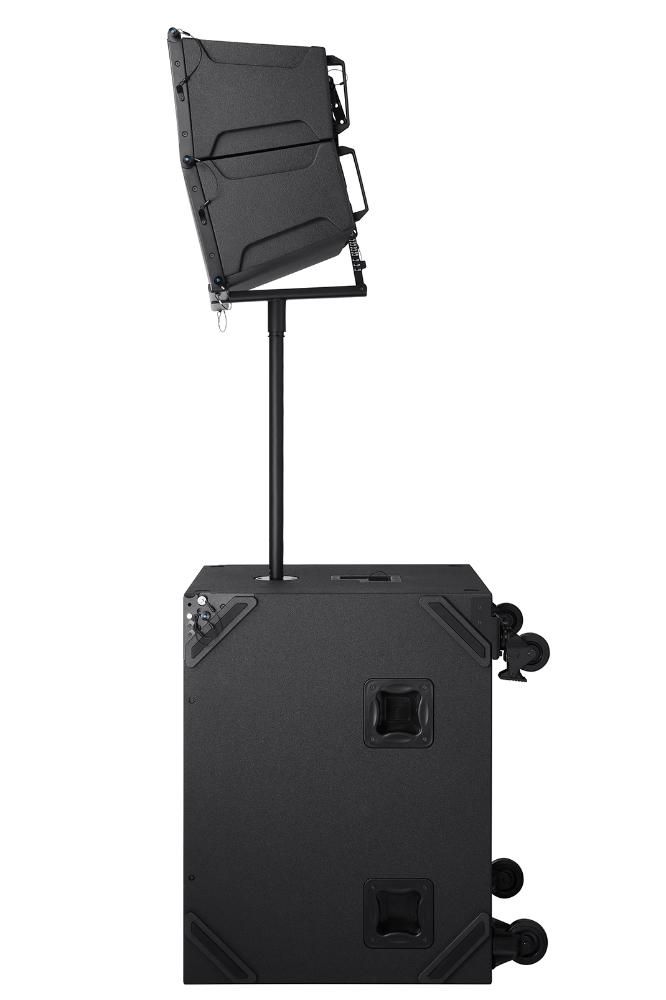

  • One subwoofer and two tops, stacked or pole mounted

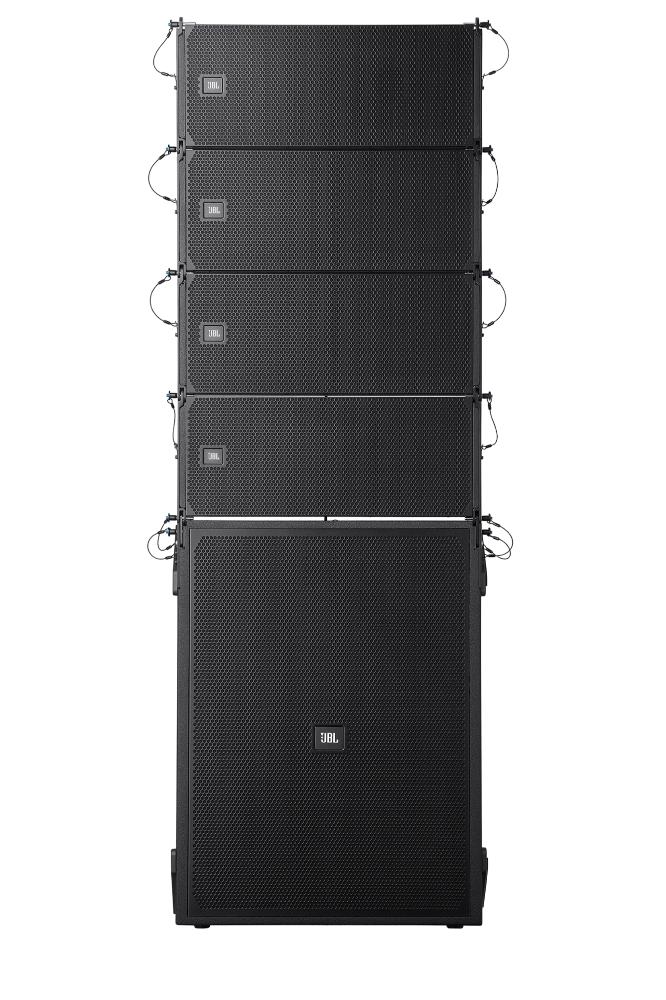

  • One subwoofer and four tops, stacked
  • Flown system with eight tops and two ground-stacked subwoofers

Take the Guesswork Out of System Setup
The BRX300 Series delivers performance you can count on, right out of the box. Sophisticated internal processing handles crossover management, EQ, limiting, correction filters, phase processing and driver protection, so you can focus less on system calibration and more on your mix.

Features

  • Dual 8-inch LF drivers and 3-inch titanium compression driver
  • Frequency range: 80 Hz–20 kHz (-10 dB)
  • 110° horizontal x 12° (variable) vertical dispersion
  • 136 dB maximum SPL
  • Variable interbox angles
  • I/O: two 4-pole NL4 connectors wired in parallel for IN/THRU use
  • Dimensions (W x H x D): 662 x 299 x 376 mm (26 x 11.8 x 14.8 inches)
  • Weight: 20.5 kg (45.2 pounds)

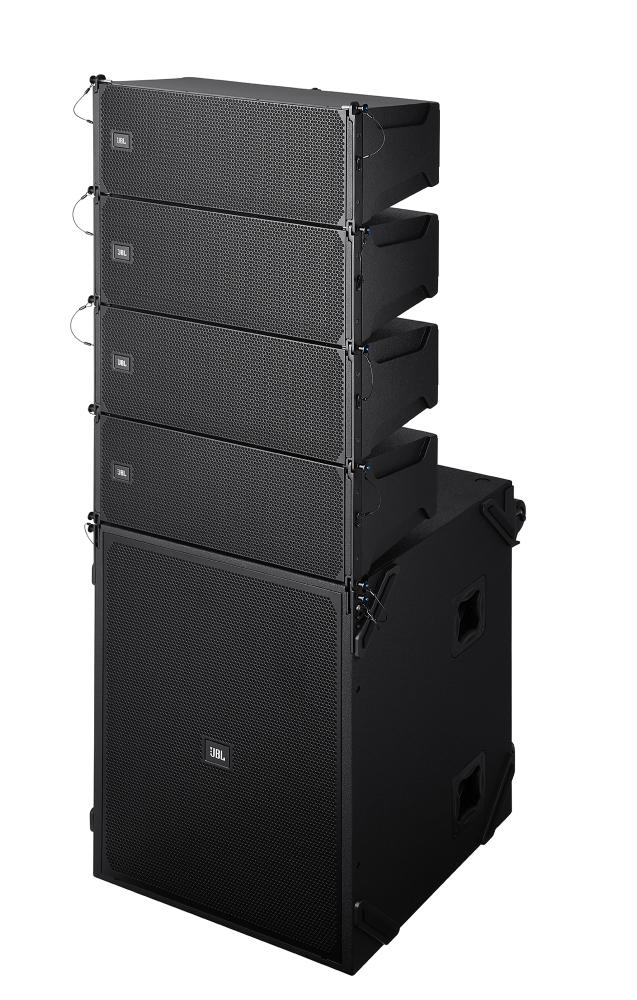

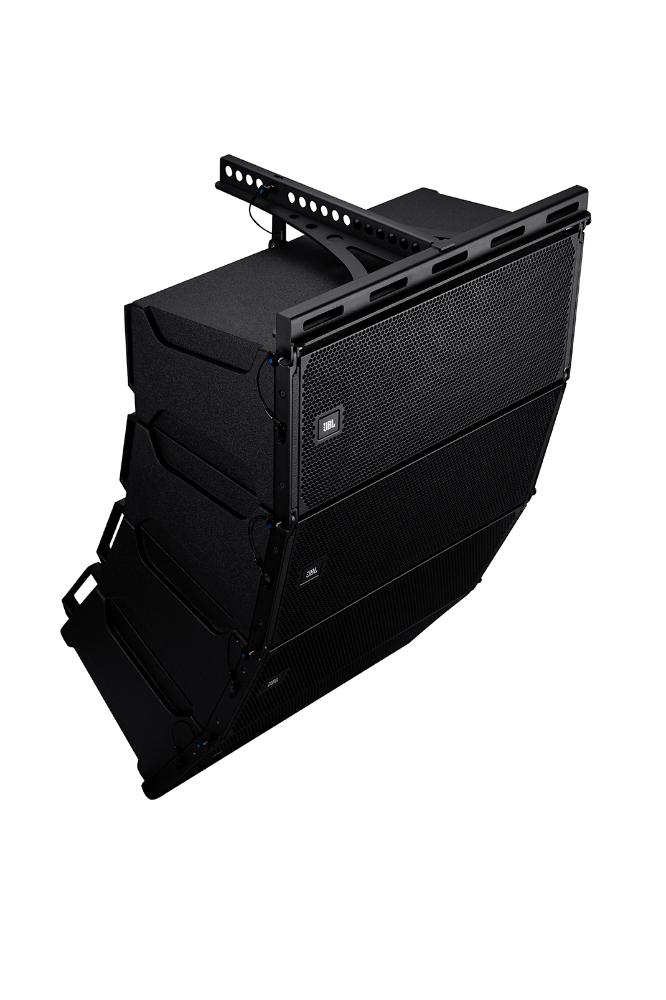

Speaker only. Array pictures & rigging for reference to system capabilities and options.
