The MON 10 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

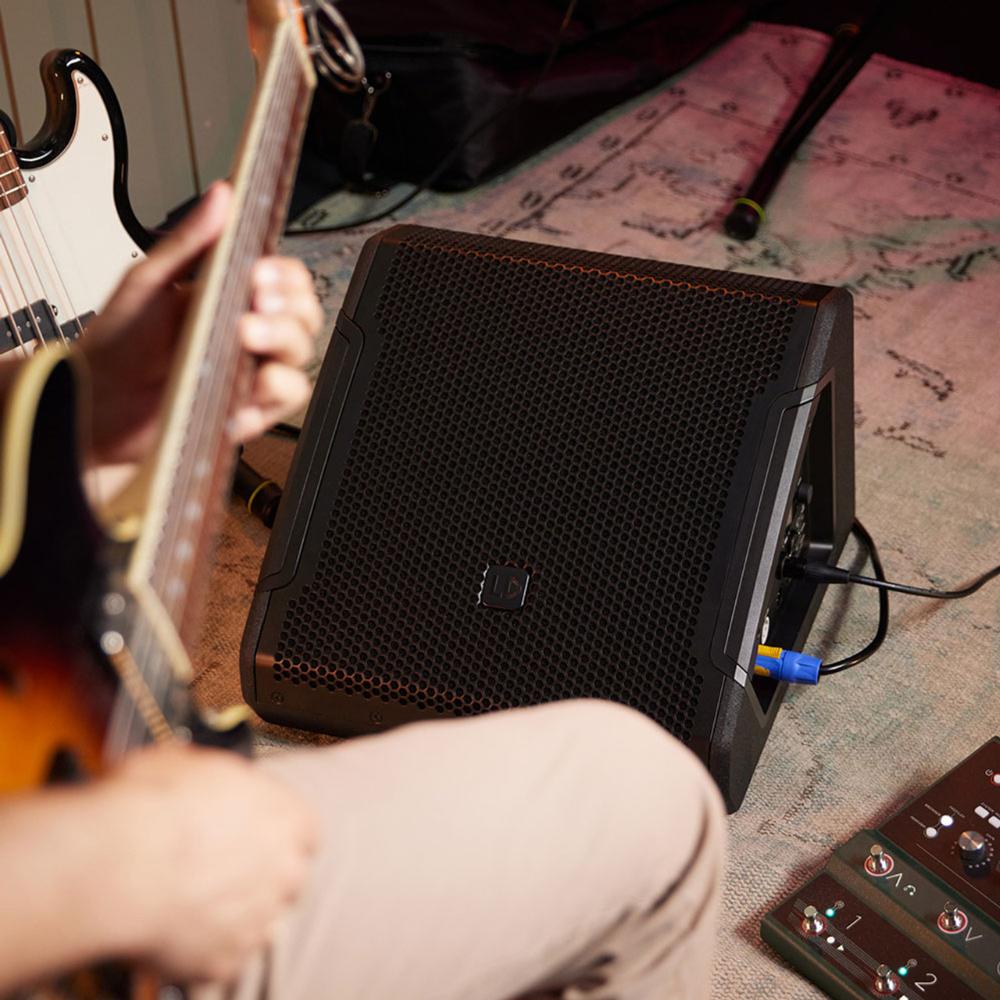

Although it is still very compact and can therefore be integrated inconspicuously into the stage set, the MON 10 A G3 delivers sufficient sound pressure to assert itself even in louder band situations. The ideal dispersion geometry of 50° x 90° for monitor use and 90° x 50° for FOH use make it a multi-talent that offers the right solution for many different tasks.
Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
- Compact high-performance stage monitor with top-of-the-range technologies
- Class-D power amplifier with 300 W RMS/1200 W peak and 126 dB max. SPL

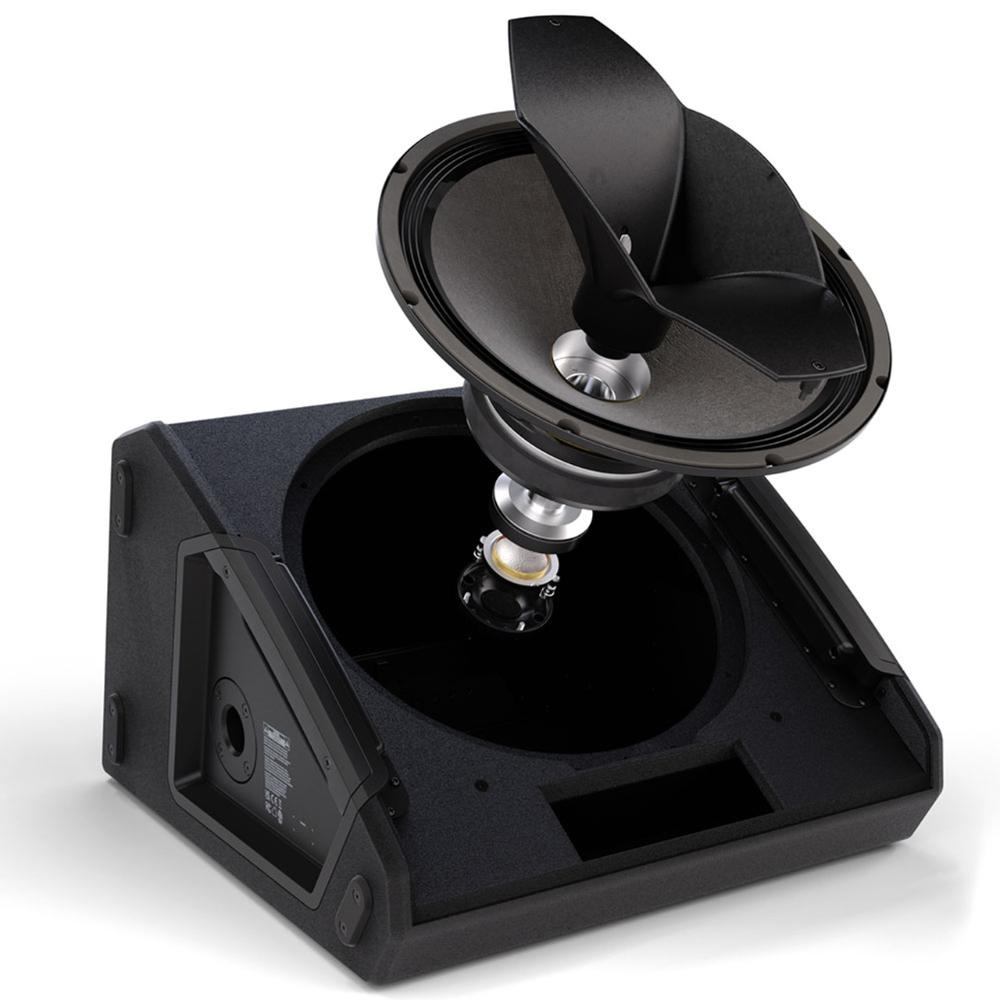

- Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
- 10" woofer with 2.5" voice coil
- Optimised, practical radiation pattern due to 50° x 90° CD horn
- DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
- 3-band EQ, Notch filter, 4 application presets and delay function
- PowerCON compatible loop-through professional power connection
- 35 mm speaker stand flange for FOH applications
- Durable Polyurea coating and heavy-duty front grille
Product type |
Stage monitors |
Type |
Powered |
colour |
Black |
System output (RMS) |
300 W |
System output (Peak) |
1200 W |
Max. SPL Average (Sine burst) |
118 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD) |
Max. SPL Peak (Sine burst) |
126 dB (fullspace @1m, 10% THD) |
Frequency response (-3 dB) |
72 - 18000 HZ |
Frequency response (-10 dB) |
58 - 20000 Hz |
Crossover frequency |
1700 Hz |
Monitor angle |
33° |
Dispersion (H x V) |
50° x 90° |
Width |
380 mm |
Depth |
426 mm |
Height |
305 mm |
Features |
Notch filter |
Features |
3-band EQ (High, Mid, Low) |
Features |
Delay line |
Weight |
15.21 kg |
Low/mid woofer
Low/mid Woofer dimensions |
10 " |
Woofer dimensions (mm) |
254 mm |
Woofer magnet |
Ferrite |
Woofer brand |
Custom-made |
Woofer type |
Coaxial loudspeaker |
Woofer voice coil |
2.5 " |
Woofer voice coil (mm) |
65 mm |
Cabinet construction |
Bass Reflex |
Cabinet material |
15 mm MDF |
Cabinet material |
15 mm Birch Plywood |
HF
Horn |
CD Horn |
Tweeter dimensions |
1 " |
Tweeter dimensions (mm) |
25.4 mm |
Tweeter magnet |
Ferrite |
Tweeter brand |
Custom-made |
Tweeter voice coil |
1.75 " |
Tweeter voice coil (mm) |
44.45 mm |
Amplifier module (integrated)
Amplifier |
Class D |
Protection circuits |
Multiband limiter |
Protection circuits |
over voltage |
Protection circuits |
over-current |
Protection circuits |
thermal overload |
Operating Temperature |
0 - 40 °C |
Humidity Range |
< 80 % ( non-condensing ) |
Fuse |
T4AL 250 V |
Controls |
On / off switch |
Controls |
Rotary/push encoder |
Indicators |
LC display |
Power supply |
SMPS |
Operating voltage |
100 V AC - 240 V AC, 50 - 60 Hz |
Power consumption |
150 W |
Power in / out |
PowerCON compatible |
Line inputs |
2 |
Line input connectors |
XLR - combo |
Line input connectors |
6.3 mm jack |
Line thru |
2 |
Line through connector |
XLR |
