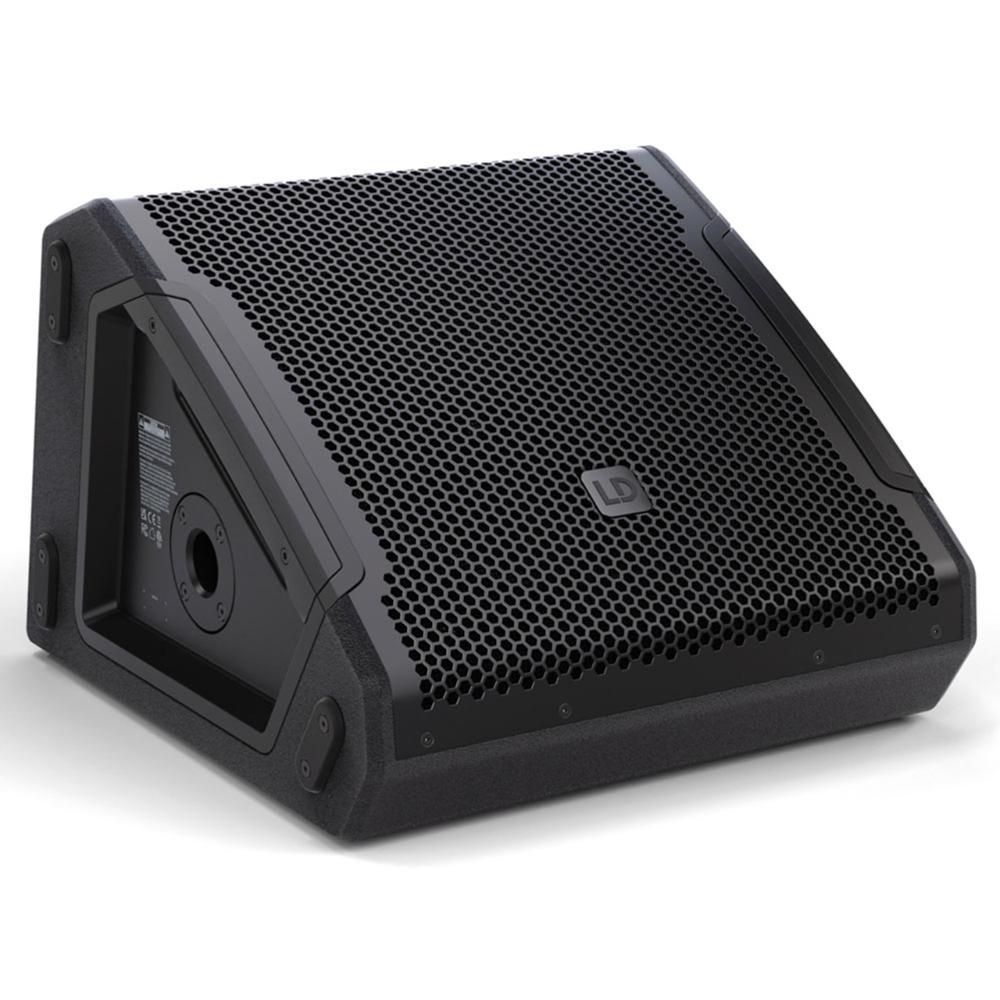

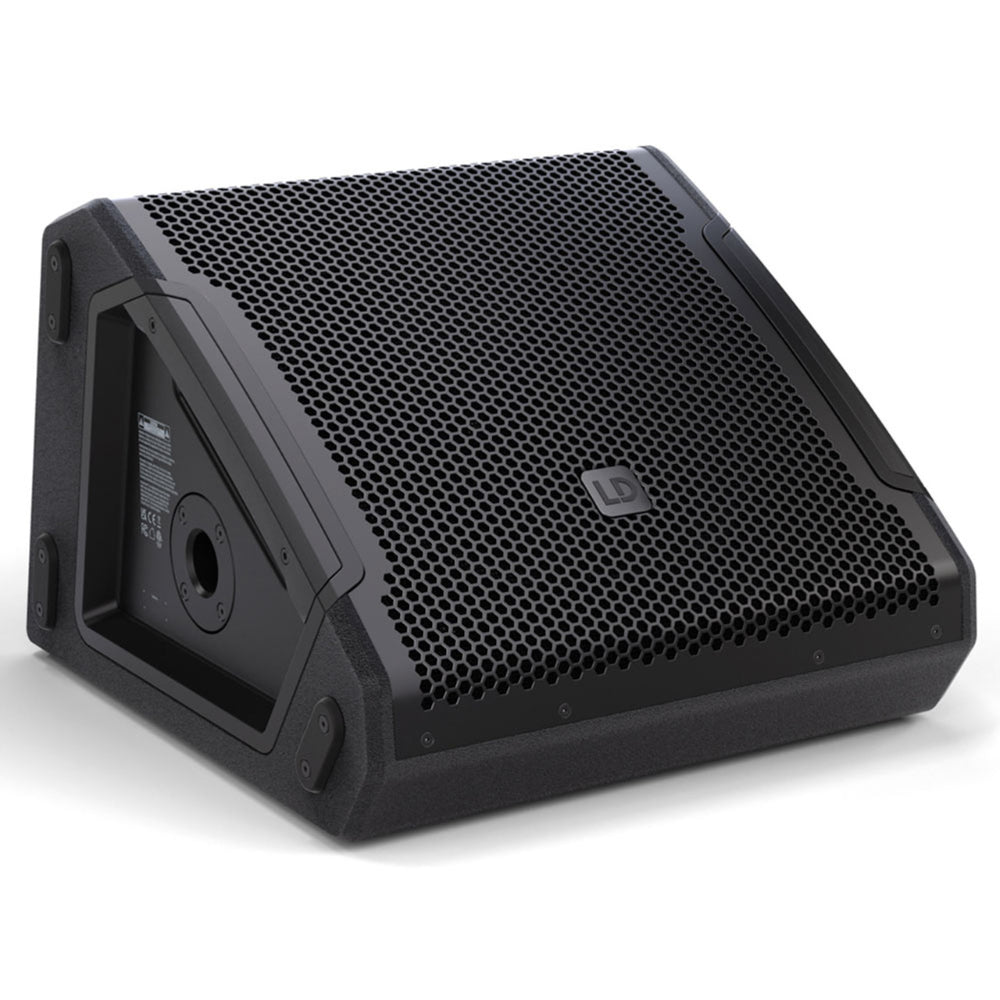

LD Systems Stage Monitor G3 12" Active 300W Coaxial Floor Monitor

SKU: LDS-MON12AG3
$999.00 $1,175.00
Low Stock: 1 - Contact us to confirm!
NOTIFY ME WHEN BACK IN STOCK
Description

The MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

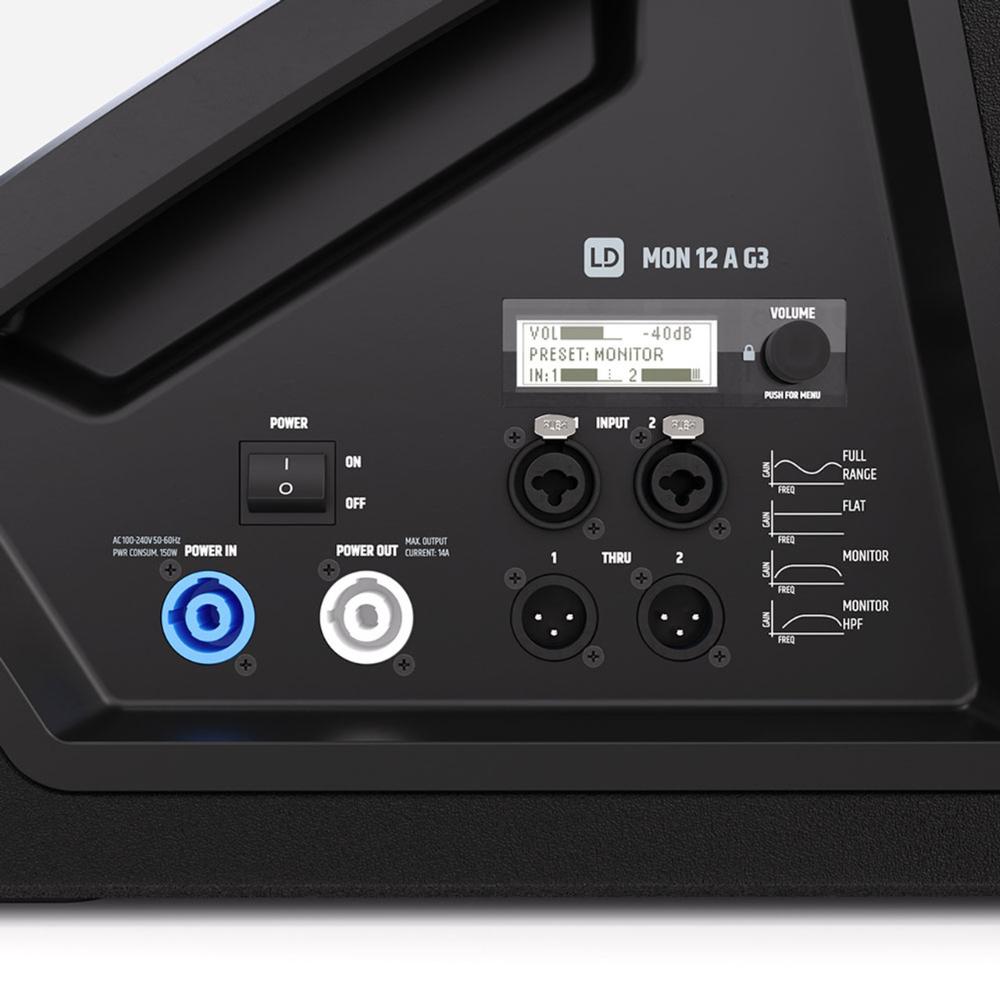

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

  • Compact high-performance stage monitor with top-of-the-range technologies
  • Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL

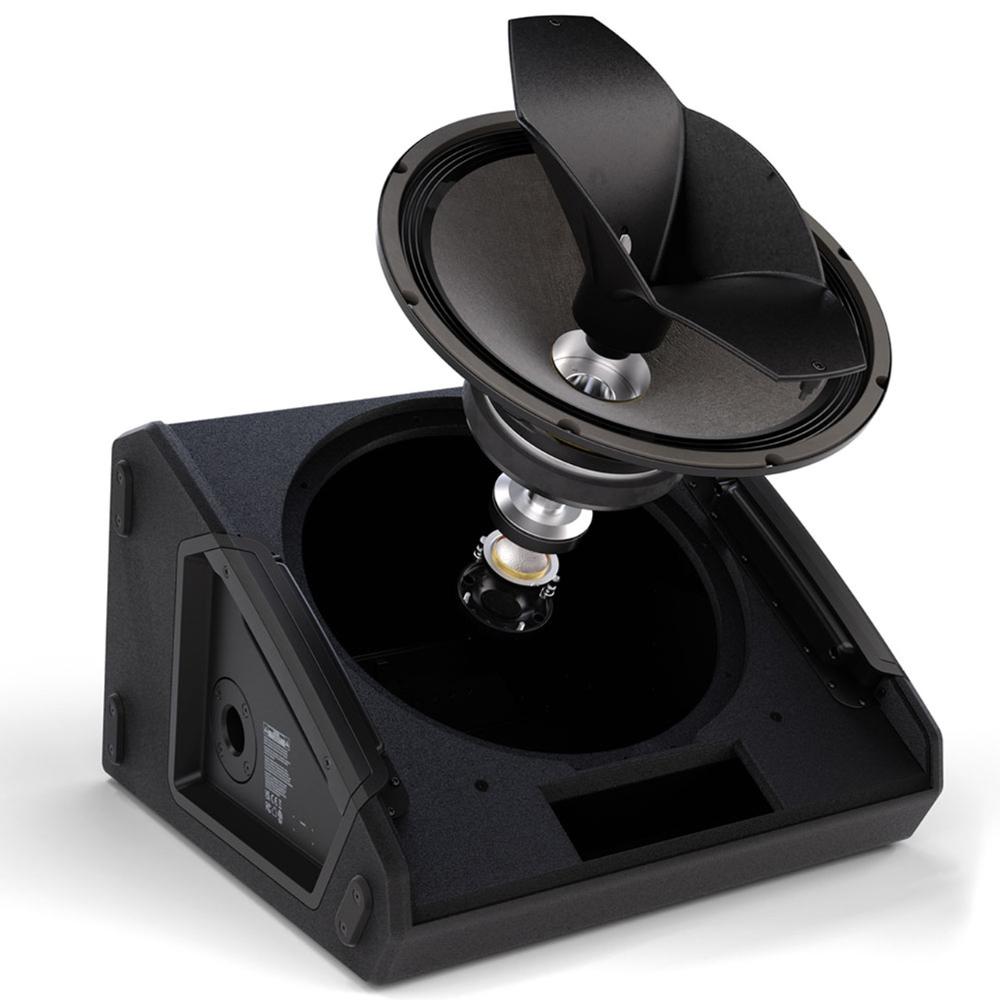

  • Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
  • 12" woofer with 2.5" voice coil
  • Optimised, practical radiation pattern due to 50° x 90° CD horn
  • DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
  • 3-band EQ, Notch filter, 4 application presets and delay function
  • PowerCON compatible loop-through professional power connection
  • 35 mm speaker stand flange for FOH applications
  • Durable Polyurea coating and heavy-duty front grille
Product type Stage monitors
Type Powered
colour Black
System output (RMS) 300 W
System output (Peak) 1200 W
Max. SPL Average (Sine burst) 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst) 127 dB (fullspace @1m, 10% THD)
Frequency response (-3 dB) 68 - 18000 HZ
Frequency response (-10 dB) 55 - 20000 Hz
Crossover frequency 1400 Hz
Monitor angle 33°
Dispersion (H x V) 50° x 90°
Width 425 mm
Depth 453 mm
Height 315 mm
Features 3-band EQ (High, Mid, Low)
Features Delay line
Features Notch filter
Weight 17.4 kg

Low/mid woofer

Low/mid Woofer dimensions 12 "
Woofer dimensions (mm) 304.8 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer type Coaxial loudspeaker
Woofer voice coil 2.5 "
Woofer voice coil (mm) 65 mm
Cabinet construction Bass Reflex
Cabinet material 15 mm Birch Plywood
Cabinet material 15 mm MDF

HF

Horn CD Horn
Tweeter dimensions 1 "
Tweeter dimensions (mm) 25.4 mm
Tweeter magnet Ferrite
Tweeter brand Custom-made
Tweeter voice coil 1.75 "
Tweeter voice coil (mm) 44.45 mm

Amplifier module (integrated)

Amplifier Class D
Protection circuits over-current
Protection circuits Multiband limiter
Protection circuits over voltage
Protection circuits thermal overload
Operating Temperature 0 - 40 °C
Humidity Range < 80 % ( non-condensing )
Fuse T4AL 250 V
Controls On / off switch
Controls Rotary/push encoder
Indicators LC display
Power supply SMPS
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption 150 W
Power in / out PowerCON compatible
Line inputs 2
Line input connectors 6.3 mm jack
Line input connectors XLR - combo
Line thru 2
Line through connector XLR
