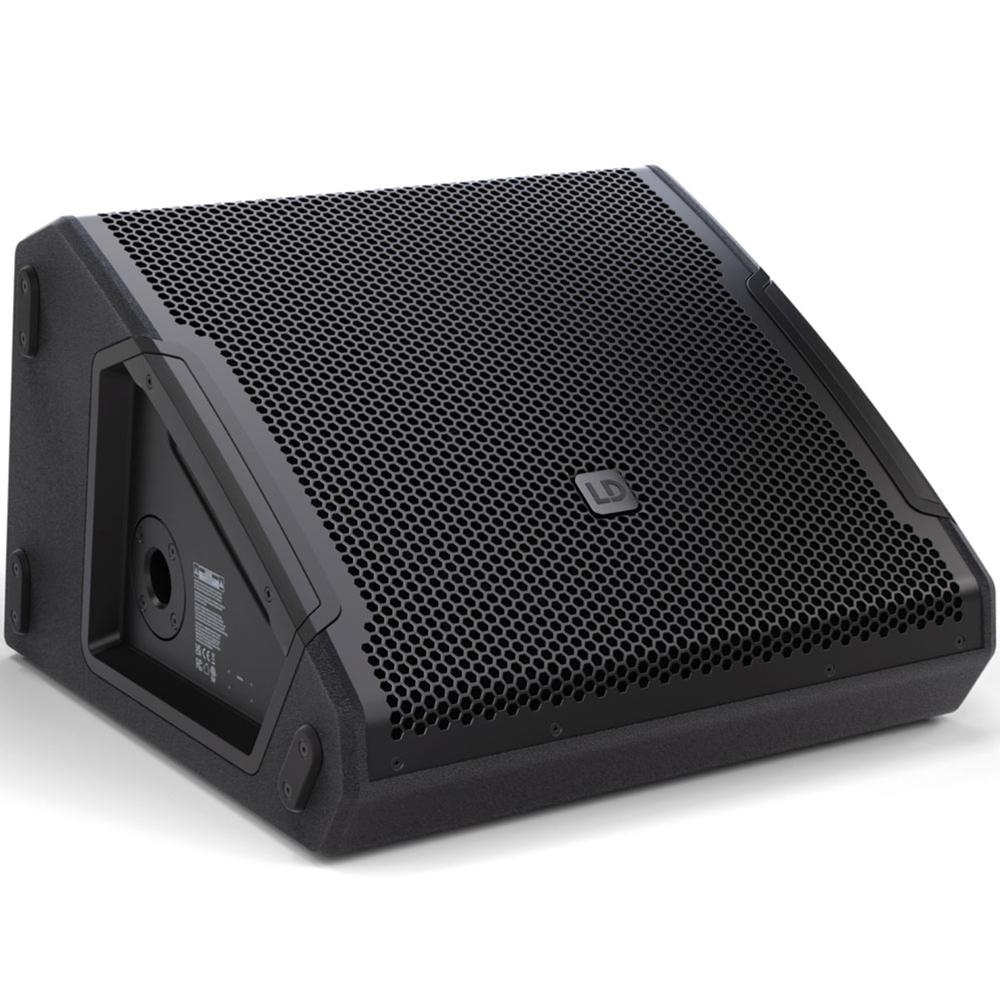

The MON 15 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.
A maximum sound pressure level of 129 dB and superior bass reproduction make the MON 15 A G3 the best choice for loud band stages, as a drum fill or for stand-alone use as a compact front PA without an additional subwoofer. For a 15" stage monitor, it is unusually compact and elegant, so despite its impressive performance data, it blends harmoniously into the stage set.

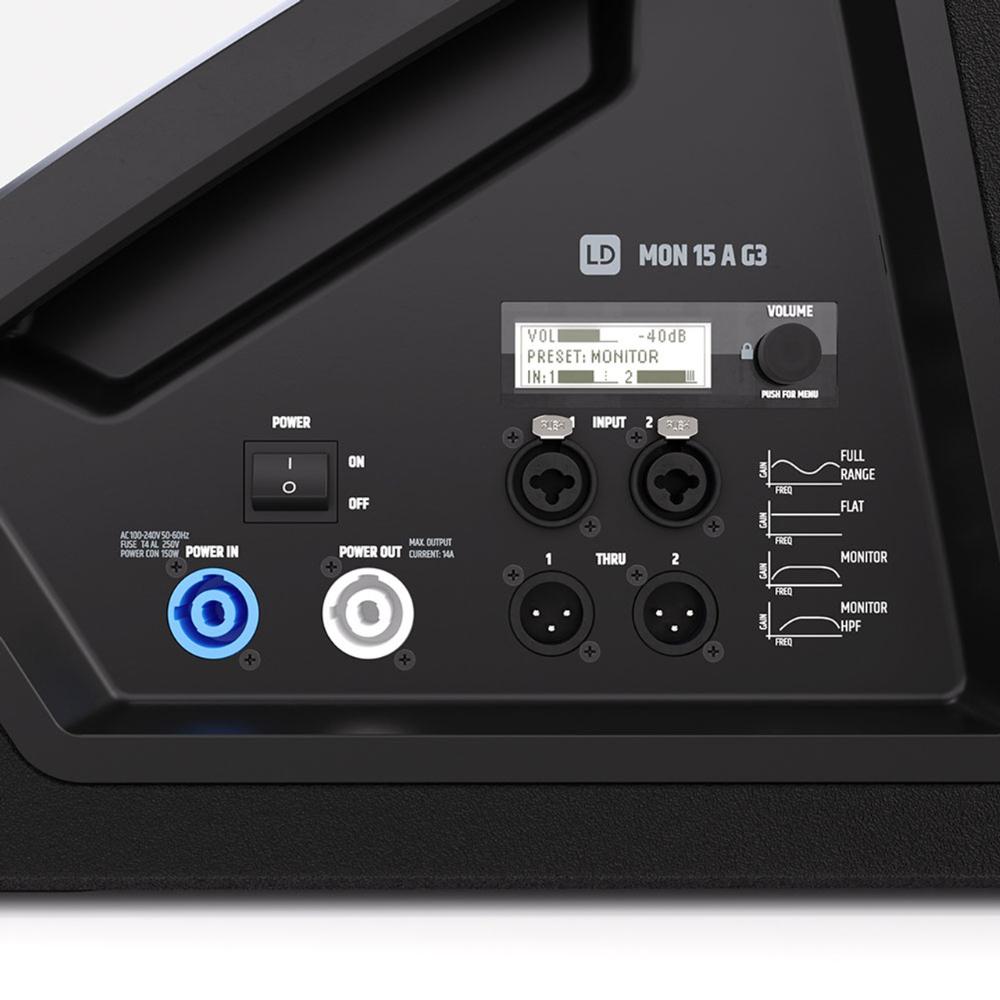

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
- Compact high-performance stage monitor with top-of-the-range technologies
- Class-D power amplifier with 300 W RMS/1200 W peak and 129 dB max. SPL

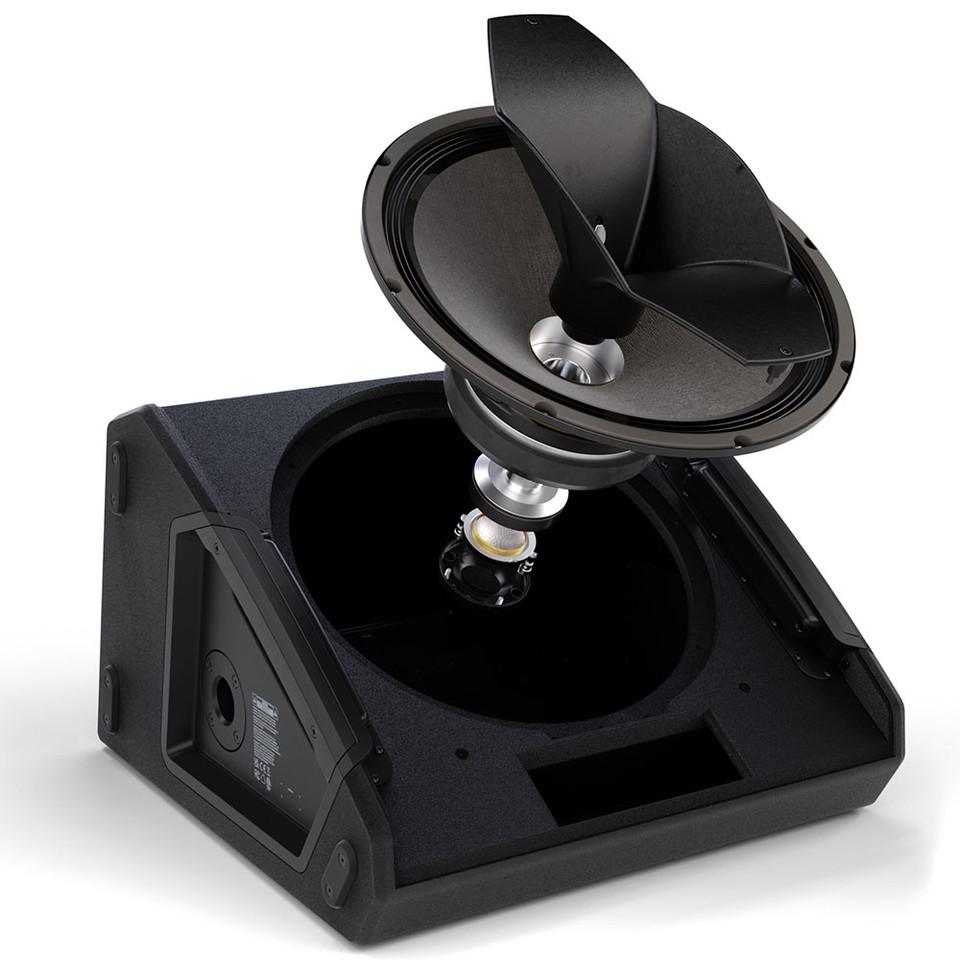

- Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
- 15" woofer with 3" voice coil
- Optimised, practical radiation pattern due to 50° x 90° CD horn
- DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
- 3-band EQ, Notch filter, 4 application presets and delay function
- PowerCON compatible loop-through professional power connection
- 35 mm speaker stand flange for FOH applications
- Durable Polyurea coating and heavy-duty front grille
| Product type |
Stage monitors |
| Type |
Powered |
| colour |
Black |
| System output (RMS) |
300 W |
| System output (Peak) |
1200 W |
| Max. SPL Average (Sine burst) |
122 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD) |
| Max. SPL Peak (Sine burst) |
129 dB (fullspace @1m, 10% THD) |
| Frequency response (-3 dB) |
58 - 18000 HZ |
| Frequency response (-10 dB) |
48 - 20000 Hz |
| Crossover frequency |
1300 Hz |
| Monitor angle |
33° |
| Dispersion (H x V) |
50° x 90° |
| Width |
505 mm |
| Depth |
517 mm |
| Height |
340 mm |
| Features |
3-band EQ (High, Mid, Low) |
| Features |
Delay line |
| Features |
Notch filter |
| Weight |
23.15 kg |
Low/mid woofer
| Low/mid Woofer dimensions |
15 " |
| Woofer dimensions (mm) |
381 mm |
| Woofer magnet |
Ferrite |
| Woofer brand |
Custom-made |
| Woofer type |
Coaxial loudspeaker |
| Woofer voice coil |
3 " |
| Woofer voice coil (mm) |
75 mm |
| Cabinet construction |
Bass Reflex |
| Cabinet material |
15 mm MDF |
| Cabinet material |
15 mm Birch Plywood |
HF
| Horn |
CD Horn |
| Tweeter dimensions |
1 " |
| Tweeter dimensions (mm) |
25.4 mm |
| Tweeter magnet |
Ferrite |
| Tweeter brand |
Custom-made |
| Tweeter voice coil |
1.75 " |
| Tweeter voice coil (mm) |
44.45 mm |
Amplifier module (integrated)
| Amplifier |
Class D |
| Protection circuits |
Multiband limiter |
| Protection circuits |
over voltage |
| Protection circuits |
over-current |
| Protection circuits |
thermal overload |
| Operating Temperature |
0 - 40 °C |
| Humidity Range |
< 80 % ( non-condensing ) |
| Fuse |
T4AL 250 V |
| Controls |
Rotary/push encoder |
| Controls |
On / off switch |
| Indicators |
LC display |
| Power supply |
SMPS |
| Operating voltage |
100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption |
150 W |
| Power in / out |
PowerCON compatible |
| Line inputs |
2 |
| Line input connectors |
6.3 mm jack |
| Line input connectors |
XLR - combo |
| Line thru |
2 |
| Line through connector |
XLR |
