LD Systems CURV500 1000W Touring Array System

SKU: LDS-CURV500-TS
$3,299.00 $3,881.18
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
Description

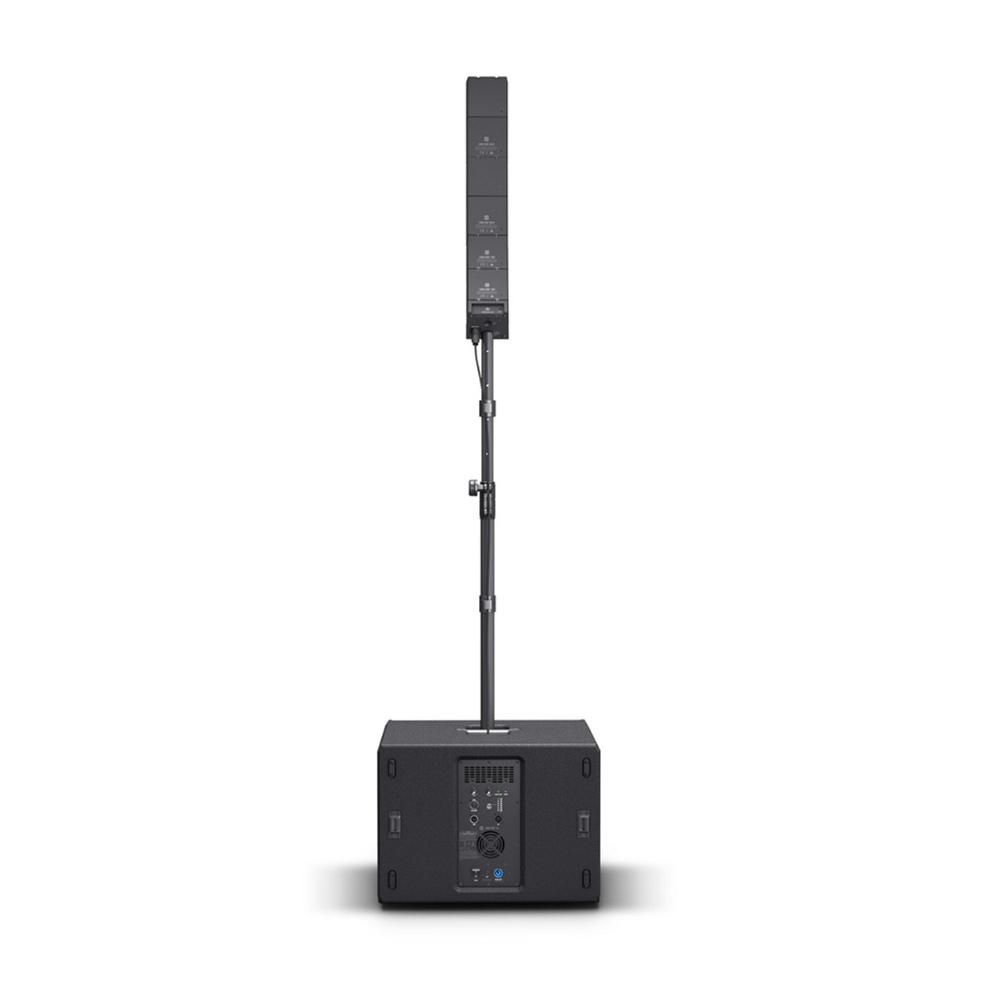

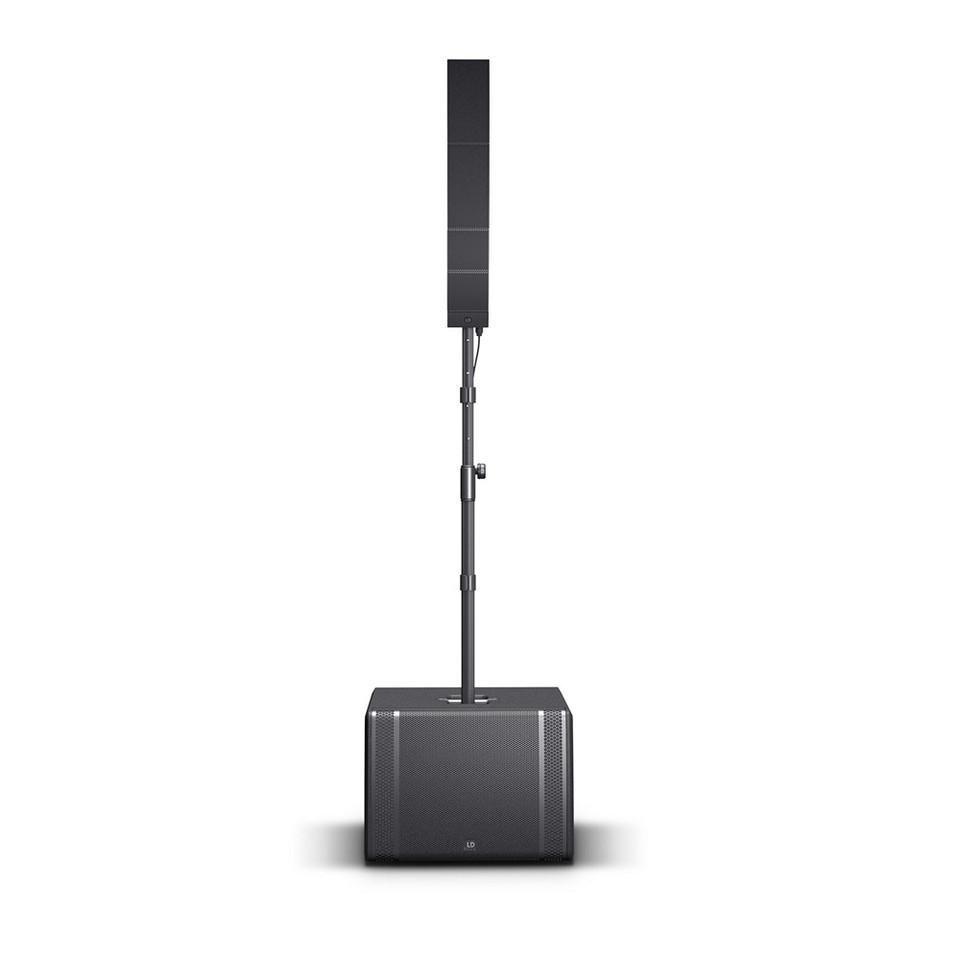

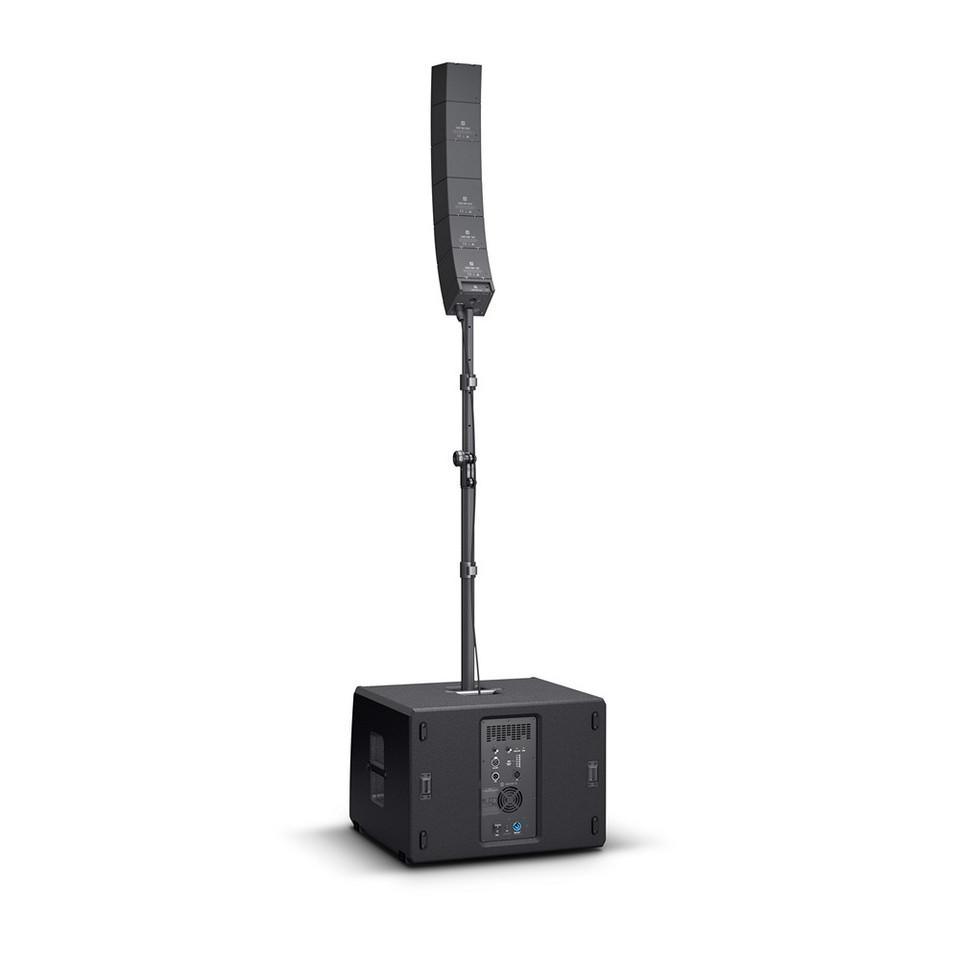

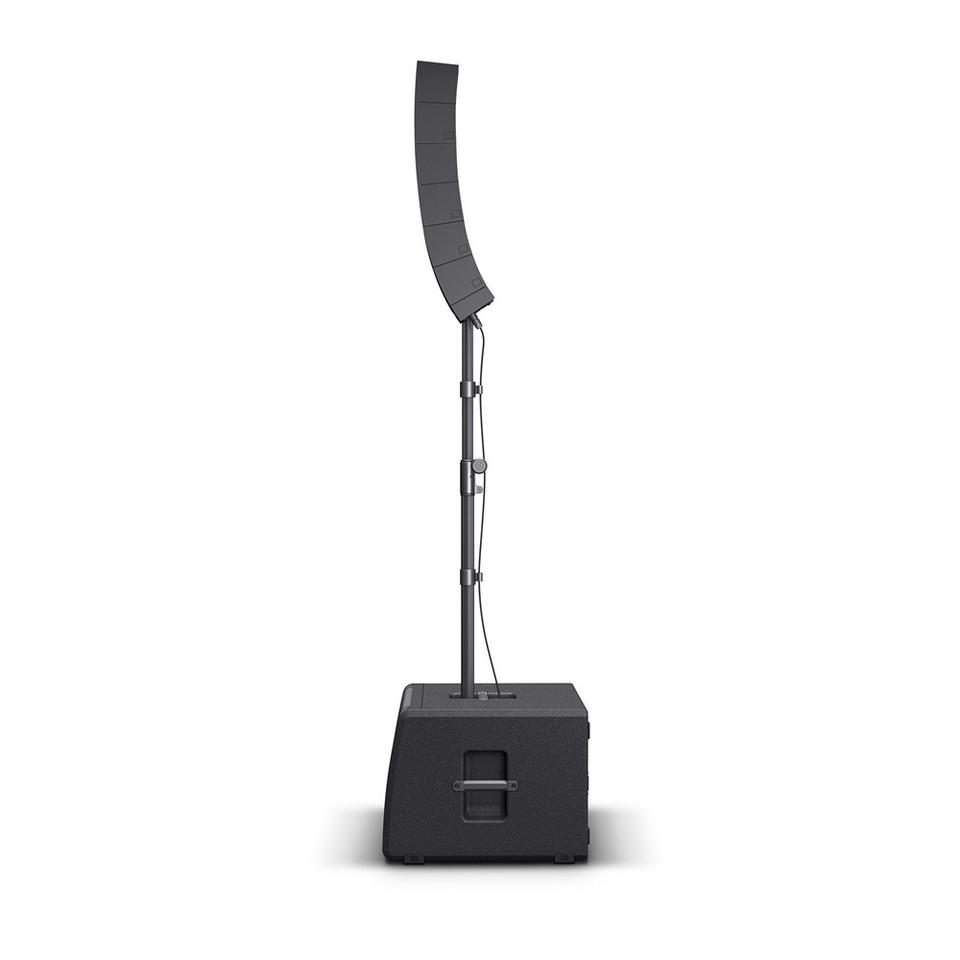

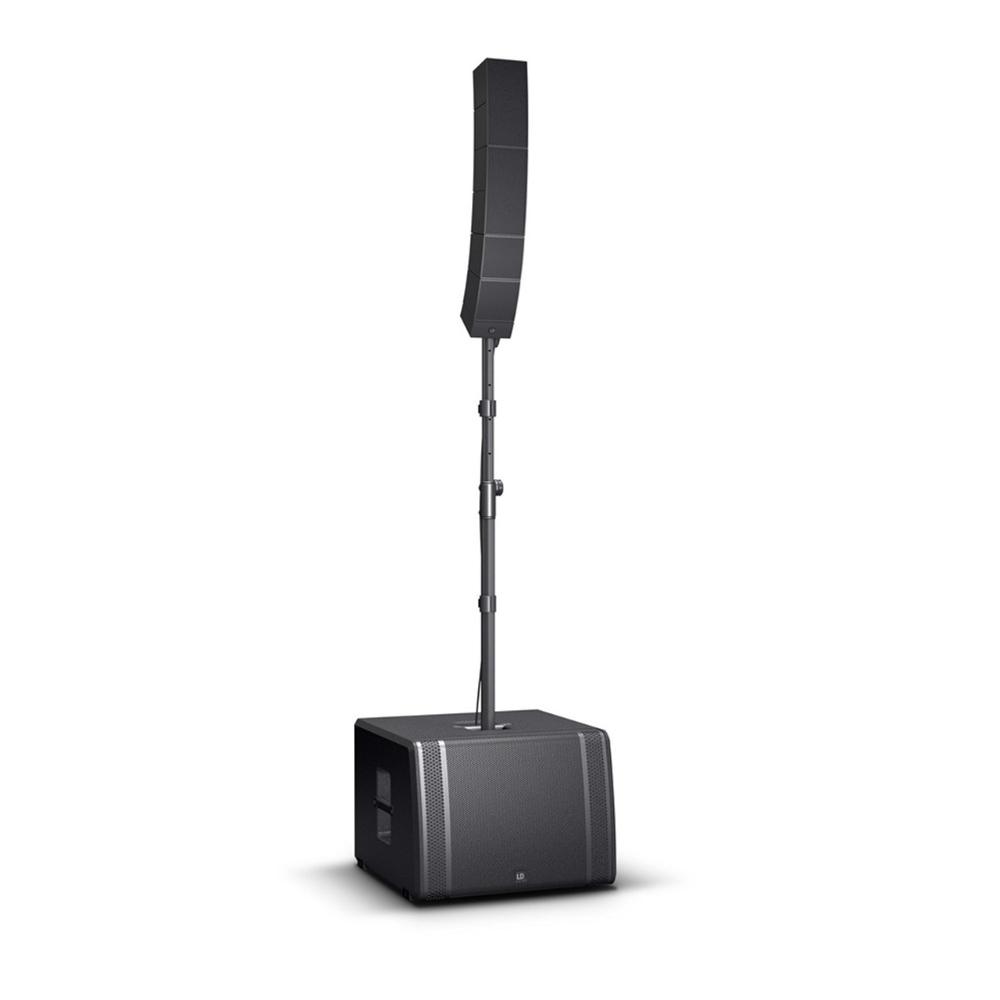

The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.

The ported 15" subwoofer base includes the CURV 500® Touring Array System's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.

  • Portable touring array system for live events, DJs and bands
  • 25 premium transducers and WaveAhead® technology for breath-taking high-definition sound
  • 1,000 watts RMS system power and 131 dB max. SPL
  • Fully scalable for far and near field applications
  • SmartLink® plug & play adapter for versatile application
  • Durable aluminum unibody satellite construction
  • 18 mm birch ply subwoofer cabinet with Polyurea finish
  • Ergonomic handles for convenient transport and setup
Product type PA Complete Systems
Product type PA Complete Systems Accessories
Product type PA Complete Systems Accessories
Product type Installation Loudspeakers
Type Smartlink® Adapter
Type Array Satellites
Type Wall-mounted Loudspeaker
Type Array Satellites
Midrange dimensions 1 x 4 "
Midrange dimensions 2 x 4 "
System output (RMS) 1000 W
colour Black
Tweeter dimensions 6 x 1 "
Tweeter dimensions 3 x 1 "
Load rating (RMS) 40 W
Load rating (RMS) 80 W
Peak power 160 W
Peak power 80 W
Speakers per amplifier channel (DSP44/45K) 8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
Dispersion 110° horizontal, vertical (each satellite) 10 °
Dispersion 110° horizontal, vertical 7 °
Number of array satellites 4
Number of Smartlink adapters 1
Impedance 8 Ohm(s)
Impedance 16 Ohm(s)
SPL (1W/1m) 88 dB
SPL (1W/1m) 91 dB
Max. SPL 110 dB
Max. SPL 104 dB
Material Die-cast aluminium
Material Die-cast aluminium
Material Die-cast aluminium
Number of subwoofers 1
Max. SPL (continuous) 125 dB
Surface Powder coated
Surface Powder coated
Surface Powder coated
Connectors 1x Speakon compatible
Connectors 1x Phoenix
colour Black
colour Black
colour Black
Max. SPL (Peak) 131 dB
Frequency response 40 - 20000
Width 122 mm
Width 122 mm
Width 122 mm
Dispersion (H x V) 110° horizontal, vertical 34 °
RMS Subwoofer: 700 W , Array Satellites: 300 W
Height 57 mm
Height 122 mm
Height 240 mm
Depth 126 mm
Depth 57 mm
Depth 122 mm
Peak power Subwoofer: 1400 W , Array Satellites: 600 W
##Weight (pair) 3.44 kg
Weight 0,35 kg
Weight 3,3 kg
Amplifier Class D
Protection circuits DSP-based multiband limiter
Protection circuits short circuit
Protection circuits overload
Protection circuits thermal overload
Features 2 x 16 mm flanges
Features 2x M6 thread for optional wall mount
Features internal crossover
Features metal grille
Features SmartLink® System
Features WaveAhead® Technology
Features M3 thread for safety rope for installations
Weight 48.2 kg
Accessories (included) Distance bar
Accessories (included) Speaker cable CURV 500 CABLE 1 (2.2 m)
Accessories (included) Power cord

Subwoofer

Low/mid driver dimensions 15 "
Low/mid driver dimensions (mm) 381 mm
Cabinet construction Bass Reflex
Housing material plywood
Cabinet surface Polyurea
Dimensions Subwoofer (W x H x D) 600 x 437 x587 mm
Subwoofer weight 35.5 kg
Subwoofer features 4 ergonomic handels
Subwoofer features speakON output
Subwoofer features 6 System DSP Presets
Subwoofer features Powercon
Subwoofer features Threaded flange M20
