LD Systems ICOA 1200W 15" Active Speaker w/ Bluetooth Black
Description
This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this aktive 15" loudspeaker exceptionally flexible.
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance.
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. The BT version offers Bluetooth® streaming and the wireless connection of playback devices - ideal for playing content from a phone or tablet.

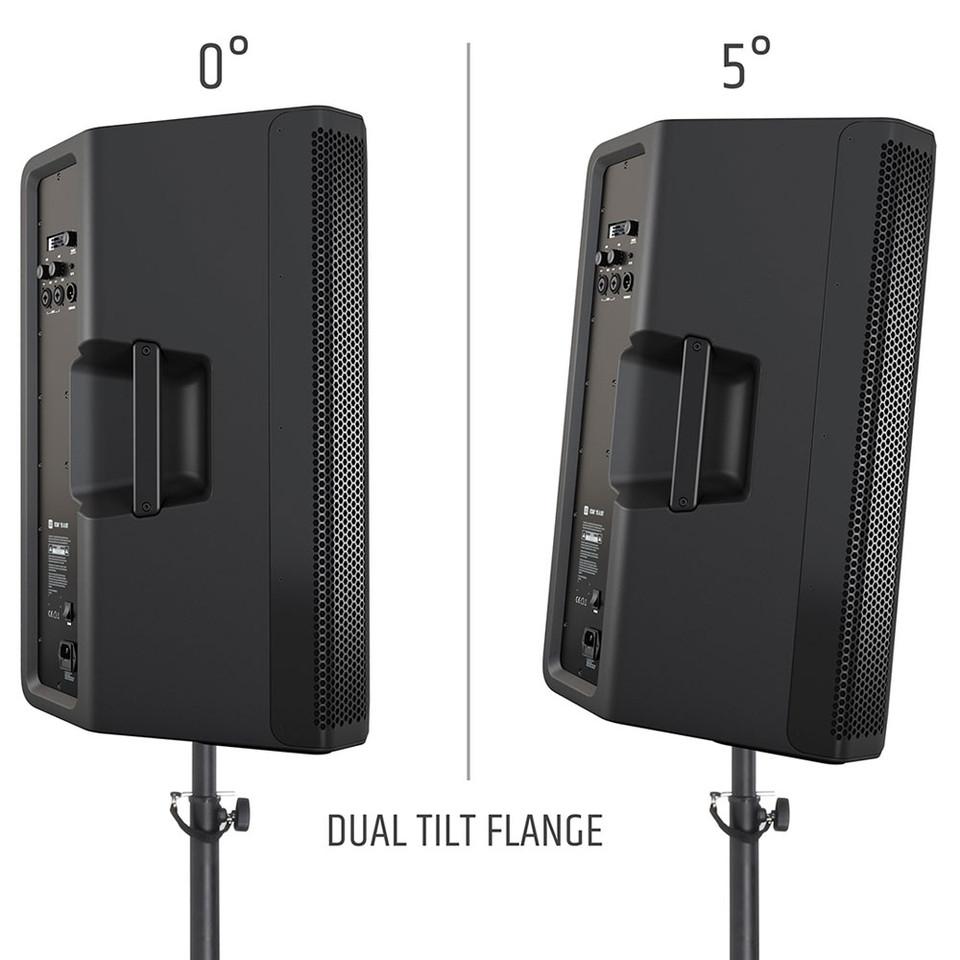

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
- A genuine all-rounder for full-range, satellite and monitor applications
- 128 dB max. SPL and 1200 W peak power

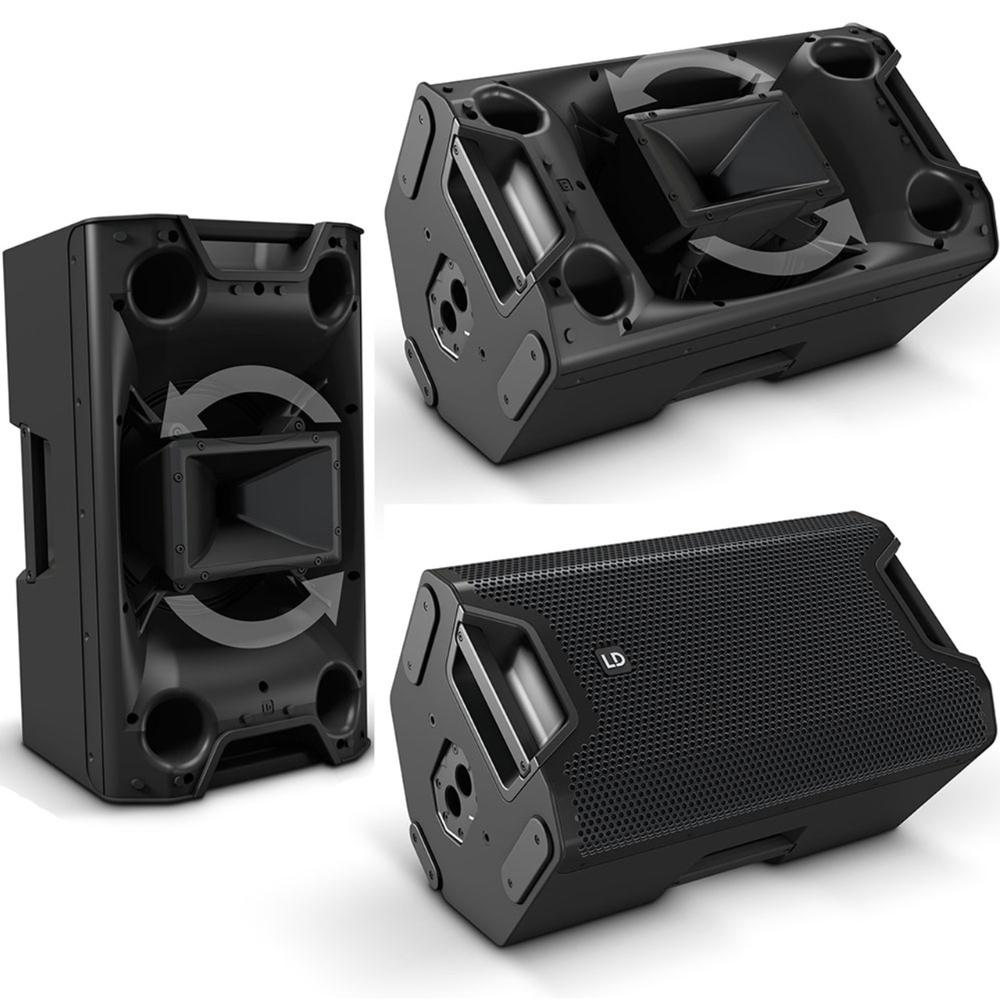

- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ and delay function

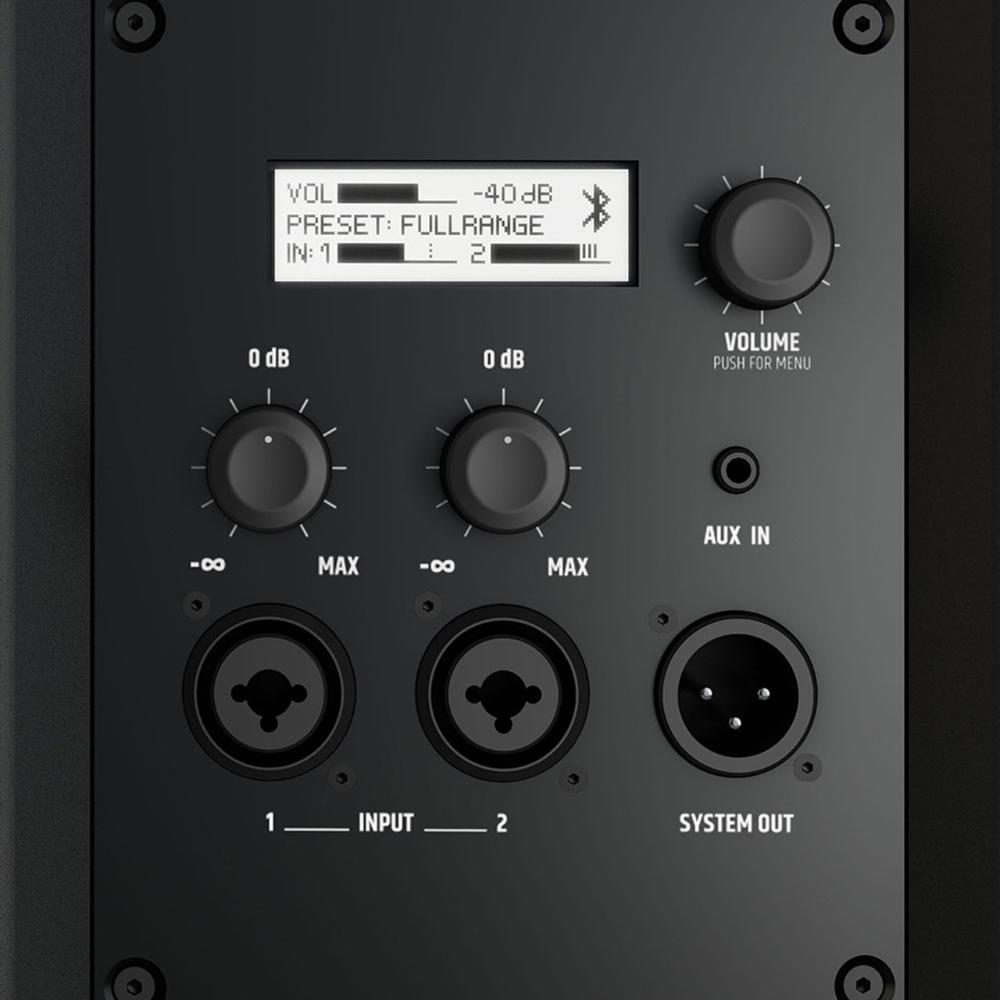

- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
- 6 x M10 flying points
- Shock-resistant front grille for optimal protection of the speaker
- 4 aluminium grips with ergonomic, rubber surface
- Extensive, optionally available accessories for installation and transport
Product type | PA loudspeaker |
Type | Powered |
Bluetooth Audio Decoder | Bluetooth 4.0 |
Low/mid Woofer dimensions | 15 " |
Woofer dimensions (mm) | 381 mm |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
Horn | BEM optimized CD Horn |
HF driver dimensions | 1 " |
HF driver dimention (mm) | 25.4 mm |
HF driver magnet | Ferrite |
HF driver brand | Custom-made |
HF driver voice coil | 1.4 " |
HF driver voice coil | 35 mm |
Amplifier | Class D |
Dispersion (H x V) | 90° x 50° |
System Power (RMS) | 300 W |
Peak power | 1200 W |
Frequency response | 48 Hz - 20000 Hz |
Crossover frequency kHz | 2 kHz |
Max. SPL (Peak) | 128 dB |
Protection circuits | Multiband limiter |
Protection circuits | thermal overload |
Protection circuits | over voltage |
Protection circuits | over-current |
Controls | 2 x gain |
Controls | On / off switch |
Controls | Rotary/push encoder |
Indicators | LC display |
Mic/ line inputs | 2 |
Mic-/ Line Input Connectors | XLR |
Mic-/ Line Input Connectors | 6.3 mm jack Combination sockets (symmetrical) |
Line inputs | 1 |
Line input connectors | 3.5 mm TRS |
Line outputs | 1 |
Line output connectors | XLR |
Power supply | SMPS |
Power consumption | 150 W |
Ambient temperature (in operation) | 0 - 40 °C |
Operating voltage | 100 V - 240 V AC / 50 - 60 Hz |
Relative Humidity | < 80 %, not condensing |
Fuse | T4AL 250 V |
Cabinet material | Polypropylene |
Cabinet construction | Bass Reflex |
Mounting | 6 x M10 flying points |
Mounting | 36mm flange (0°, 5°) |
Monitor angle | 55 ° |
Width | 416 mm |
Height | 695 mm |
Depth | 415 mm |
Features | Bluetooth |
Weight | 24.3 kg |
Accessories (included) | Power cord |
