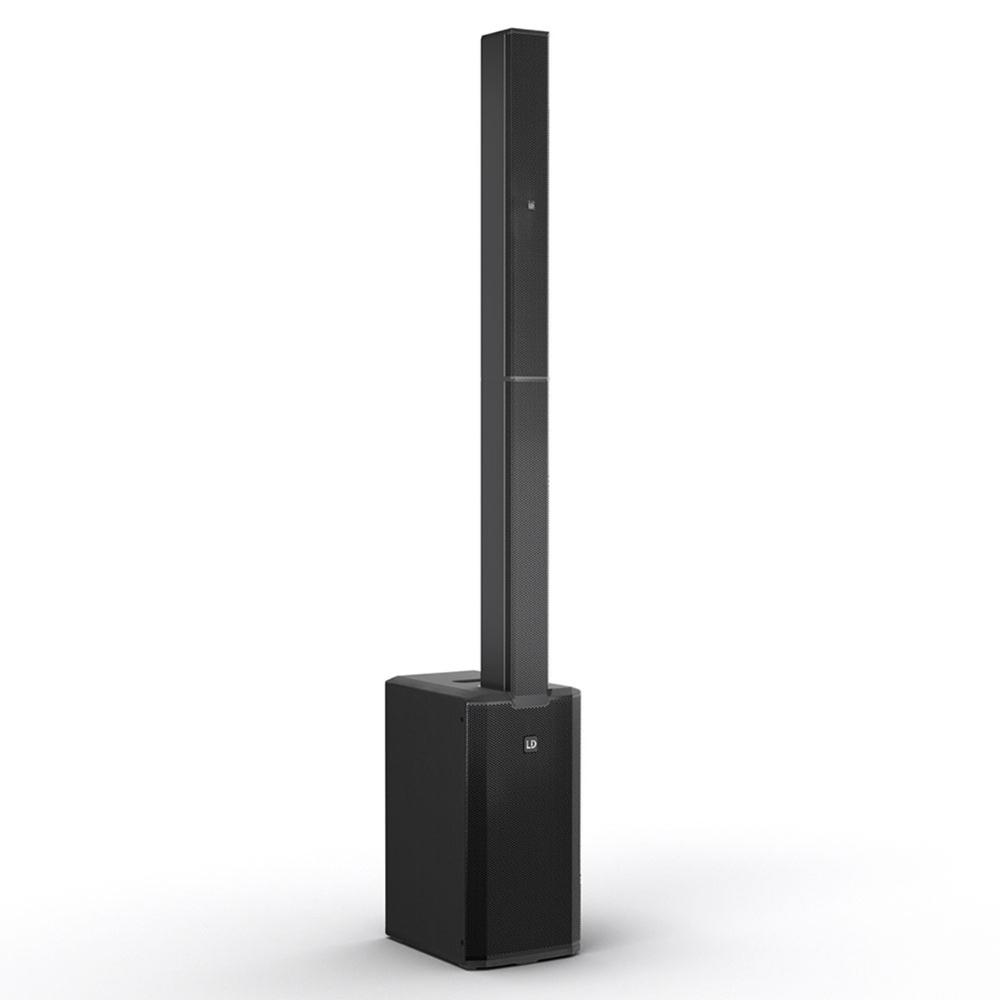

LD Systems MAUI 11 G3 1460W Peak Column Array System Black

SKU: LDS-MAUI11G3
$1,699.00 $2,351.76
In stock: 2
NOTIFY ME WHEN BACK IN STOCK
Description

Compact, powerful and easy to use - a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set!

The MAUI 11 G3 delivers a huge, powerful and precise sound featuring 730 W RMS power (1,460 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.

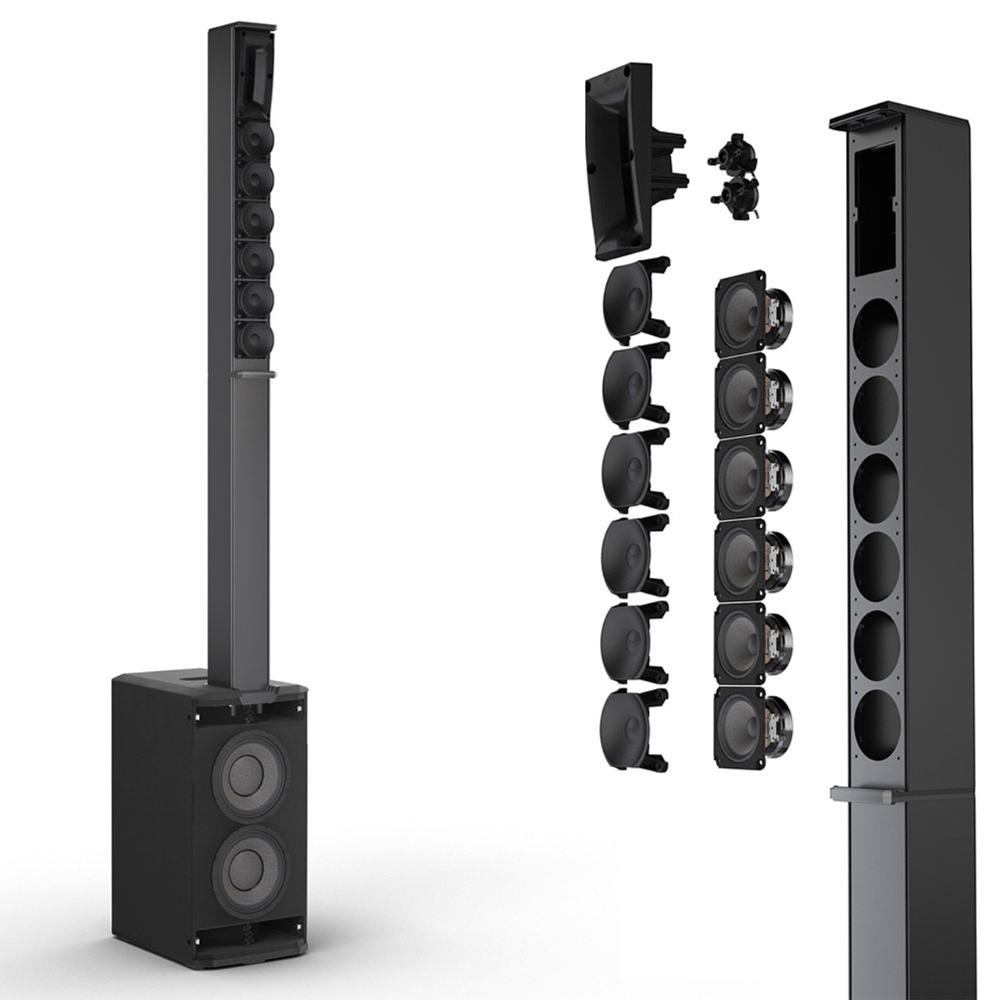

With its sleek and elegant design, the MAUI 11 G3 looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 6 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the curved waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.

The LD Systems engineers also took great care of the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field.

The columns of the MAUI 11 G3 are designed as cardioid units. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound. Equipped with two 8'' woofers and four bass reflex ports, the MAUI 11 G3 subwoofer delivers a clear, tight and punchy low end down to 39 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.

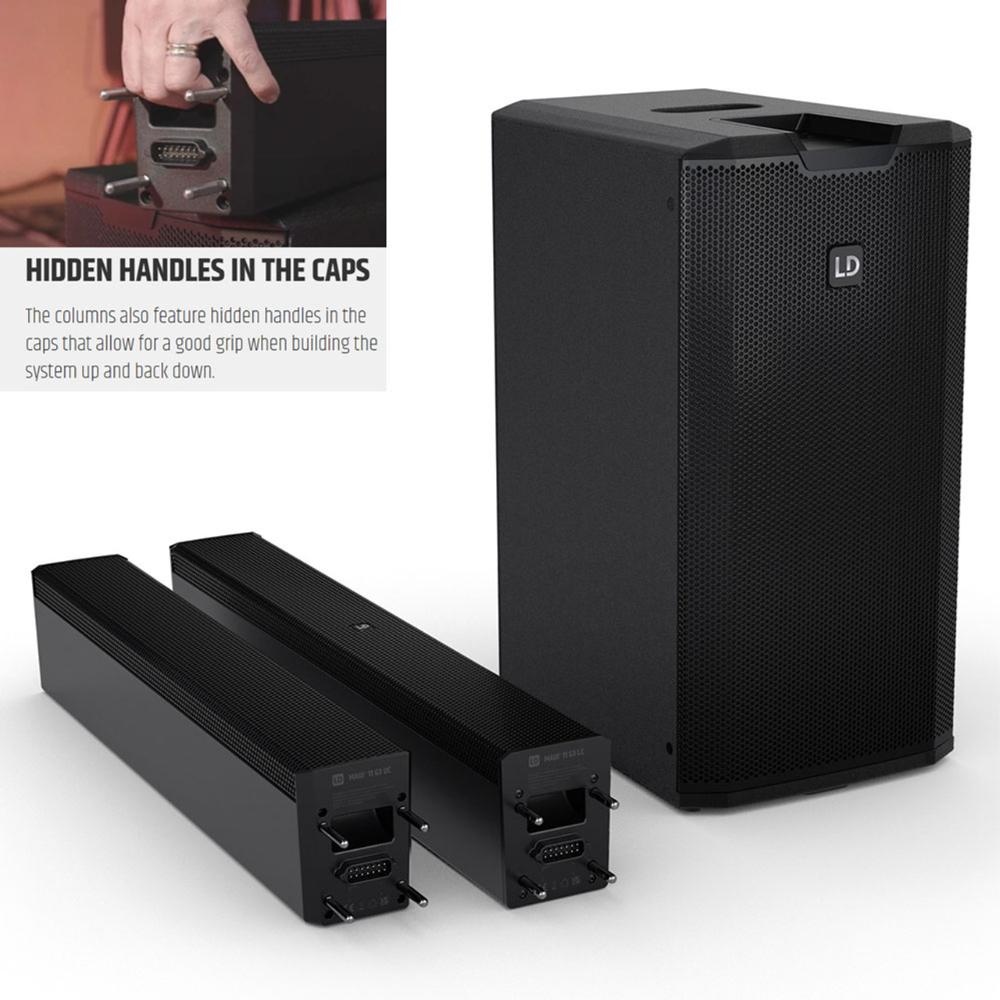

The MAUI 11 G3 is a real sound machine, yet also convinces with its smart features in the day-to-day life of DJs, musicians, and technicians. Thanks to Bluetooth 5.0 the column PA becomes even more versatile. Transport is as easy as usual, while the hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily...

  • 1460 W Peak-power and 125 dB max. SPL
  • Powerful bass reproduction with 2 x 8" subwoofer
  • Balanced mids thanks to 6 x 3.5" full-range speakers
  • Precise and silky highs with 2 x 1" high-frequency drivers
  • Cardioid column for controlled low-mid and midrange sound dispersion
  • BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion
  • Optimised bass-reflex design improves bass response and reduces air flow noise
  • Can be combined with an additional MAUI® 11 G3 subwoofer for increased low end or for cardioid subwoofer setups
  • Dynx® DSP (Gen.2) for distortion-free sound even at maximum volume
  • HD Bluetooth® 5.0 streaming
  • Automatic setup detection for quick and easy operation
  • Fast and simple assembly without stands or cables
  • Rugged birch plywood subwoofer housing with durable polyurea-coating
  • Lightweight, powder-coated aluminium column housing
Product type PA Complete Systems
Type Powered
Colour Black
Max. SPL (Peak) 125 dB
Frequency response (-10dB) 39 Hz - 20000 Hz
Dispersion (H x V) 120° x 30 °
Total Height 2052 mm
Weight 30.7 kg
Features Excellent Sound Dispersion
Features Bluetooth Audio Streaming
Features Cardioid column
Features DSP-based Signal Processing
Features Mono/ Stereo Application

Subwoofer

Woofer dimensions 2 x 8 "
Woofer dimensions (mm) 2 x 203 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 2 "
Woofer voice coil (mm) 50.8 mm
Cabinet construction Bass Reflex
Housing material 15 mm Multiplex
Cabinet surface Polyurea
Dimensions Subwoofer (W x H x D) 305 x 607 x 403 mm
Subwoofer weight 20.5 kg

Mid/Hi System

Midrange dimensions 6 x 3.5 "
Midrange dimensions (mm) 6 x 89 mm
Midrange magnet Ferrite
Midrange brand Custom-made
Midrange voice coil 0.75 "
Midrange voice coil 19 mm
Tweeter dimensions 2 x 1 "
Tweeter dimensions (mm) 2 x 25.4 mm
Tweeter magnet Neodymium
Tweeter brand Custom-made
Tweeter voice coil 1 "
Tweeter voice coil (mm) 25.4 mm
Wave Guide CD Waveguide
Loudspeaker inputs 1
Speaker input connections Custom-made multipin
Cabinet construction mid/high Passive Cardioid
Mid/Hi system cabinet material Aluminium
Mid/Hi system cabinet surface Powder-coated
Mid/Hi system width 103 mm
Mid/Hi system height 1460 mm
Mid/Hi system depth 135 mm
Mid/Hi system weight 10.2 kg

Amplifier module (integrated in subwoofer)

Amplifier Class D
System output (RMS) 730 W
System output (Peak) 1460 W
Protection circuits short circuit
Protection circuits DC protection
Protection circuits Multiband limiter
Protection circuits thermal protection
Cooling Convection

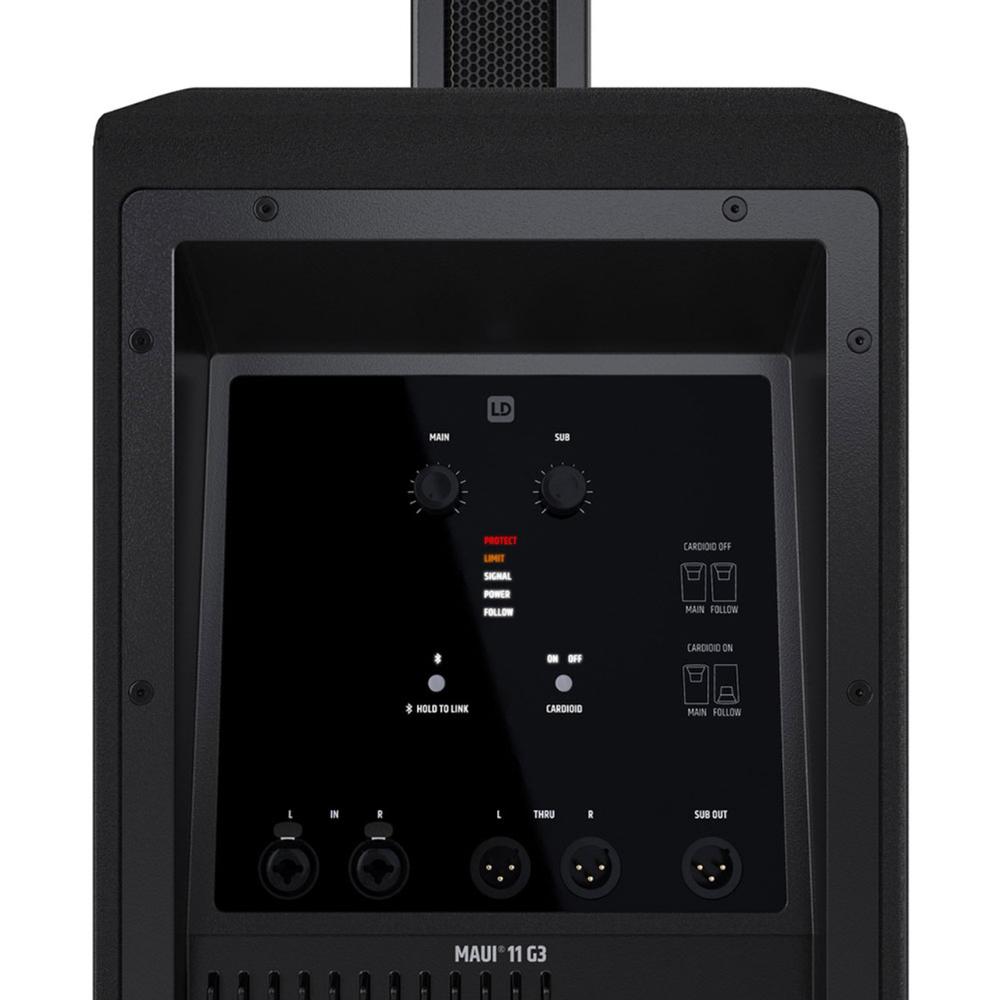

Controls Sub level
Controls Bluetooth HOLD TO LINK button
Controls Cardioid On/Off
Controls Main level
Controls Power On/Off
Indicators Cardioid On/Off
Indicators Limit
Indicators Signal
Indicators Bluetooth
Indicators Follower mode
Indicators Power
Indicators Protect (protection circuit engaged)
Indicators Subwoofer Mode
Mains connector IEC power cable (included)
Operating voltage 100 V AC - 120 V AC, 50 - 60 Hz
Operating voltage 220 V AC - 240 V AC, 50-60 Hz
Fuse T 3.15AL / 250 V
Power consumption 300 W
Ambient temperature (operating) 0 - 40 °C
Relative Humidity < 80% (non-condensing)
Line Inputs 2
Line Input Connectors Combo XLR / TRS
Line Outputs 2 x THRU
Line Outputs 1 x Sub OUT
Line Output Connectors XLR male
Number of speaker outputs 1
Loudspeaker Output Connectors Custom-made multipin
Bluetooth Standard A2DP
Bluetooth Audio Decoder AAC
Bluetooth Audio Decoder SBC

DSP characteristics

Bit depth AD/DA converter 24 bit
Sampling frequency 48 kHz
