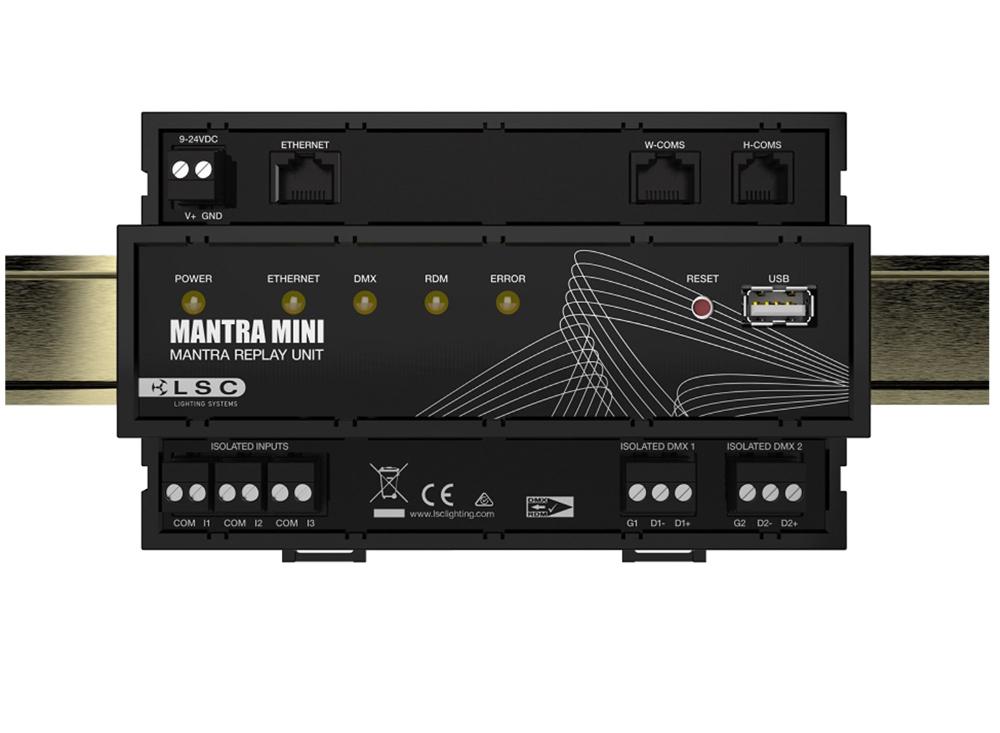

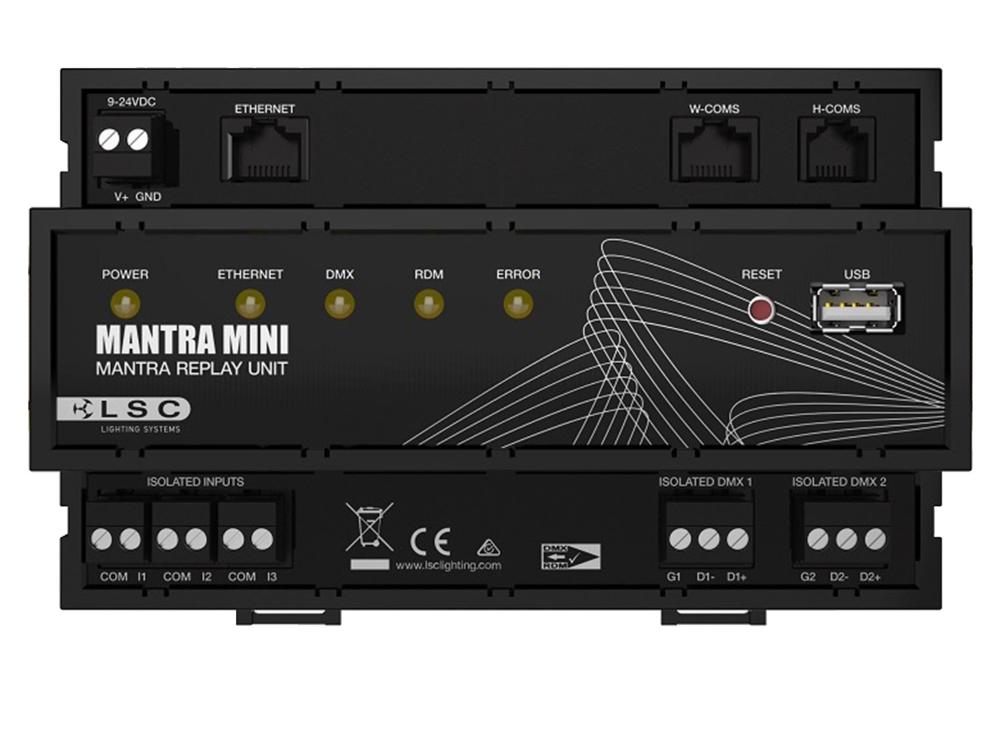

LSC Mantra Mini Dinrail Mounted Playback Device For Mantra Lite Shows
SKU: MANTRA/MN
Out of Stock, contact for ETA
By LSC
Description
What you imagine, you create.
A brilliant little playback unit with unparalleled features for control of conventional and intelligent lighting. Ideal for static displays, exterior building and visual display lighting, house and foyer lights and trade exhibitions.
Specifications
Control
- Up to 48 fixtures on 1024 DMX slotsup to 100 active simultaneous cues
- Massive memory – over 1000 shows can be stored internally
- Play default cues on power-up
- Status logging and reporting
- Remote app for Windows and MAC-based devices allowing loading, editing and storing of show information
Inputs
- DMX512 (1990) and DMX512-A (E1-11)
- USB port for show data upload/backup and software upgrades
- Three isolated contact closure inputs via 2-pole plug-in screw terminals for fire, emergency or playing cues
- Live console override via Art-Net or sACN
- UDP via Ethernet for third-party remote control
Outputs
- Dual DMX512 outputs via two 3-pole plug-in screw terminals
- Art-Net and sACN outputs via Ethernet connection
- Room linking via Ethernet, requires one Mantra Mini per room
- Expansion port for future proofing
Power
- PoE (via RJ45 Ethernet connector) or 9-24V DC (20W max) supply via 2-pole plug-in screw terminals (external power supply not included)
Mechanicals
- 158mm (w) x 59mm (d) x 104mm (h)
- Weight: 350g
- TS-35 DINrail-mount, high-strength, flame-retardant ABS plastic chassis
Peace of Mind
- CE (European) and RCM (Australian) approved
- Two-year warranty
- Designed and manufactured in Australia by LSC – an Australian-owned company with over 40 years’ experience in developing world-first products
