Luminex LumiNode 4 - 4 DMX, 2 Ethernet, PoE, 1/2 RU

SKU: LU-01-00071
$2,901.00 $3,272.00
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By Luminex
This product is unavailable
Description

LumiNode 4 is specifically designed with an all metal, robust enclosure for rack mounting or truss mounting, making it an ideal solution for touring, theatre- and studio AV installs or for use at live performances.

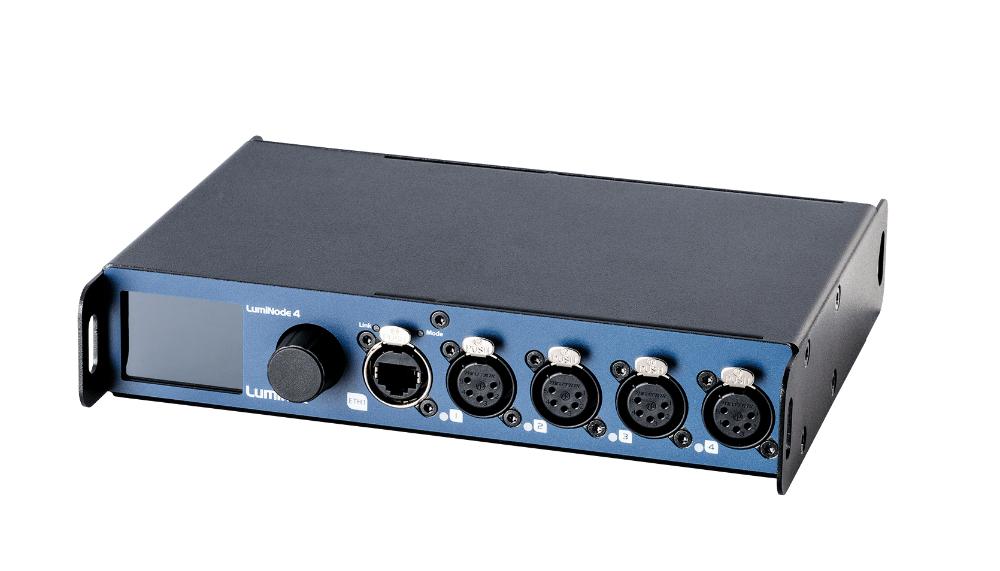

Equipped with 2x 1Gb Ethercon ports and 4x 5-pin DMX ports LumiNode 4 offers flexibility in a half 19″ package.  The M10 Insert and protection ears are specialy placed to mount the unit safely to any lighting structure.
Each DMX port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted by the 6 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.

The unit is specifically designed with an all metal, robust enclosure for rack mounting or truss mounting, making it an ideal solution for touring, theatre- and studio AV installs or for use at live performances. Equipped with 2x
1Gb Ethercon ports and 4x 5-pin DMX ports LumiNode 4 offers flexibility in a ½ 19” package. Each port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted in 6 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.

LumiNode 4 also supports remote device management (RDM), has automatic functional and operational redundancy and recovery to reliably cope with the most challenging lighting tasks. A show recording and play-back mode lets you conveniently store lighting scenes and play these back when triggered to do so. An external contact closure is included as standard to allow for example to playback a lighting scenes in case of emergency.

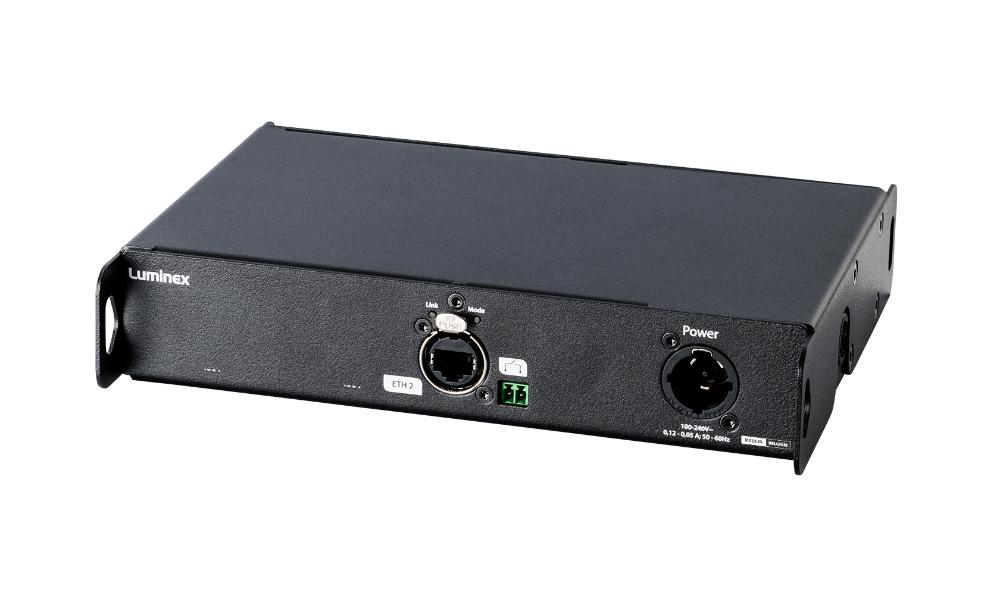

LumiNode 4 is efficient and has a low power consumption and can be powered via PoE or via mains with robust a Neutrik powercon connector. LumiNode 4 is easy and intuitively to operate with a builtin color display and control jog for easy access to universe numbers for example. Configuration can also be done through a built in web-based user interface. The fully documented open API facilitates full integration with any 3rd party control or management system.

With its two 1 Gigabit ethernet ports, LumiNode 4 offers the possibility of a split network interface, with individual IP-addresses, making it possible to separate the lighting network data streams from IT related data, allowing for remote status monitoring and management without interfering with critical lighting control data streams. Luminode 4 with its 2 Ethercon connectors with 1Gbps capacity and an integrated switch is ready for future ethernet-only based lighting networks. Luminode 4 features group (VLAN) technology, which allows you to arrive at the Node with an ISL connection, connect the node to the lighting group and use the second Ethernet port for other purposes in another group (for example video control, Dante audio, …).
