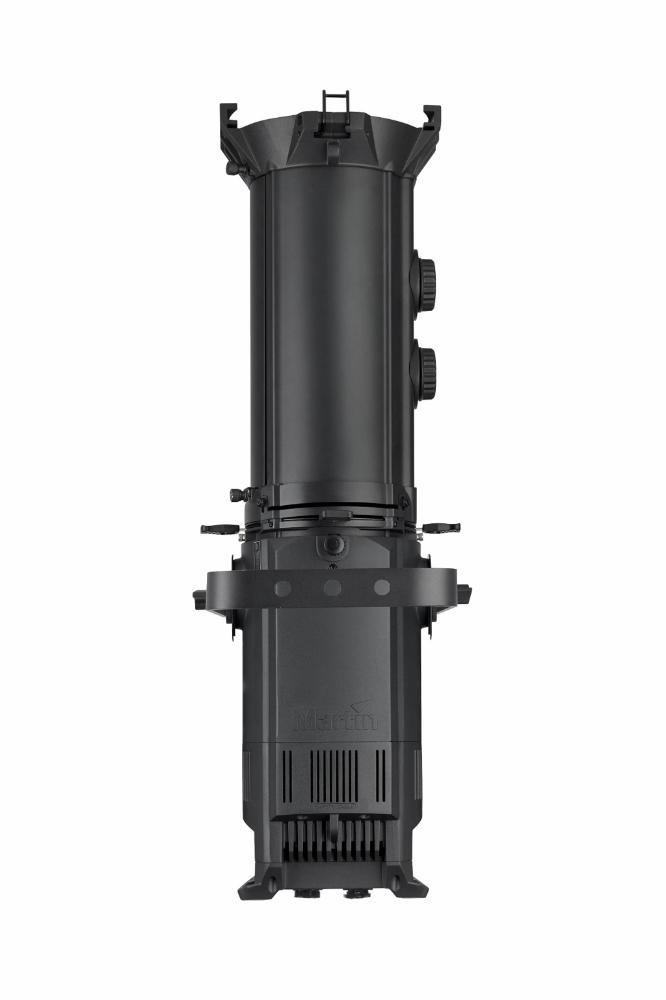

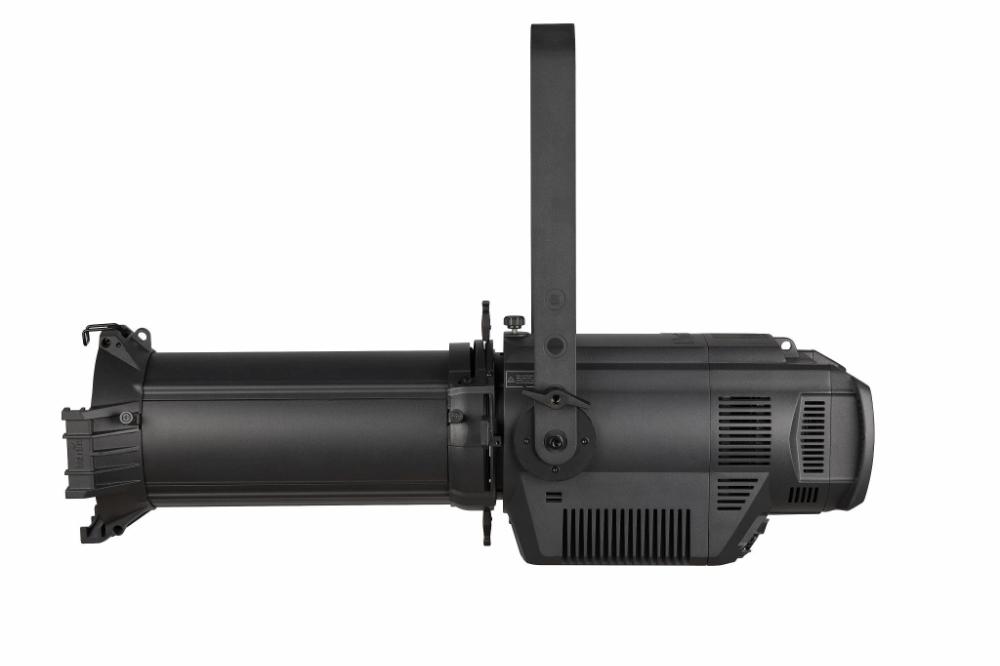

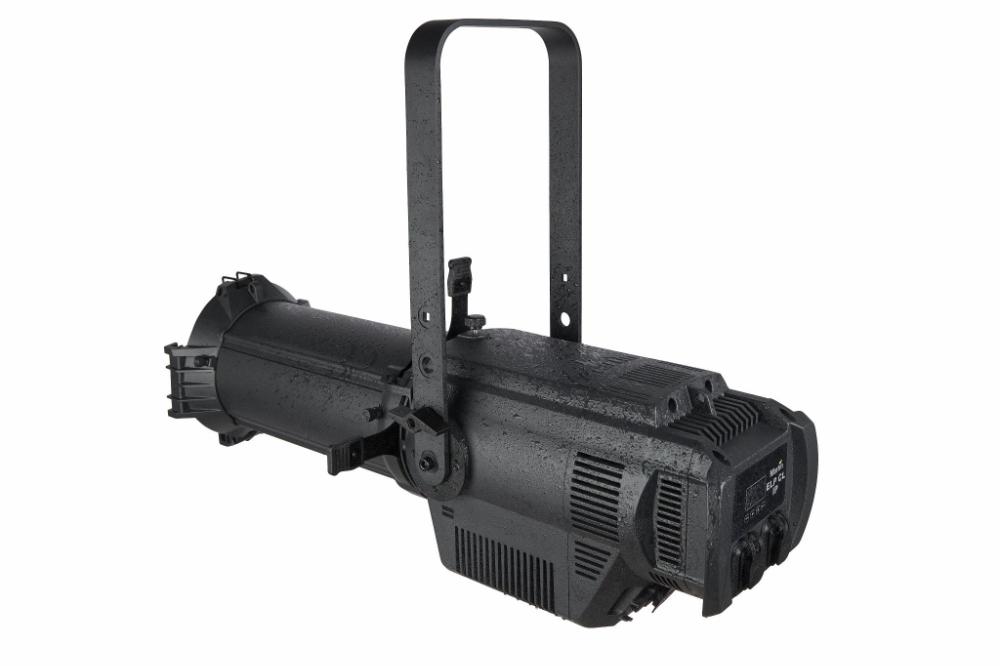

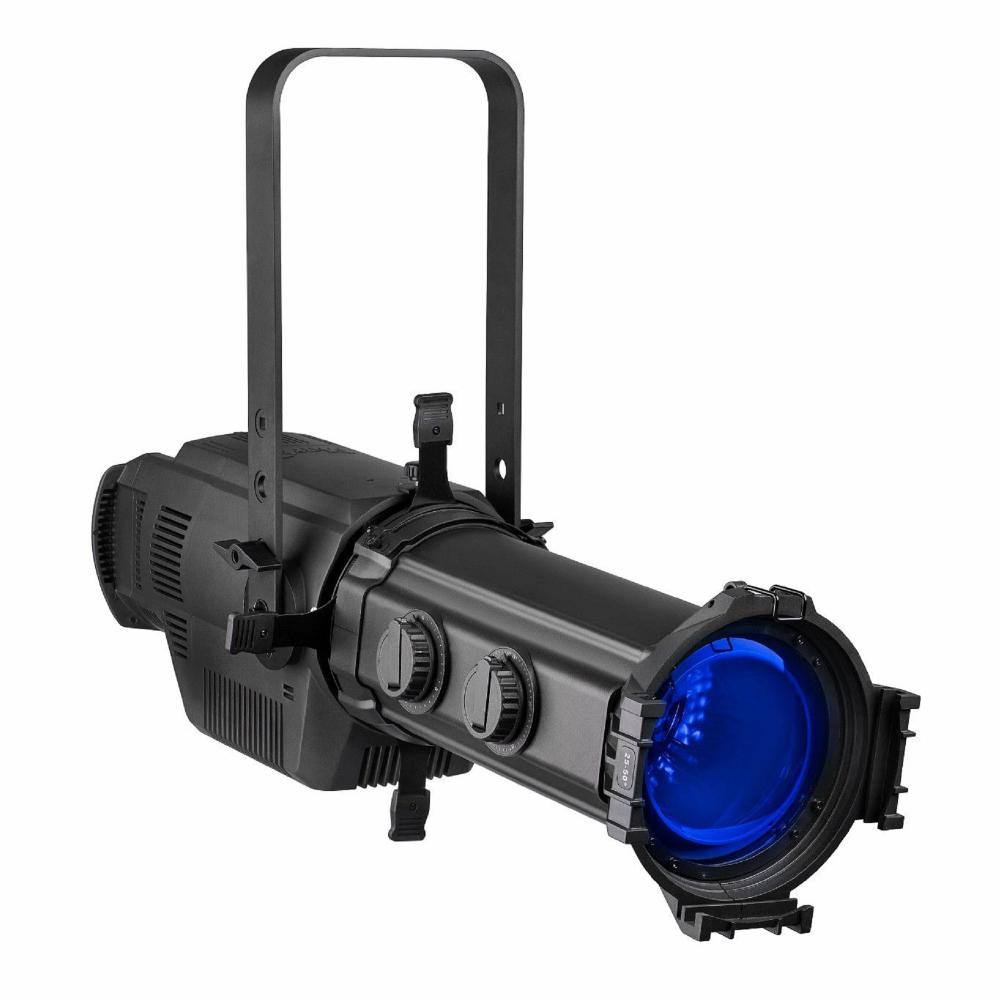

Martin MARPRO106 Martin ELP CL IP Static

Martin ELP LED ellipsoidal fixtures deliver the luminance, brightness and vivid color rendering that have been synonymous with the Martin name for more than 30 years. Martin ELP CL IP offers the same rich saturated colors and class leading output as the original Martin ELP CL but expands its versatility into temporary outdoor applications through IP65 compliance for moisture resistance and complete dust protection, along with C3 corrosion resistance. ELP’s ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP CL IP is available in black and white housing options and can be configured with one of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles, or a choice of two Martin Zoom lenses with choice of 15–30-degree and 25–50-degree range. ELP also offers flexibility in lighting design and inventory management through compatibility with third-party lens tubes along with a wide range of accessories including gel frames and gobos. Superior output, optics and color rendering, combined with robust protection from the elements, unparalleled ease-of-use and convenience, make Martin ELP the leading LED ellipsoidal fixture in its class.

Price is for body only. No lenses are included

FEATURES

• Legendary Martin quality in LED ellipsoidal light fixtures
• Advanced optics engineered in Denmark
• RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colors
• Class-leading output of 6,900 lumens (in High Output mode)
• Superior CRI rating of 90 (in high quality mode)
• Fast focus feature for data free focusing
• Revolutionary Fine Focus gear-driven focus-adjustment knob locks in placement the first time.
• IP65 rated for water resistance and complete protection against dust and other particulates
• 26 color presets match industry-standard filters
• 16-bit dimming with 4 selectable dimming curves
• Compatible with universal accessories such as gel frames and gobo holders and rotators
• Options include 4 static lens tubes and 2 zoom lenses with compatibility for 3rd party accessories
• Halation color correction removes atypical blue and brown halos when using
• Martin lens tubes.
• Flicker-free operation
• 4-blade manual framing shutters
• Center of gravity at yoke for ergonomic use
• Regulated cooling for ultra-quiet operation
• 5-pin DMX/RDM and Neutrik True1 In/Thru connectivity

SPECIFICATIONS

PHYSICAL

• Length: 644 mm
• Width: 255 mm
• Height: 255 mm, 527 mm with bracket
• Weight: 11 kg, body only

DYNAMIC EFFECTS

• Color mixing: RGBLA

• Color Temperature Range: 2000–10000K

• Color selection: 26 color presets

• Electronic dimming: 0–100%, Four dimming curve options

• Strobe and pulse effects: Variable speed and action, random strobe

• Electronic shutter effect: Instant open and blackout


CONTROL AND PROGRAMMING

• Control options: DMX, stand-alone

• Setting and addressing: Control panel with OLED display or via RDM
• 16-bit control: Intensity, CTC, RGBLA
• DMX channels: 1/10/17
• PWM: 600–2400 Hz
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Transceiver: Opto-isolated RS-485
• Stand-alone programming: Control panel with OLED display

OPTICS

• Light source: 91 x RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)
• Minimum LED lifetime: 30 000 hours (to >70% luminous output)
• Color temperature: 2000–10000K
• Fixed Lens Tube Options: 19°, 26°, 36° and 50°
• Zoom Lens Tube Options: 15–30° and 25–50°
• Binning: Tight color and flux binning
• Calibration: White Point Color Calibration

PHOTOMETRIC DATA

• Light engine luminous output: 20,000 lumens

• High Output Mode

• Fixture luminous output: 6,900 lumens

• CRI (Color Rendering Index): >85

• CQS (Color Quality Scale): >90

• TM-30 Rf (IES TM-30-15 Fidelity Index): >84

• TM-30 Rg (IES TM-30-15 Gamut Index): >111

• TLCI (Television Lighting Consistency Index): >85

• CCT: 5500 K (+/- 250 K)

• High Quality Mode

• Fixture luminous output: 5,900 lumens

• CRI (Color Rendering Index): >90

• CQS (Color Quality Scale): >87

• TM-30 Rf (IES TM-30-15 Fidelity Index): >84

• TM-30 Rg (IES TM-30-15 Gamut Index): >106

• TLCI (Television Lighting Consistency Index): >87

• CCT: 6000 K (+/- 250 K)


CONSTRUCTION

• Housing: Die-cast aluminum
• Color: Black or white variant
• Protection rating: IP65

GOBOS AND COLOR FRAME

• Gobo size, A size: 100 mm OD, 75 mm image
• Gobo size, B size: 86 mm OD, 64.5 mm image
• Color frame size: 159 x 159 mm

INSTALLATION

• Mounting: Adjustable bracket
• Location: Indoor, outdoor use, suitable for wet locations
• Orientation: Any
• Minimum distance to combustible materials: 0.2 m
• Minimum distance to illuminated surfaces: 0.5 m

CONNECTIONS

• AC power in, thru: IP65-rated Neutrik PowerCON TRUE1 TOP
  DMX & RDM data in/thru: IP65-rated 5-pin XLR

ELECTRICAL

• AC power: 100-240 V AC nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 18.0 A
• Power Factor: 0.95 @ 230 V / 240 V
• Typical current draw: 1.1 A @ 240 V
• Power Consumption, Typical: 259 W
• Power Consumption, Idle: 5 W


THERMAL

• Cooling: Forced air (temperature-regulated, low noise)
• Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1000 BTU/hr.
• Maximum ambient temperature (Ta max.): 40° C
• Minimum ambient temperature (Ta min.): 0° C

INCLUDED ITEMS

• Mounting bracket
• User manual
