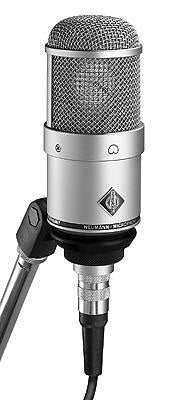

Neumann M147Tube Eu 230 V Cardioid Microphone
The M 147 Tube can feed extremely long microphone cables without affecting the quality of the audio signal. Like all Neumann tube microphones, the M 147 Tube comes with an elegant satin nickel finish. The microphone is delivered as a complete set in a high-quality aluminum case. Included with the microphone are a microphone cable, a metal swivel mount for a mic stand, and a compact universal power supply for standard mains sockets. Our modern manufacturing methods makes it possible to offer this complete set at a very attractive price.
ApplicationsThe famous capsule, together with complimenting tube characteristics, makes the M 147 Tube especially well suited as a vocal mic. In addition, it is a superb spot mic for all types of musical instruments. The extremely low self-noise of its tube circuitry makes the mic perfectly suited for use in modern recording chains, analog and digital.
Acoustic featuresThe M 147 Tube is addressed from the side, where the microphone body has the diamond-shaped Neumann company logo. The black color identifies tube microphones. The capsule is equivalent to the one used in the U 47, and is the deciding factor in determining the sound characteristic. It has a flat frequency response to the upper midrange, and a boost of up to 3 dB above 2 kHz. The headgrille design is a smaller version of the U 47. It protects the capsule effectively against popping and wind noise.
Polar patternThe M147 Tube has a cardioid characteristic, leaning more toward super-cardioid due to its distinctive capsule design. At higher frequencies the pattern becomes more directional. This is very similar to the model after which this new tube microphone was patterned, the U 47 and the successor, the U 47 fet.
|Acoustical operating principle||Pressure gradient transducer|
|Frequency range||20 Hz ... 20 kHz|
|Sensitivity at 1 kHz into 1 kohm||20 mV/Pa|
|Rated impedance||50 ohms|
|Rated load impedance||1 kohms|
|Equivalent noise level, CCIR1)||24 dB|
|Equivalent noise level, A-weighted1)||12 dB-A|
|Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)||70 dB|
|Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)||82 dB|
|Typical SPL (tube characteristic)2)||114 dB for THD < 0.5 %, 134 dB for THD < 5 %|
|Maximum output voltage||8 dBu|
|Powering||Power supply N 149 A|
|Matching connector||Microphone: DIN 8F, Power Supply: XLR3F|
For more information, please visit the manufacturer's website.
