Obsidian - EL-NRD101 - Netron RDM10; 10 Port Hybrid DMX Splitter
Description
The NETRON RDM 10 is a first of its kind hybrid splitter. Dual DMX input, 10 port RDM Splitter, Merger and EtherDMX Gateway are unified into the RDM10, with an advanced feature set to cover a wide variety of applications. 99 internal cues, factory and user presets plus external contact closures provide a unique combination of multiple devices to solve many required tasks in one powerful unit.
Features
- 10 assignable DMX outputs
- Integrated 2 Universe Artnet/sACN node
- Configurable DMX refresh rate
- Dual DMX Inputs for backup and signal loss options
- Remote configuration via internal webpage
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
- Unlocks ONYX NOVA 4 Universe License
- NETRON CLU for remote configuration and firmware updates
Specifications
Mounting
- Rackmount

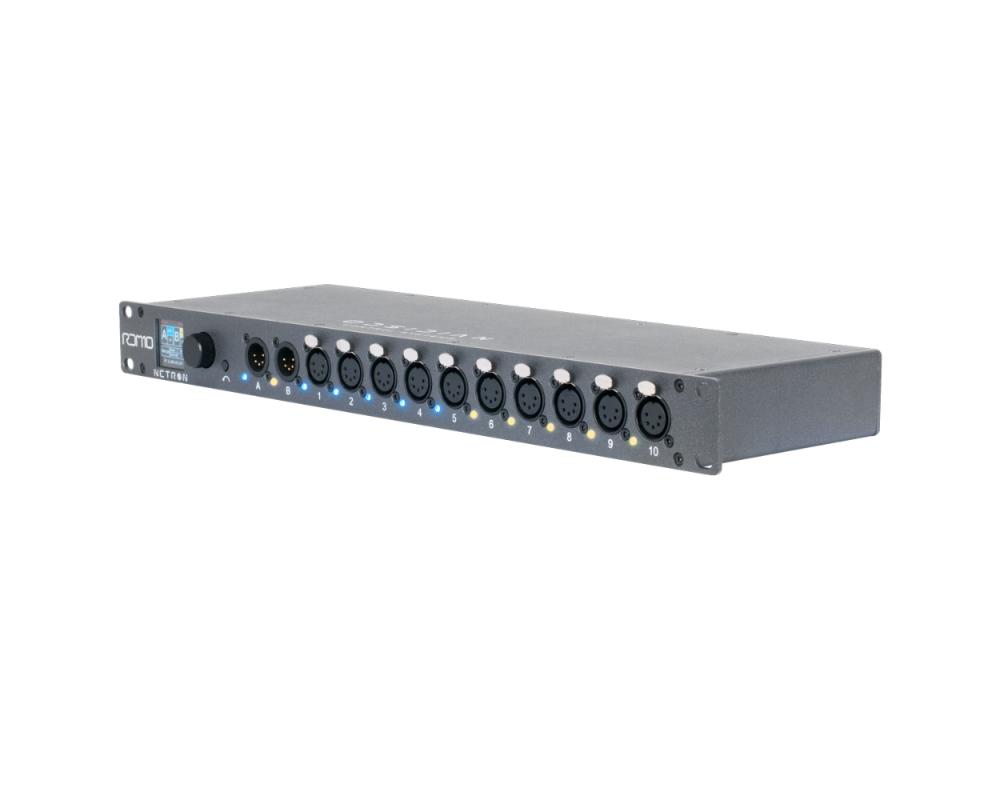

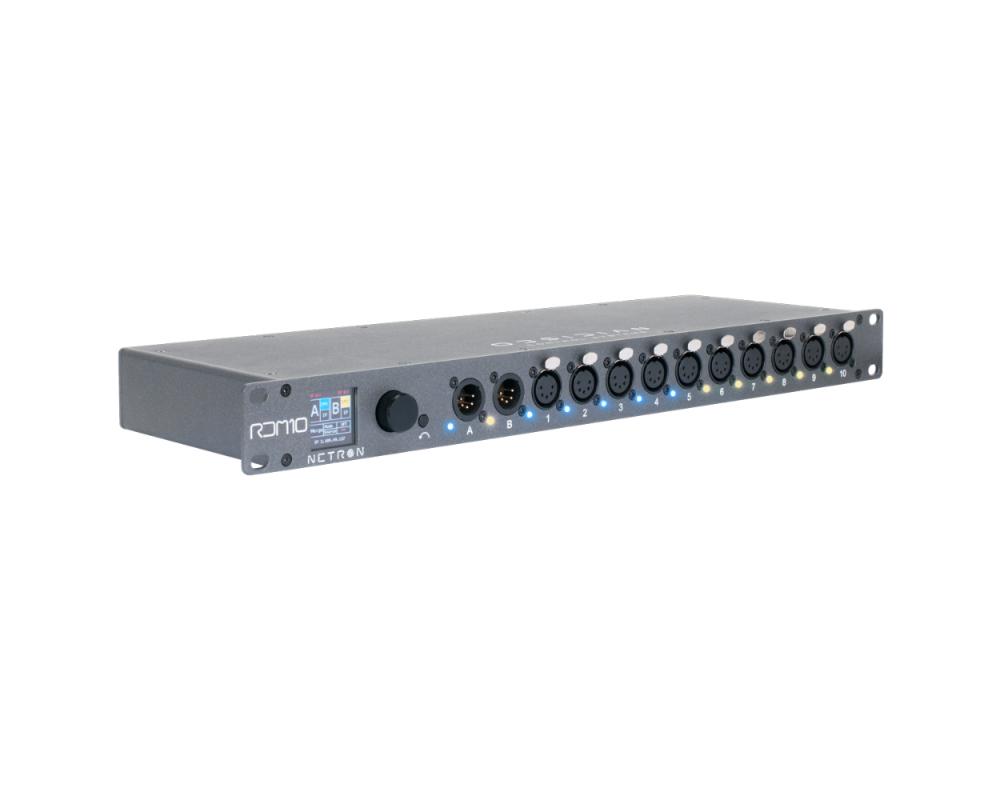

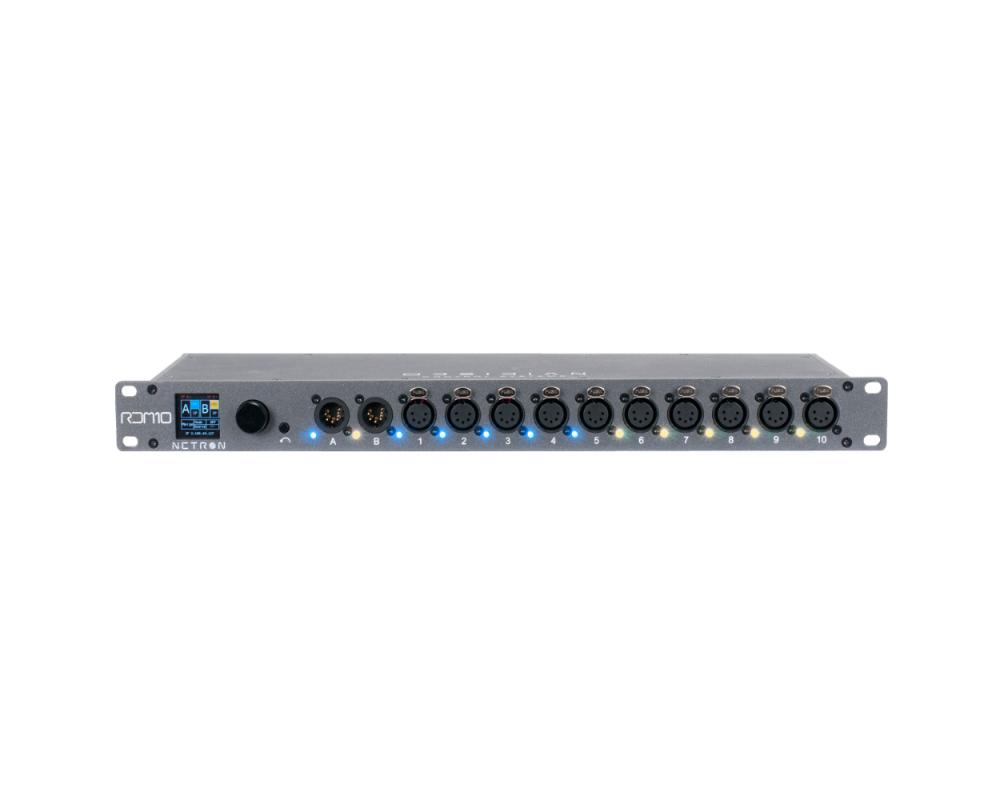

Front Connections
- (2) 5pin DMX Input
- (10) 5pin Opto-Isolated DMX Outputs
- Full color OLED display
- Encoder w. Push to Select / Exit Button

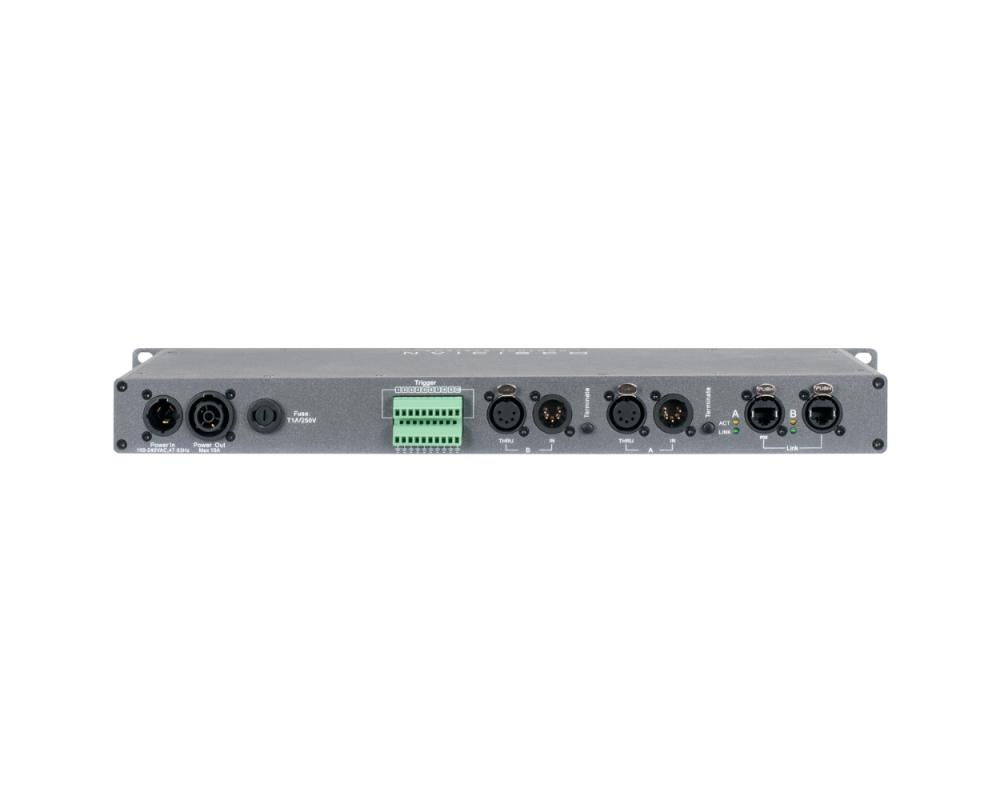

Rear Connections
- (2) 5pin DMX Input (parallel with front)
- (2) 5pin DMX Through
- (2) Locking RJ45 Ethernet Network In
- (10) Contact Closures (Terminal Block)
- Locking Power In/Thru
Physical
- Length: 482.5 mm (19 in.)
- Width: 146 mm (5.7 in.)
- Height: 44 mm (1.7 in.)
- Weight: 1.82 kg (4 lbs)
Included Items
- 1.5m Locking power cable (EU or US version)
