Obsidian - EL-NRE034 - NETRON EP2; PoE 2 Port EtherDMX Gateway

SKU: EL-NRE034
$949.00 $1,149.50
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By Obsidian Control Systems
Description

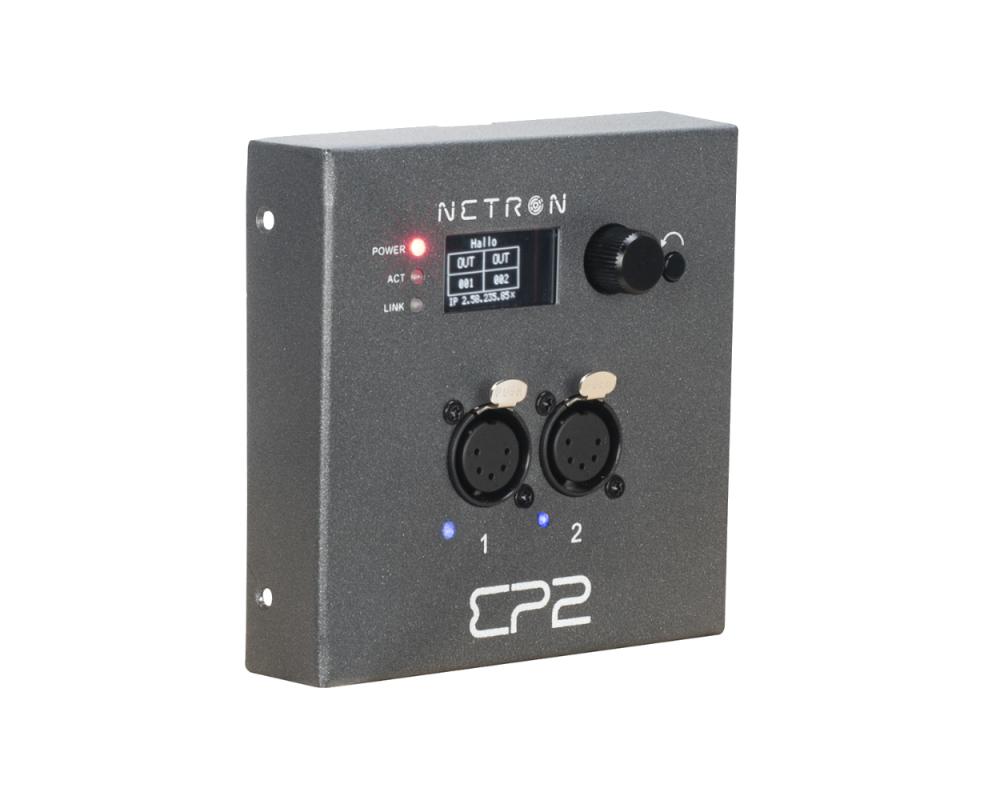

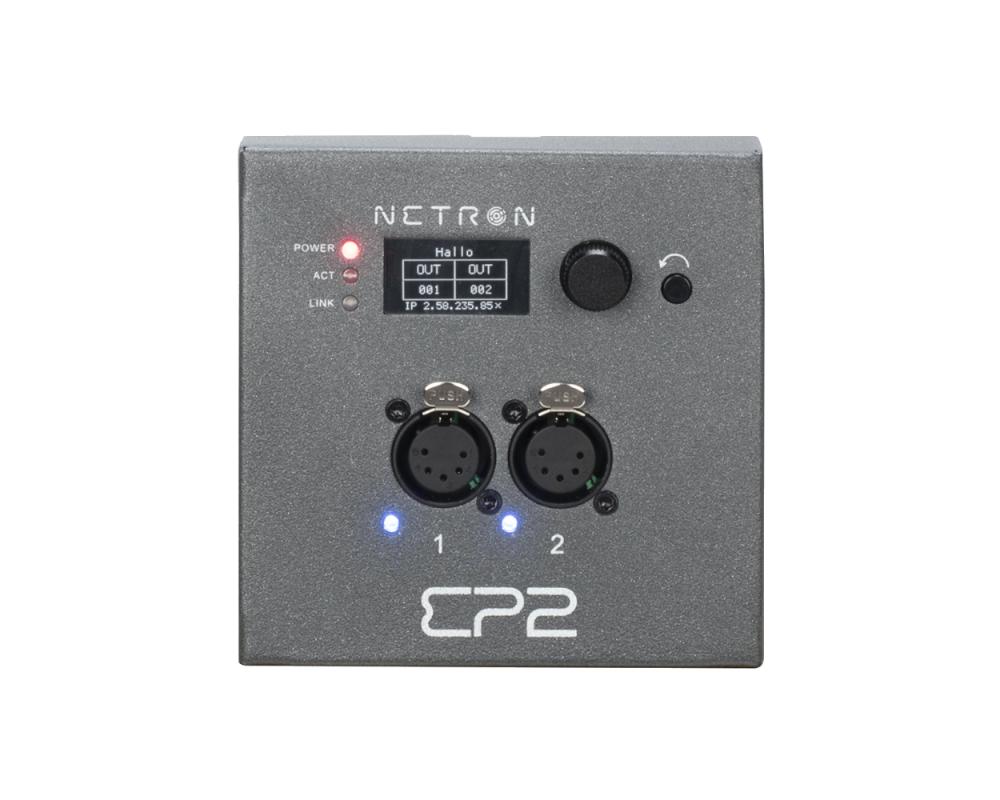

The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations.

It is configurable via its internal web remote and powered over Ethernet or via the convenient USB-C connection.


Features

  • RDM, ArtNet and sACN support
  • Factory and user presets for plug and play setups
  • POE or USB-C powered
  • 1.3” OLED Display with rotary knob
  • Remote configuration via internal webpage
  • Powder-coated compact metal housing
  • Connect to ONYX PC for a full four Universe Solution
  • In-wall, On-Wall, Truss and Standalone mounting
  • Unlocks ONYX NOVA 4-Universe License
  • NETRON CLU for remote configuration and firmware updates

Specifications

Mounting

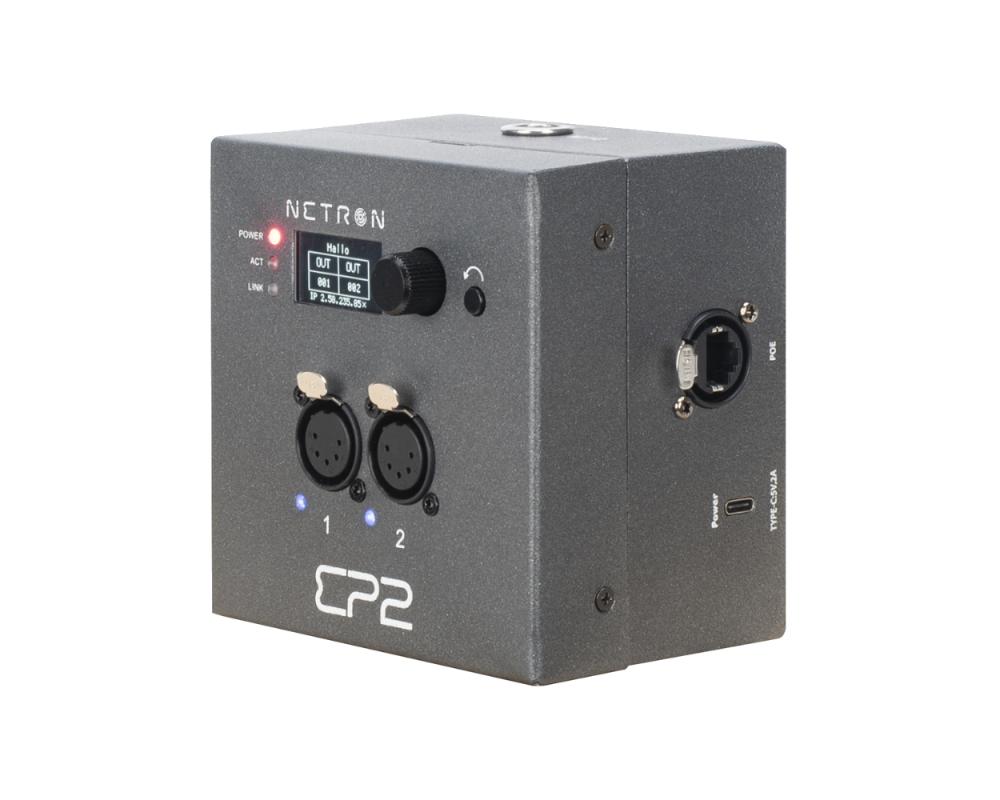

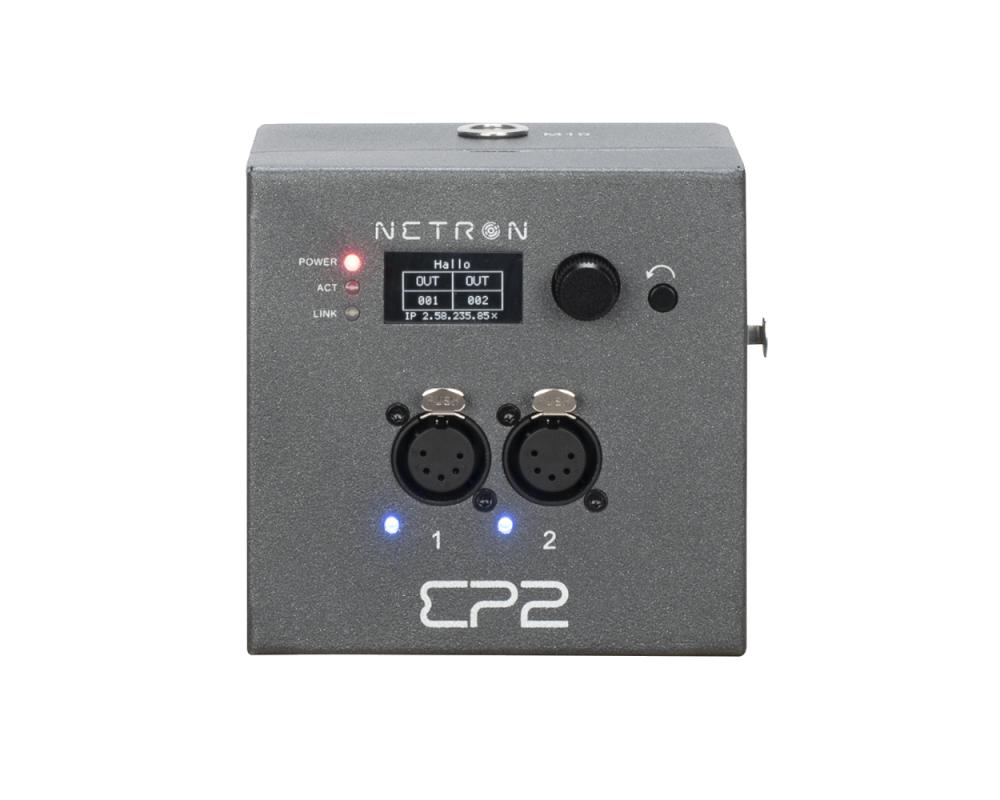

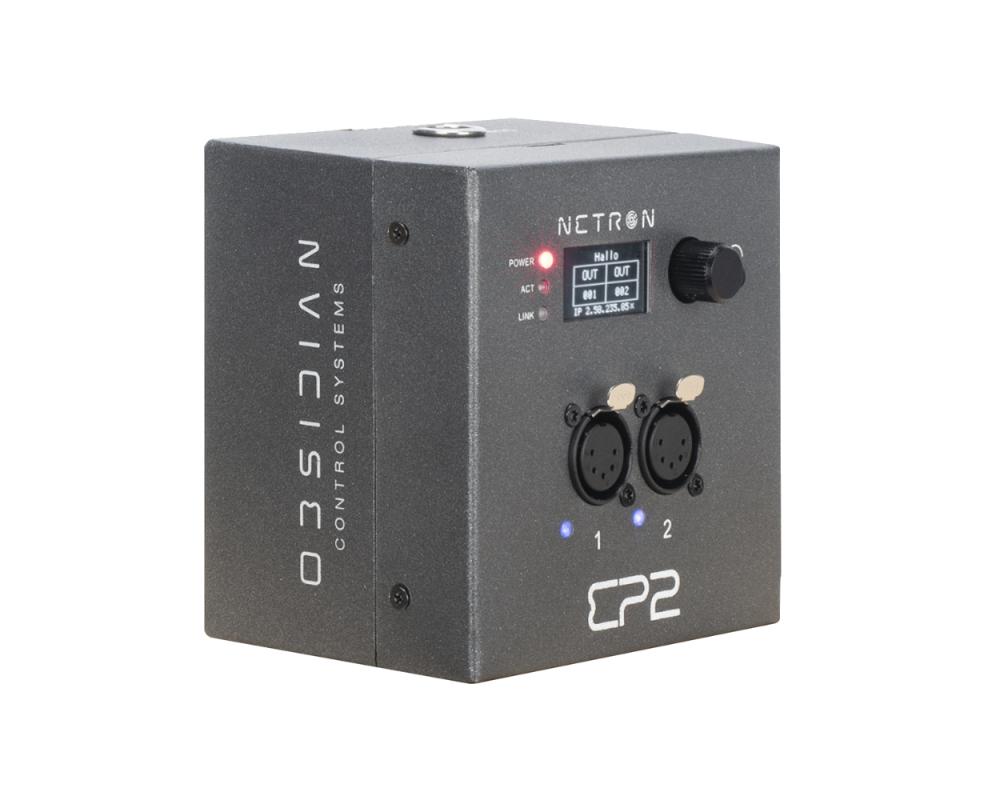

  • Standalone (backbox included)
  • Truss-mount (M10 + M12 mounting hole)
  • In or On-wall 2-Gang (US) or 50mm round (EU)

Connections

  • (2) 5pin DMX/RDM optically isolated ports
  • Ports are bidirectional for DMX In and Output
  • (1) Locking RJ45 Ethernet network connections (POE)
  • USB-C power option (5V, 2A)

Physical

  • Length: 4.6 in. (117.6mm)
  • Width: 4.5 in. (114.0mm)
  • Height: 3.5 in. (89.1mm)
  • Weight: 1.76lbs. (0.8kg)

Included Items

  • Universal 5V/2A USB Power Adapter (UK, US, Europe, & AUS connectors), 100-240V
  • 1.5m Obsidian USB-C cable

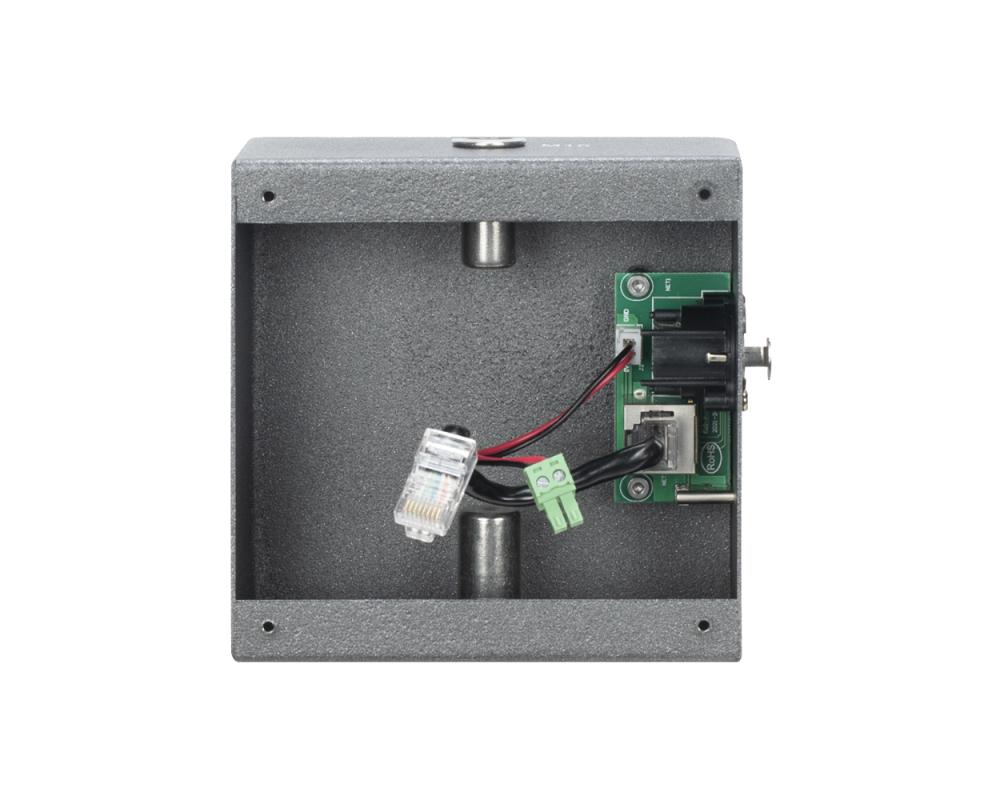

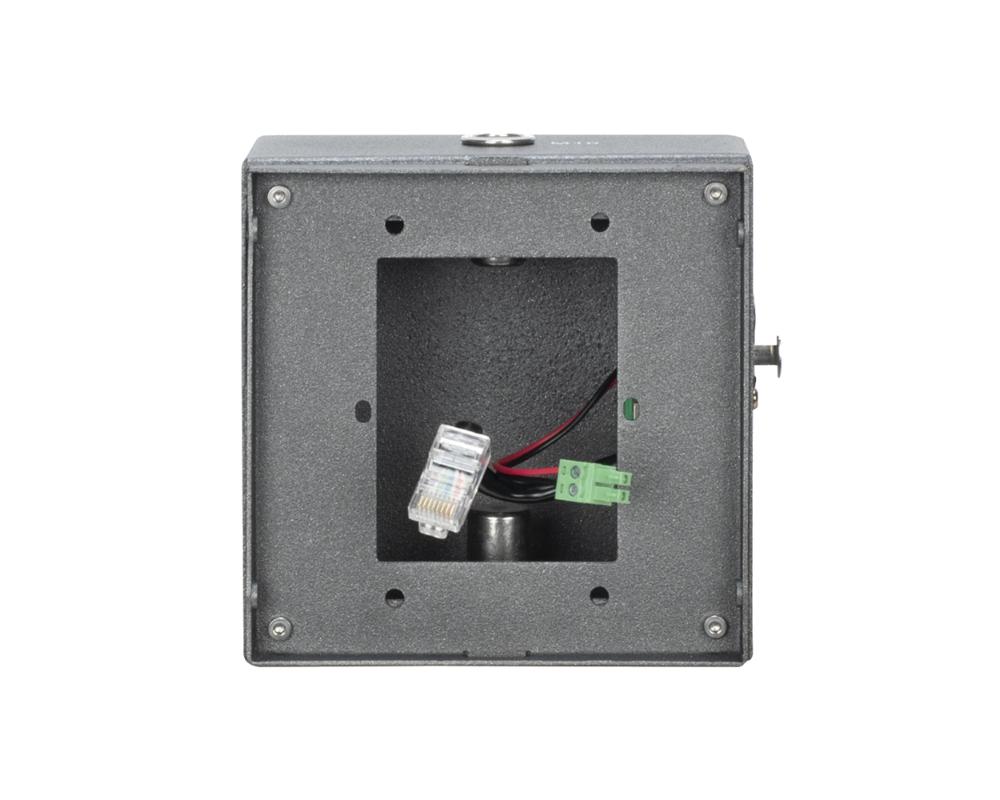

  • Wallmount Enclosure

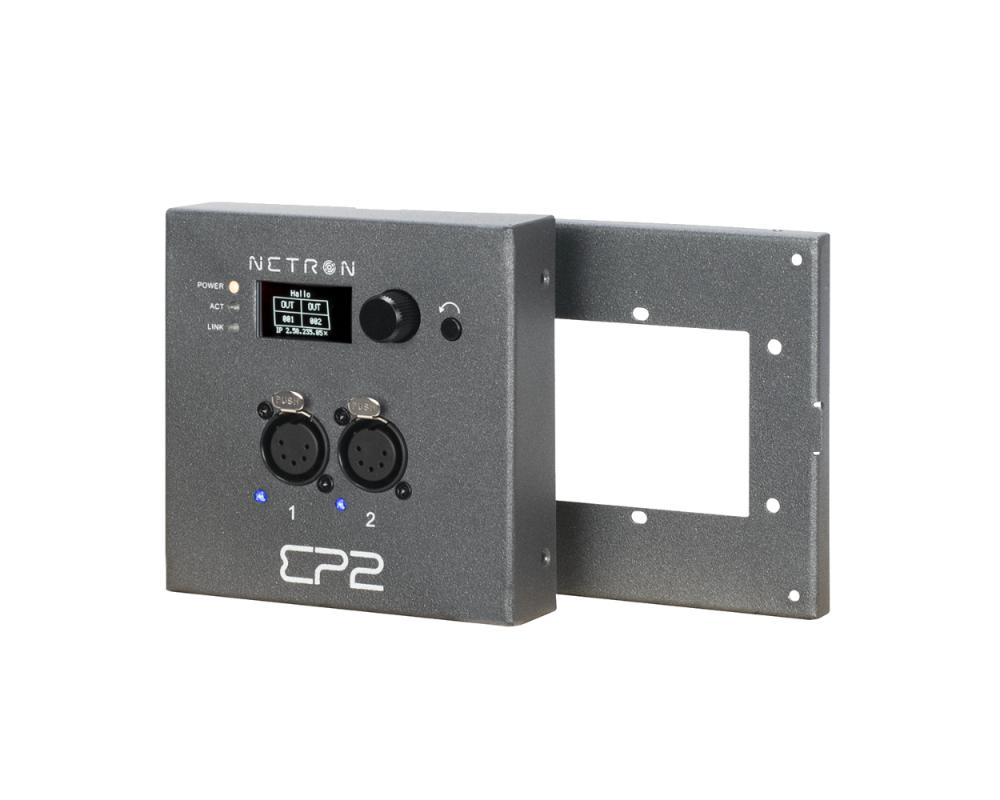

  • In-wall mounting ring
