Obsidian - EL-NX2984 - ONYX NX2 Console

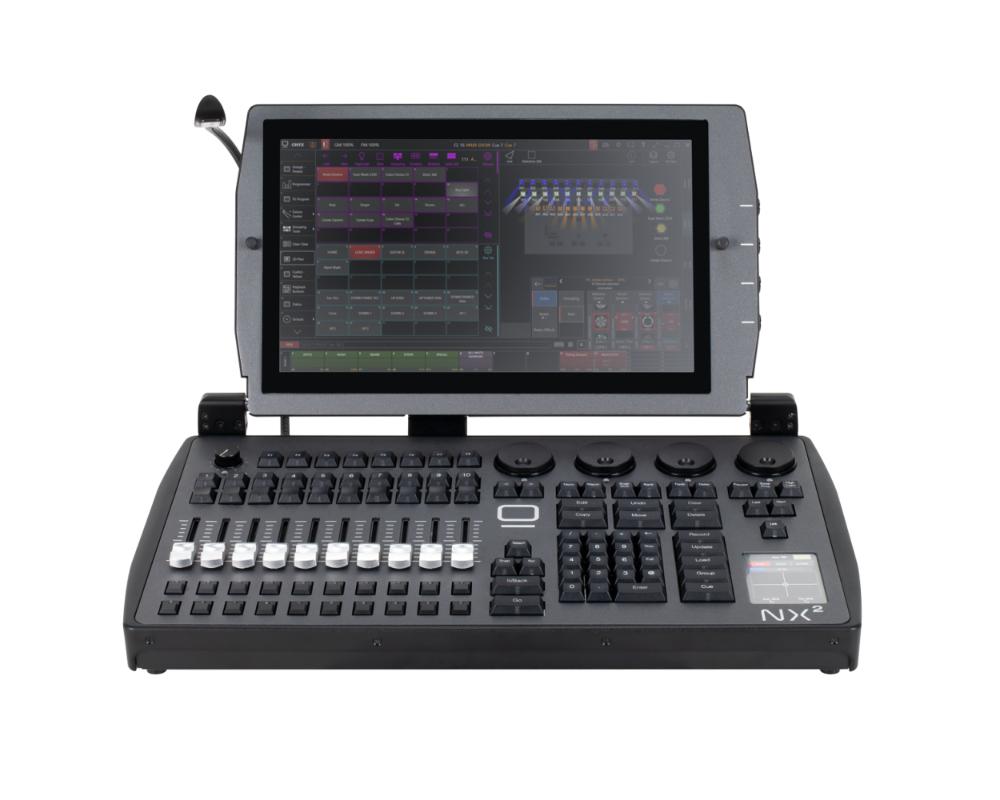

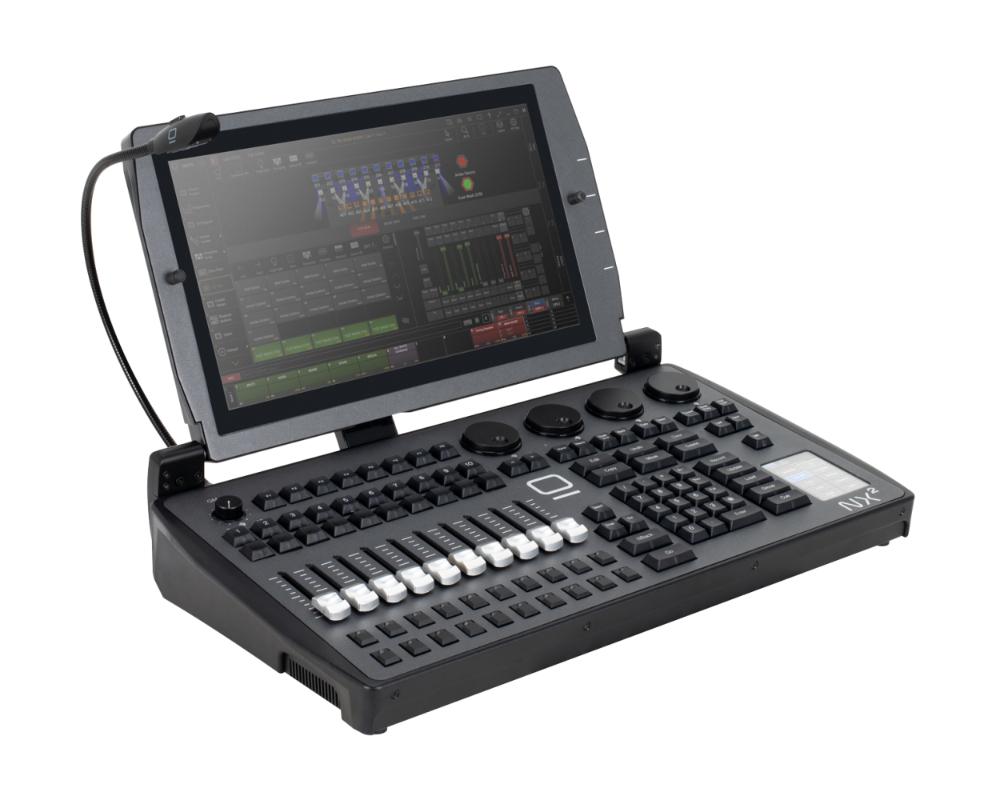

The NX2 is the ultimate compact yet powerful fully integrated lighting controller. As a member of the innovative ONYX platform from Obsidian Control Systems the NX2 is feature rich and never restricted inits capabilities. NX2 includes a high-brightness full HD multi-touch screen; 8 assignable parameter encoders;an assistive mini touch-screen; full keypad and command section; a dedicated grandmaster and 10 full playbacks with four freely assignable buttons.

Utilizing the latest in industrial components the NX2 contains a powerful new Intel Hexa-Core processor, high speed NVMe SSD drive and 16GB of DDR4 RAM. Fast boot times, instant operation and the ability to process 64 Universes right inside the console without the need for costly external processing networks result in unprecedented power in this form factor.

The NX2 is ergonomic with its compact footprint, full ONYX command and keypad section and the bright adjustable HD touch screen. It is always ready to run the largest shows and events at a moments notice.

With four DMX ports, Timecode, Midi and dual Gigabit ports for up to 64 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX 2 has all the connectivity and power the ever-increasing sizes of shows demand. Two additional 4K touch monitors are supported for even more direct access at anytime.

For powerful visualization of lighting and scenery every NX2 console includes a free CAPTURE Solo Edition license.

Features

• Portable and compact fully featured lighting console
• Adjustable 15.6” Full HD multi touch screen, 2x external 4K Touch Displays
• ONYX Premier License (64 Universes)
• Fully integrated processing
• 10 Playbacks, 8 Encoders, Keypad and internal 3.5" touchscreen
• Network, DMX, Timecode, and Midi Connectivity
• CAPTURE Solo Edition License

Specifications

Surface

• 10x 60 mm playback faders, each with 4x function-assignable buttons
• 8x customizable multi-function keys
• Playback Select button
• Master Go section with Go, Pause, Snap and Release
• 4x digital rotary encoders with push function and status LED for fixture parameter control
• 4x screen mounted digital rotary encoders with push function
• 3.5" RGB touchscreen for parameter groups, effect parameters, fanning and global timings
• Grand master rotary fader and button
• Blind/HighLight/Last/Next buttons
• Full numerical keypad and command keys

Hardware

• 10x 60 mm playback faders, each with 4x function-assignable buttons
• 8x customizable multi-function keys
• Playback Select button
• Master Go section with Go, Pause, Snap and Release
• 4x digital rotary encoders with push function and status LED for fixture parameter control
• 4x screen mounted digital rotary encoders with push function
• 3.5" RGB touchscreen for parameter groups, effect parameters, fanning and global timings
• Grand master rotary fader and button
• Blind/HighLight/Last/Next buttons
• Full numerical keypad and command keys

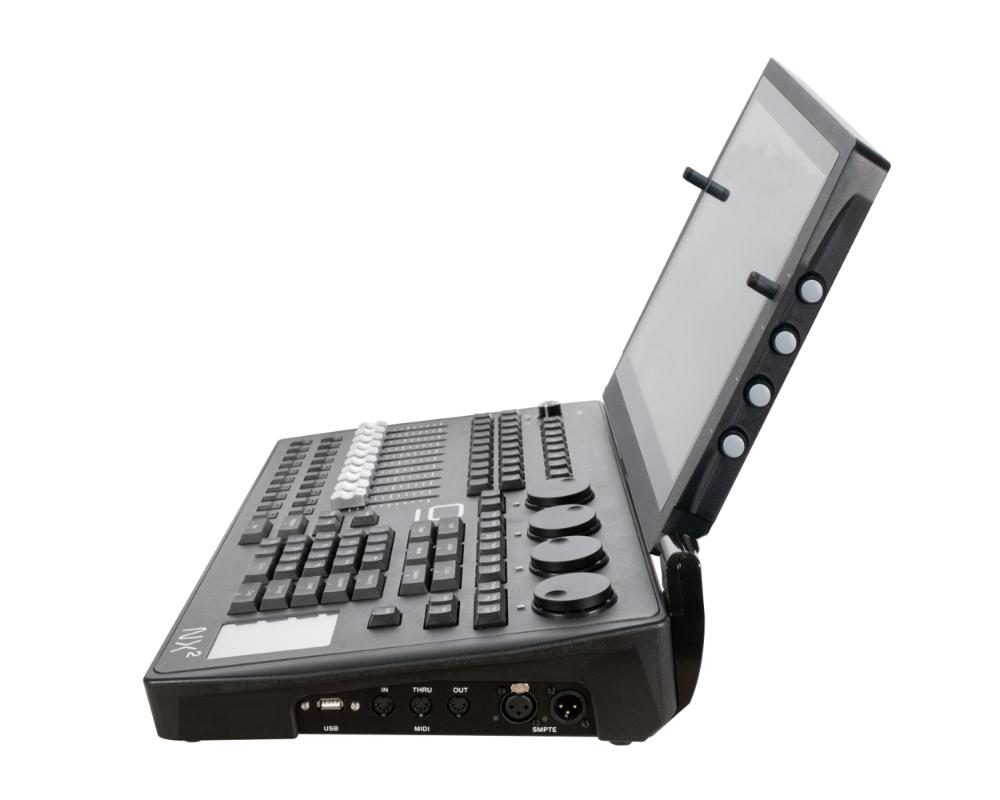

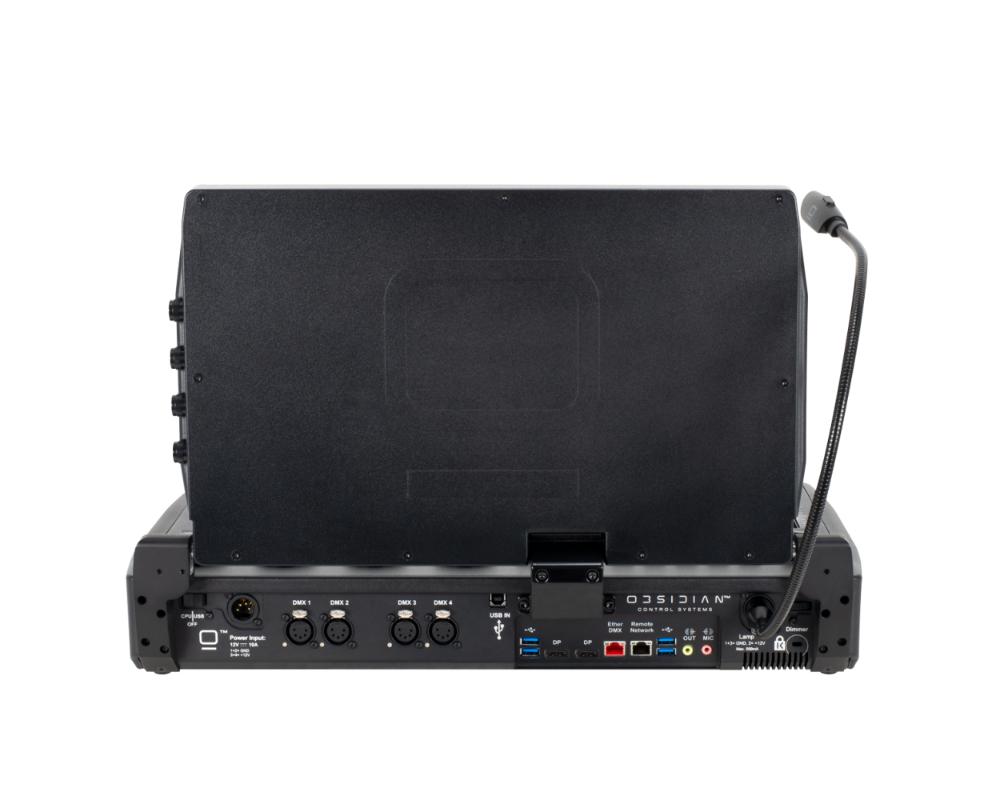

Connections

• 4x DMX / RDM Universe In/Out: 5pin locking XLR
• External Display: 2x DisplayPort (up to 4k)
• Network: 2x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net
• Storage and Peripherals: 4x USB 3.0, 1x USB 2.0
• Audio Out, Mic In: 2x 3.5mm Jack
• MIDI in/out/thru (MIDI Show Control, MIDI notes, MIDI Timecode): 5pin DIN
• SMPTE Timecode In/Out: 3pin XLR
• 12 VDC power supply input: 4pin XLR
• Desk Lamp: XLR 12V
• USB In: USB 2.0 B

Physical

• Length: 300 mm (11.9 in.)
• Width: 540 mm (21.3 in.)
• Height: 121 mm (4.8 in.)
• Weight: 9 kg (19.8 lbs.)

Included Items

• RGB LED desk lamp, angular XLR connector, 13"
• Dust Cover
• Obsidian USB Cable
• External PSU (12V 11A)
• 1.5 m power cable, 3pin IEC
• USB 3.0 Recovery stick
• CAPTURE Visualizer SOLO License
