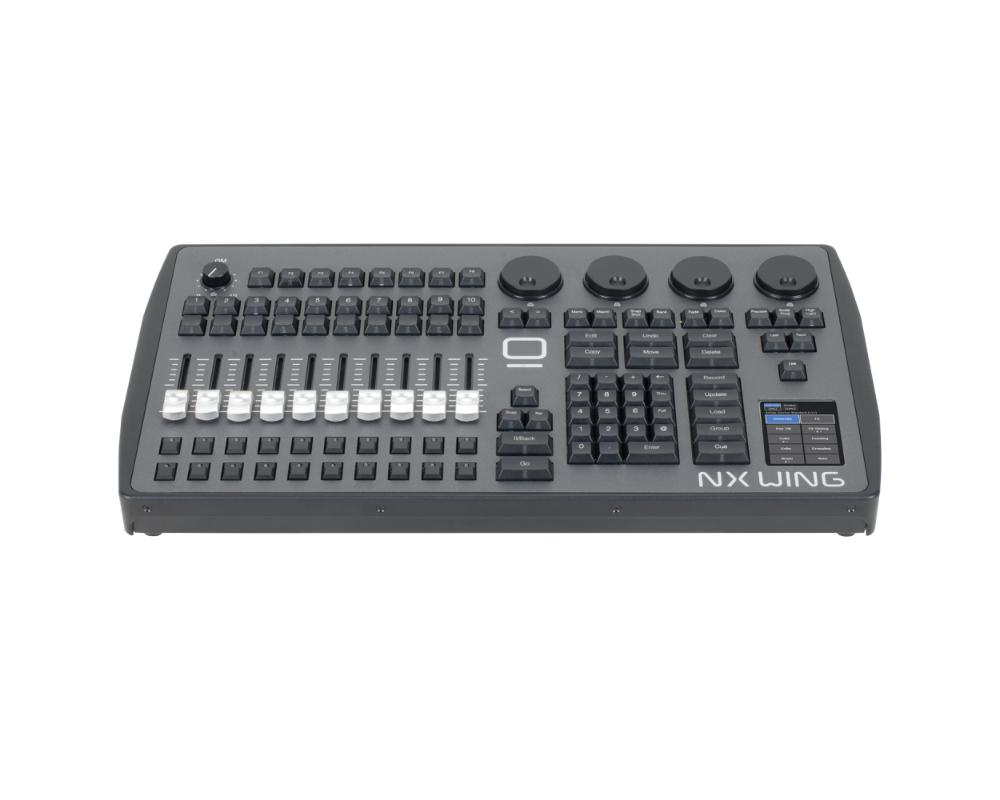

Obsidian - EL-NXW884 - ONYX NX Wing; 64 Universe USB Control. Surface

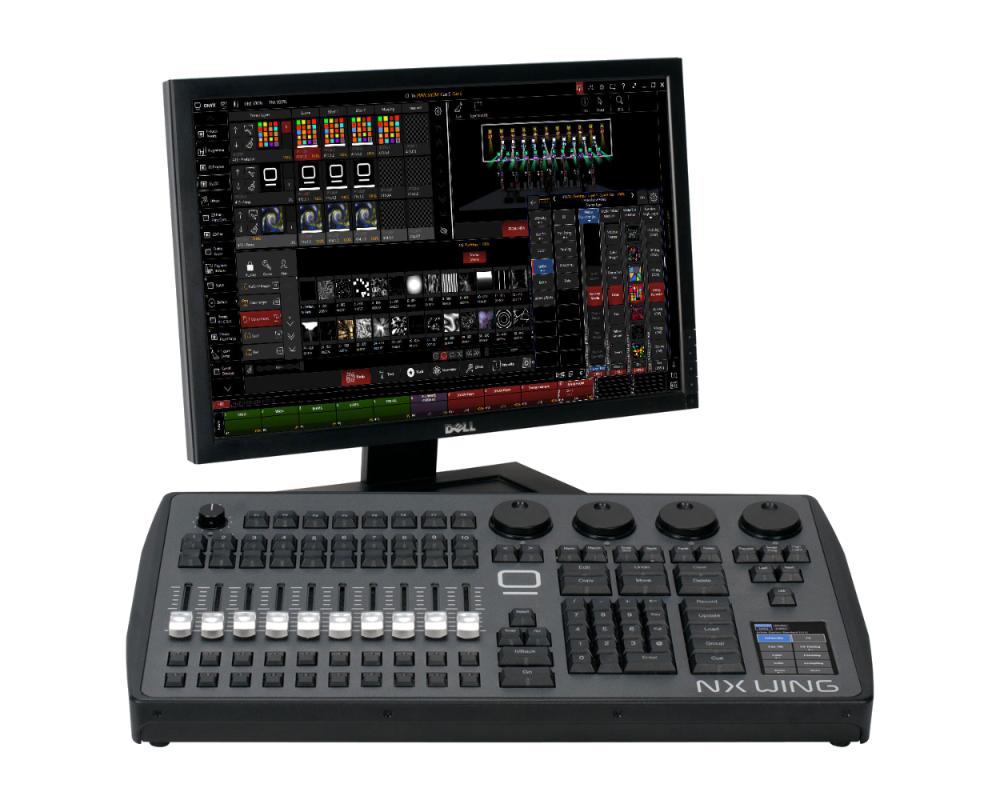

NX Wing is the complementary USB control surface to Obsidian Control Systems ONYX platform. Based on the NX 2 console the NX Wing utilizes the same rugged design and components with an identical footprint and layout. Through its USB connection the NX Wing provides a responsive, professional hardware surface to operate ONYX on any PC system without compromises. Any user of ONYX will feel instantly familiar with the NX Wing and no setup or additional installation is required. Simply plug it into a user-provided PC with ONYX and get started instantly.

NX Wing provides extensive connectivity with 4 DMX Ports, MIDI and Timecode ports while unlocking 64 Universes of control when connected to ONYX on a PC.

Features

• Fully featured control surface, portable and lightweight
• 10 Playbacks, Encoders, Keypad and internal 3.5" touchscreen
• DMX, Timecode and Midi Connectivity
• ONYX Premier 64 Universe License
• Plug and Play USB device for any PC with ONYX

Specifications

Surface

• Fully featured control surface, portable and lightweight
• 10 Playbacks, Encoders, Keypad and internal 3.5" touchscreen
• DMX, Timecode and Midi Connectivity
• ONYX Premier 64 Universe License
• Plug and Play USB device for any PC with ONYX

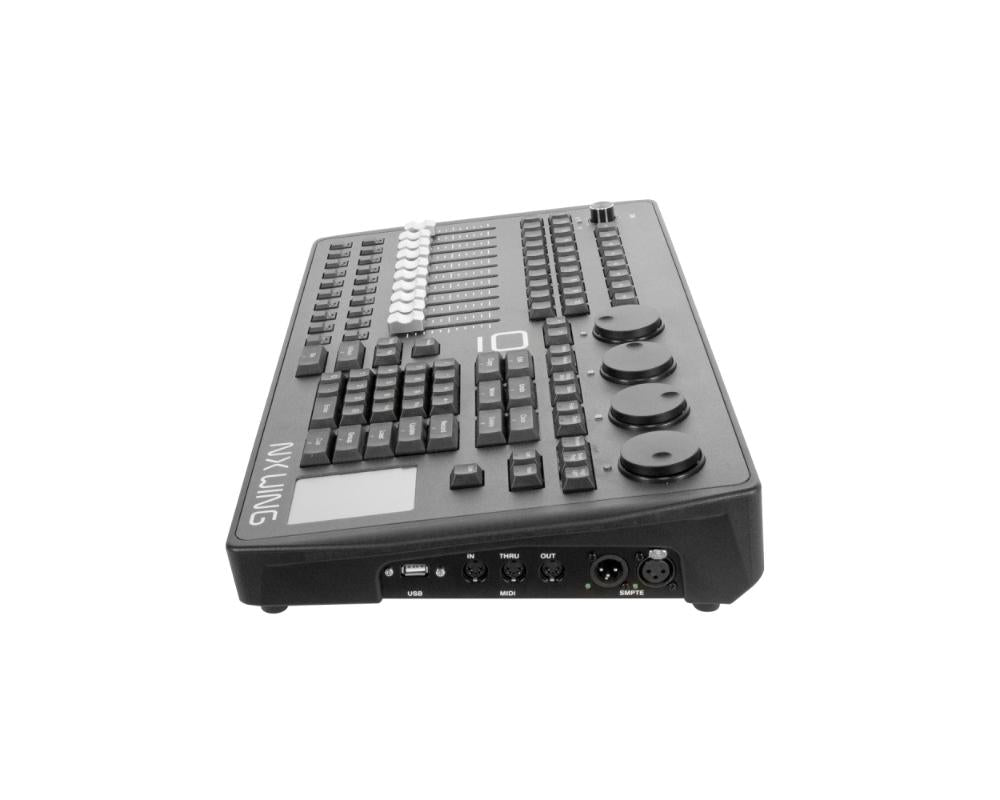

Connections

• 4x DMX / RDM Universe In/Out: 5pin locking XLR
• MIDI in/out/thru (MIDI Show Control, MIDI notes, MIDI Timecode): 5pin DIN

• SMPTE Timecode In/Out: 3pin XLR
• 12 VDC power supply input: 4pin XLR
• Desk lamp: XLR 12V
• USB In: USB 2.0 B

Requirements

• Windows 10, Windows 11 64bit (Home/Pro/Enterprise)
• Intel Core i3 processor 6th Generation+ (or other comparable multi-core processor)
• 8 GB RAM
• SSD storage drive
• 40 GB available disk space for software, DYLOS factory content and storage
• Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
• USB 2.0 port
• 10/100 Ethernet port for Art-Net DMX output
• 100/1000 Ethernet port for X-Net, Remote operation and sACN

Physical

• Length: 300 mm (11.9 in.)
• Width: 540 mm (21.3 in.)
• Height: 99 mm (3.9 in.)
• Weight: 4.6 kg (10.2 lbs.)

Physical

• Length: 300 mm (11.9 in.)
• Width: 540 mm (21.3 in.)
• Height: 99 mm (3.9 in.)
• Weight: 4.6 kg (10.2 lbs.)

Included Iems

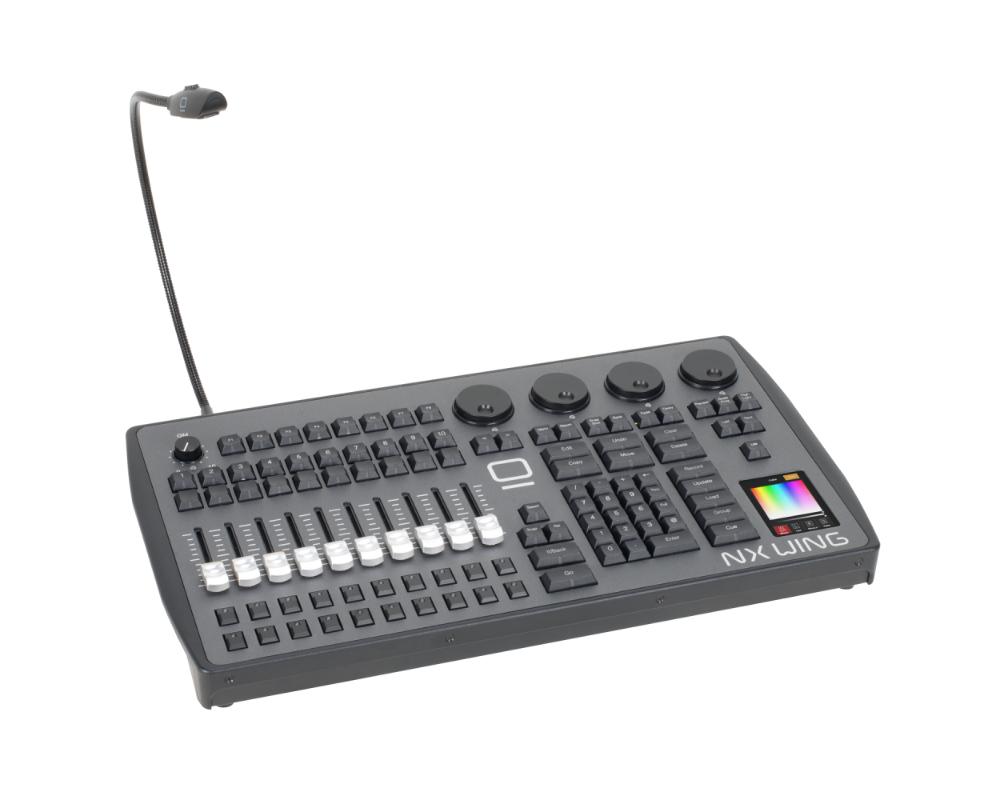

• RGB LED Desk Lamp, angular XLR connector, 13"
• Dust Cover
• Obsidian USB Cable
• External PSU (12V 11A)
• 1.5 m power cable, 3-pin IEC
