Obsidian - NIP101 - NETRON RDM6IP IP65 6 Port RDM Splitter

SKU: NIP101
$1,399.00 $1,654.95
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By Obsidian Control Systems
Description

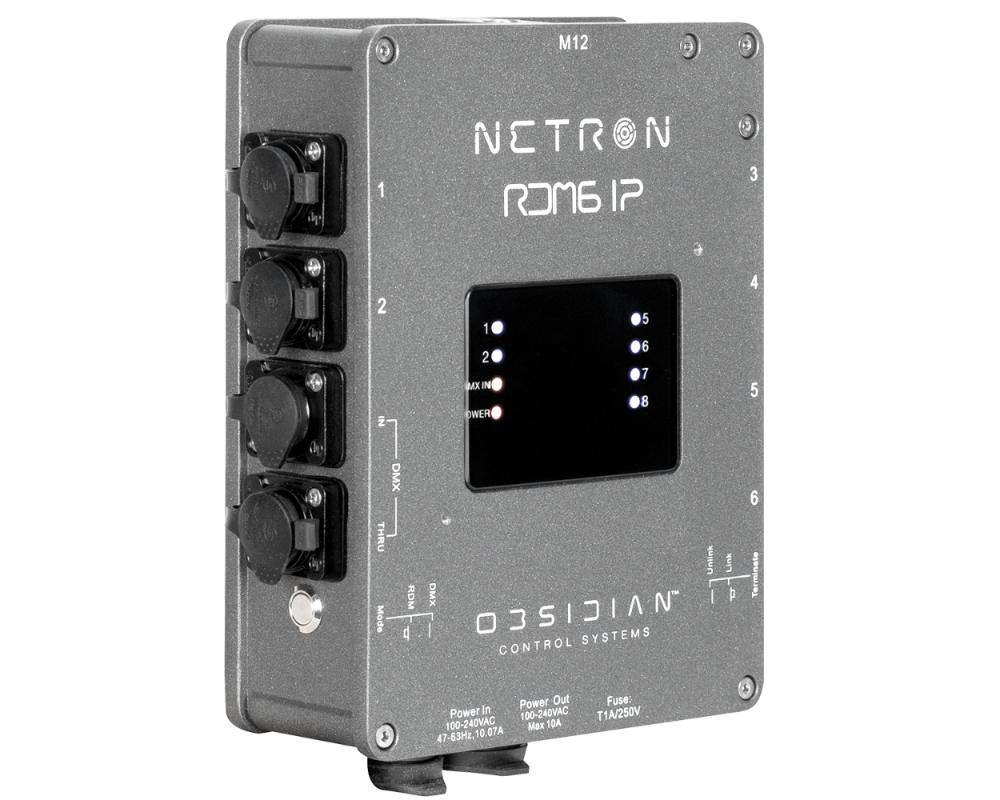

The Netron RDM6 IP is a six port DMX/RDM splitter in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.

Features

  • IP66 DMX Data Splitter
  • (6) XLR 5pin outputs
  • DMX and RDM compliant
  • Optically isolated ports
  • Power / DMX Thru connectors
  • Powder-coated aluminum chassis

Specifications

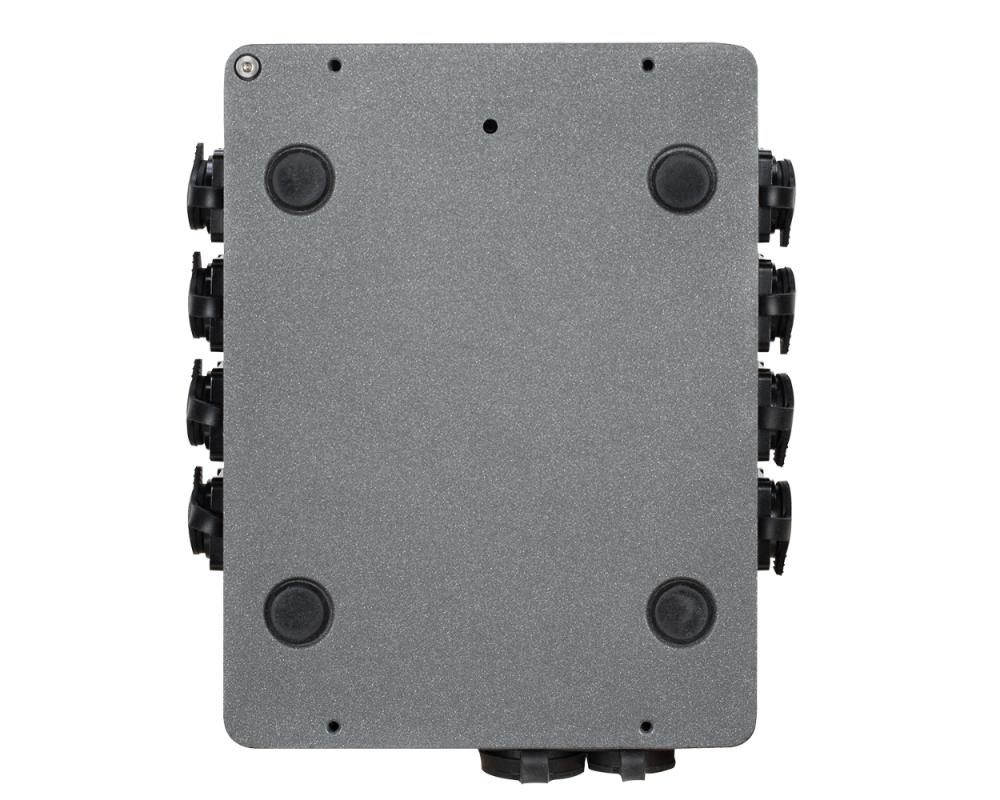

Mounting

  • Standalone

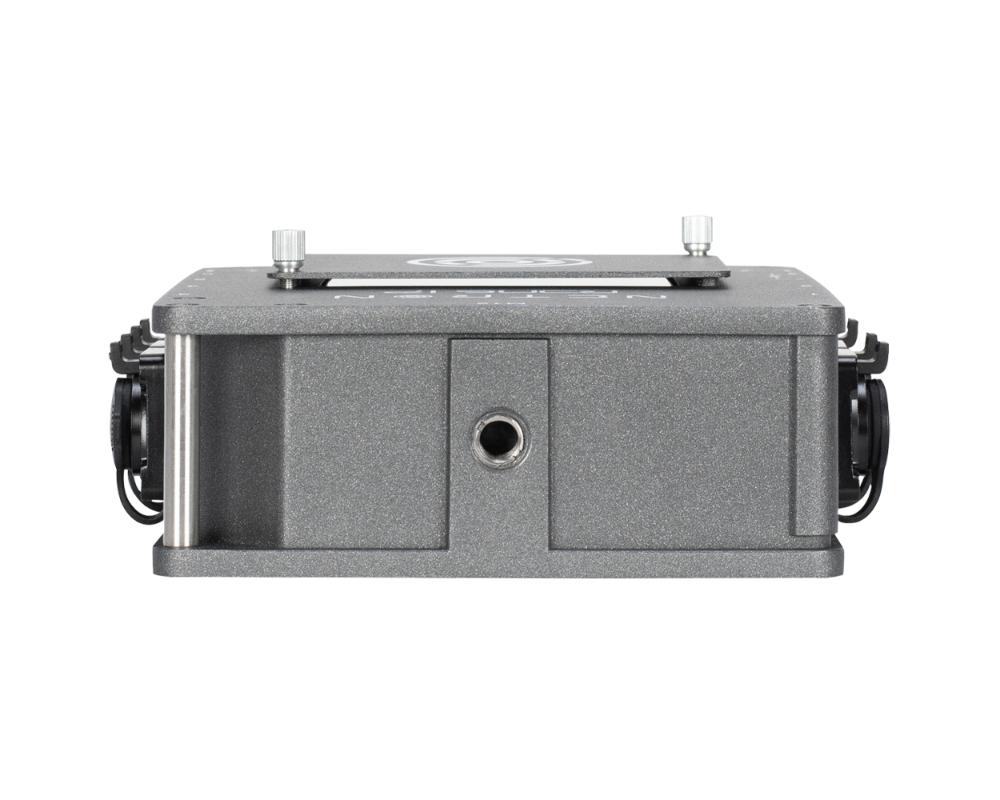

  • Truss-mount (M10 or M12)
  • Wall-mount

Connections

  • (1) 5pin IP66 DMX In
  • (1) 5pin IP66 DMX Thru

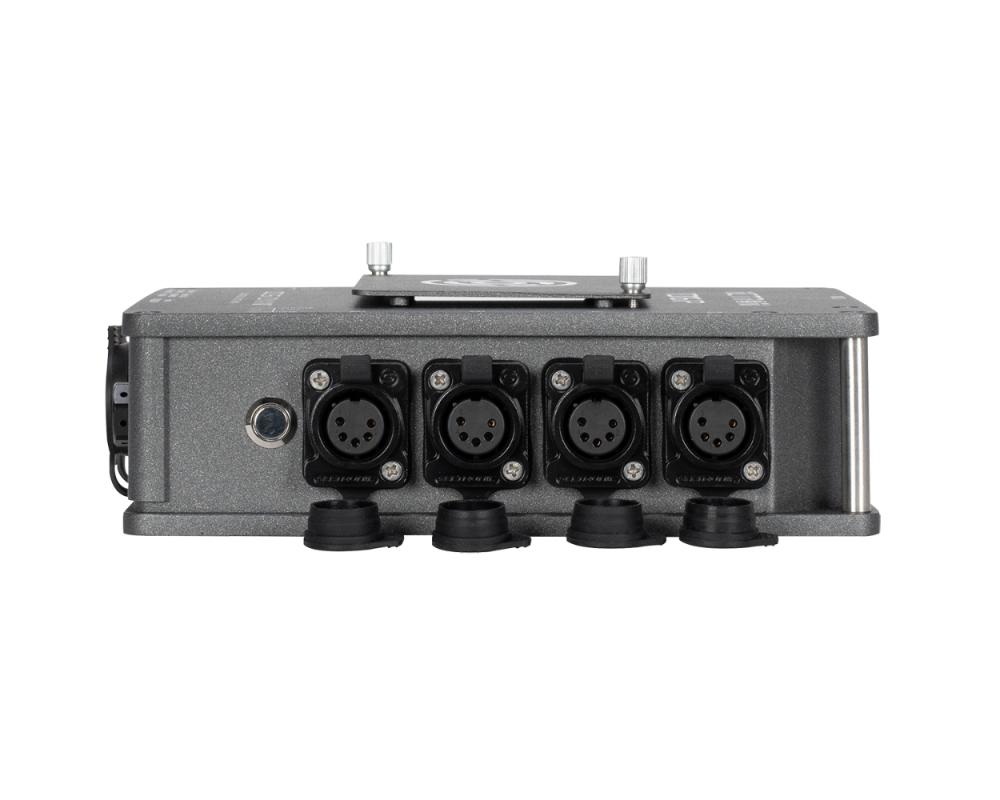

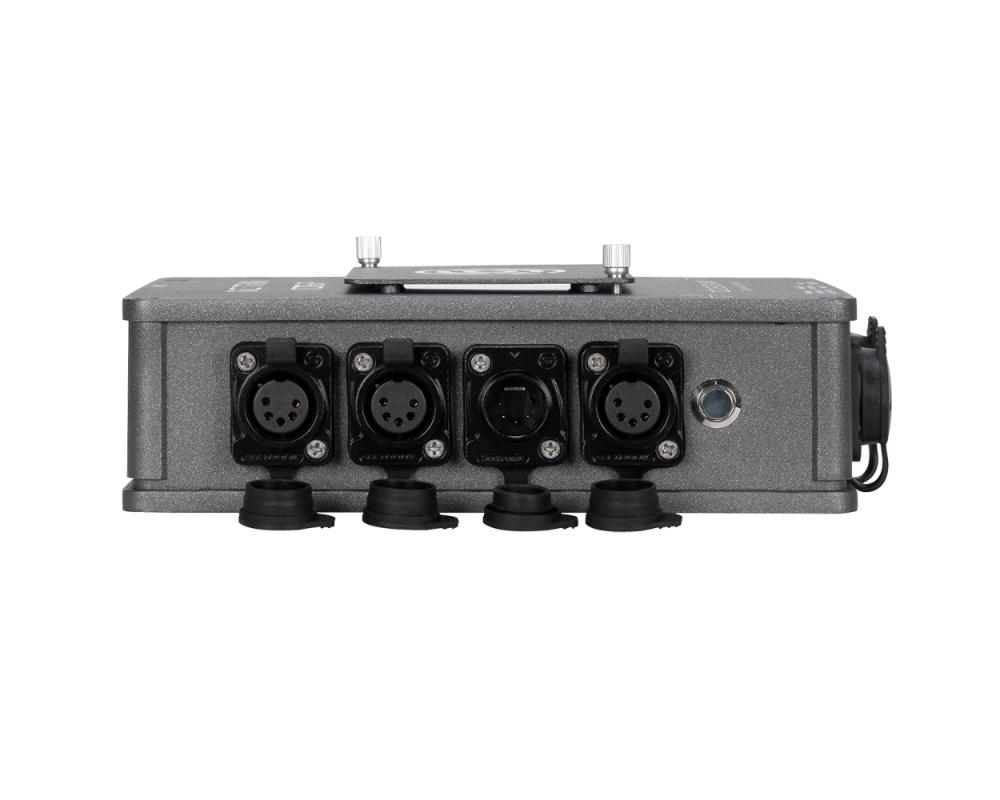

  • (6) 5pin IP66 DMX/RDM optically isolated ports
  • DMX Termination Button
  • RDM Enable / Disable Button

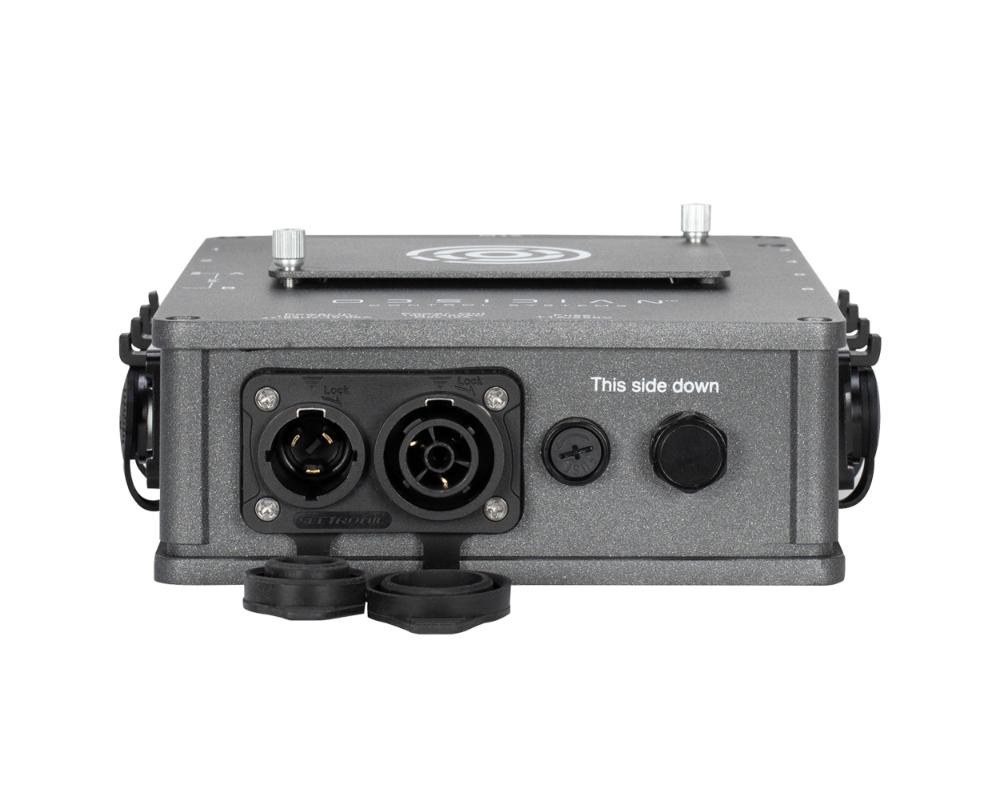

  • Locking IP66 Power In/Thru

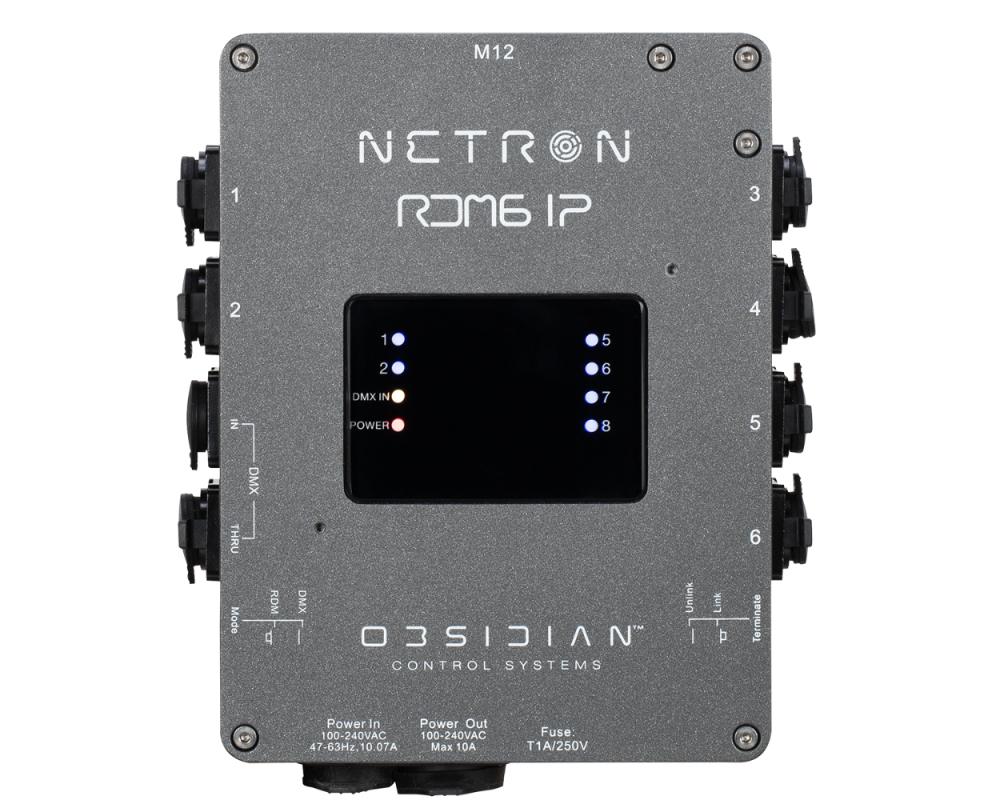

  • LED Port Feedback

Physical

  • Length: 242mm (9.5 in.)
  • Width: 183mm (7.2 in.)
  • Height: 82mm (3.2 in.)
  • Weight: 2 kg (4.41 lbs)

Included Items

  • 1.5m IP65 locking power cable (EU or US version)
  • (2) Wallmount brackets
  • M10 to M12 adapter

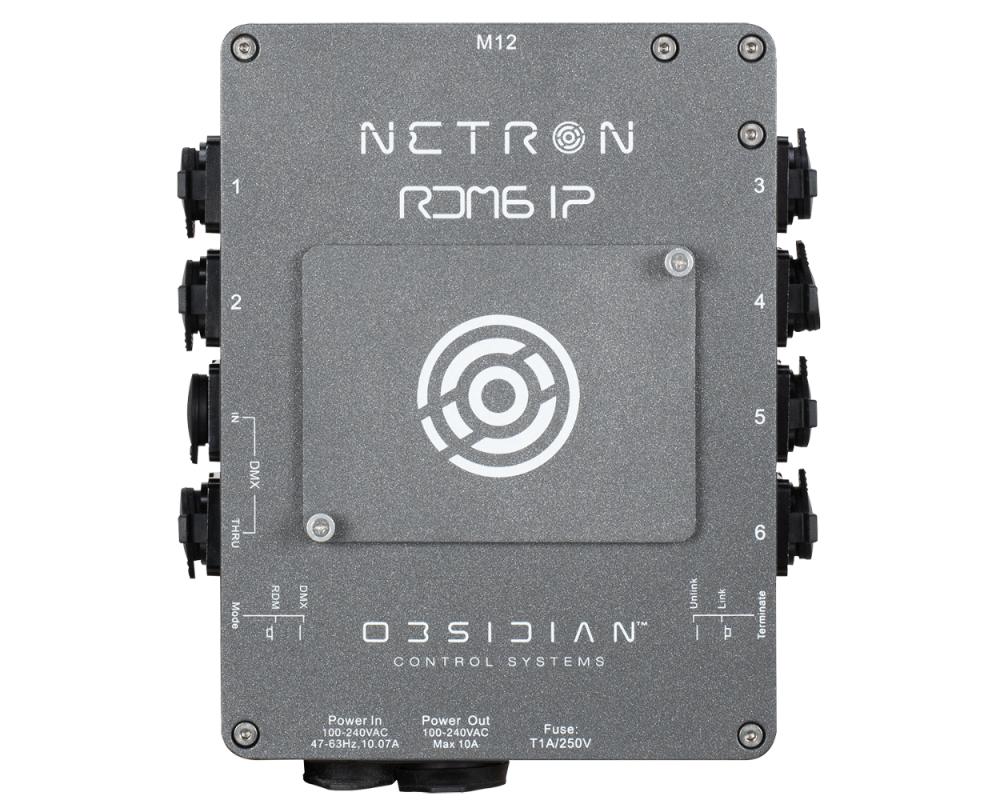

  • Metal display protection cover
