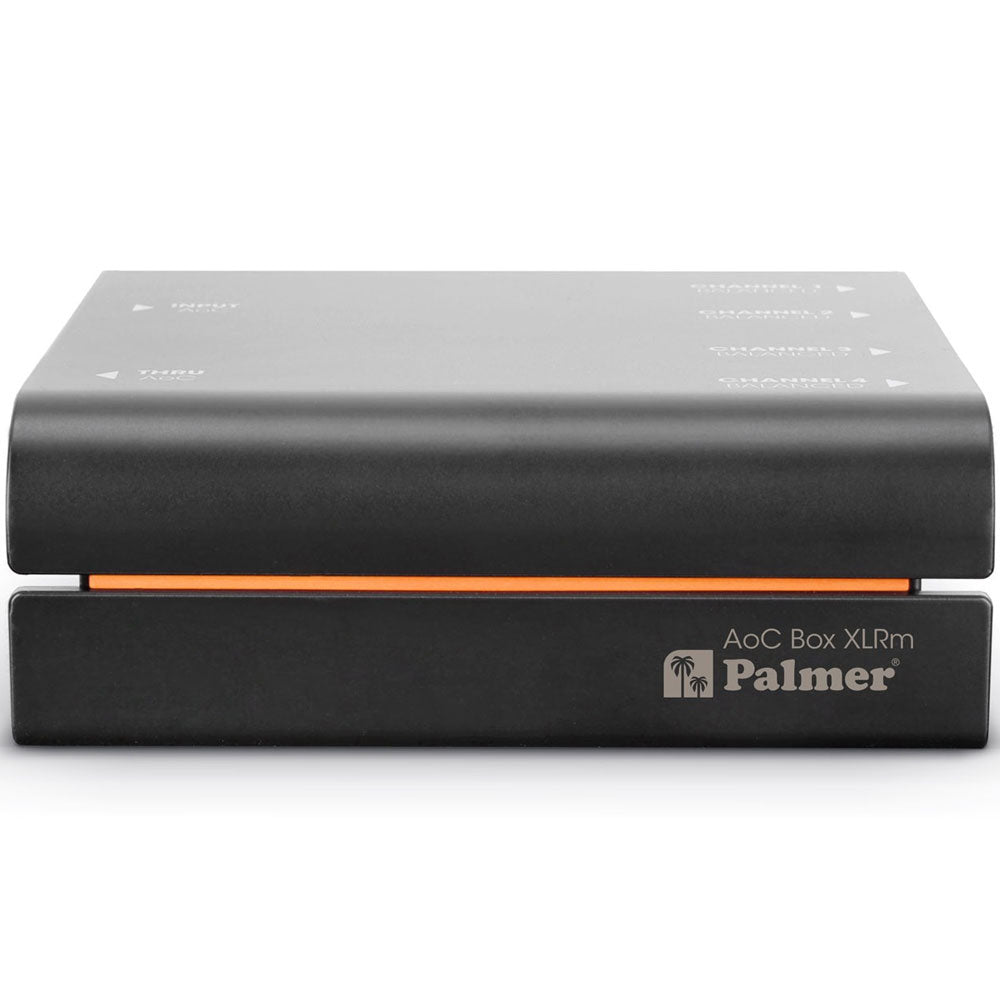

Palmer PAOCBXLRM AoC Box XLR-M - Audio Over CAT Box From etherCON to 4 XLR Male

SKU: PAL-PAOCBXLRM
$249.00 $292.94
In stock: 2
By Palmer
NOTIFY ME WHEN BACK IN STOCK
Description

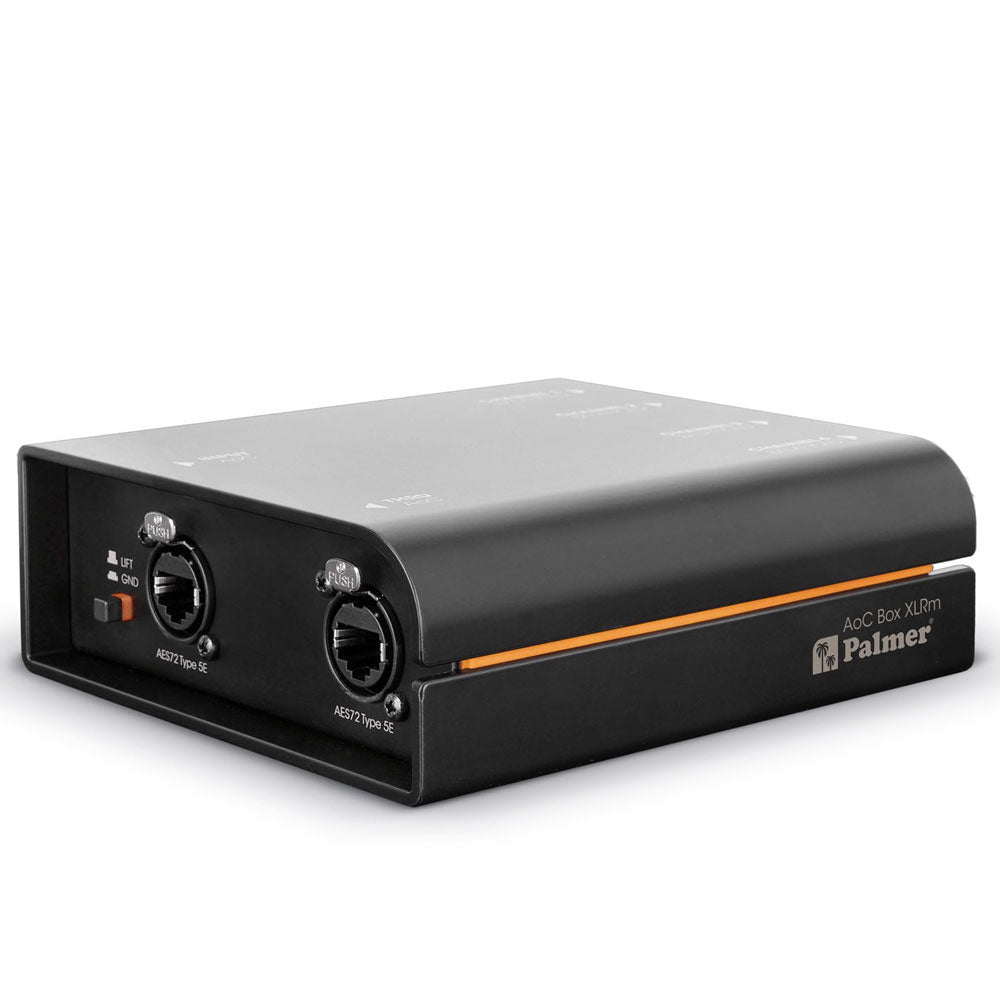

Experience stable signal transmission with the Palmer PAOCBXLRM AoC Box XLR-M, capable of accommodating 4 analog or 8 digital AES3 signals through a network cable (not included). A ground lift switch on the etherCON connection reduces the risk of ground loops, while a secondary THRU connection allows for signal transmission to external devices. Both locking etherCON connections are designed to prevent accidental cable disconnection.

The Palmer PAOCBXLRM AoC Box XLR-M accommodates the transmission of not only audio signals, but also DMX or MIDI control signals and 48-volt phantom power, all via a single Ethernet cable. This multifunctionality makes it suitable for a wide range of applications including live performances, studio recordings, press events, and more.

Constructed with top-of-the-line Neutrik parts and a sturdy aluminum-steel casing, the PAOCBXLRM AoC Box XLR-M ensures dependable signal transfer and long-lasting performance in the most demanding settings. Its sleek and refined design adds a touch of sophistication to any setup.

The Palmer PAOCBXLRM AoC Box XLR-M offers a cost-effective and adaptable solution for audio over CAT, without sacrificing quality. This versatile and durable tool stands out as a reliable alternative to traditional 4-channel multicores, maintaining the superior audio performance that Palmer is known for.

Features

  • 4 balanced analogue or 8 digital AES3 audio channels over Cat5e or higher (Ethernet cable not included)

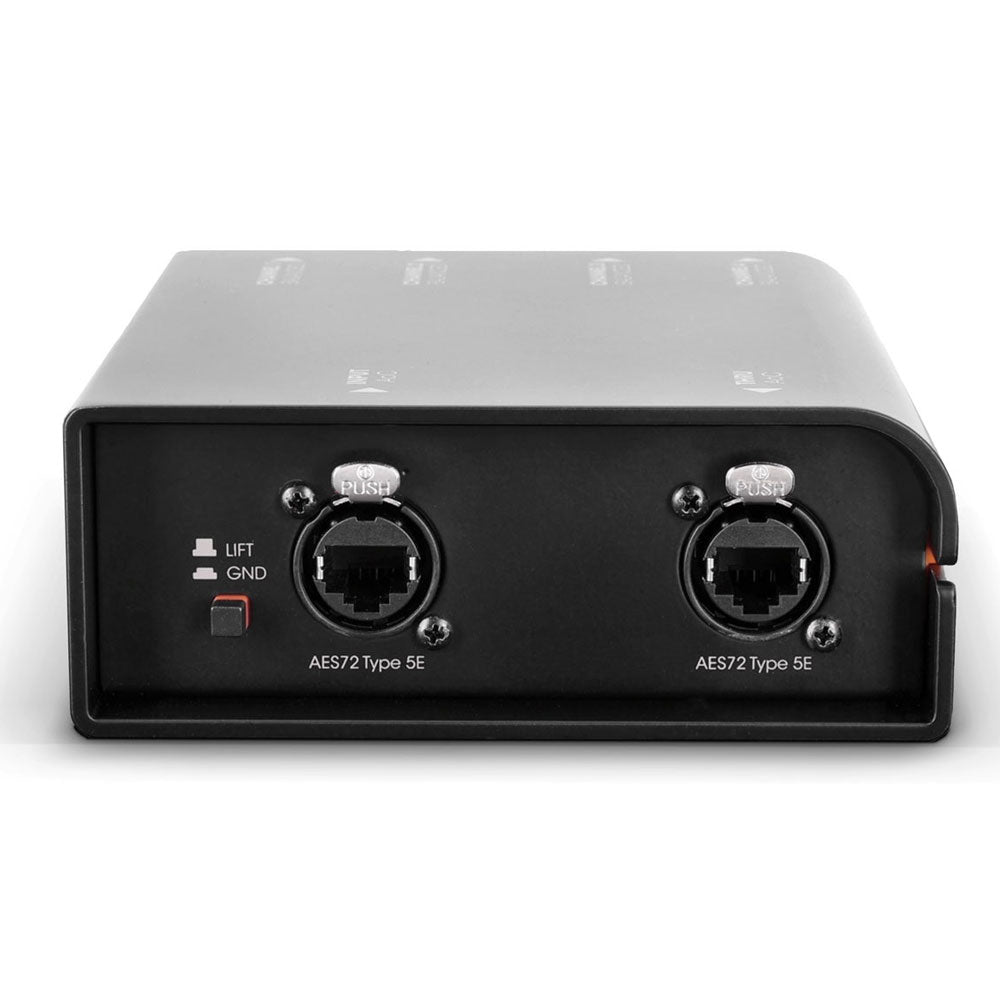

  • etherCON with ground lift switch to 4 x XLR male

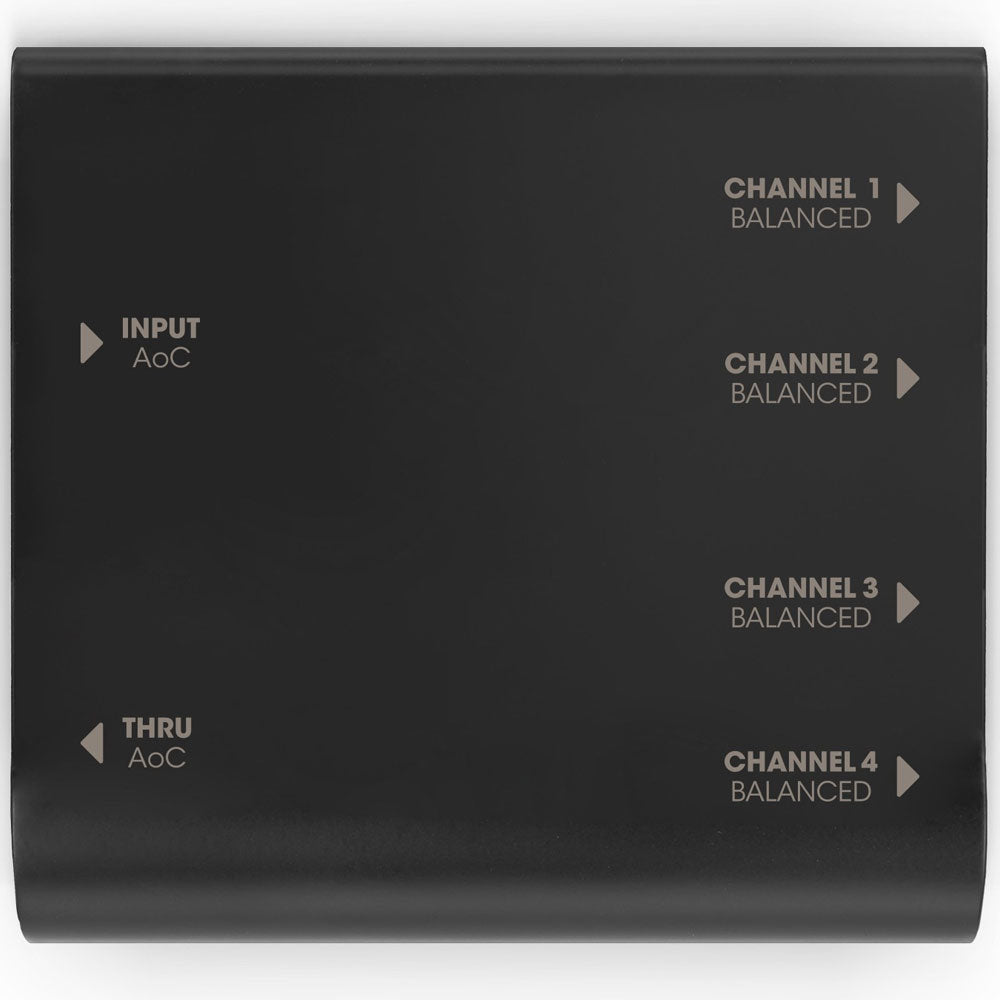

  • Additional etherCON THRU
  • AES72 Type 5E
  • Compatible with 48-volt phantom power
  • Premium Neutrik components
  • Solid casing made of aluminium and steel
  • Engineered in Germany, assembled in Europe

Specifications

  • Product type - Aluminium, Audio over Cat adapter, Steel
  • Number of inputs - 4
  • Input Connector - RJ45
  • Number of outputs - 4

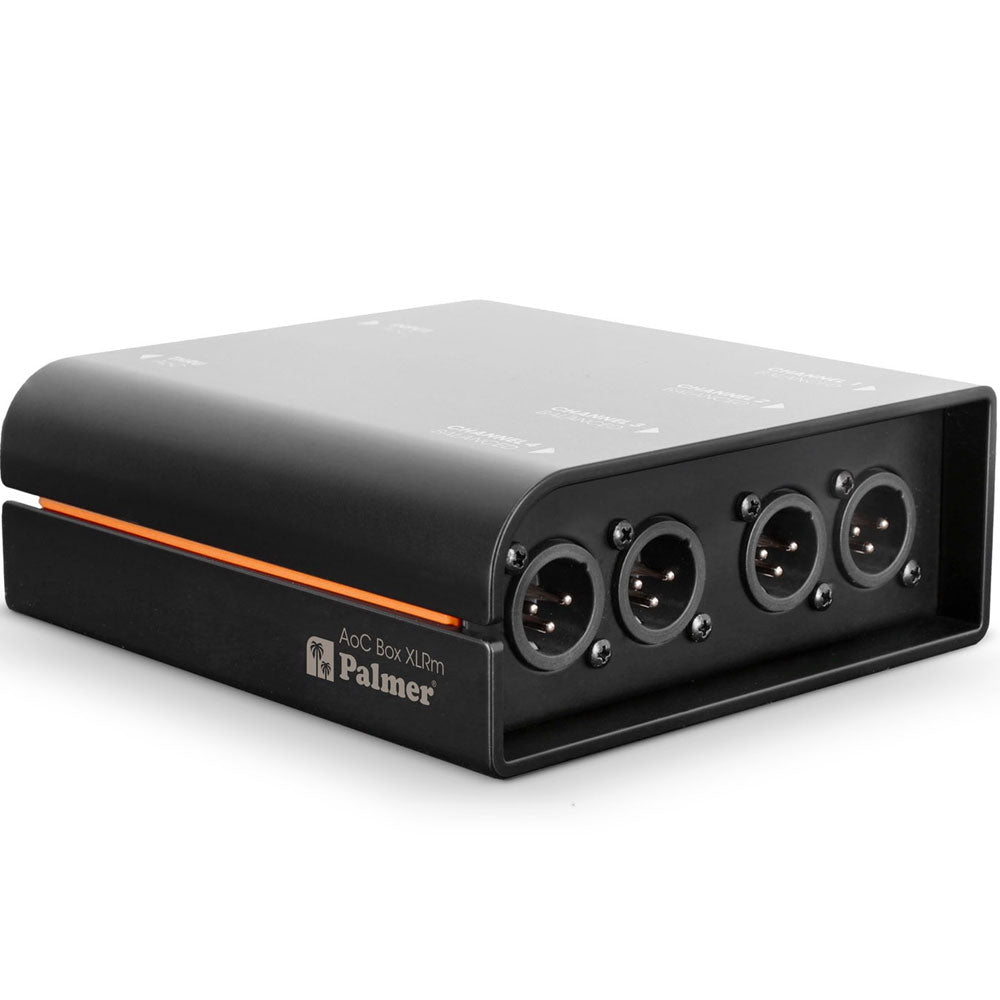

  • Output connector - XLR 3-pin male
  • Number of LINK outputs - 4 (via RJ45 THRU)
  • Ground lift switch - yes (for RJ45 THRU)
  • Material - Aluminium, Steel
  • Dimensions - 140 x 128 x 50 mm
  • Weight - 0.5 kg
  • Max. input level (< 1% THD, 1 kHz) - + 32 dBu
  • Frequency range - 0 Hz - 20 kHz
  • THD (1 kHz, +4 dBu, unity, unweighted) - < 0,0005 %
  • RJ45 pin layout (AES72 Type 5E, balanced wired, even = +)
    • Pin 1 - Channel 3 -
    • Pin 2 - Channel 3 +
    • Pin 3 - Channel 4 -
    • Pin 4 - Channel 1 +
    • Pin 5 - Channel 1 -
    • Pin 6 - Channel 4 +
    • Pin 7 - Channel 2 -
    • Pin 8 - Channel 2 +

Check out the Palmer AoC range on their website.
