Palmer PAOCLTRSM AoC Loom TRS-M - Audio Over CAT Loom From etherCON to 4 TRS Male

SKU: PAL-PAOCLTRSM
$229.00 $269.41
In stock: 2
By Palmer
NOTIFY ME WHEN BACK IN STOCK
Description

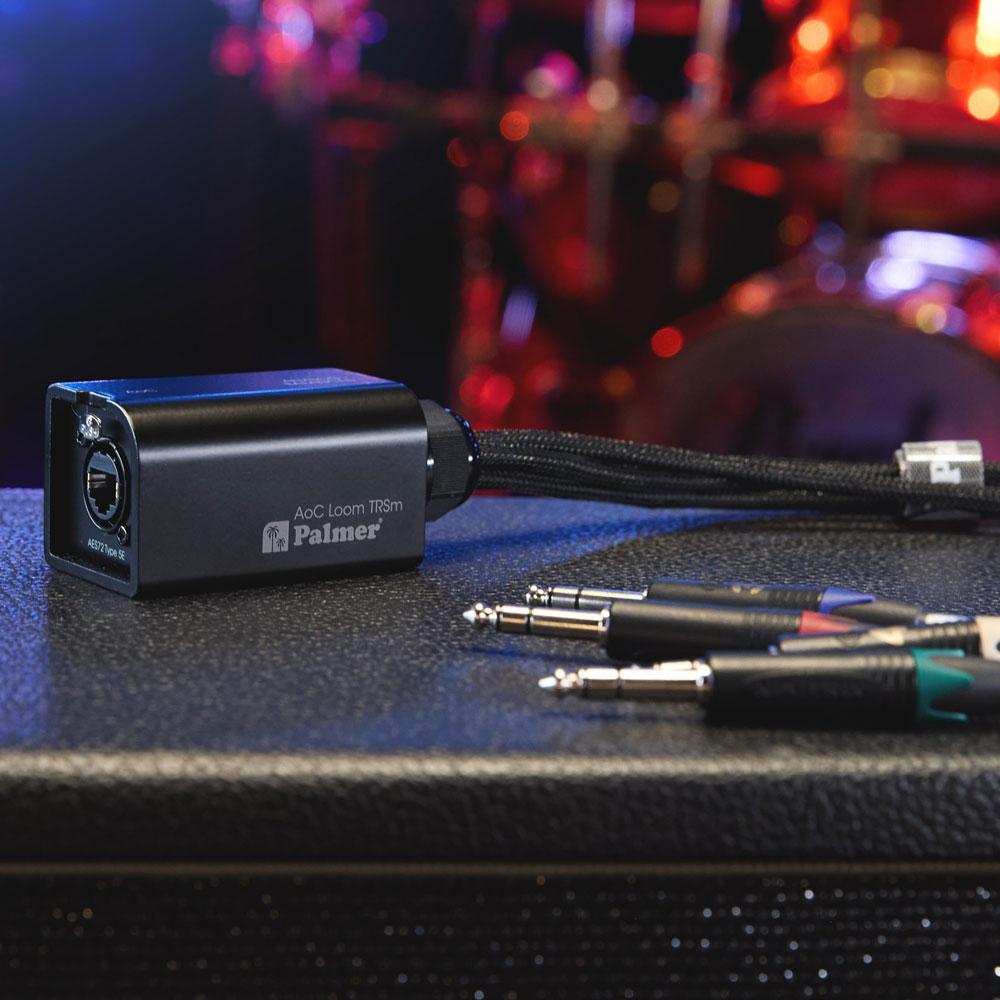

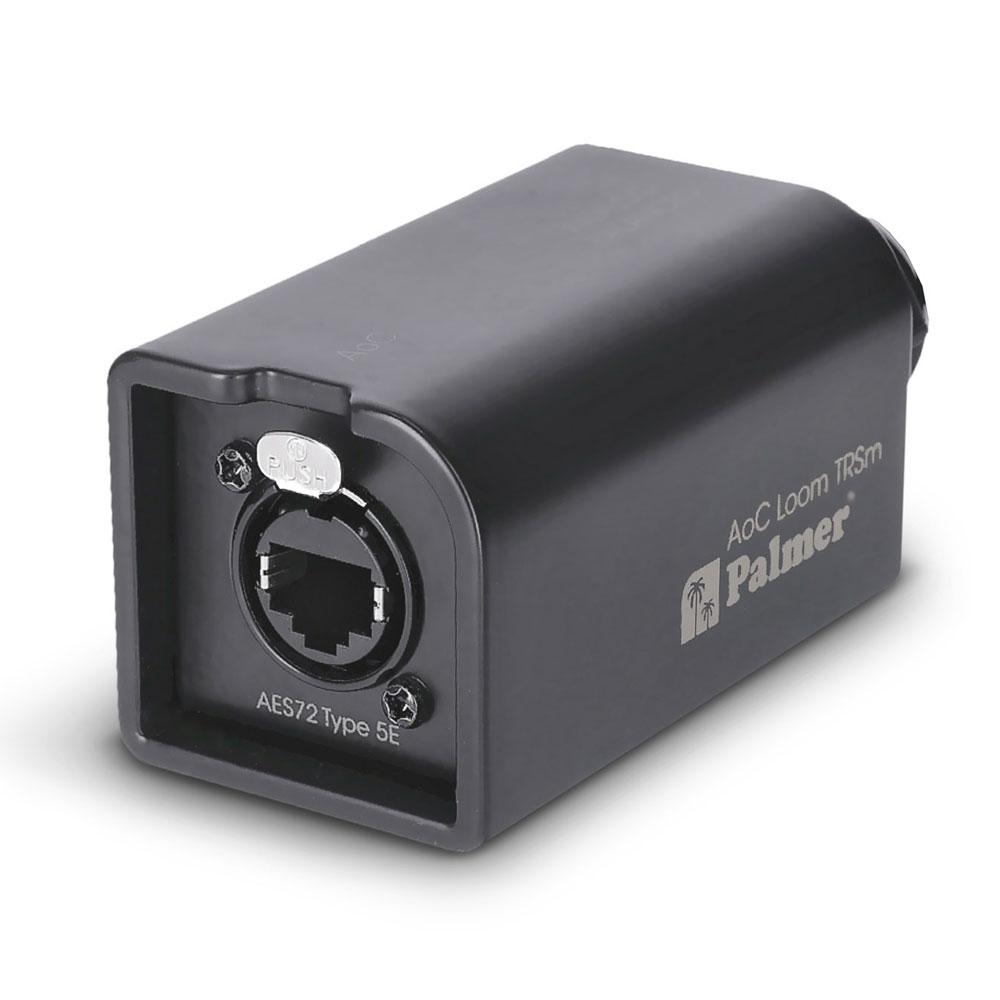

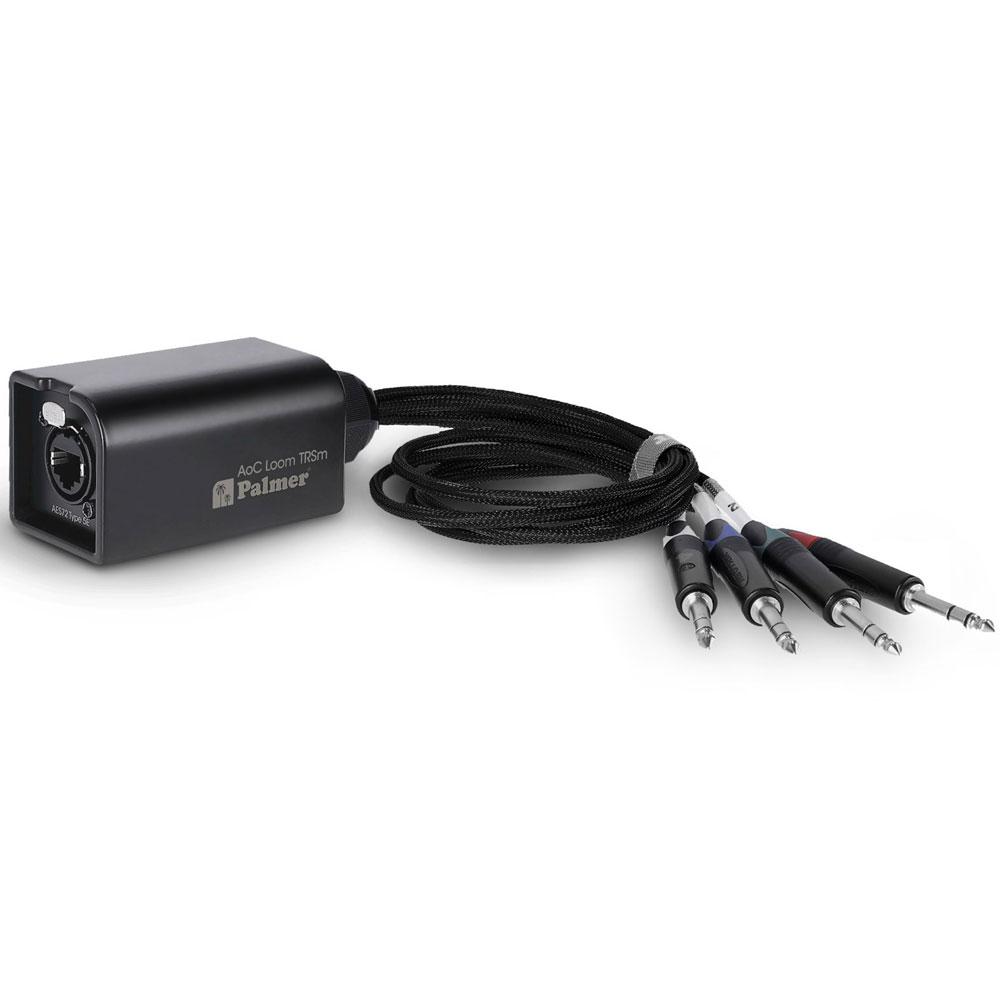

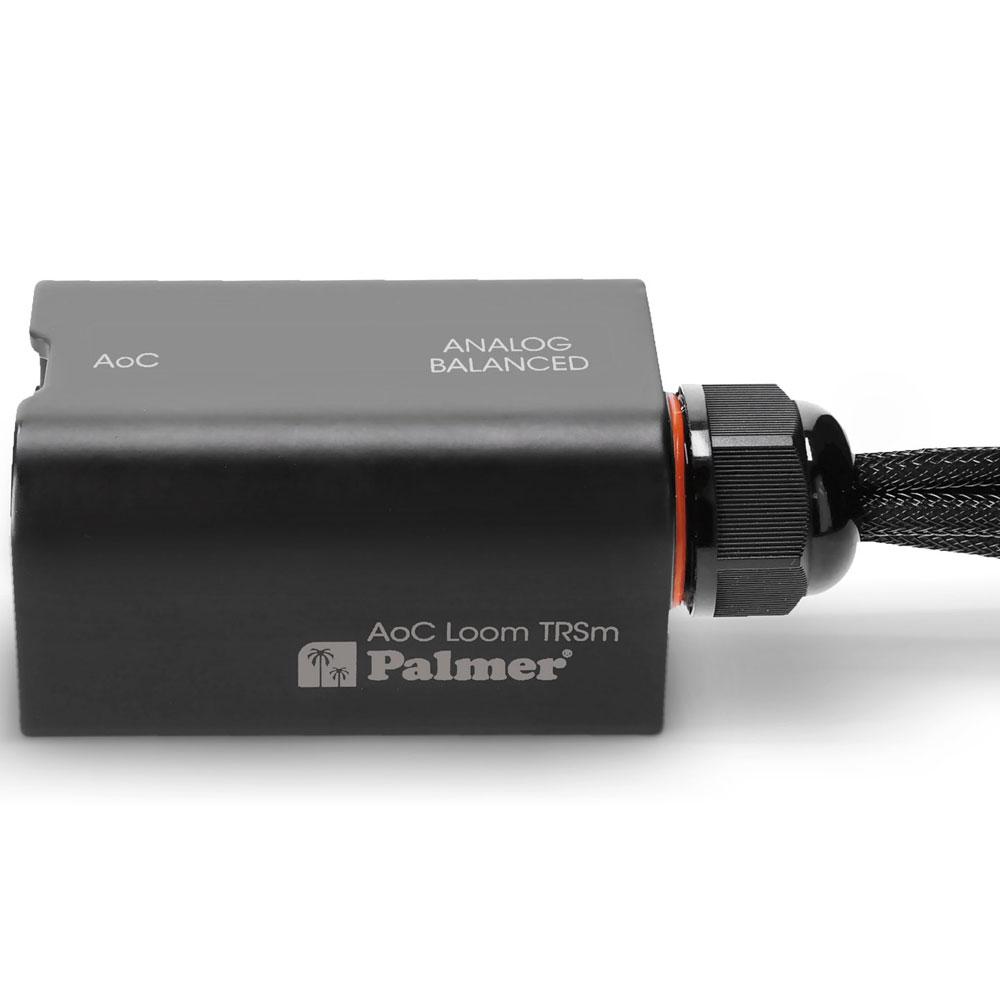

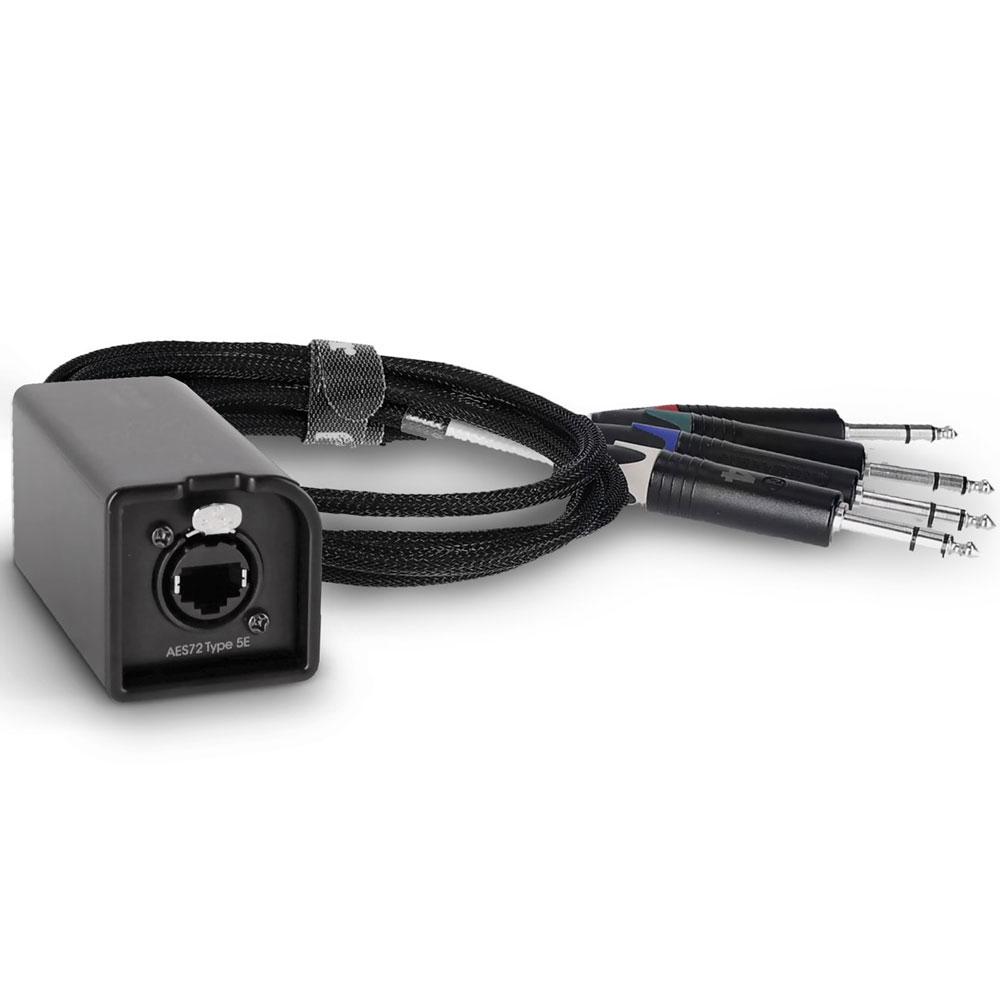

The Palmer PAOCLTRSM AoC Loom TRS-M is a high-quality multicore adapter cable designed for reliable transmission of up to 4 balanced audio signals over a network cable (cable not included). With numbered and color-coded 6.3 mm TRS jacks, this adapter ensures easy identification and secure connections. The locking Ethercon connection protects against accidental disconnection.



This versatile loom conveniently uses a single Ethernet cable for various purposes such as live performances, recording sessions, press events, and more. Boasting Neutrik components, a sturdy aluminum-steel build, and durable mesh cables with a 50 cm splice, the PAOCLTRSM ensures dependable signal transmission and longevity in professional settings. Its sleek design adds visual appeal to any setup.



The Palmer PAOCLTRSM AoC Loom TRS-M is a reliable and durable tool that offers an affordable and flexible alternative to traditional 4-channel multicores without sacrificing audio quality. This highly versatile product is a must-have for anyone who values quality and reliability in their audio equipment.

Features

  • 4 balanced analogue audio channels over Cat5e or higher (Ethernet cable not included)
  • etherCON to 4 x 6.3 mm TRS jack
  • AES72 Type 5E
  • Premium Neutrik components
  • Robust mesh cable, 0.5 m
  • Solid casing made of aluminium and steel
  • Engineered in Germany

Specifications

  • Product type - Audio over Cat adapter
  • Number of inputs - 4
  • Input Connector - RJ45
  • Number of outputs - 4
  • Output connector - 6.35 mm TRS stereo jack
  • Material - Aluminium and steel
  • Cable Length - 0.5 m
  • Dimensions - 128 x 140 x 50 mm
  • Weight - 0.35 kg
  • Max. input level (< 1% THD, 1 kHz) - + 32 dBu
  • Frequency range - 0 Hz - 20 kHz
  • THD (1 kHz, +4 dBu, unity, unweighted) - < 0,0005 %
  • RJ45 pin layout (AES72 Type 5E, balanced wired, even = +)
    • Pin 1 - Channel 3 -
    • Pin 2 - Channel 3 +
    • Pin 3 - Channel 4 -
    • Pin 4 - Channel 1 +
    • Pin 5 - Channel 1 -
    • Pin 6 - Channel 4 +
    • Pin 7 - Channel 2 -
    • Pin 8 - Channel 2 +
  • Channel color code
    • Channel 1 - Red
    • Channel 2 - Green
    • Channel 3 - Blue
    • Channel 4 - White
