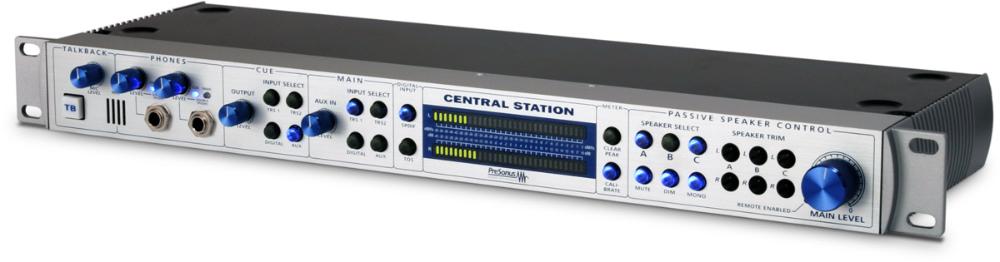

PreSonus CENTRALSTATION Plus Studio Monitor Control With Remote

SKU: PRE-CENTRALSTATION
$1,199.99 $1,411.75
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By Presonus
Description

With Central Station, you can easily switch between three sets of stereo, analog input sources and one stereo digital input source. The digital inputs provide up to 24-bit, 192 kHz digital-to-analog conversion, and the converters deliver more than 115 dB of dynamic range. The Central Station will automatically detect and lock to the sampling rate of the source device.

You can audition these sources with up to three pairs of speakers, with individual trim pots for each speaker. You also get two screaming-loud headphone amplifiers with individual level controls. If two sets of cans aren’t enough, simply connect the line-level cue outputs to a headphone distribution system—say, a PreSonus® HP2, HP4, or HP60.

Features

  • 3 sets of stereo analog inputs let you switch between sources
  • 2 sets of S/PDIF digital inputs (coax and optical)
  • 3 sets of stereo speaker outputs with:
    • Speaker Select switches
    • Recessed trim pot for each speaker output

Cue section with:

  • Input-select switch
  • Output-level control

Main section with:

  • Input-select switch
  • Aux-input level control
  • Output-level control
  • Mute, Dim (-20 dB), and Mono switches

2 headphone outputs, each with:

  • Dual-function volume controls
  • Main-Cue input switches
  • Passive audio path: no op amps or IC's in main audio path
  • Onboard talkback microphone
  • Talkback microphone input w/level control (feeds headphone and cue outputs)
  • Dual 30-segment, fast-acting, peak-hold LED metering (dBu and dBfs) with:
    • Clear Peak switch
    • Calibrate to match DAW or other audio device
  • Footswitch jack for hands-free talkback operation
  • Included Control Station Remote (CSR-1) provides remote control of:
    • Main Volume
    • Input select
    • Output select
    • Talkback
    • Mute
    • Dim
    • Mono

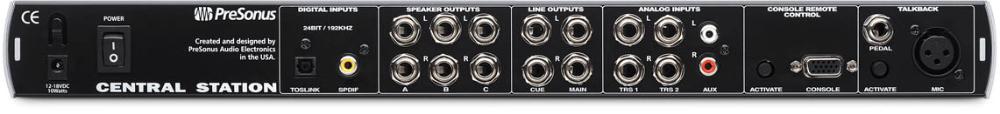

Input/Output

  • 4 balanced ¼" analog line inputs (2 L/R pairs)
  • 2 unbalanced RCA analog line inputs (L/R pair)
  • 1 stereo S/PDIF optical (TOSLINK) digital input
  • 1 stereo S/PDIF coax (RCA) digital input
  • 1 balanced XLR talkback-microphone input
  • 6 balanced ¼", line-level speaker outputs (3 L/R pairs) w/separate, passive volume controls
  • 2 balanced ¼", line-level Main outputs (1 L/R pair) with source selection
  • 2 balanced ¼", line-level Cue outputs (1 L/R pair) with volume control and source selection
  • 2 stereo ¼" headphone jacks w/dual-function volume controls and Main-Cue input switches
  • 1 DB15 port for optional Control Station Remote (CSR-1)

Digitalia

  • S/PDIF coax and optical digital inputs
  • High-definition, 24-bit, 192 kHz D/A converters (115 dBu dynamic range)

Physical

  • 1U 19" rack-mountable, rugged steel chassis
  • External AC power supply

CSR-1 Remote

  • Remote-control all functions of Central Station, including:
    • Input switching
    • Speaker selection
    • Main volume
    • Talkback system
  • Onboard electret condenser talkback microphone
  • Talk button (momentary switch) for talkback system
  • Active light shows when CSR-1 is controlling main volume
  • Connects with a proprietary DB15 cable (included)
  • Keep desktop neat and clutter-free
