Prolights MUSCYC050 EclCyclorama 050 LED Cyc

SKU: MUSCYC050
$3,282.00
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By PROLiGHTS
Description

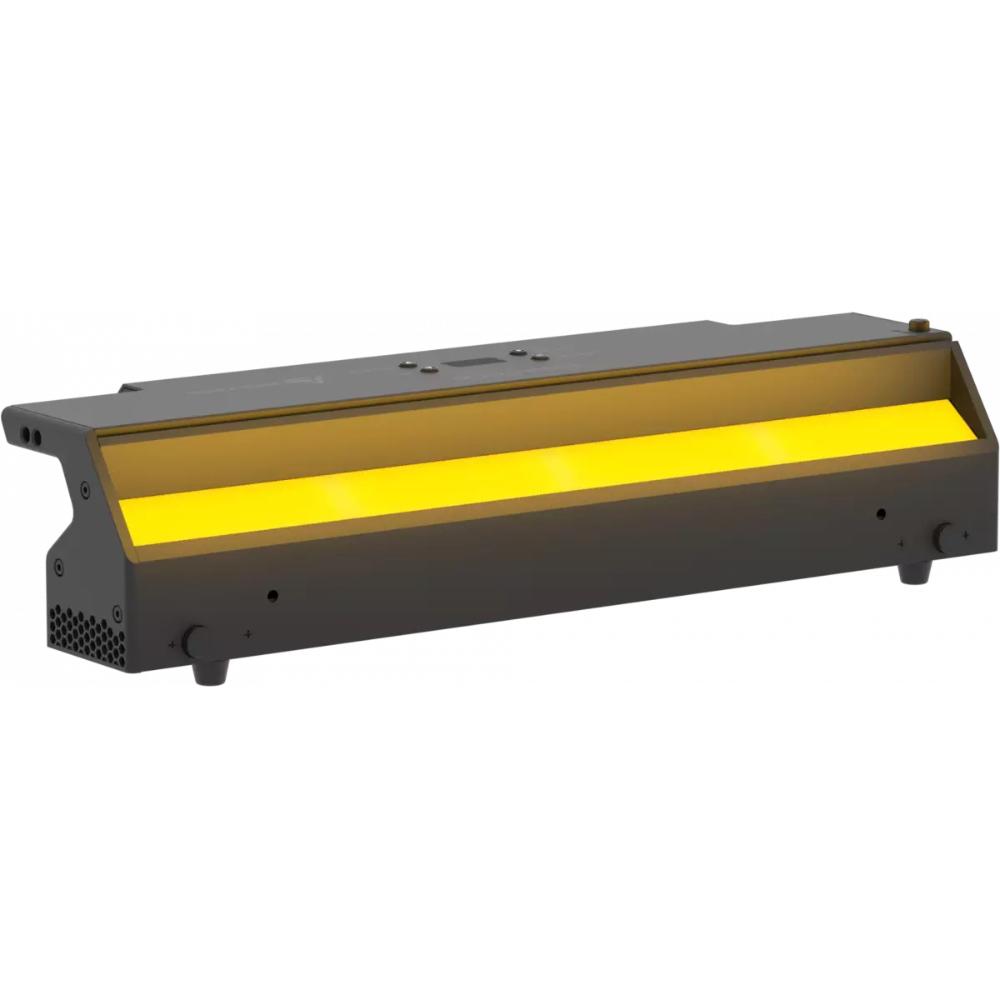

EclCyclorama 050 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedented level of brightness in its category.The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances.

The Optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.

Features:

  • RGB + Warm White colour systems allows high quality of whites (CRI 93 @3.200 K) and bright colours.
  • Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.
  • Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures
  • Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.

Specifications:

LIGHT SOURCE

  • Source: 170W RGB + Warm White
  • Luminous flux: (with 80°x40° filter on board) 13,896lm @full
  • Lux: @1 m to wall and 1.5 m height @ full (with standard filter) 625 lx – (with 40° filter) 1,530 lx – (with 10°x60° filter) 1,590 lx – (with 30°x60° filter) 1,690lx
  • CRI: 93 @3200K; 91 @5600K
  • R9: 91 @3200K; 95 @5600K
  • TLCI: 87 @5600K
  • TM30 Rf: 88.8 @5600K
  • TM30 Rg: 107.4 @5600K
  • Source life expectancy: > 50000H

OPTICS

  • Beam angle: (HxV) 80°x40°
  • Additional optics: see available accessories

COLOUR SYSTEM

  • Colour mixing: RGB + Warm White
  • CTC: CTC control, + / – green correction, Tungsten emulation
  • White presets: 2800K – 6500K
  • Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

  • Control Resolution: 16bit dimmer, colours
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: +/- 8° angle adjusting

CONTROL

  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • W-DMX: included, wireless solution receiver
  • RDM: RDM ready for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included

ELECTRONICS

  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240 V – 50/60 Hz
  • Max power consumption: 400W
  • Power factor: >0,94

PHYSICAL

  • Cooling: heat sink without fan
  • Suspension and fixing: any position with quick-lock omega brackets

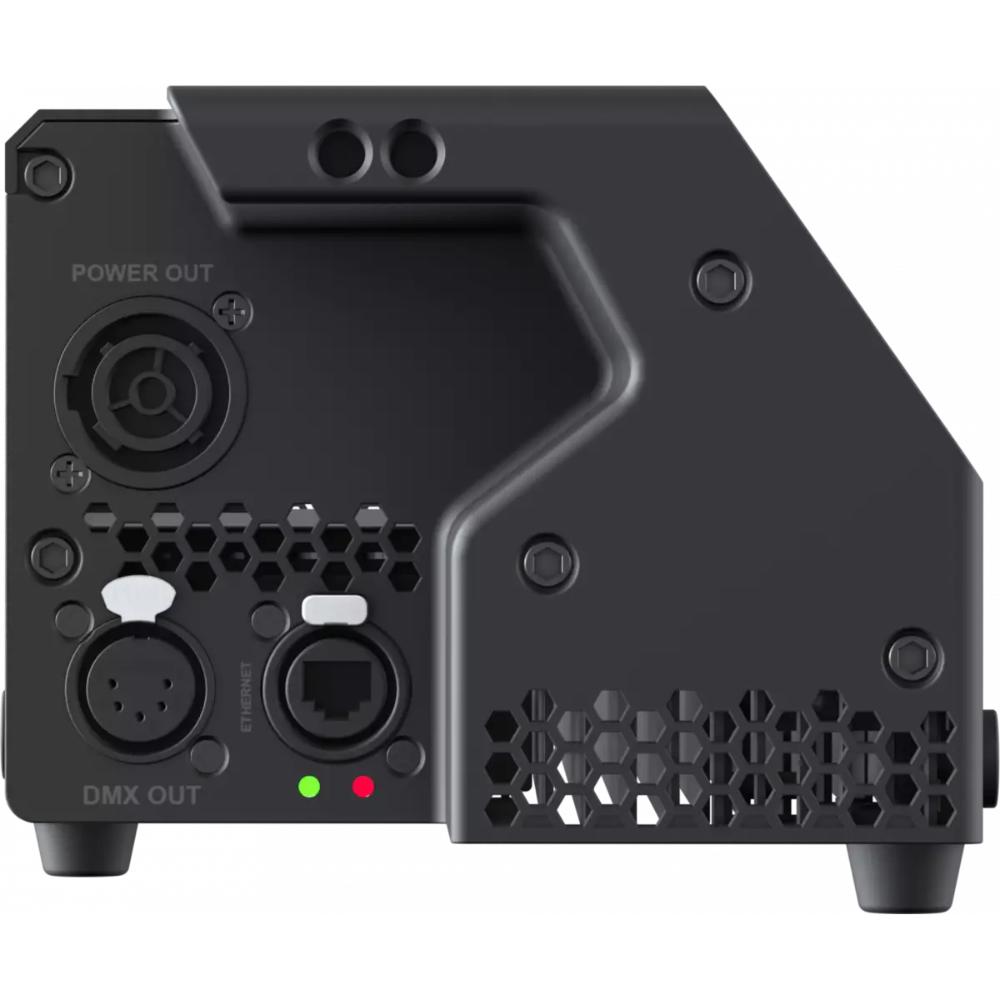

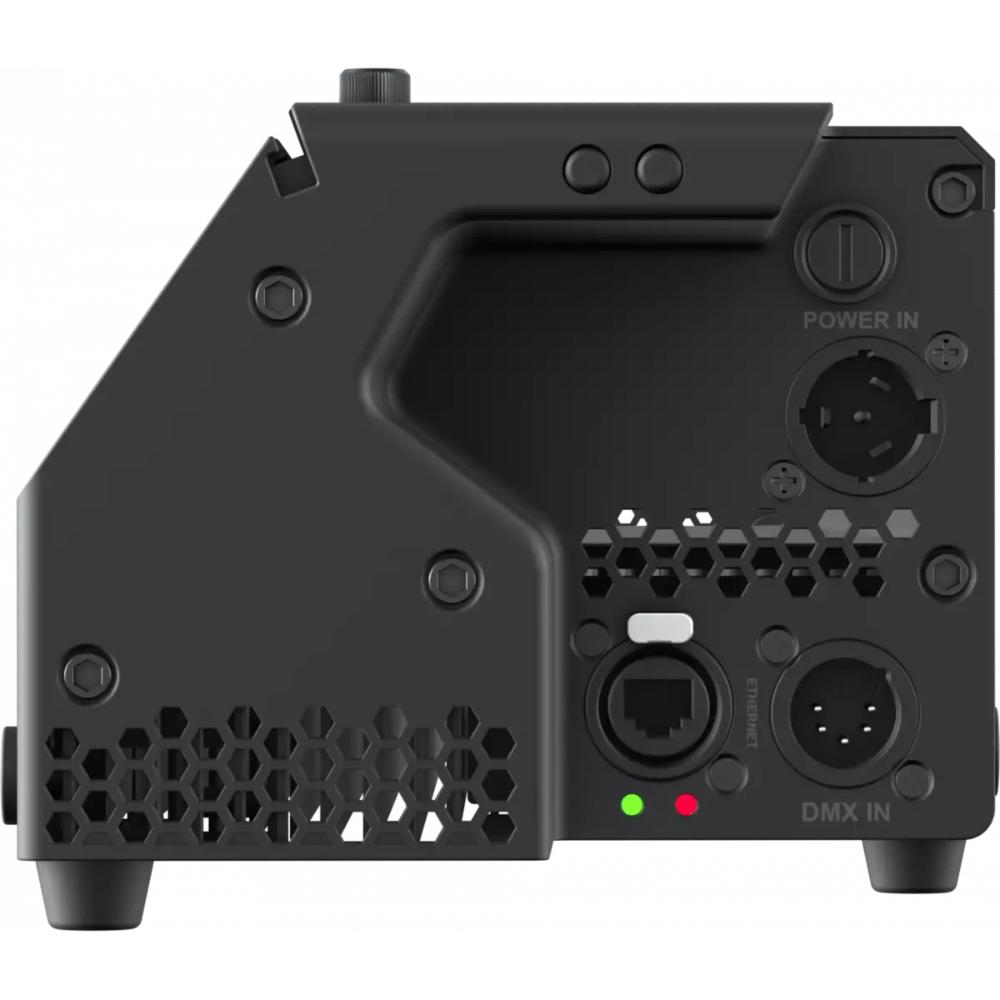

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • IP rating: IP20
  • Dimensions  (WxHxD): 500x119x148mm
  • Weight:  5kg
