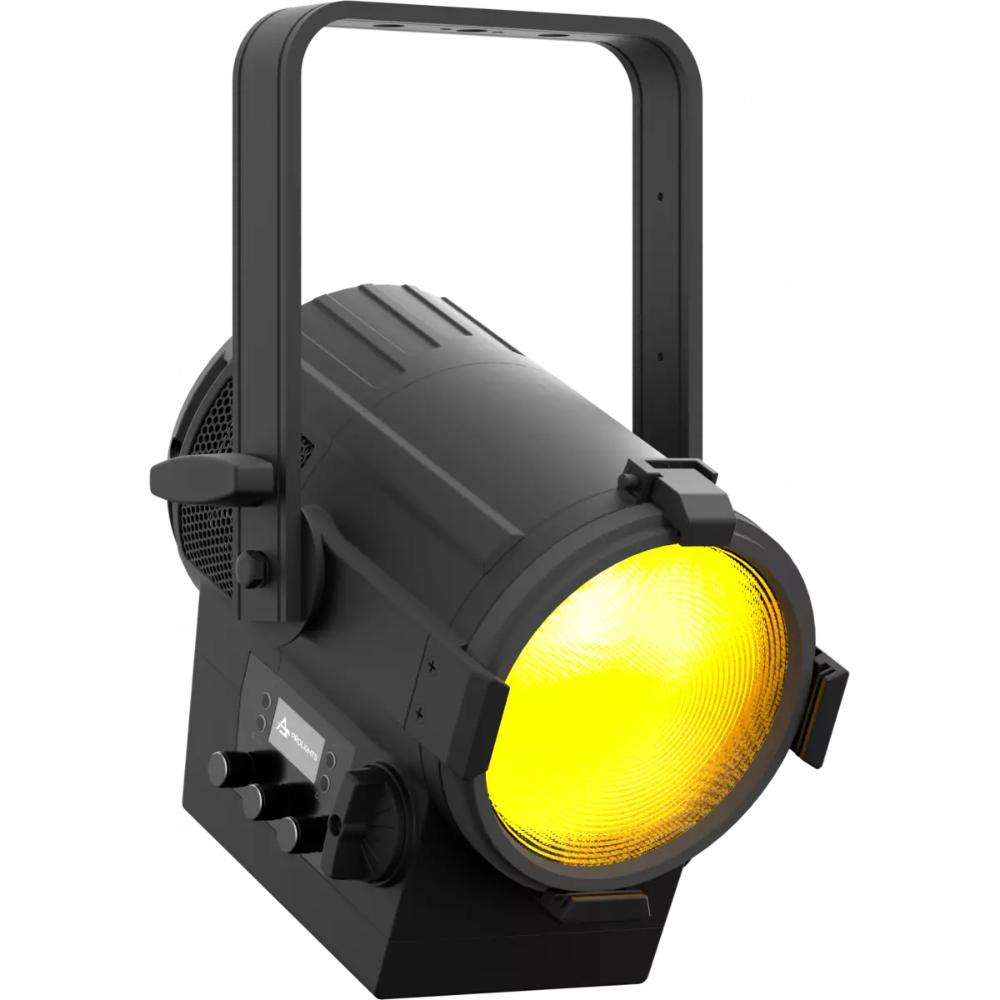

Prolights MUSFRE102 Eclipse Jr TW LED Fresnel

LED Fresnel FC and Tunable White with colour correction, to replace 650W lamp.

EclFresnel JrTW is an advanced LED replacement of traditional 650W Fresnel lamps, featuring 6 colour mixing delivering high precision reproduction of the white spectrum from 2800K to 10000K with high CRI and an extensive colour reproduction.  The optical system harnesses the power of a 130W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with added ability to apply +/- green and magenta correction to match other sources of light. Featuring HD dimming and tuning from 2.800 K to 10.000 K version with external battery capabilities, the EclFresnel JrTW delivers the performance and quality of output demanded from this level of luminaire.

Features:

• Tunable white 2800 K – 10000 K with high CRI and extensive colour mixing

• +/- green and magenta white tuning

• Silent operation for studio and stage use

• Battery ready, compatible with industry standard external batteries (optional)


Specifications:

LIGHT SOURCE

• Source: 130W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
• CCT: 2.800 K - 10.000
• Luminous flux: (16°) 1,610 lm - (80°) 2,952 @full
• Lux: (16°) 709 lx - (80°) 145lx @5 m full
• CRI: 91 @3.200 K; 92 @5.600 K
• R9: 95 @3.200 K; 93 @5.600 K
• TLCI: 86 @5.600 K
• TM30 Rf: 88 @3.200 K; 86 @5.600 K
• TM30 Rg: 106 @3.200 K; 104 @5.600 K
• Source life expectancy: > 50.000 h

OPTICS

• Zoom: 16° - 80° manual
• Lens diameter: 6'' - 150mm / 0.24''
• Lens type: fresnel zoom lens

COLOUR SYSTEM

• Colour mixing: tunable white + colour
• CCT: CCT control, + / - green correction, tungsten emulation
• White presets: 2.800 K - 10.000K
• Colour wheel: virtual colour wheel with macros
• Macros: several pre-built macros with adjustable speed

DYNAMIC EFFECTS

• Static mode: selection of static colour
• Manual mode: manual adjustment of intensity, CT, colour correction from knob
• Auto mode: built-in programs with execution speed adjustment
• Special features: linear crossfade channel from any white to any colour; virtual
• CTO on colours

BODY

• Hardware on-board: filter frame, 8 doors barndoor, spigot
• Body: sturdy die-cast aluminium body
• Body colour: black, white finishing available

CONTROL

• Protocols: DMX512, RDM, rotatory knob
• DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
• Other: 16bit control of dimmer and colour

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 106W
• Output (at 230V): 22 units on a single power line
• Power factor: >0,95
• Inrush current: 230VAC/6A

BATTERY

• Battery: 29,6V 4400 mAh external battery (optional ECLFRSJBP4)
• Re-charge connection: connection for external battery throught XLR 4p
• Other: Voltage range: 22,4V-33,6V

PHYSICAL

• IP rating: 20
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: bracket for hanging and positioning

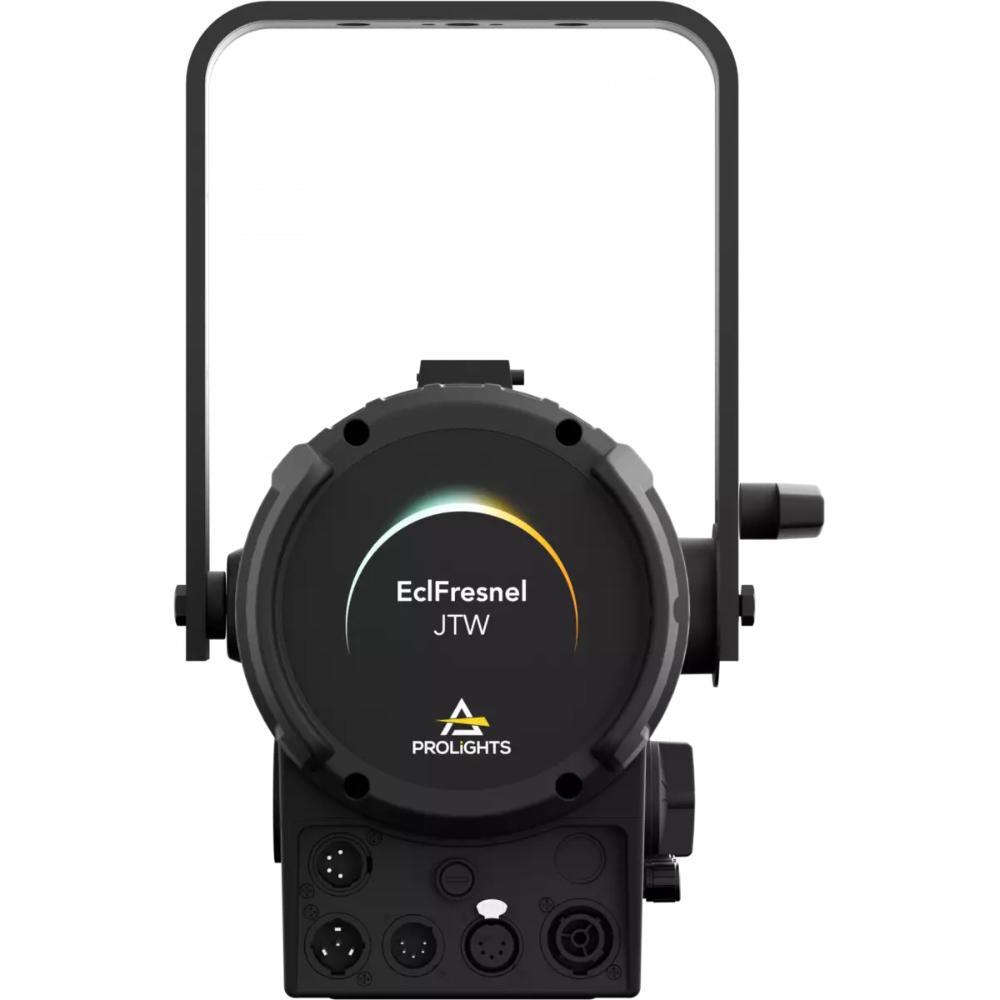

• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• Dimensions (WxHxD): 235x360x260mm
• Weight: 6kg

BOX CONTENT

• 1 x ECLFRESNELJTW
• 1 x 1,5 meters power cable (NEUTRIK POWERCON TRUE1 IP65)
• 1 x ECLFRSPG
• 1 x ECLFRSJBD
• 1 x ECLFRSJTPG
• User Manual
