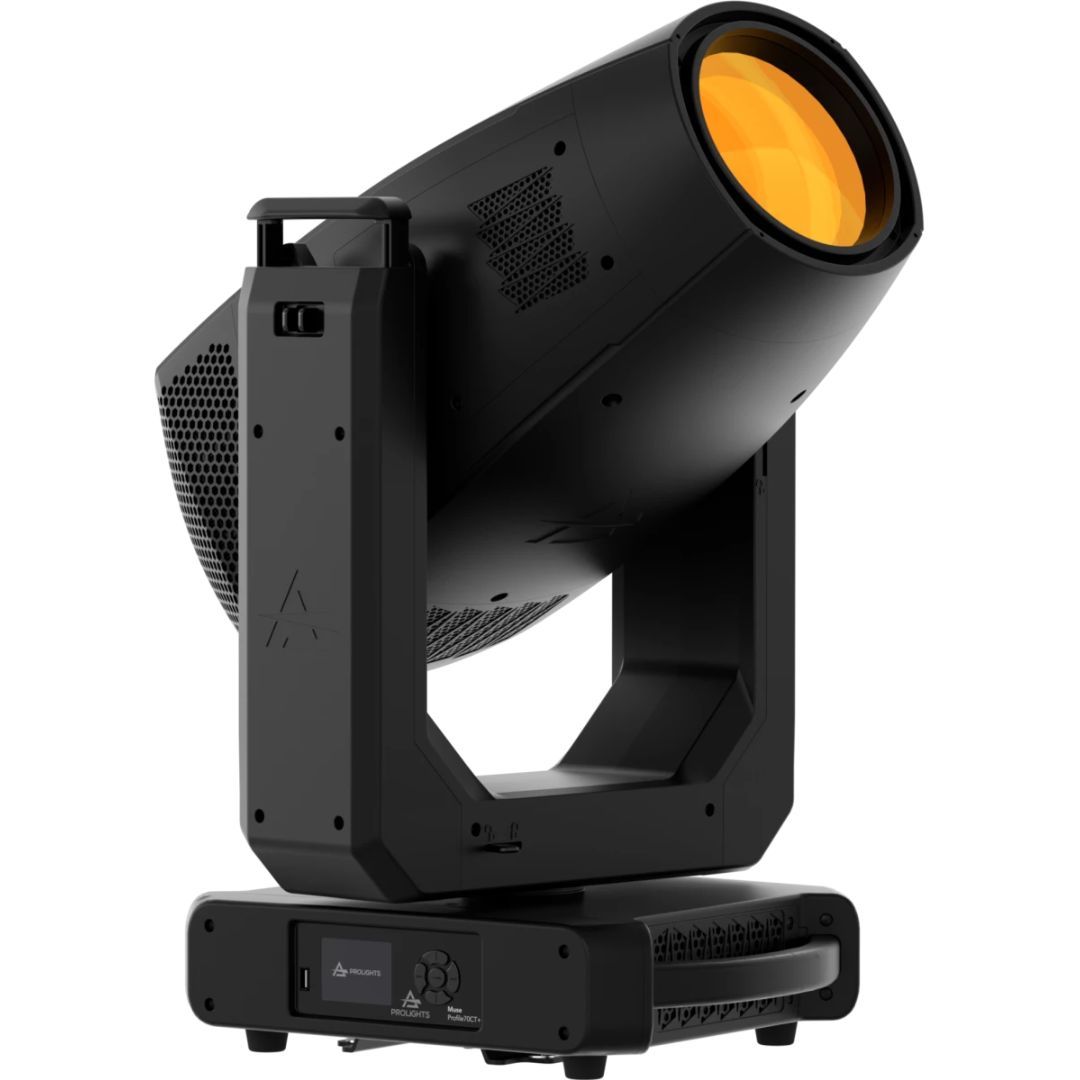

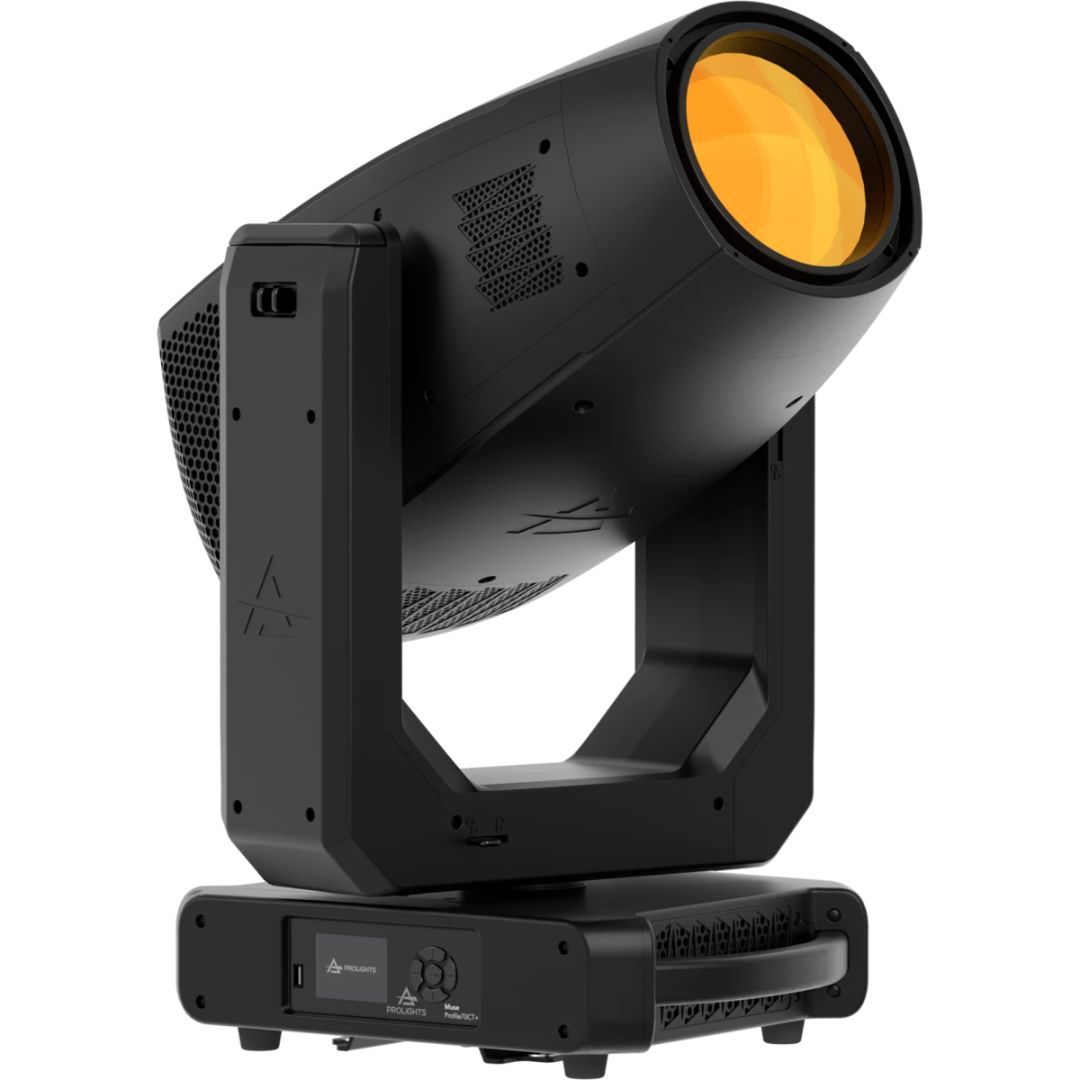

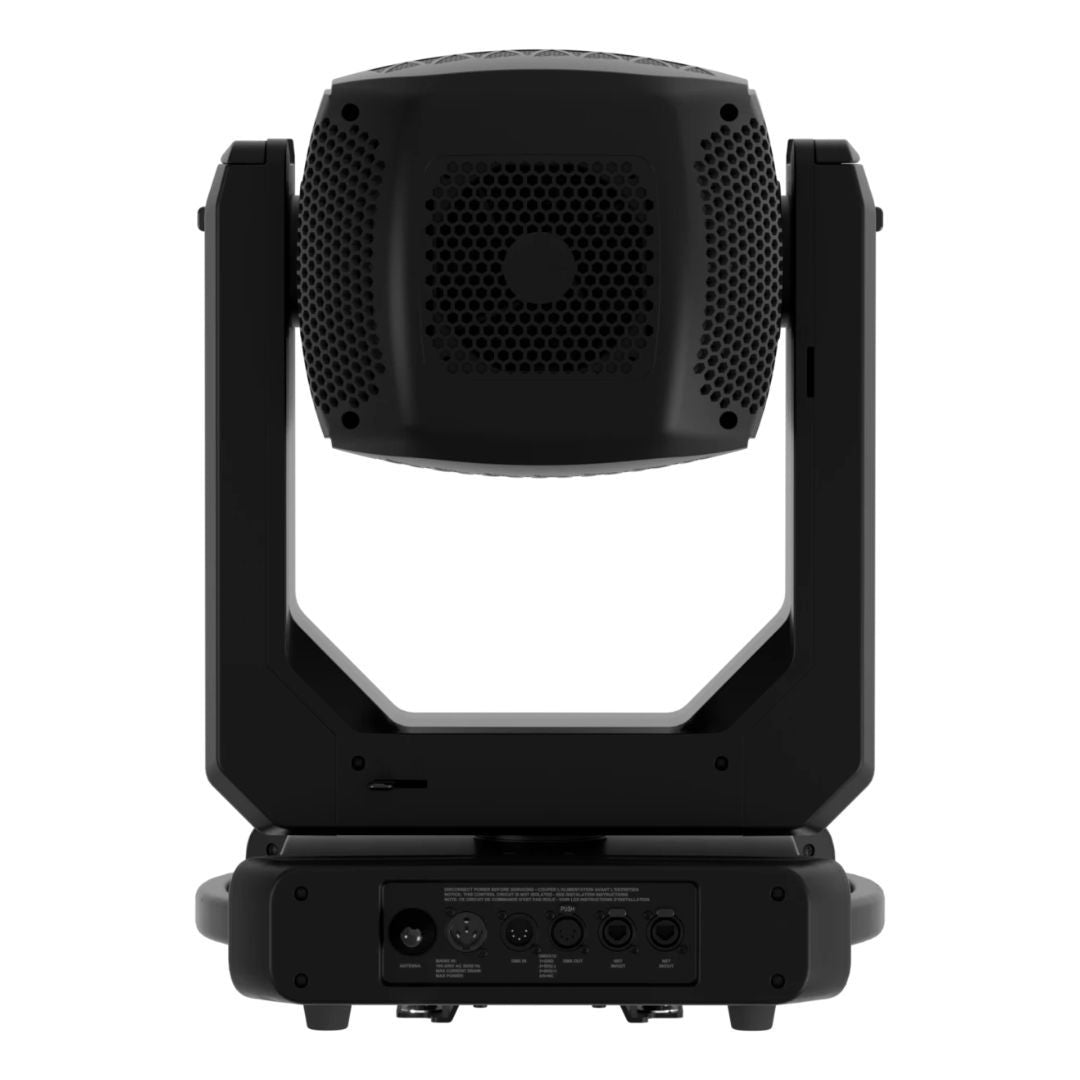

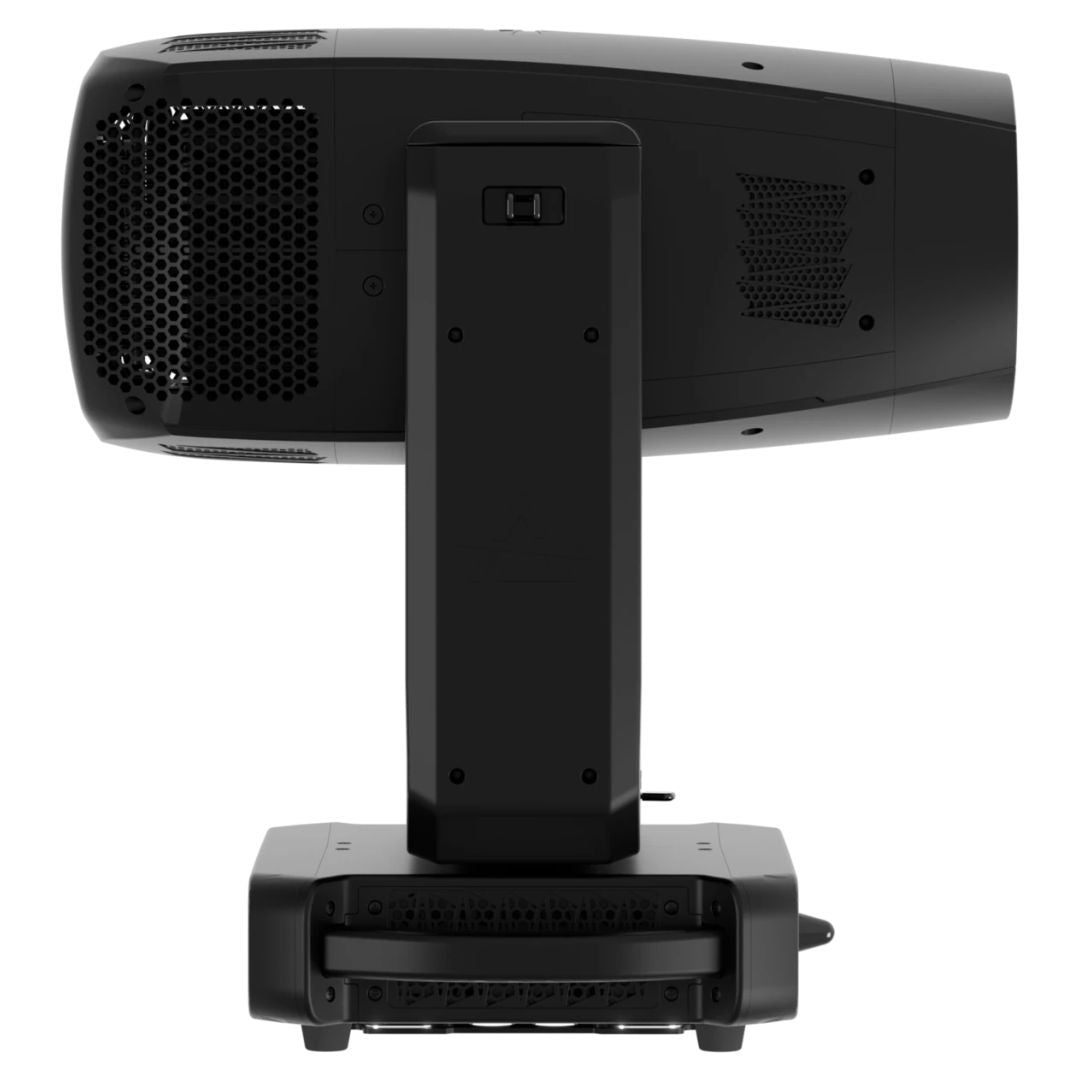

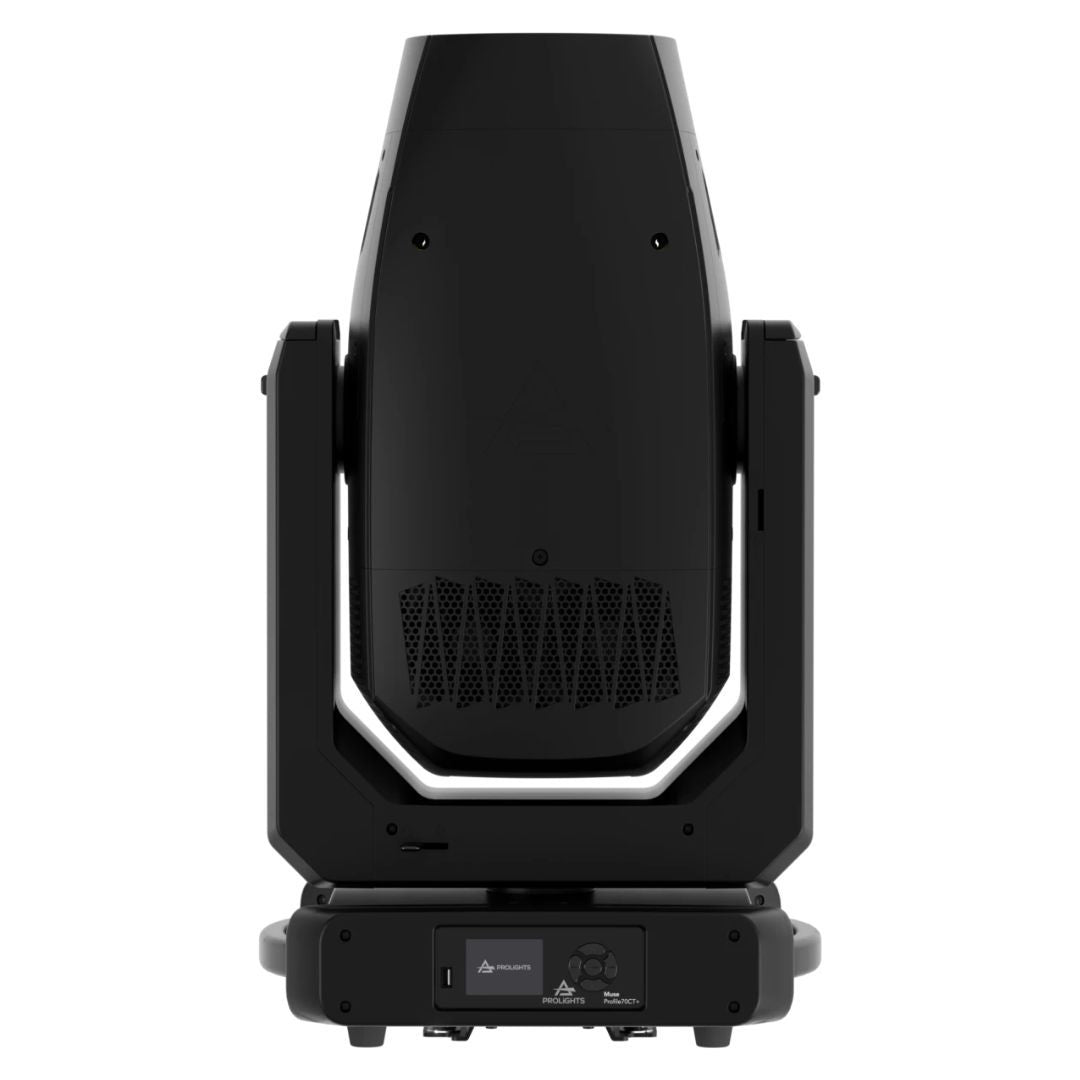

Prolights MUSMOV070 Muse Moving Head Profile 70CT+

Prolights Muse Profile70CT+ is a moving LED Profile featuring a 1000W light source with 6-color mixing, designed to deliver maximum light quality for theatres, TV studios, and film sets. Its LED source uses the same 6-colors and the SpektraOs ecosystem found across the CT+ range of the premium PROLIGHTS static fixtures (Profile, Fresnel and Soft light), enabling seamless mixed setups and ensuring consistent colour space and spectral compatibility within the same production environment, while adding all the advantages of a motorized fixture. Light quality is outstanding, with CRI up to 99, R9 up to 97 for accurate skin tones and key light, and TLCI 97 for flawless results both to the eye and on camera. SpektraOs expands advanced colour control with an ultra-wide CCT range from 2,200K to 15,000K, Tint correction, and multiple colour control modes (RGB / CMY / XY / RAW), plus emulation of Tungsten and a wide selection of filter gels. An additional physical colour wheel reproduces colours outside the native gamut (such as Congo Blue) and providing higher transmission on ultra-saturated colours. Muse Profile70CT+ is built for maximum versatility on large stages, delivering an outstanding output of >21,000 lumens and a wide 6°-50° zoom range. Its onboard effects package is complete, including two rotating gobo wheels, a 4-blade framing system (full curtain), animation wheel, linear frost, motorized iris, and absolute P/T encoder (respositioning without reset). Silent operation and smooth, flicker-free dimming, combined with a compact form factor and a weight of just 34kg, make Muse Profile70CT+ a unique blend of power, light quality, and great form factor for large-scale productions. 1000W 6-colour LED source, delivering >21,000 lm Outstanding colour rendering: CRI up to 99, R9 up to 97, TLCI 97 SpektraOs ecosystem with ultra-wide CCT 2,200K-15,000K, Tint correction, and advanced control modes (RGB / CMY / XY / RAW / Gel & Tungsten Emulation) Full effects package: physical colours wheel, 2 rotating gobo wheels, 4-blade framing system (full curtain), animation wheel, linear frost, motorized iris Absolute encoders on pan and tilt, enabling true stationary reset with no calibration movement, instant position recovery after power cycles, and precise repeatability for seamless operation in live and studio environments Specifications LIGHT SOURCE Source: 1000W 6 colour LEDs source Luminous flux: (6°) 14'001 lm - (50°) 21'257 lm @Full Lux: (6°) 64'433 lx - (50°) 1'556lx @5 m full CRI: 98,8 @3.200K; 97,2 @5.600K R9: 97,1 @3.200K; 96,4 @5.600K TLCI: 93 @3.200K; 97 @5.600K TM30 Rf: 95 @3.200K; 94 @5.600K TM30 Rg: 100 @3.200K; 101 @5.600K Source life expectancy: > 40.000 hrs (L70B10 @Ta 25° C / 77° F) OPTICS Zoom range: 6°- 50° motorised linear zoom Lens diameter: 150mm / 6'' Lens type: HD anti-reflection lenses with achromatic coating Focus: motorised 16-bit COLOUR SYSTEM Spektra OS: unmatched color precision and consistency Colour control: XY, CCT, RGB, CMY, Gel Filters CCT: linear control from 2.200K to 15.000K with color-to-CCT linear crossfade Tungsten Emulation: dimming with warm color shift simulation Tint correction: ± green correction adjustment Colour wheel: 5 colour filters + open DYNAMIC EFFECTS Control Resolution: 16-bit dimmer and color control Shutter system: 4 shutter blades with position and ±25° angle adjustment, ±60° rotation of the complete framing system Animation wheel: animation wheel with CW and CCW rotation Circular prism: 4-f with bi-directional rotation, indexing Frost: linear 0-100% from soft-edge to heavy diffusion Iris: 5 - 100% motorised iris GOBOS Rotating gobos: 6 rotating gobos + open, interchangeable, indexing Gobo size: 26,9 mm outer / 20 mm image / up to 3 mm thickness Rotating gobos: 6 rotating gobos + open, interchangeable, indexing Gobo size: 26,9 mm outer / 20 mm image / up to 3 mm thickness CONTROL Supported Protocols: DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX DMX channels: 43 / 48 / 49 / 53ch RDM: for remote addressing and parameter configuration Display: 2.4'' Color display MOVEMENT Pan: 540° - 16-bit resolution Tilt: 270° - 16-bit resolution Absolute position: stationary reset without calibration movement Position feedback: automatic repositioning after external movement Pan / tilt lock: for transport and maintenance ELECTRONICS Dimmer: linear 0 - 100% electronic dimmer Dimmer curves: 5 selectable dimming modes available Strobe / shutter: 1-30 Hz, electronic Display battery: optional, self-charging battery backup Selectable PWM: 600 to 50000 Hz (selectable steps) Firmware upgrade with: via DMX with UPBOXPRO (not included) or via Ethernet with DMX-Workshop CONNECTIONS Power connection: Neutrik powerCON TRUE1 IN connector Signal connection: Amphenol XLR 5p IN/OUT connectors Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible Data connection: Amphenol RJ45 IN/OUT EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered ELECTRICAL Mains power supply: 100-240V - 50/60Hz Max power consumption (230V): 1400W Standby power: 154,5 W Power factor: > 0.95 PHYSICAL IP rating: IP20 Cooling: heat pipe with low-noise fan Housing: Aluminium structure with high-resistance polycarbonate cover Finish: black Operating temperature: Ta -10 to +45 °C (+14 to +113 °F) Dimensions (WxHxD): 416 x 730 x 331mm / 16.38''x28.74''x13.03'' Weight: 34kg / 74.96lbs INSTALLATION Suspension and fixing: any position with quick-lock Omega brackets Hardware on-board: ancor points on the front for accessory mounting Transportation: retractable arm handles CERTIFICATIONS / REPORTS Compliance: CE, RCM, FCC, cTUVus BOX CONTENT 1 x MUSEP70CTP 2 x OS25PLUS 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
