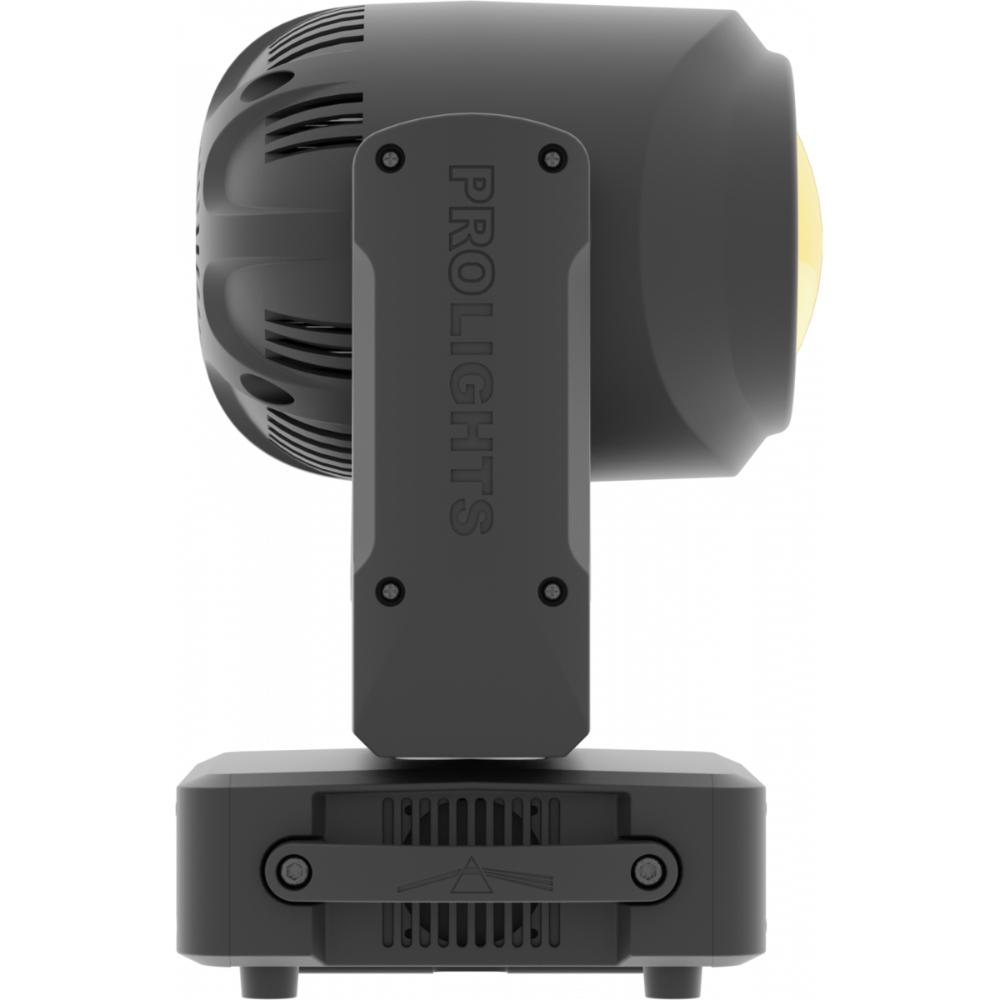

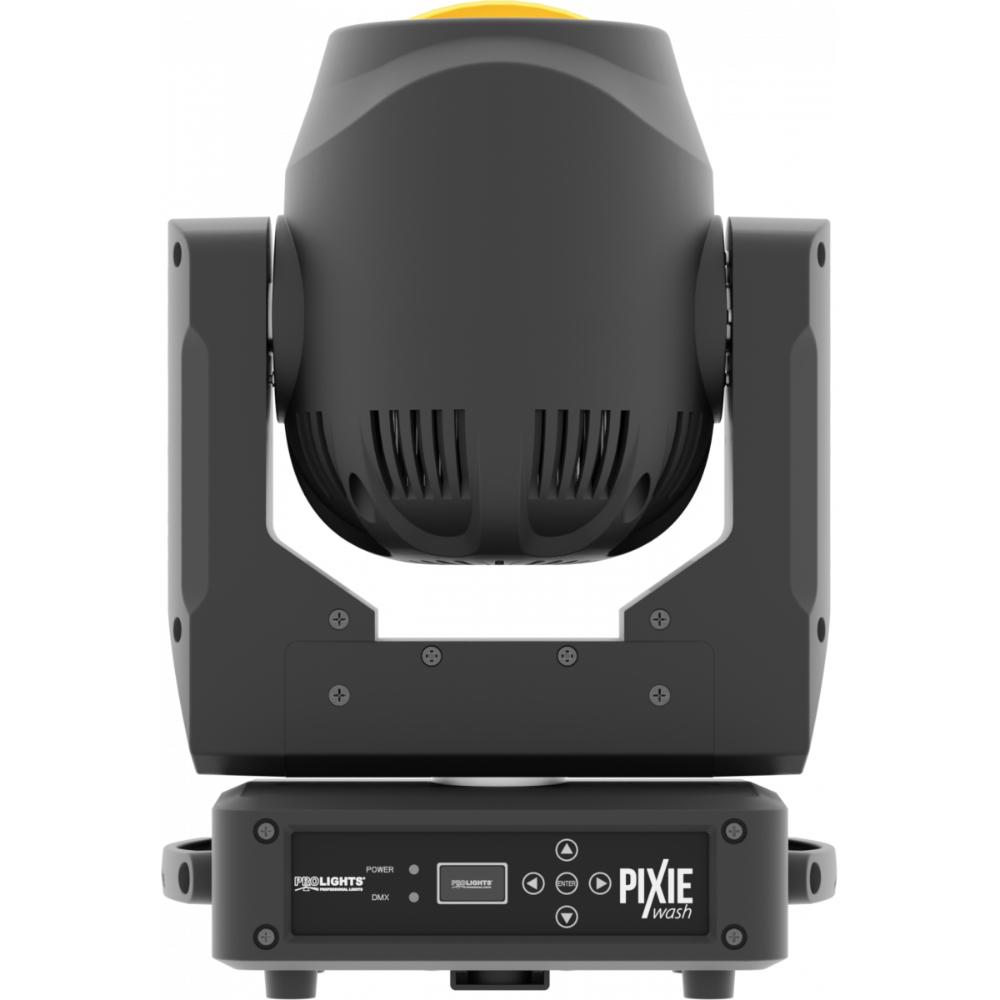

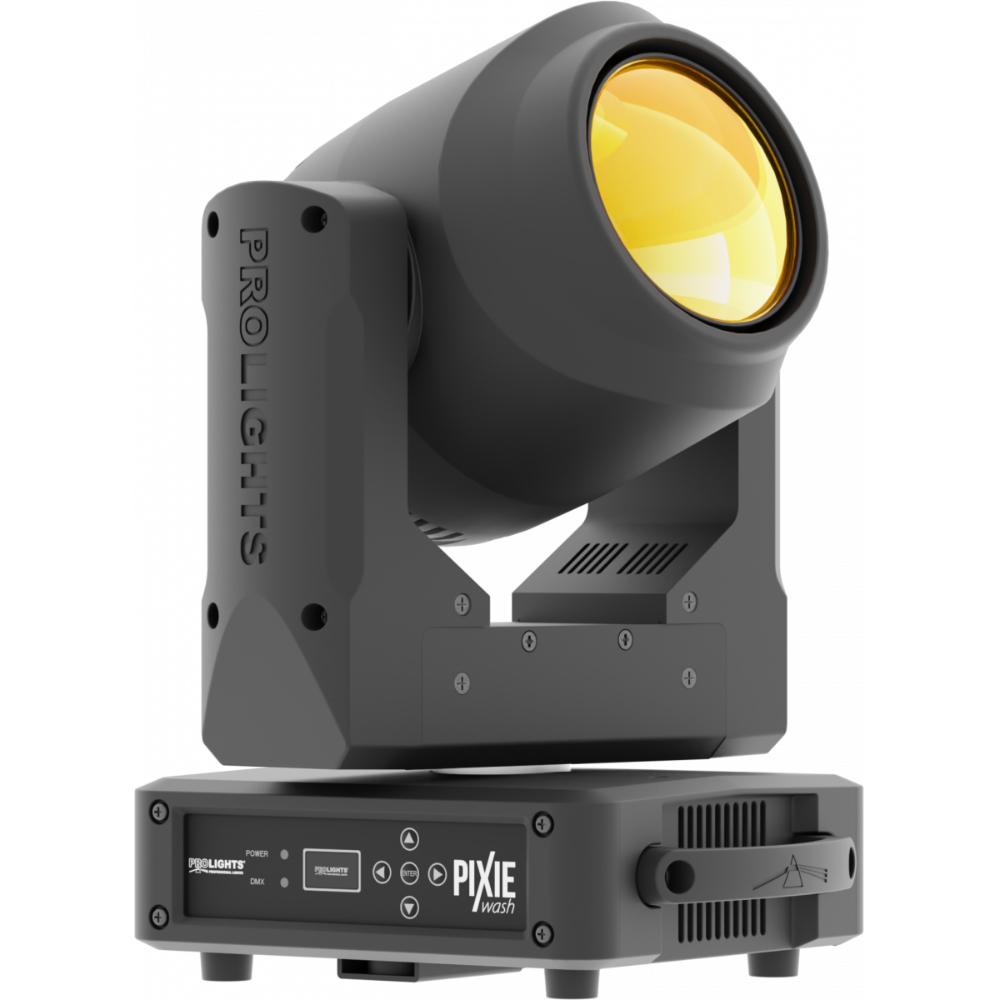

Prolights - MUSMOV209 - Pixie Wash

SKU: MUSMOV209
$1,394.00
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By PROLiGHTS
Description

Pixie Wash is a single source, compact LED wash luminaire with a 7° to 40° zoom. Featuring a single 60W LED, its small form factor and near-silent cooling make it ideal for low ceilings or noise-sensitive environments.

  • Single 60W Osram Ostar RGBW LED with extensive colour range
  • Massive 7° to 40° linear zoom with a smooth, even beam
  • HD dimming

Specifications:

LIGHT SOURCE
  • Source: 60W RGBW Osram Ostar LED
  • Luminous flux: (7°) 1'432 lm - (40°) 1'311 @full
  • Lux: (7°) 3'808 lx - (40°) 296lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: 7° - 40° motorised linear zoom
  • Lens diameter: 100mm / 3.94''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K ~ 8.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 13 / 16channel
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 112W
  • Output (at 230V): 18 units on a single power line
  • Inrush current: 110VAC/11.4A, 230VAC/26.2A
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets

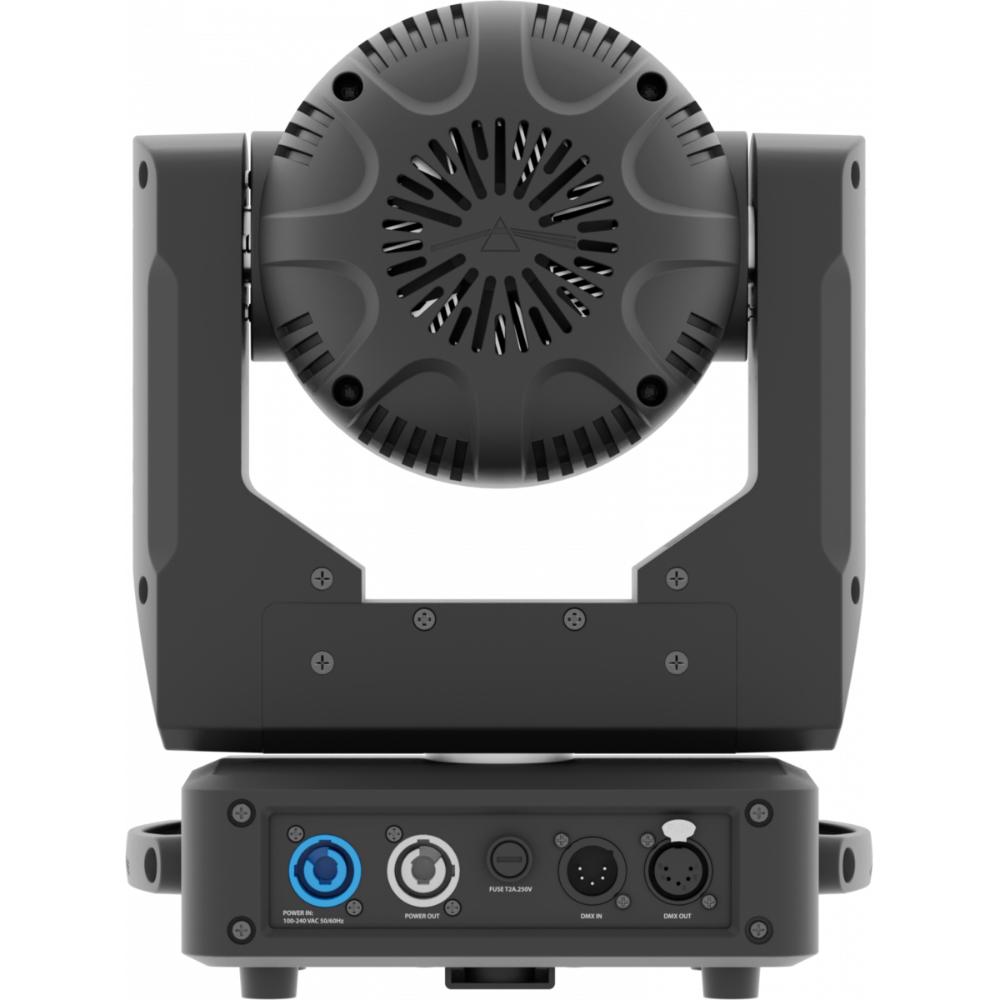

  • Signal connection: XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 253x329x205mm / 9.96''x12.95''x8.07''
  • Weight: 7kg / 15.43lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

  • 1 x PIXIEWASH
  • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
  • 1 x OS24
  • User Manual
