Prolights - MUSPRO111 - EclProfile FW VW

SKU: MUSPRO111
$2,937.00
Out of Stock, contact for ETA
NOTIFY ME WHEN BACK IN STOCK
By PROLiGHTS
Description

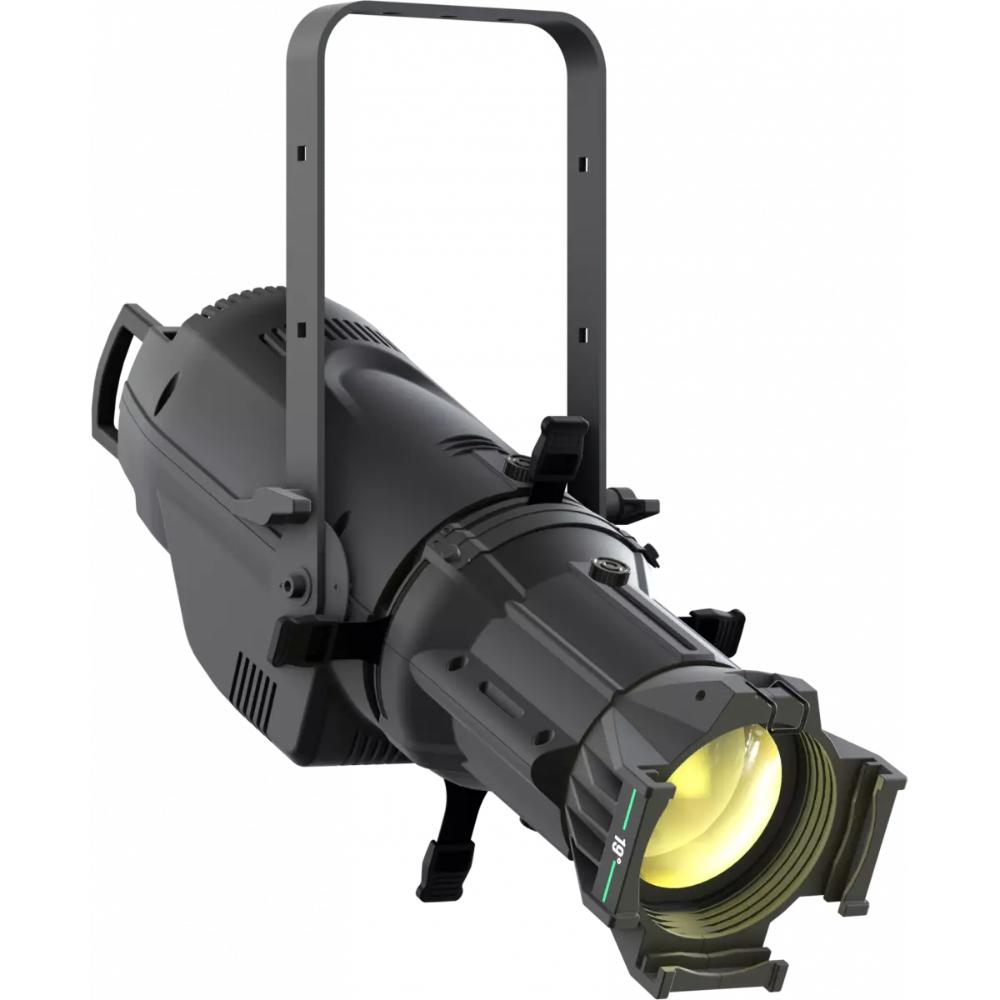

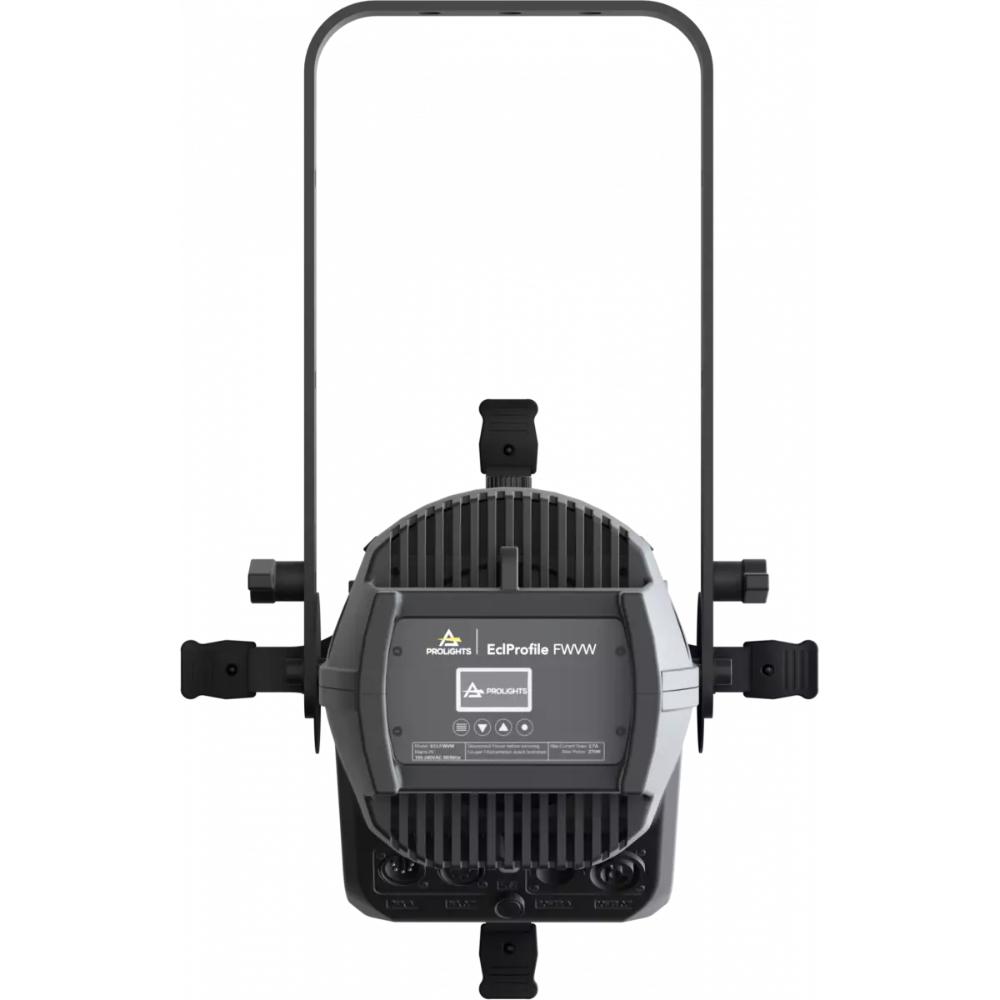

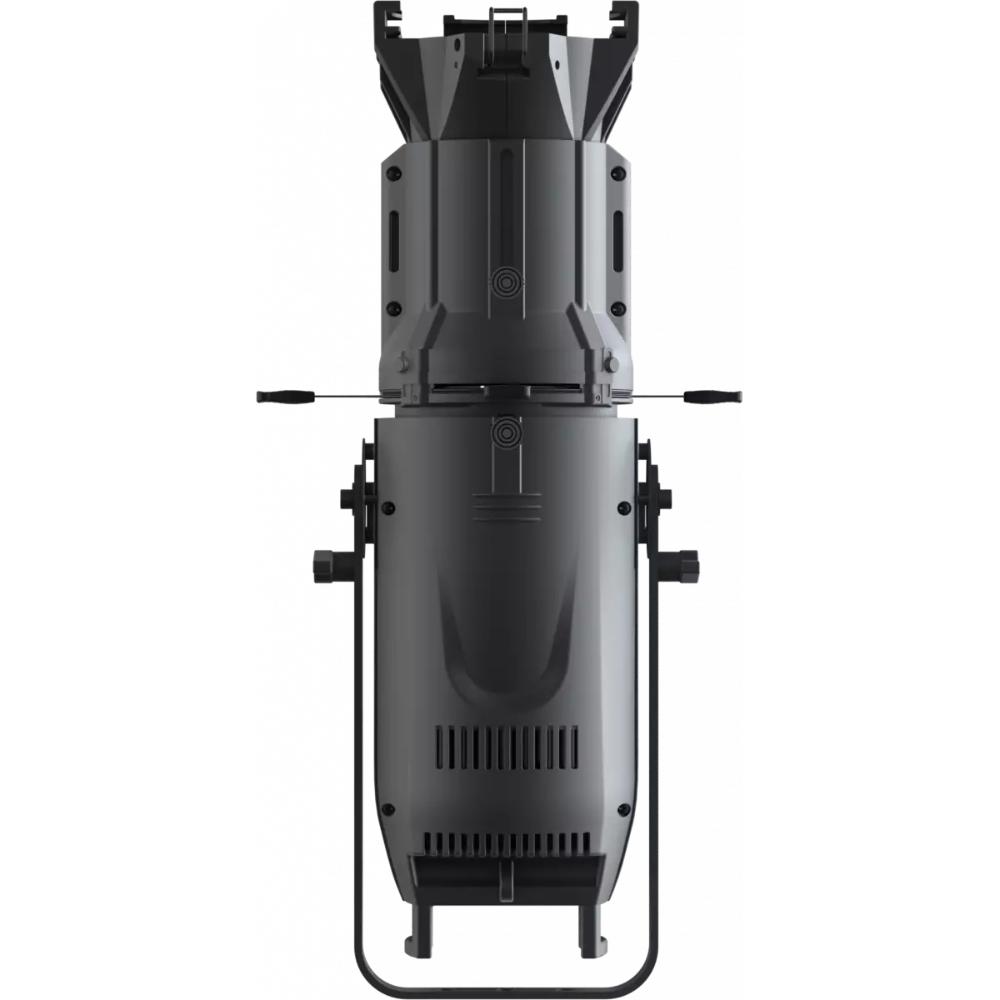

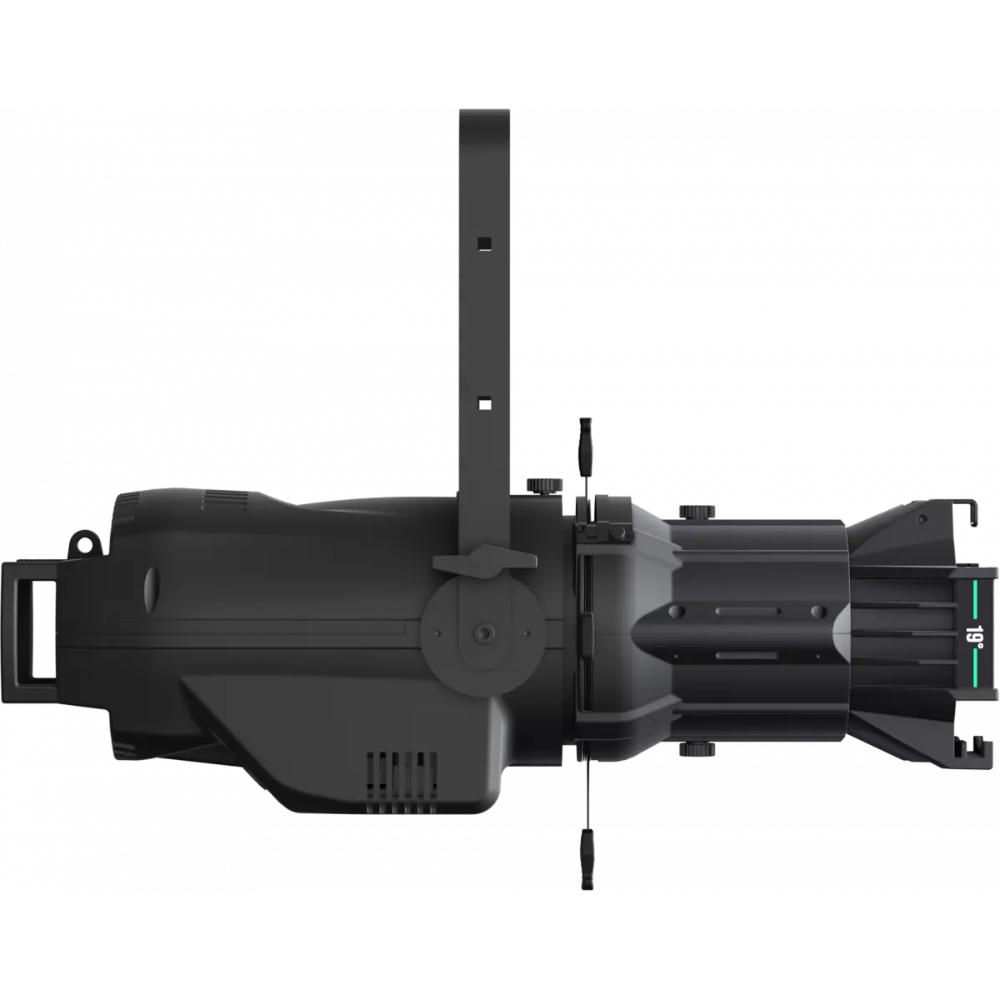

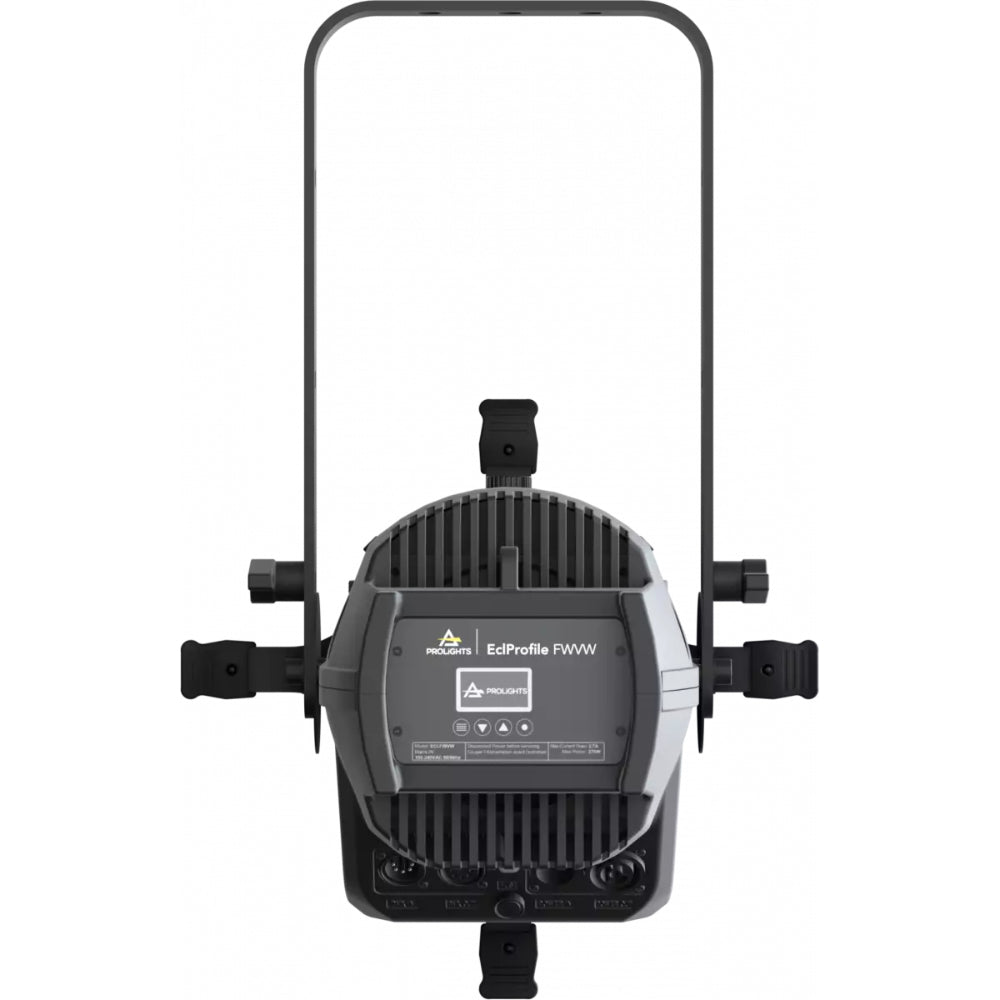

EclProfile FWVW is the Variable White version of the new generation of Ecl Profile LED ellipsoidals, offering linear CCT control  from 2700K to 5600K.

The EclProfile FWVW has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on whites, offering a superior evenness and crisp focus of the new EclProfile range. The LED source  has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.

Main Features:

  • Linear CCT control 2700K – 5600K.
  • High lumen output and superior quality of whites (high CRI, TLCI, TM30).
  • Silent operation and compatible with industry standard accessories.

Specifications

LIGHT SOURCE

  • Source: 91x3W high-power white LED
  • CCT: from 2,700K to 5,600K
  • Luminous flux: (26° only TU) 3’696 lm; (26° only DY) 4’406 lm; (26°) 7’951lm @full
  • Lux: (26° only TU) 1’289 lx; (26° only DY) 1’524 lx; (26°) 2’759lx @5 m full
  • CRI: (only TU) 97; (only DY) 97,4; (@full) 95,4
  • R9: (only TU) 91; (only DY) 96,2; (@full) 86,4
  • TLCI: (only TU) 98; (only DY) 98; (@full) 98
  • TM30 Rf: (only TU) >95,5; (only DY) >91,7; (@full) >93,2
  • TM30 Rg: (only TU) <102,4; (only DY) <100,8; (@full) <103,2
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C)

OPTICS

  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50°
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: manual
  • Other: see available accessories

COLOUR SYSTEM

  • Colour mixing: warm white + cold white

DYNAMIC EFFECTS

  • Shutter system: 3 layers blades system and fast rehabilitation of blade in case of out of frame blade
  • Gobo size: B, outer: 86 mm – image: 64,5 mm – thickness: 1,1 mm
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: HIGH mode, AUTO mode and SILENT mode fan management

BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: black

CONTROL

  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3 / 5 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included
  • Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 – 25 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 265W
  • Output (at 230V): 11 units on a single power line
  • Power factor: 0,97

PHYSICAL

  • IP rating: 20
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 265x259x540mm
  • Weight: 7.3kg

BOX CONTENT

  • 1 x ECLFWVW
  • 1 x 1,5 meters power cable
  • User Manual
