PTZOptics - HUD-PT12X-4K-GY-G3 - MOVE 4K 12X GREY PTZ Camera

$4,499.00 $4,620.18
Out of Stock, contact for ETA
This product is unavailable

12x, 20x and 30x zoom and Dante AV options are available. Please contact our Sales team for more information.

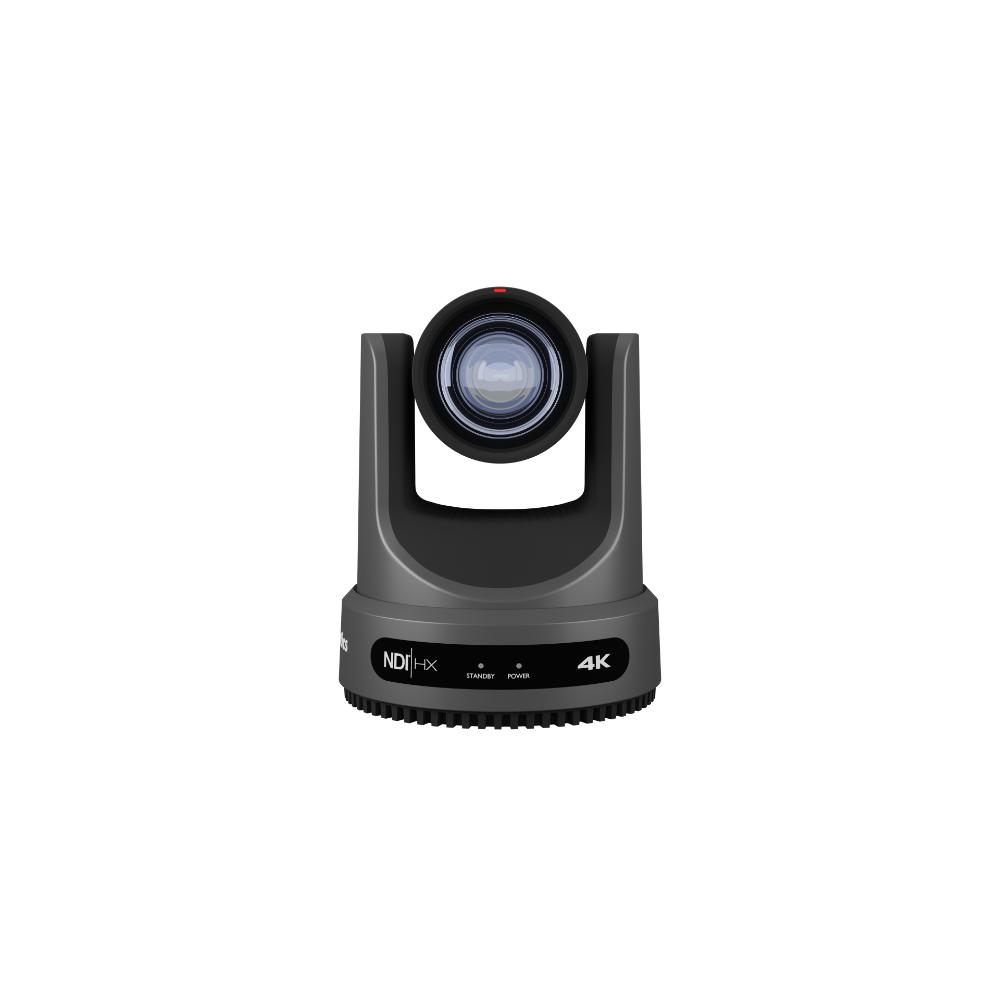

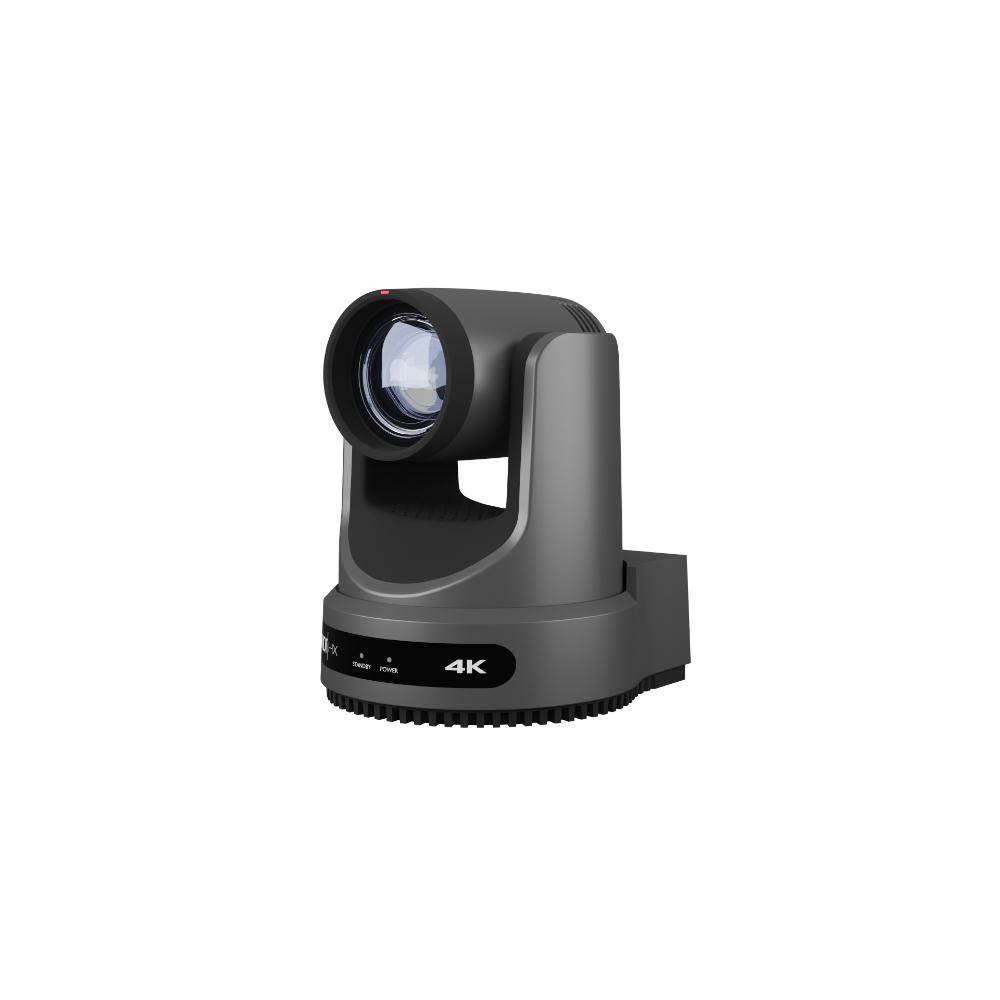

The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE capabilities, and a built-in tally light.

Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI®|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Mount your PTZ Move camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.

Control your production from behind the scenes – or right in front of them. In addition to the Move 4K’s auto-tracking features, users will also have access to our latest Web UI — updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Users can also take control of their PTZ cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.


Image Sensor & Lens Video Sensor 12x: 1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M
20x and 30x: 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M
Lens 12x: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
20x: f = 6.25mm ~ 125mm, F1.58 ~ F3.95
30x: f = 7.1mm ~ 210mm, F1.61 ~ F5.19
Estimated 35mm Equivalencies are here.
Lens (35mm Equivalencies) 12x: 25mm ~ 299mm, F1.8 ~ F2.6
20x: 31mm ~ 589mm, F1.58 ~ F3.95
30x: 32mm ~ 825mm, F1.61 ~ F5.19
Resolution and Frame Rate HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
Digital Zoom Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)
Field of View 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
30x: Horizontal: 2.5° (tele) ~ 59.2° (wide), Vertical: 1.4° (tele) ~ 34.6° (wide)
Min. Lux 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Pan/Tilt Movement Pan Speed 1.7° ~ 100°/s
Tilt Movement +90° to -30
Tilt Speed 1.7° ~ 69.9°
Presets 255 Presets
Video Tracking Supported
Image Flip, Mirror and Freeze Supported
Power Options Power Supply DC 12V / PoE+ (802.3at)
Input Power 18W (Max)
Physical Specifications Material Aluminum, Plastic
Color White
Dimensions (W x D x H) 12x and 20x: 5.57 x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm
30x: 6.69 x 7.12 x 8.98 in., 170 x 181 x 228 mm
Weight 12x and 20x: 3.25 lbs (1.47 kg)
30x: 4.41 lbs (2.0 kg)
Working Environment Indoor
Operating Temperature 14°F ~ 104°F (-10°C to 40°C)
Storage Temperature -40°F ~ 140°F (-40°C to 60°C)

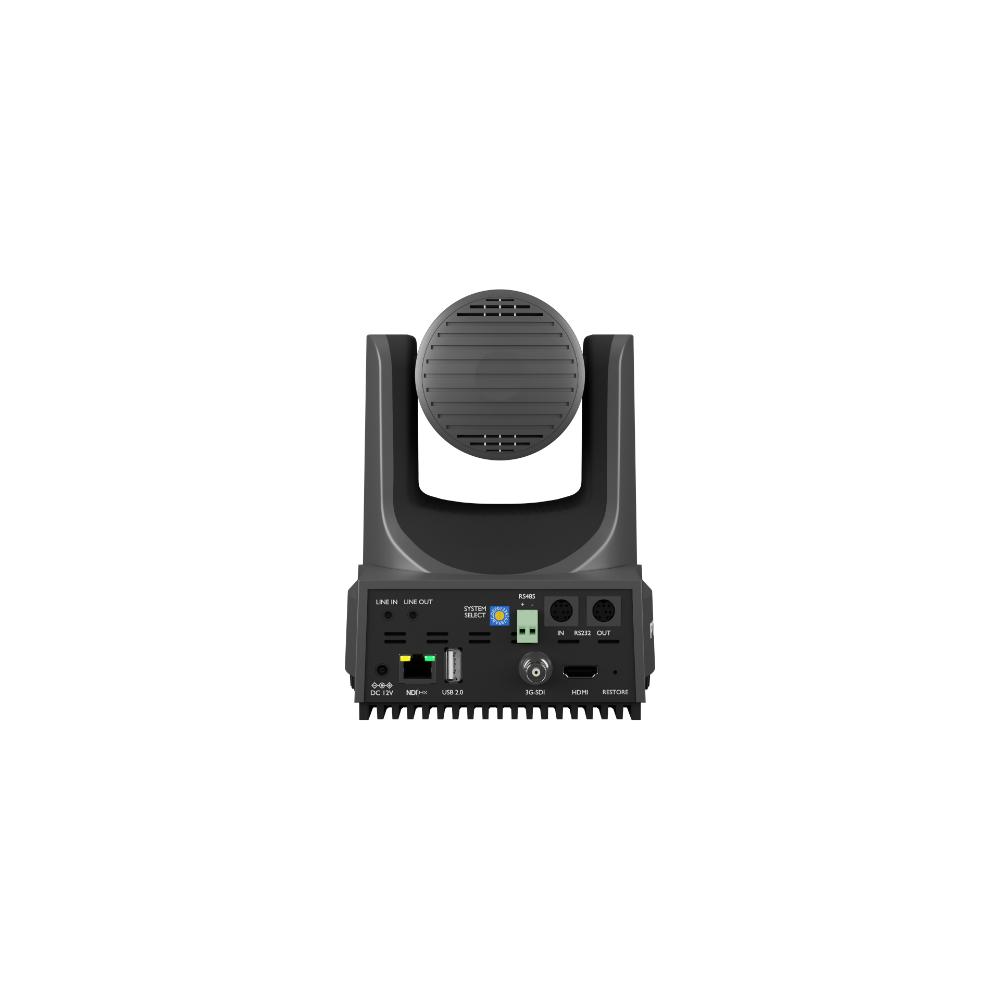

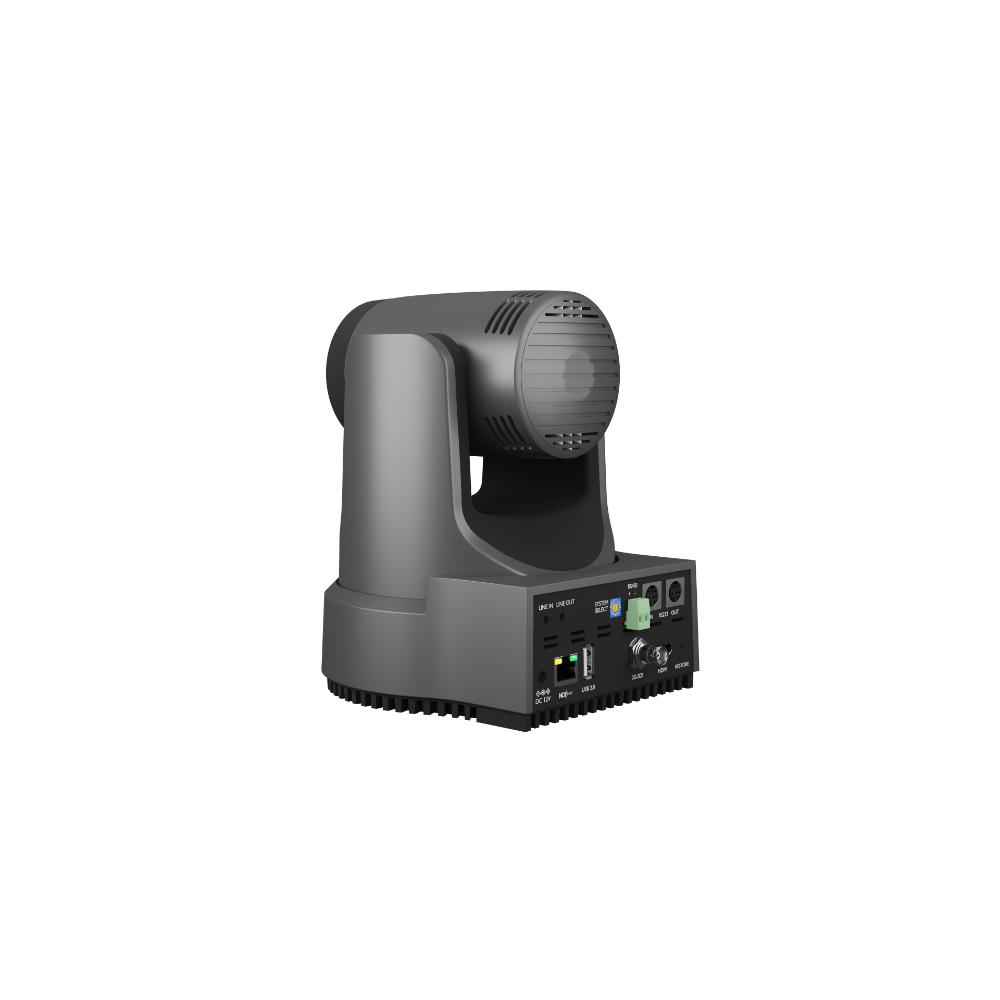

Rear Board Connectors HD Video Output 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
1x HDMI: version 2.0
1x USB 2.0: type A
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
Audio Interface 1x 3.5mm Line level Input
Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
Network Interface RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
Power Jack JEITA type (DC IN 12V)
