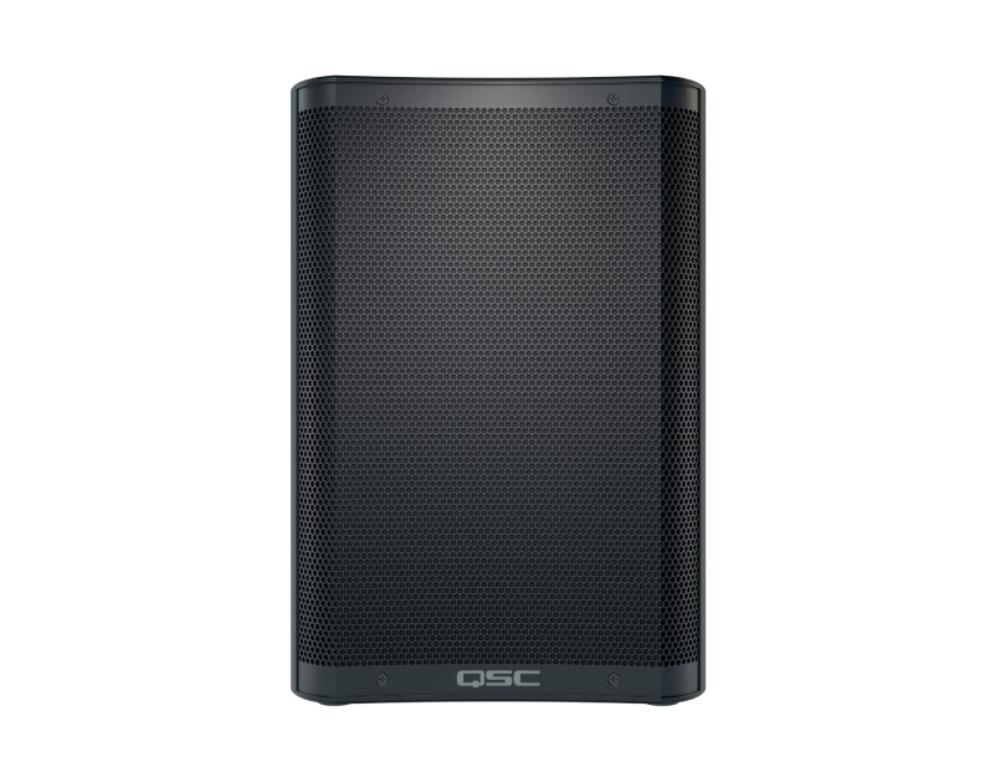

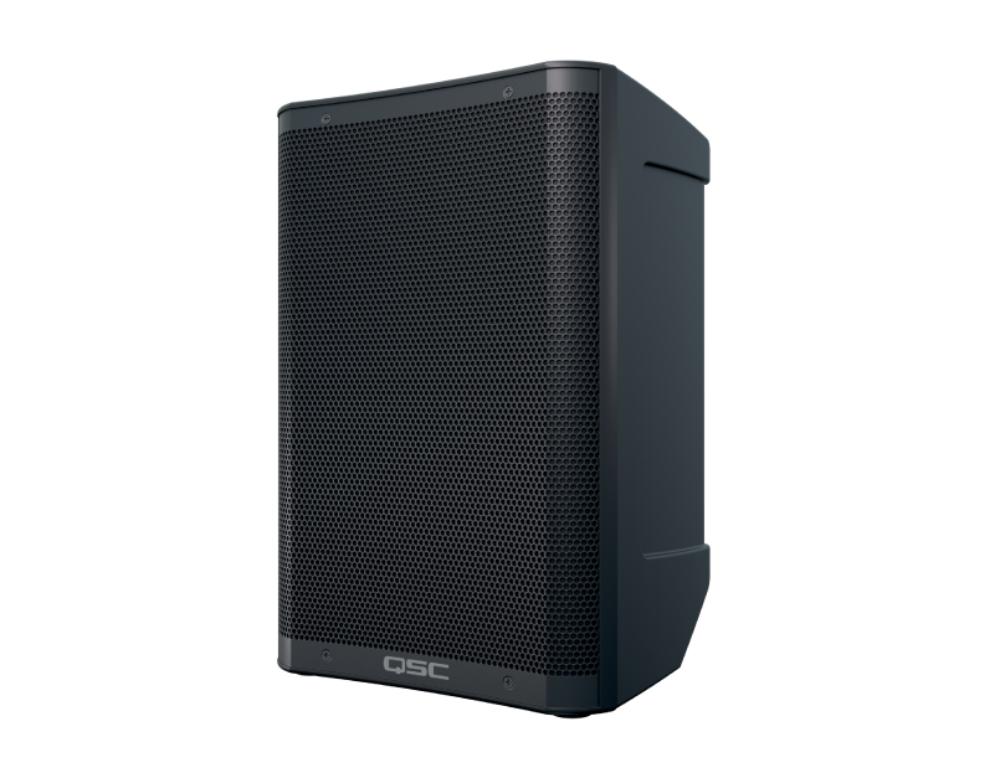

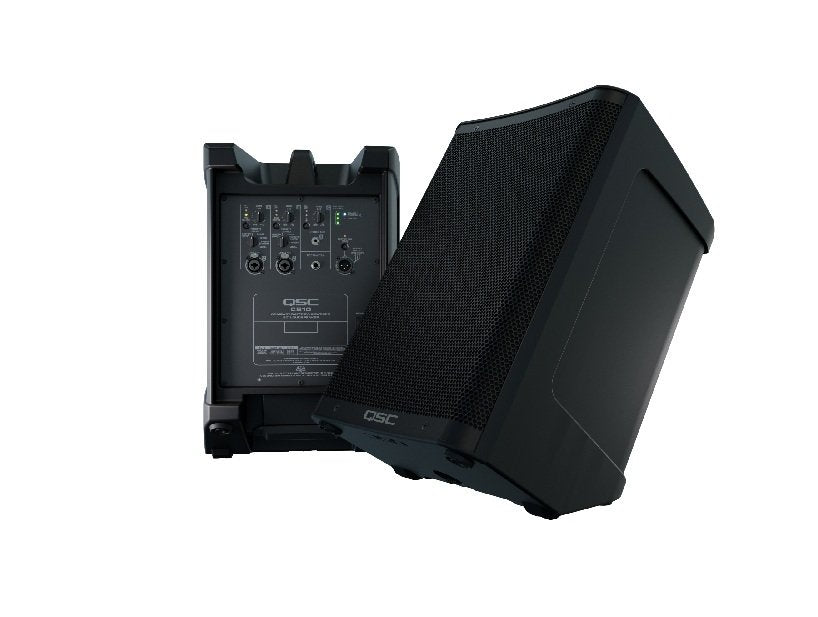

QSC CB10 Compact Battery-Powered Loudspeaker System
By QSC
The QSC CB10 is a compact, battery-powered loudspeaker system offering unrivaled audio performance and versatility. It features a 10-inch LF driver, 1-inch compression driver and 3-channel mixer for microphones, instruments and Bluetooth® streaming. Ideal for DJs, event professionals and musicians, it offers easy plug-and-play operation and customization via the QSC Loudspeaker Control app.
Key Features:
- 440 watts of peak power (Class D)
- 10-inch woofer
- 1-inch HF compression driver
- 127 dB @ 1 m (peak SPL)
- Two combo XLR inputs with independent Factory Presets
- QSC Loudspeaker Control App (iOS & Android) for convenient system remote control
Room Delay
- 200 ms (max) of room delay
Simple to Use
- Large carry handle on the enclosure top
- Lightweight and portable

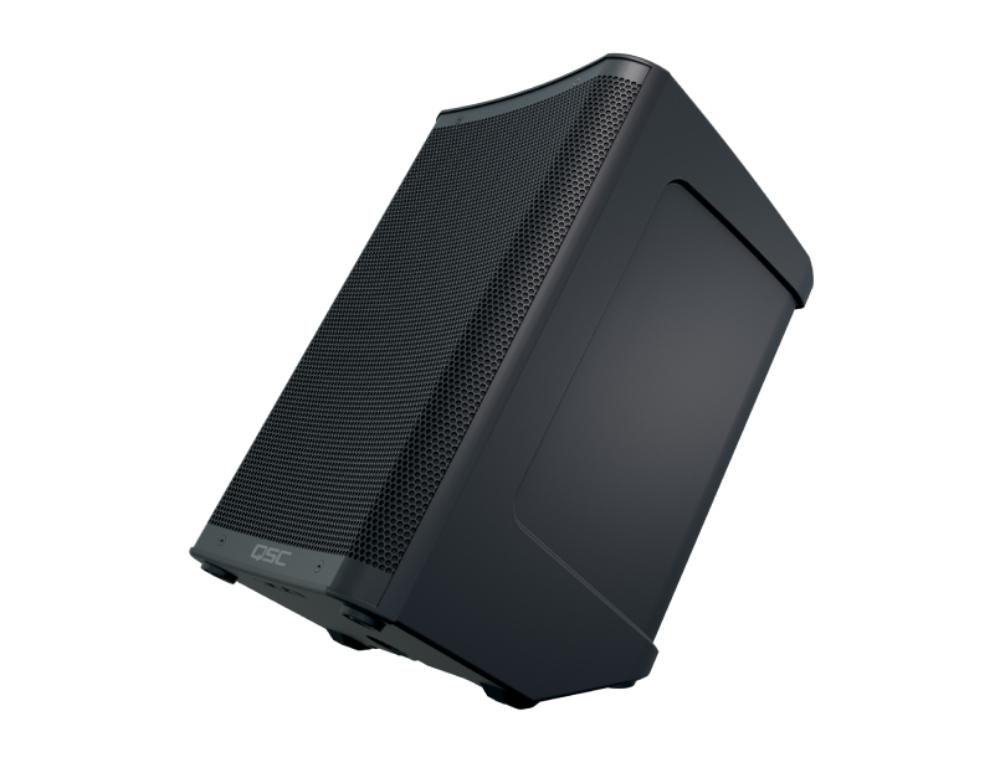

- 30 degrees tilt back (floor deployment)
- Integrated pole cup (stand deployment)
Bluetooth® 5.1 Audio
- For control and audio with True Wireless Stereo (TWS) Bluetooth
Battery and AC Power
- Up to 12 hours of battery power (rechargeable in approx. 4 hrs)
- User-installable/removable battery pack
- AC power for unlimited steady operation
Control your CB10 and all QSC Bluetooth-equipped loudspeakers right from your phone. The Loudspeaker Control app gives you instant access to essential audio controls and advanced capabilities.
SPECS:
| Model | CB10 |
| Configuration | Two-way Rechargeable Loudspeaker System |
| LF Transducer: | 254 mm (10-inch), cone |
| HF Transducer: | 25.4 mm (1-inch), compression driver |
| Frequency Response (-6 dB) | 51 Hz - 18 kHz |
| Frequency Range (-10 dB) | 47 Hz - 20 kHz |
| Nominal Coverage Angle: | 90° Axisymetric |
| Maximum Rated SPL1: | 127 dB @ 1 m |
| Amplification (peak): | Class D, 440 W |
| Cooling: | Convection cooling |

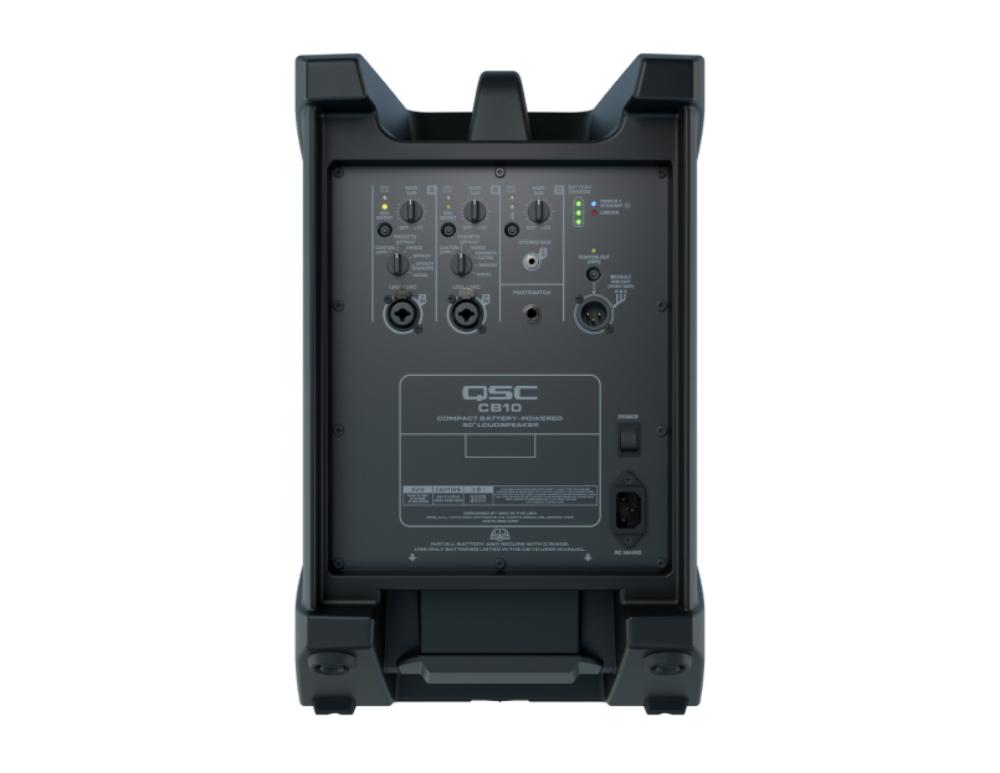

| Backpanel Controls: | 3 x Rotary level potentiometers (Gain) 2 x MIC Boost Push-Switch 2 x 6-way Contour Selection Rotary-Switch (featuring CUSTOM APP controls) 1 x Bluetooth Switch 1 x Output Select Switch 1 x AC Power Switch |
| Loudspeaker Control App Functions: | Input Channels: Gain Control, Presets (Channels A and B), EQ Reverb (Channels A and B ) Ducker (Channel A) Contour Selection Custom Output Routing Footswitch Functionality: Channel Mute, FX Mute, or Channel Boost Bluetooth Audio Configuration Loudspeaker Firmware Updates |
| Backpanel Indicators: | 3 × Input Signal/Clip LEDs 2 x MIC selected LEDs 3 x Battery Charge LEDs 1 x Limiter Active LED 1 x Bluetooth LED 1 x Output Select LED 1 x Power/Standby LED |
| Connectors: | 2 × locking XLR/F ¼ inch combo (Line Input and Mic/Line Input) 1 × 3.5 mm TRS (Stereo Input) 1 x 6.3 mm TS (Footswitch) 1 × XLR/M (Mix Output) 1 × locking IEC Power Connector |
| DC Power (Battery): | Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module (1x unit included with CB10) Battery life: up to 12 hours / Battery charging time: approx. 4 hours |
| AC Power Input: | Universal Power Supply: 100-240 VAC, 50/60 Hz |
| AC Power Consumption2: | 100 VAC, 1A / 120 VAC, 0.9 / 240 VAC, 0.5A |
| Enclosure Material: | Polypropylene |
| Color: | Black (RAL 9011) |
| Grille: | Powder-coated steel with internal lining (18 Gauge) |
| Loudspeaker Dimensions (H×W×D): | 465 x 313 x 287 mm / 18.3 x 12.3 x 11.3 in |
| Carton Dimensions (H×W×D): | 559 x 406 x 381 mm / 22 x 16 x 15 in |
| Net Weight: | 12.2 kg / 26.9 lb |
| Shipping Weight: | 14.5 kg / 32 lb |
| Battery Chemistry: | Lithium Nickel Manganese Cobalt Oxide |
| Regulatory: | CE, WEEE, TUV, China RoHS, RoHS II, FCC Class A |
