New Product

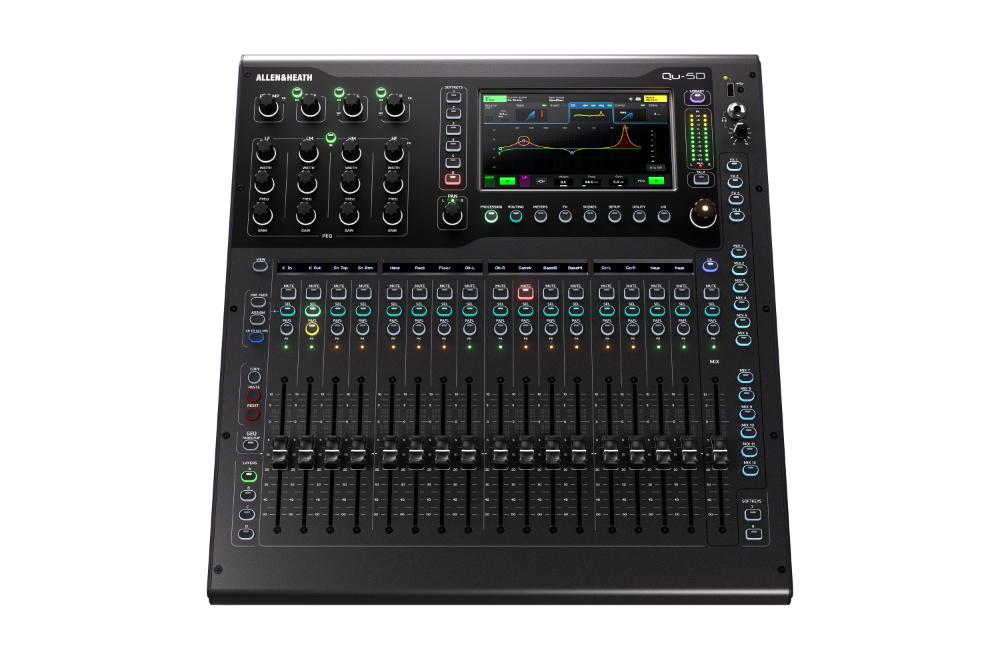

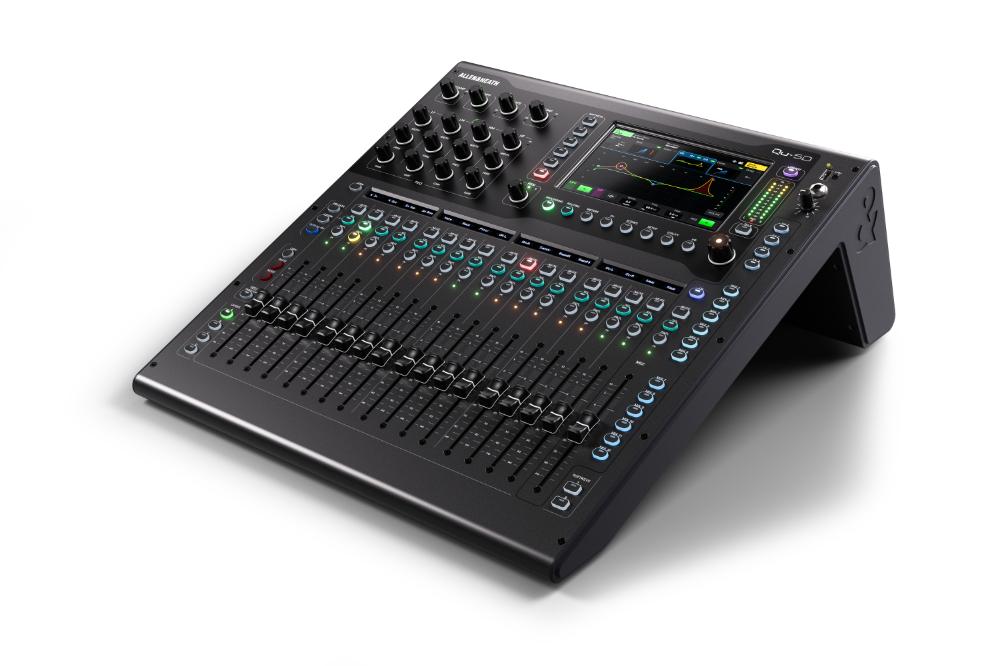

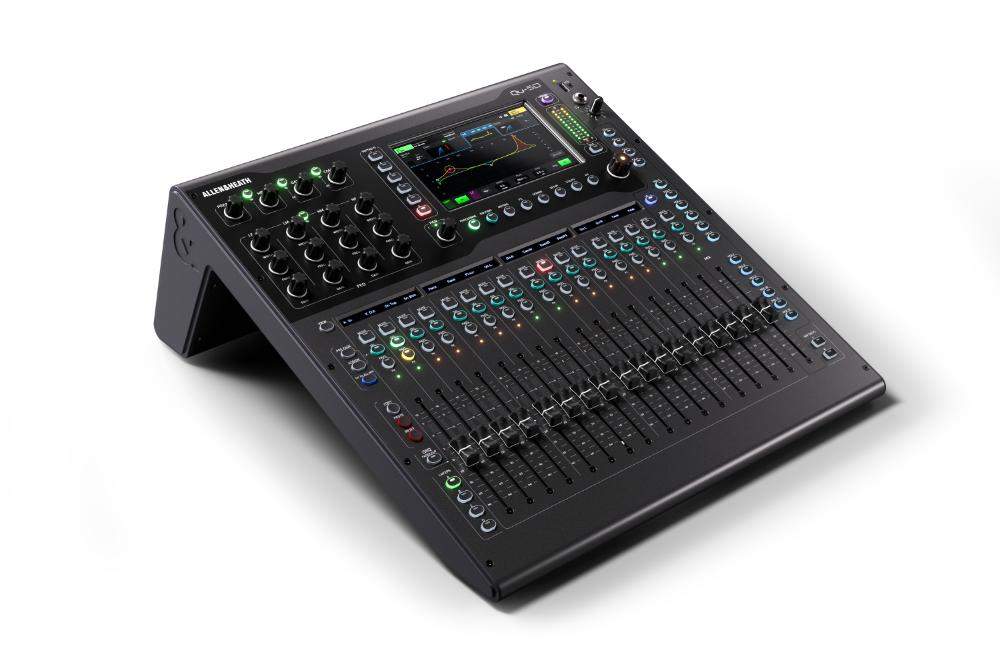

Allen & Heath QU-5D Qu 32ch 96kHz Mixer, 17 Faders, 16/12 Local I/O, 6FX, 16x16 Dante, Rackmountable

SKU: QU-5D
$4,599.00 $4,999.00
In stock: 4
By Allen & Heath
NOTIFY ME WHEN BACK IN STOCK
Minus Plus
Description

Allen & Heath’s legendary digital mixer is reborn. Introducing the QU-5D, which comes supercharged with a 96kHz XCVI core for DEEP Processing capabilities, increased channel count with fully flexible patching across 4 customisable layers, a completely redesigned user interface, significant hardware upgrades, plus extended connectivity and optional Dante.

The Allen & Heath QU-5D takes the QU16 form factor and add's Allen & Heath's powerful XCVI processing; new FX engines and Everything I/O connectivity. There's a capacitive touchscreen, channel strip displays and fully customoized layers. Mix 32 channels of audio at 96kHz. The QU-5D also comes ready with a 16x16 48/96kHz Dante Interface.

What's new?

Audio
Updated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.

Control
Every channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.

Dante Enabled
The Qu-5D provides a 16×16 Dante interface at 96kHz or 48kHz for integration into larger systems or installs.



DEEP Processing
Qu is now DEEP Processing ready, bringing acclaimed add-ons from our flagship dLive system to the Qu platform for the first time. In addition, Qu now features the Feedback and Gain Assistants from the CQ series to take the stress out of setup and speed up your soundchecks.

Features:

  • 96kHz FPGA Core
  • 36x Inputs to Mix (32x Mono/Linkable, 2x Stereo)
  • Stereo Main LR Output
  • 12x Mixes (6x Mono/Linkable Aux, 6x Stereo Aux/Group)
  • 4x Matrix (Mono/Linkable)

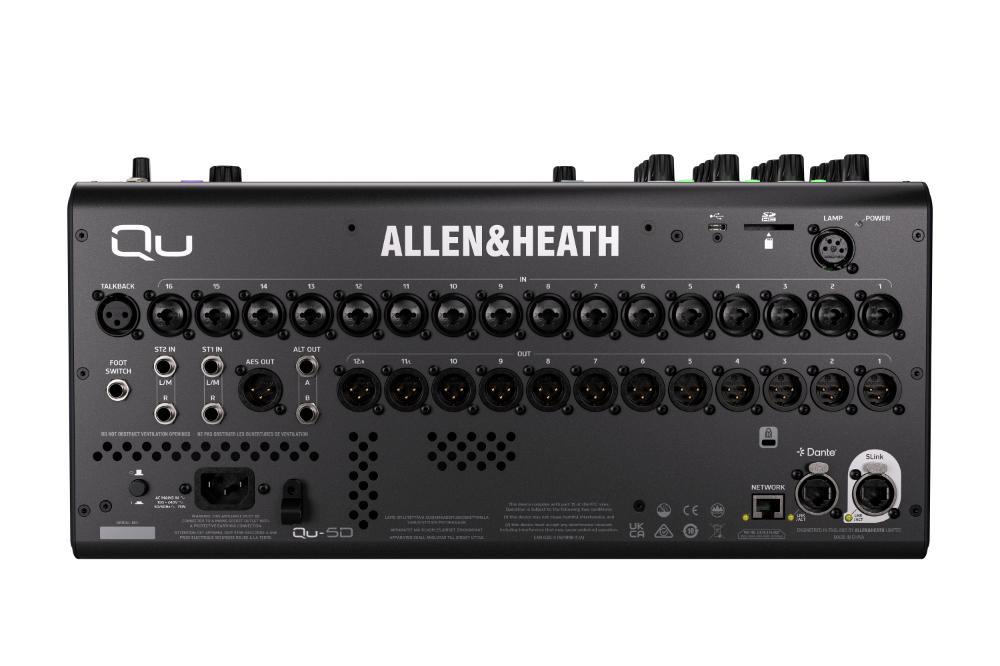

  • 16x XLR/Jack ‘Combi’ Mic/Line Input Sockets
  • 2x Stereo Line Input Sockets (each 2x TRS)
  • 1x Talkback Socket
  • 12x XLR Output Sockets
  • 2x TRS Output Sockets
  • 1x AES3 Stereo Digital Output Socket
  • 128x128 Intelligent SLink Port for Everything I/O expansion and system connections
  • 16x16 48/96 kHz Dante interface (Qu-5D only)
  • Stereo Headphone Output
  • 6x Multi-FX Engines with dedicated Return Channels
  • 7” Capacitive Touchscreen
  • 17x 100mm Motorised Faders
  • 4x Channel Strip Layers
  • 8x SoftKeys
  • USB-A For stereo audio record/playback and data transfer
  • USB-C Audio interface for multichannel record/playback (32x32)
  • SD Card Slot for multichannel audio record/playback (16x16@96kHz, 32x32@48kHz)
  • 12V Lamp Socket
  • Configurable single/dual Footswitch Connection
  • Configurable Chromatic Channel Meter LED’s
  • IEC Mains Connection with Worldwide PSU
  • RJ45 Network Socket
  • Remote control via free apps – Windows/MacOS/iOS/Android
  • DEEP Processing
  • Feedback Assistant
  • Automatic Mix Mixer (AMM)
