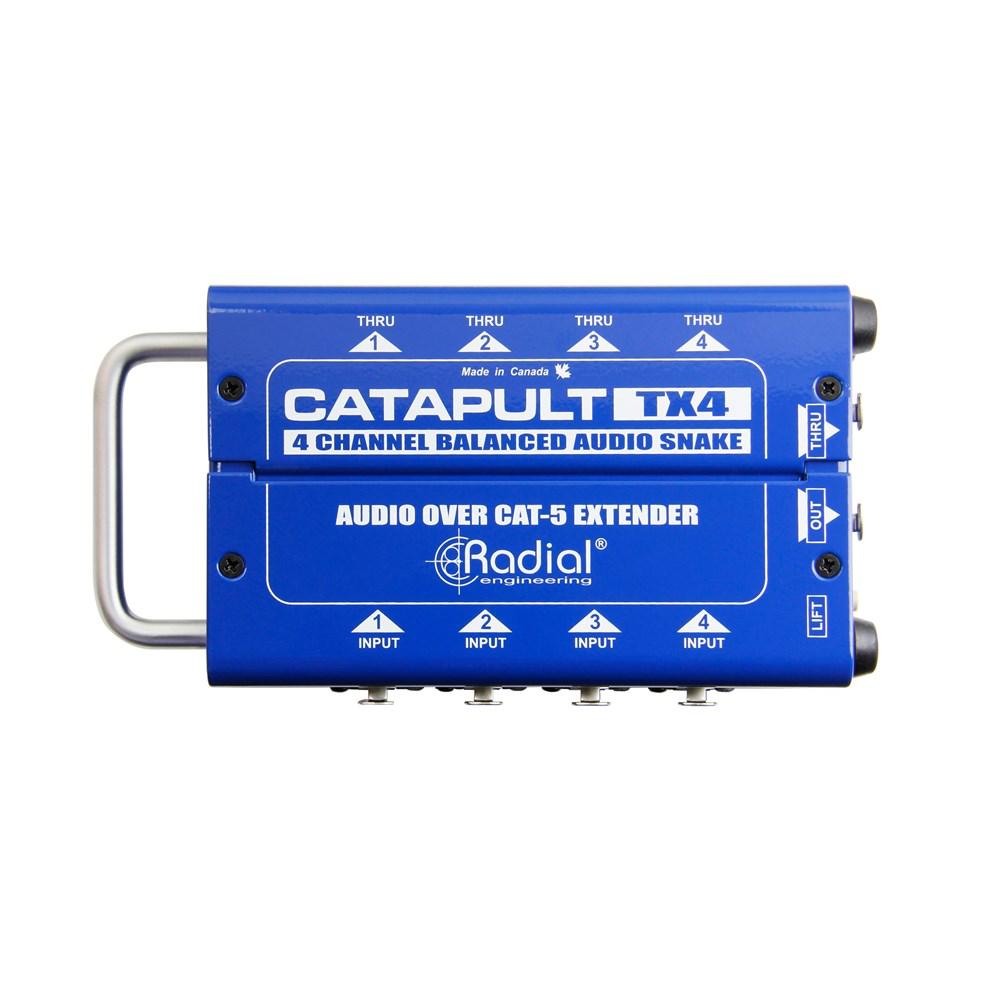

Radial CATAPULT-TX4 4 Channel Transmitter With Balanced I/O Uses Shielded Cat-5
- 4ch of XLR Inputs
- Send analog audio or digital AES signals over Cat 5/6 cable
- Choice of direct-wired split
- Transmits four AES signals (eight audio channels) or 4 Analogue signals
The Radial Catapult is a 4-channel audio snake system that lets you send analog or AES digital audio signals over standard Cat 5 or Cat 6 shielded twisted pair cable. This allows stage techs to take advantage of the relatively low cost of this abundantly available cable for return snakes or for transporting balanced audio across a large stage. For the system contractor, the Catapult lets you take advantage of pre-wired networks to connect audio from one room to another.
The TX4 features four XLR inputs, four XLR thru-puts along with two Neutrik Ethercon™ outputs to connect the Cat 5 cable to the desired output module. These are equipped with RJ45 type Ethercon input and thru-put plus two sets of XLR outputs. A ground lift switch is provided at each end for the Ethernet cable connection to help eliminate hum and buzz caused by ground loops.
As with all Radial products, the Catapult is constructed with solid 14-gauge steel to handle the rigors of live touring and is finished in a powder-coat finish to keep your Catapult looking good for years! Inside, a two-sided PCB is used to mount the connectors and transformers doubling up the solder joints for maximum durability.
