RCF EVOXJ9 Active three-way portable array 2100W 12" LF, 6x3" MF + 1.75" HF

SKU: EVOXJ9
$3,995.00
Out of Stock, contact for ETA
By RCF
NOTIFY ME WHEN BACK IN STOCK
Description

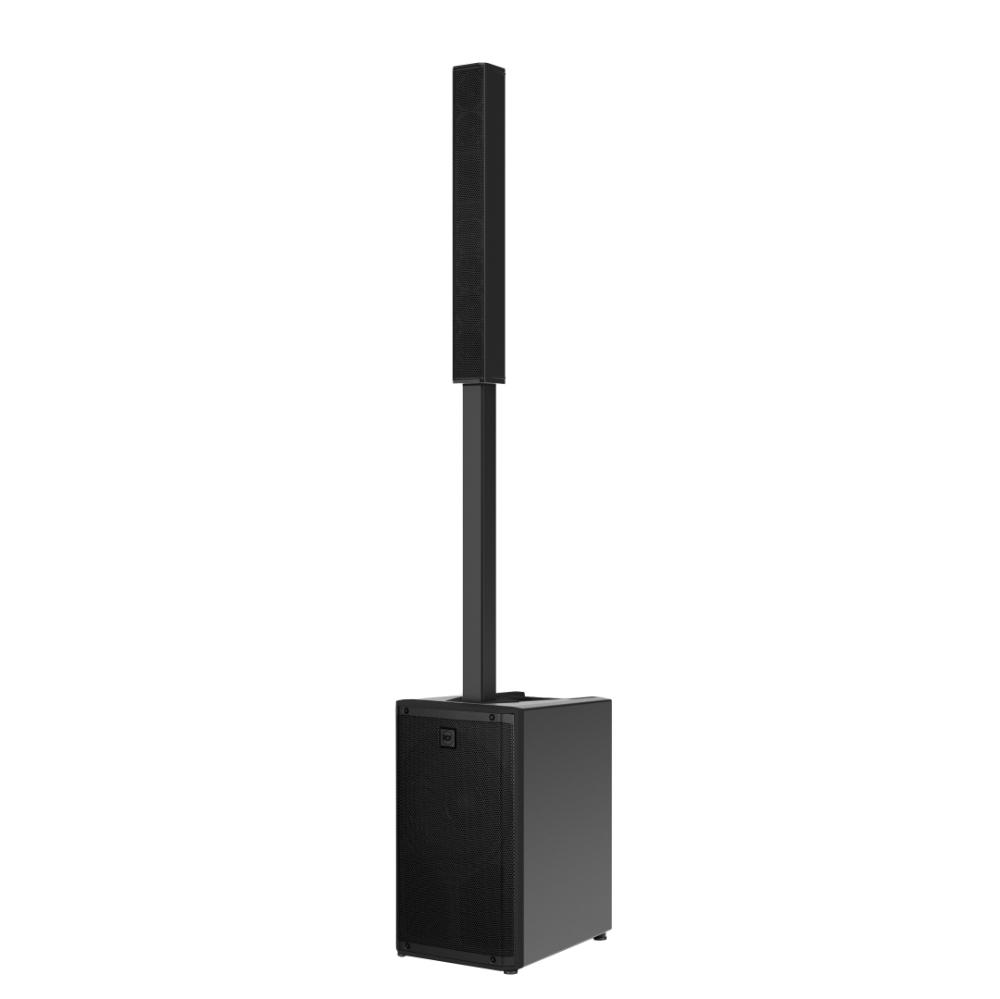

The RCF EVOXJ9 brings an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

Features:

  • 130 dB Max SPL
  • 2100 W Class-D Amplifier - Built-In DSP
  • 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
  • 6 × 3” Full-Range Neo Transducers
  • 12” High-Power Woofer
  • Enhanced Coverage And Clarity

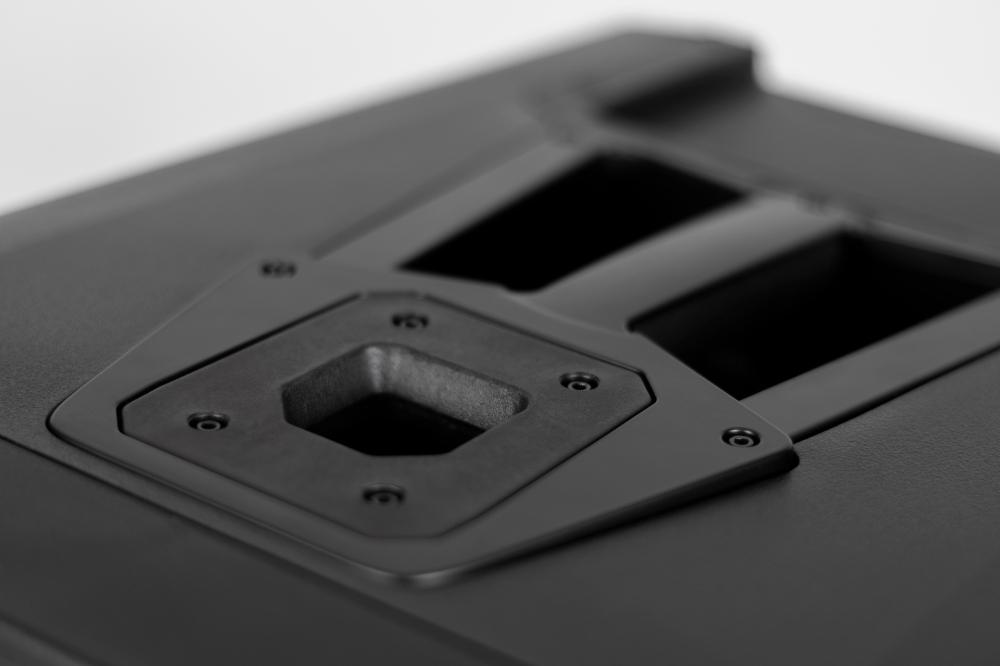

  • Composite Cabinet With Aluminum Stand Mount
  • Sleek, Road-Ready Design
  • Top Speaker Padded Carrying Bag Included
Powered by a 2100W onboard Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.

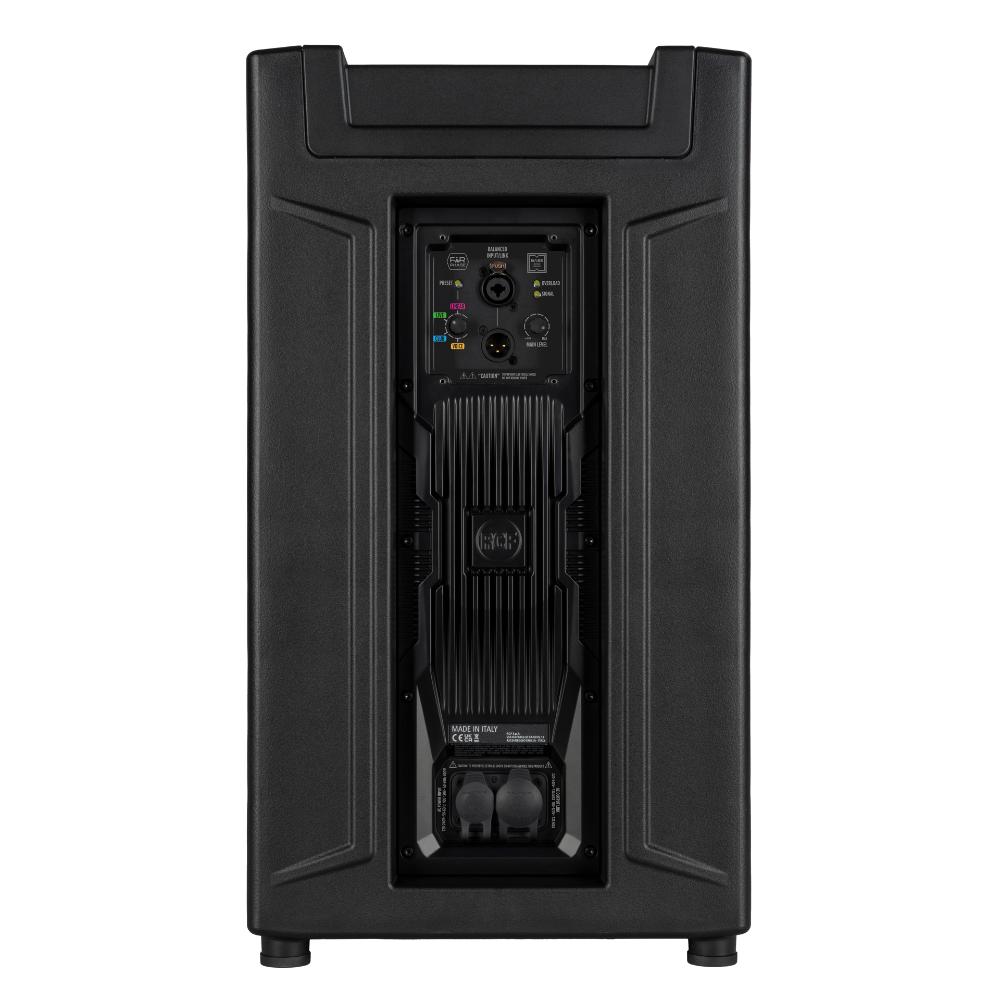

Highly energy-efficient, the J9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.

The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. EVOX J9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.
Neodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage.

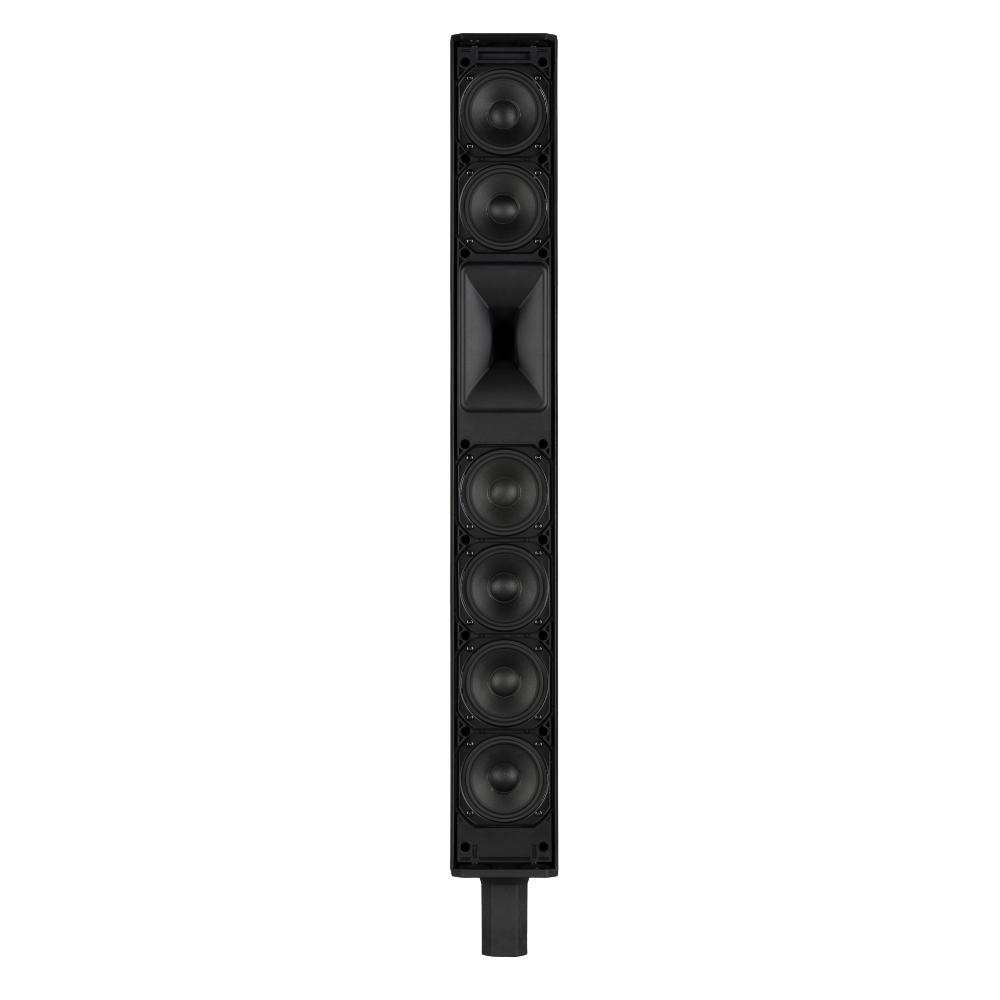

The forward radiation of the array of 6x3” neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.

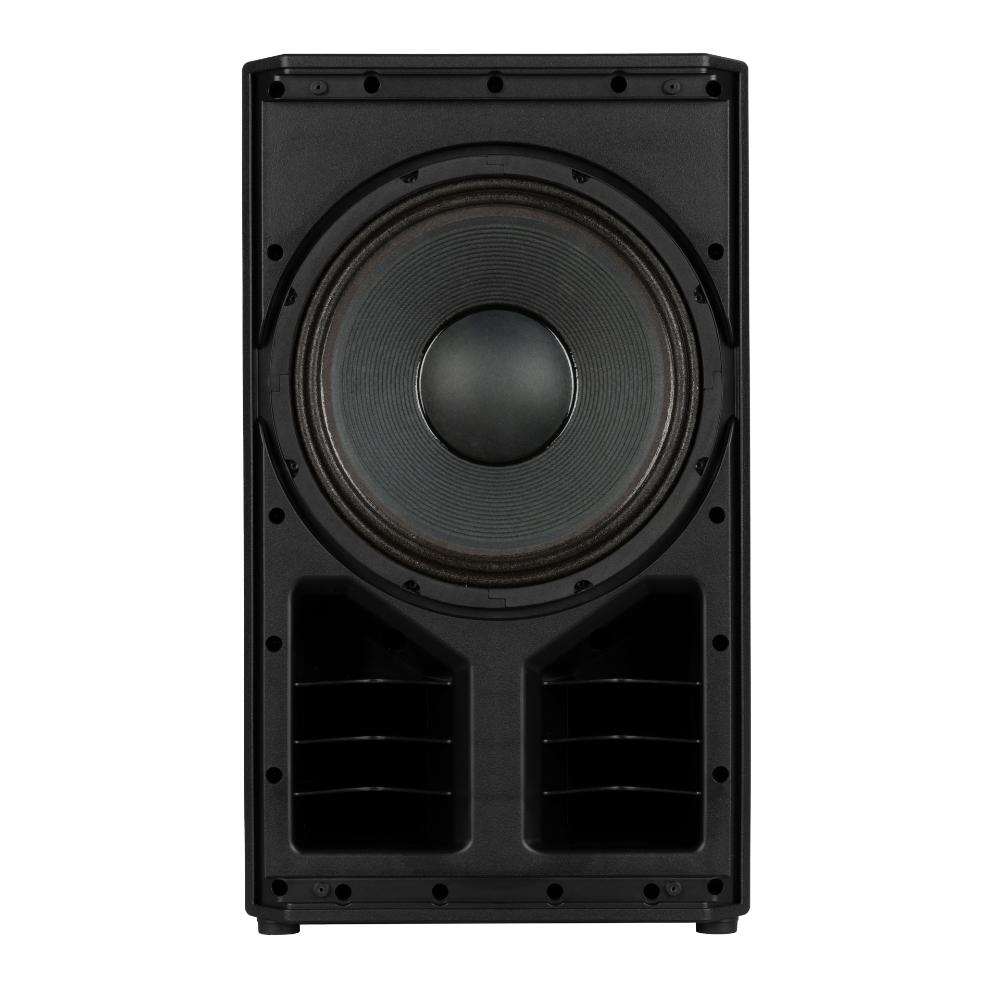

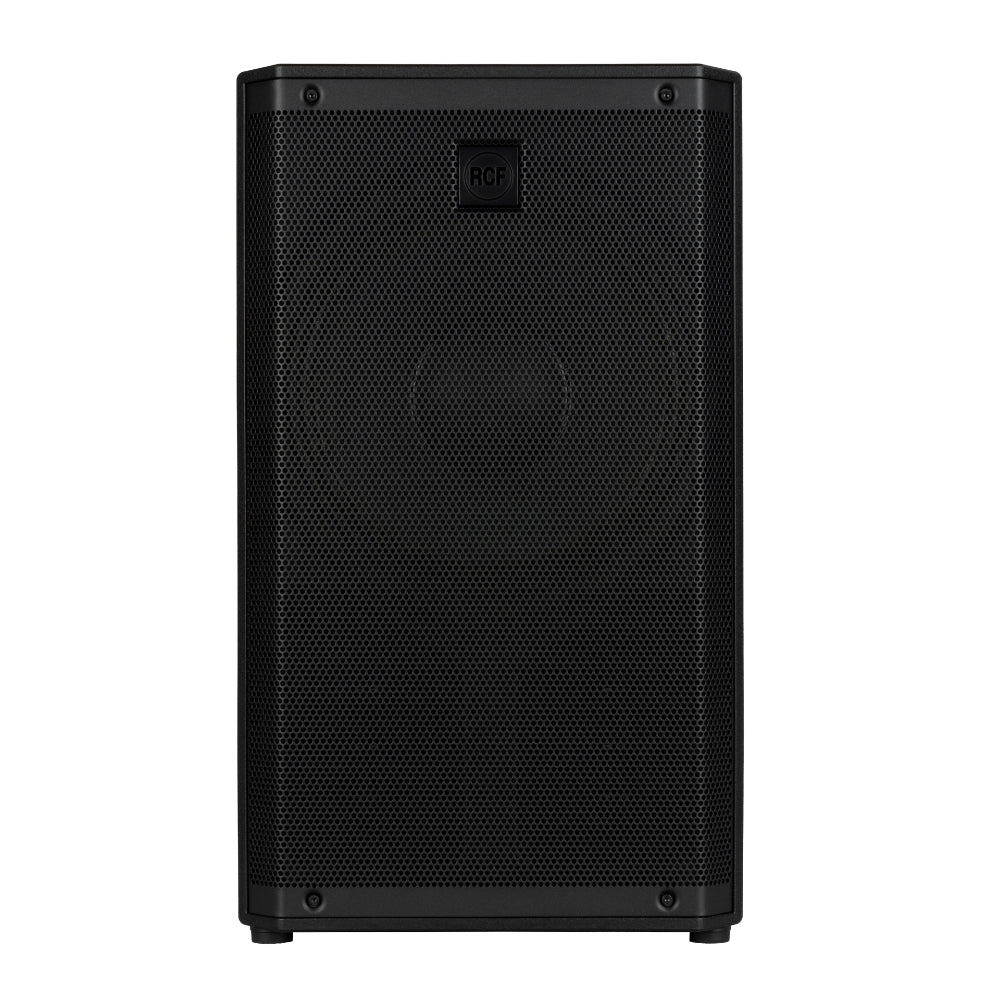

12” RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.

SUB AX ACE Presets for EVOX J:
When extended, impactful low-end is required, simply add an RCF subwoofer. ACE-enabled models, starting from the SUB AX Series, include dedicated integration presets for EVOX systems, ensuring perfect tuning at the touch of a button. RCF’s Advanced Crossover Engine (ACE) precisely adjusts time delay and phase to optimize power and impact of the system.
Acoustical specifications
Frequency Response - 40 Hz - 20000 Hz
Max SPL @ 1m - 130 dB
Horizontal coverage angle - 120°
Vertical coverage angle - 40°
Transducers
Compression Driver - 1 x 0.75'' neo, 1.75'' v.c
Fullrange - 6 x 3.0'' neo, 1.0'' v.c
Woofer - 1 x 12'', 2.5'' v.c
Input/Output section
Input signal - bal/unbal
Input connectors - Combo XLR/Jack
Output connectors - XLR
Input sensitivity - -2 dBu/+4 dBu
Processor section
Crossover Frequencies - 200 Hz/1800 Hz
Protections - Thermal, RMS
Limiter - Soft Limiter
Controls - Volume, Presets: LINEAR/LIVE, CLUB, VOICE
Power section
Total Power  2100 W Peak
High frequencies - 700 W Peak
Low frequencies - 1400 W Peak
Cooling - Convection
Connections - VDE
Size / Weight
Height - 2080.1 mm
Width - 350 mm
Depth - 462.6 mm Weight  28.3 kg
Shipping Weight - 32 kg
