RCF HDL26A 2x6.5" 1400W Active 2 Way Line Arrary Module

The RCF HDL26-A is an ultra-compact bi-amped two-way active touring system for small and medium-sized events, both indoors and outdoors. Due to the advanced transducer design and the 2000W Class-D amplifier, among the best in its class, it is capable of an extended bottom-end and a pristine sound for a wide range of applications, alone or in RDNet managed line-array configurations. The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system.

Features:

• 133 dB Max SPL
• 2000W Two-Way Amplifier
• Exclusive FiRPHASE technology on-board
• 750 Hz Crossover for best vocal reproduction

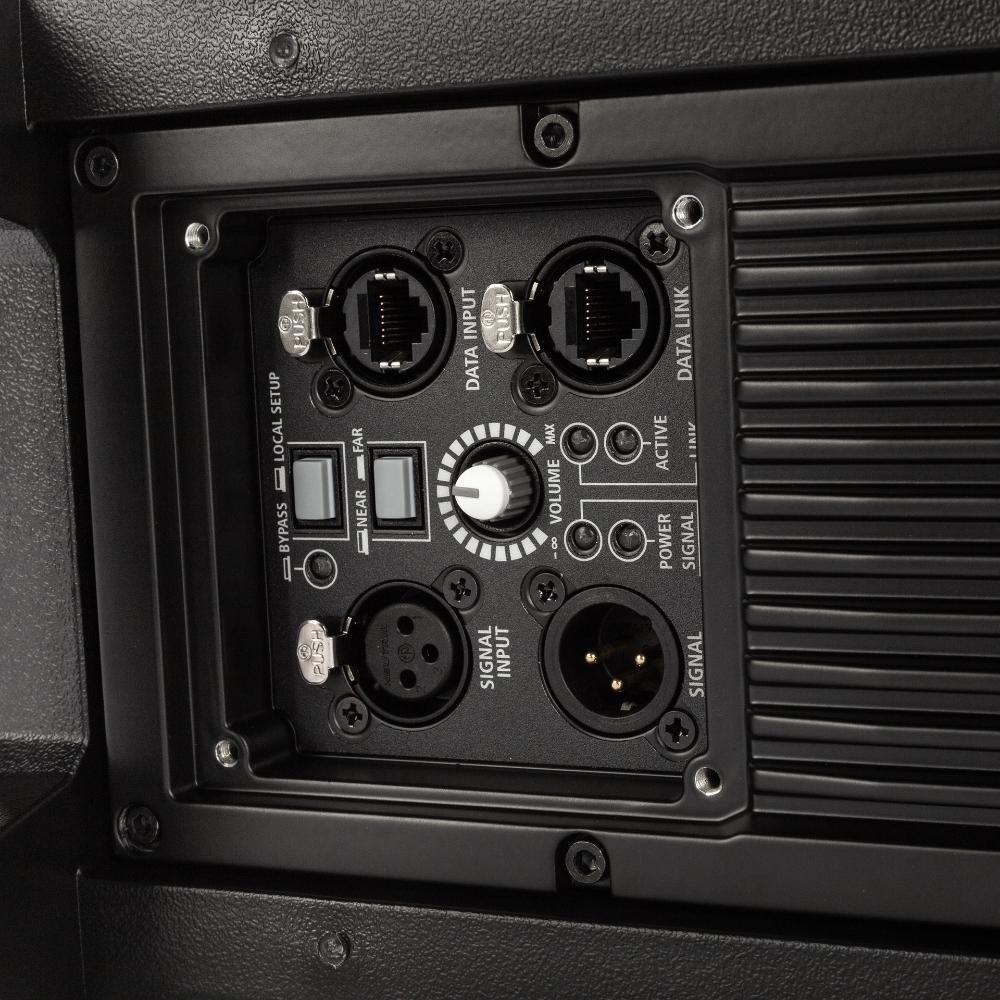

• RDNet Networked Management
• 3” Titanium Compression Driver
• 2 x 6” High-Powered Neodymium Woofers
• 4 PATH waveguide

When in need of a particular appearance, matching the colour of interiors, or searching for a stylish, minimalistic sound system for your next DJ set, we can provide you with a full set of white speakers — a tough coating for wooden speakers or a robust white polypropylene composite material for portable systems, pole included, in perfect fashion. Purity and elegance, all available to be included in corporate gigs, weddings, and houses of worship.

The symmetrical design of the cabinet produces identical left and right coverage of 100°x10°. Component positioning and the special DSP crossover of the HDL 26-A ensures constant directivity, reducing spots of break up or attenuation.

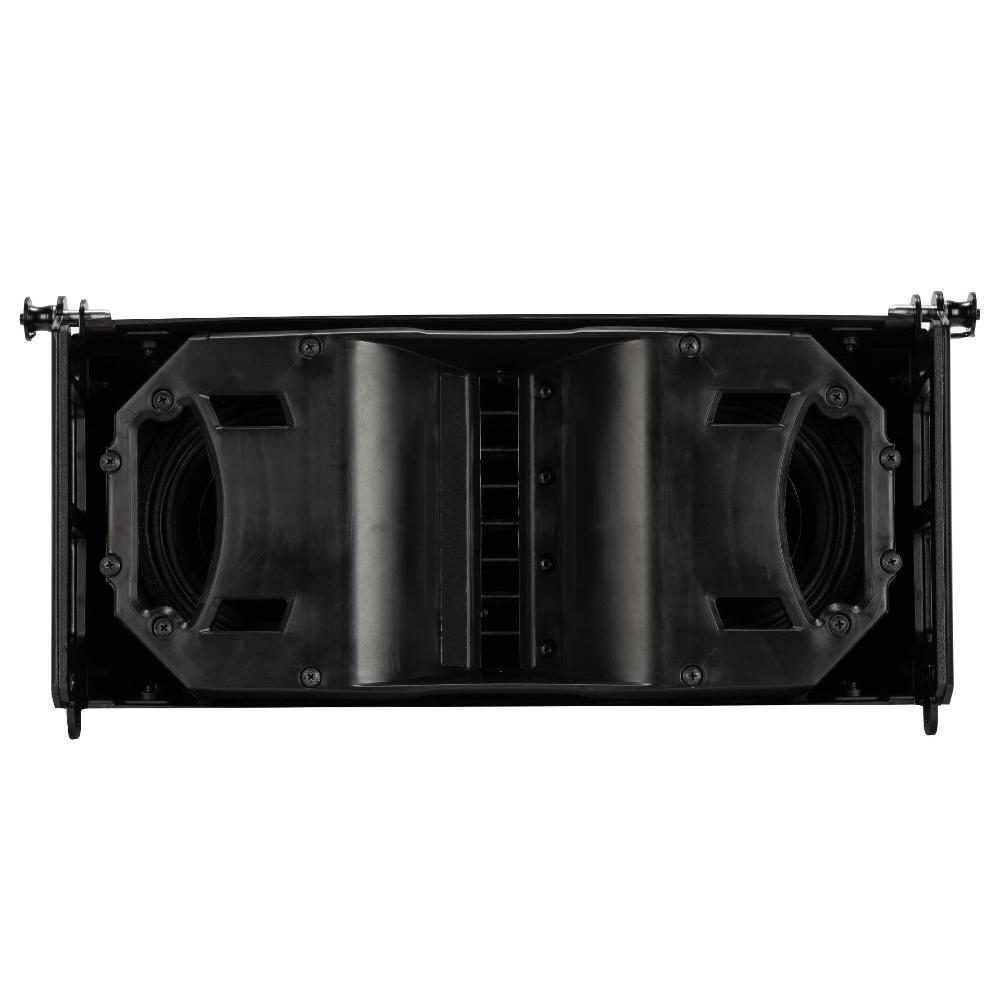

The front baffle provides:

• Coplanar woofers
• Controlled LF dispersion with hybrid-bandpass design
• Central space to host the HF waveguide

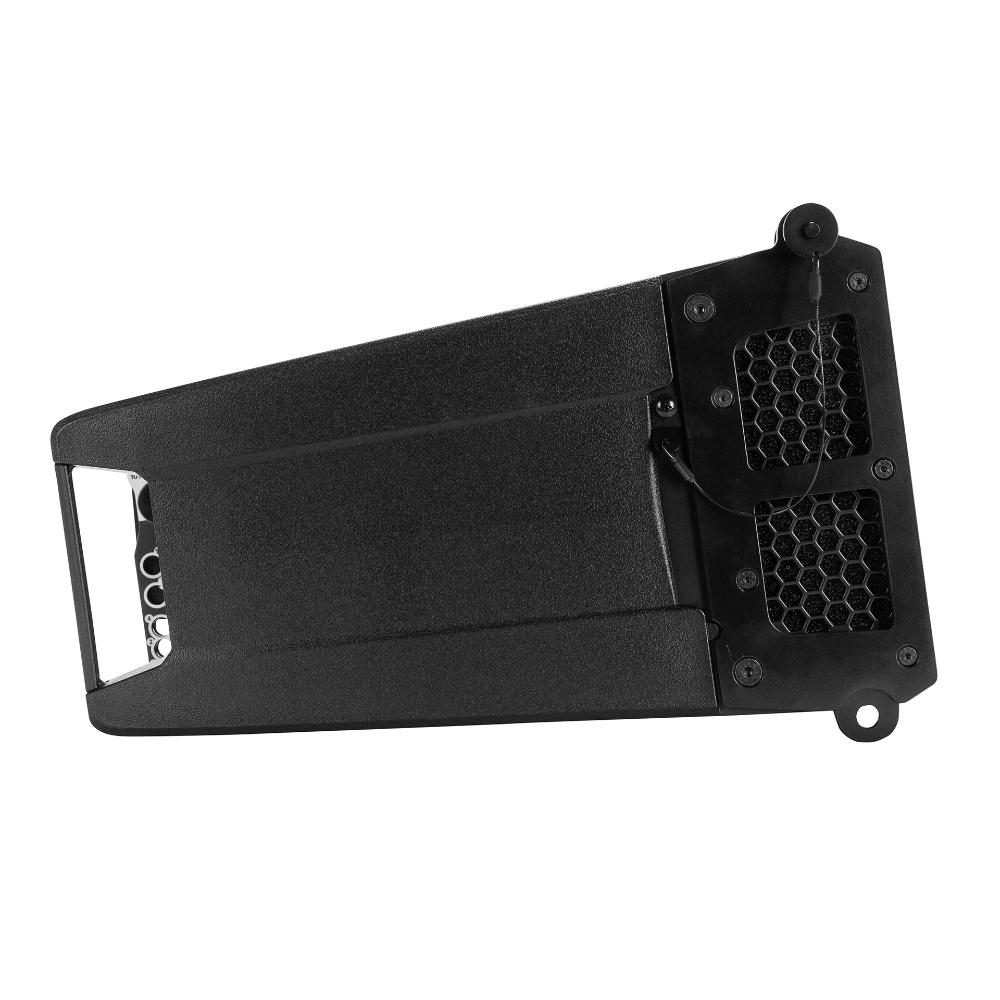

The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays starting at 1° angle.

The hardware is designed for easy and fast setup. Up to 16 HDL 26-A modules can be fastened on a single flybar.

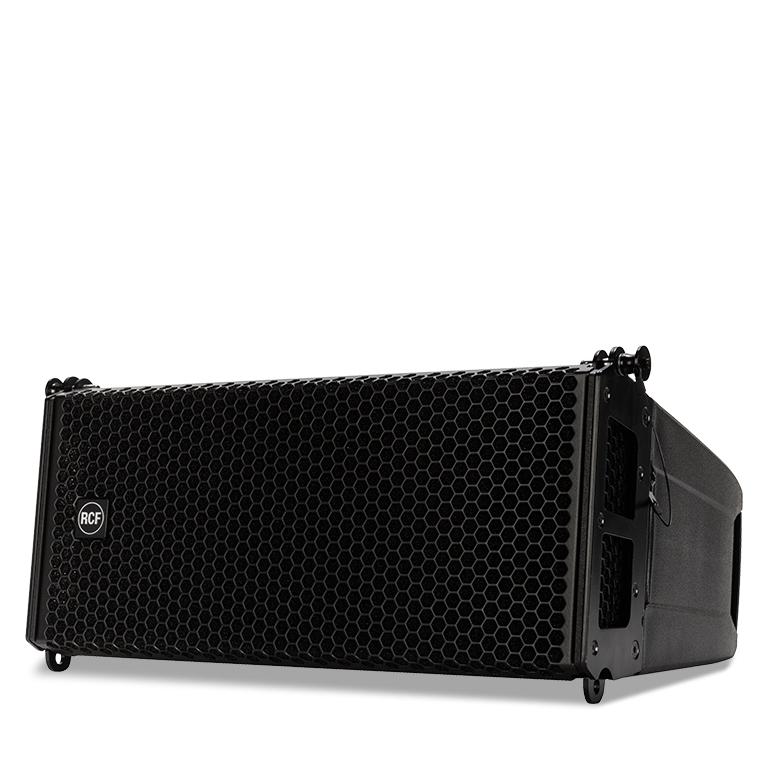

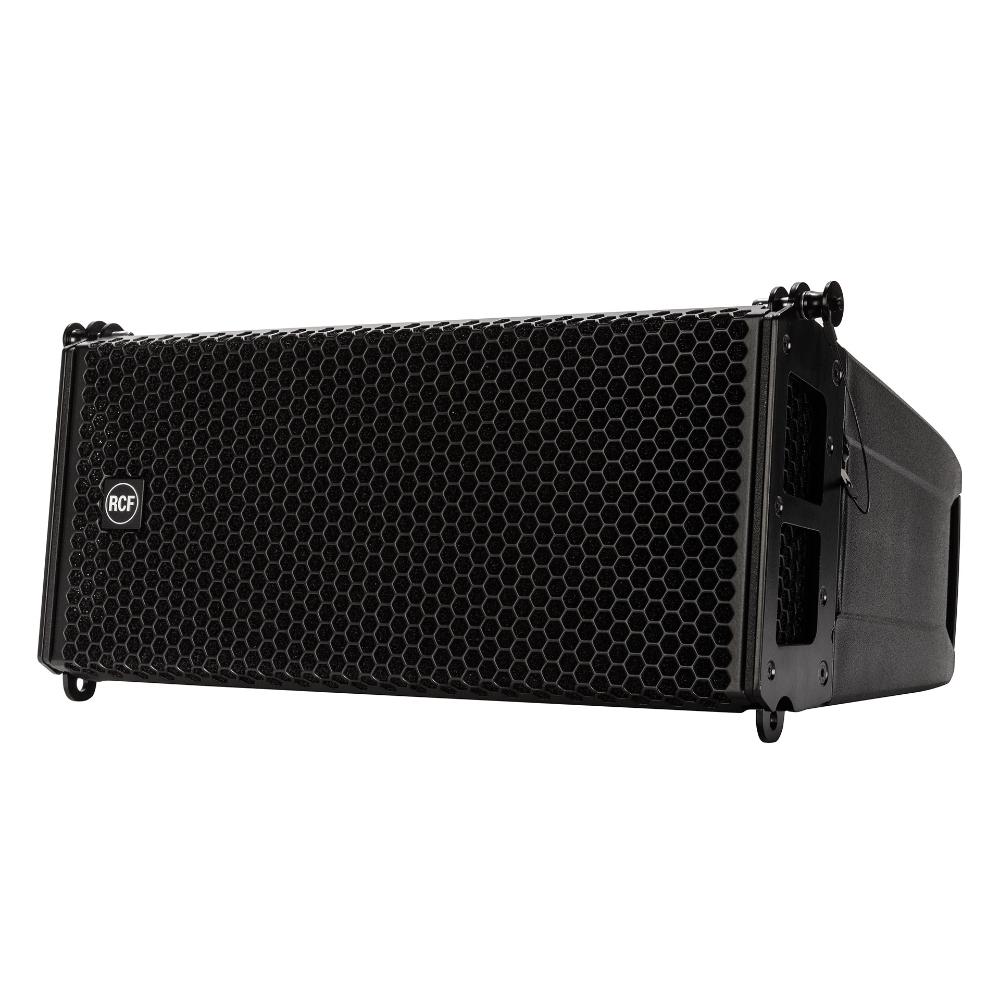

The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.

Specifications
