RME HDSPEAIOPRO 30-Channel 24 Bit / 192KHz High-End Audio PCI Express Card
Description

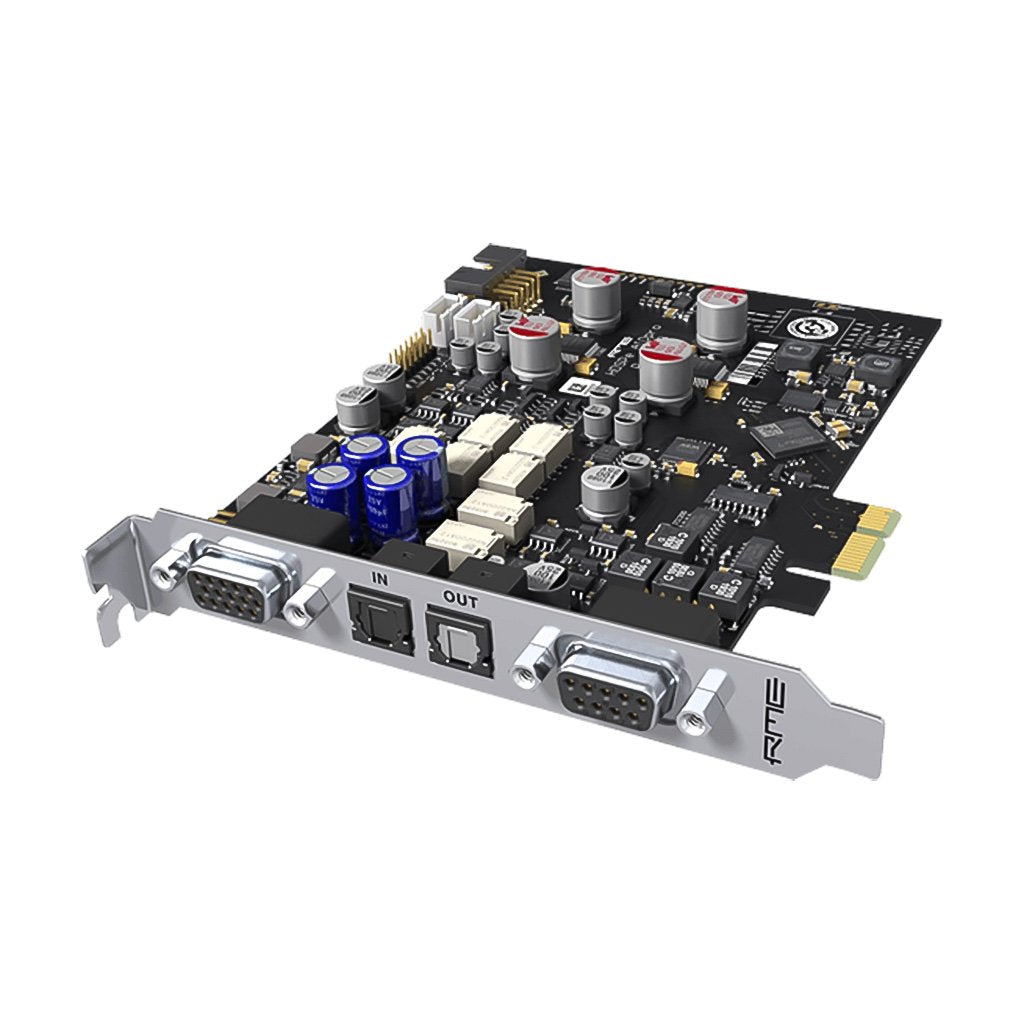

RME introduces the HDSPe AIO Pro PCI Express interface card, the successor of the popular HDSPe AIO. The Pro version provides professional users in the fields of studio and broadcast with the same high channel count as well as analog/digital input and output variety of the HDSPe AIO. In terms of technical features RME has completely reworked the HDSPe AIO Pro, defining the current state-of-the-art in PCI Express cards.
All inputs and outputs are simultaneously operational, even SPDIF (phono) and AES/EBU (XLR). Of course TotalMix, the unsurpassed flexible routing mixer and SteadyClock FS, RME’s sensational clock technology with maximum jitter suppression of external clock signals, are on board too. HDSPe AIO Pro also supports the optional TCO for synchronization to timecode (LTC/video).
The new HDSPe AIO Pro is based on the reference processors AK5572 and AK4490 derived from the high-end AD/DA converter ADI-2 Pro. The analog input range also uses the circuit design of the ADI-2 Pro (+24 / +19 / +13 / +4 dBu). In addition, RME has enhanced the outputs with additional reference levels (balanced: +24 / +19 / +13 / +4 dBu; unbalanced: +19 / +13 / +4 / -2 dBu) which allows even more versatile integration into audio systems. The HDSPe AIO Pro features a dedicated attenuator in the output section, resulting in an increased signal-to-noise ratio and a lower output impedance at low reference levels.
