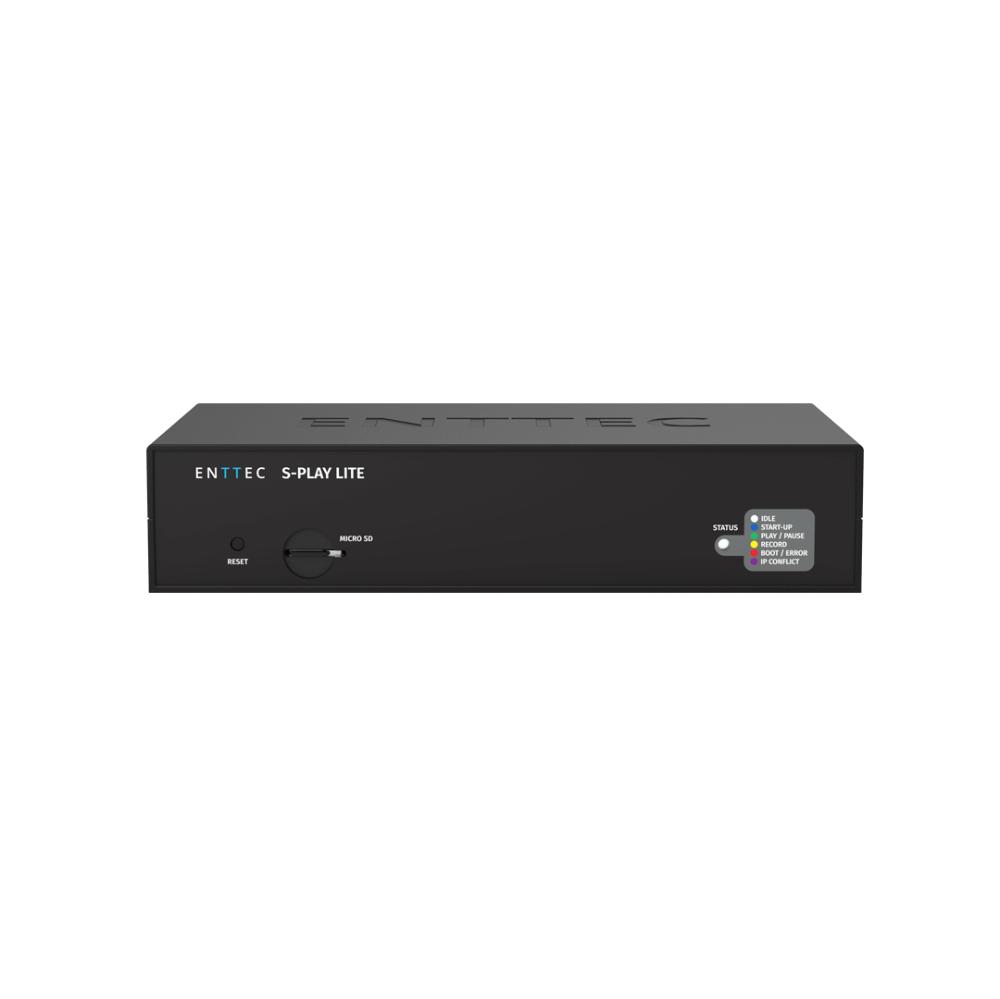

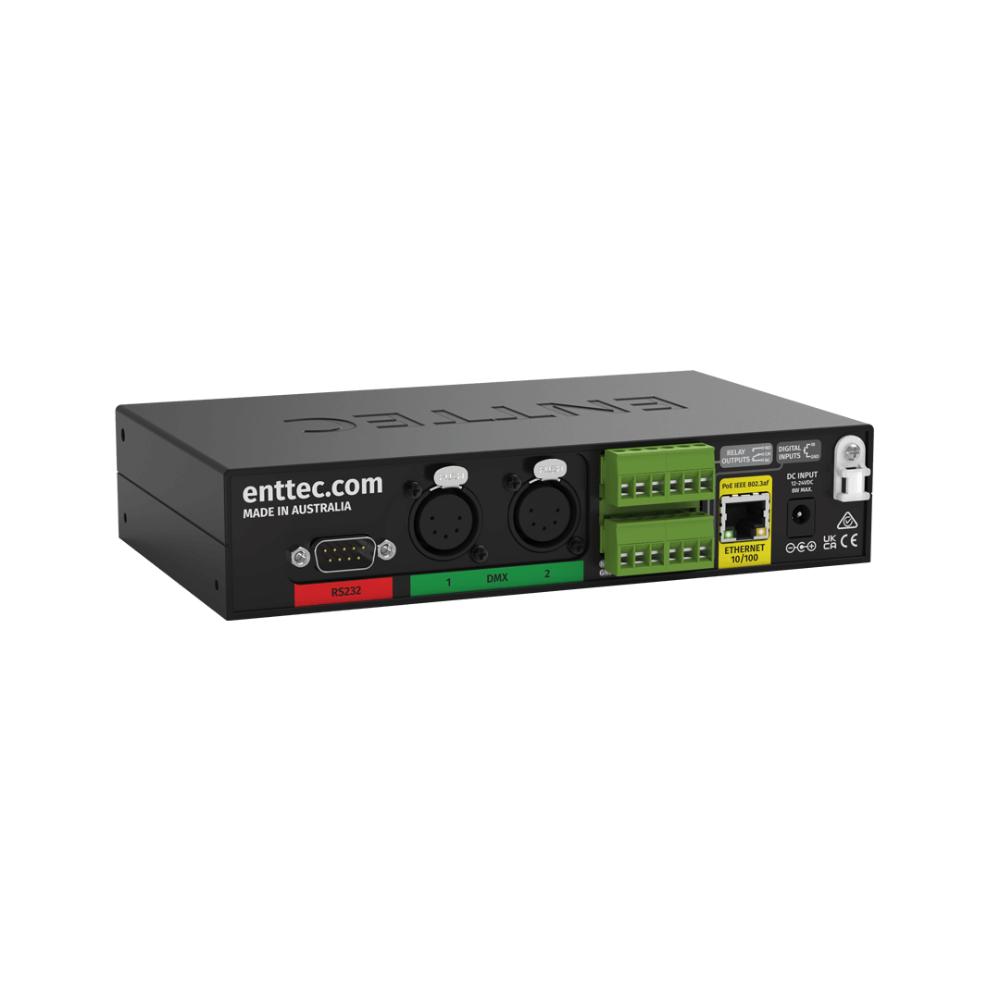

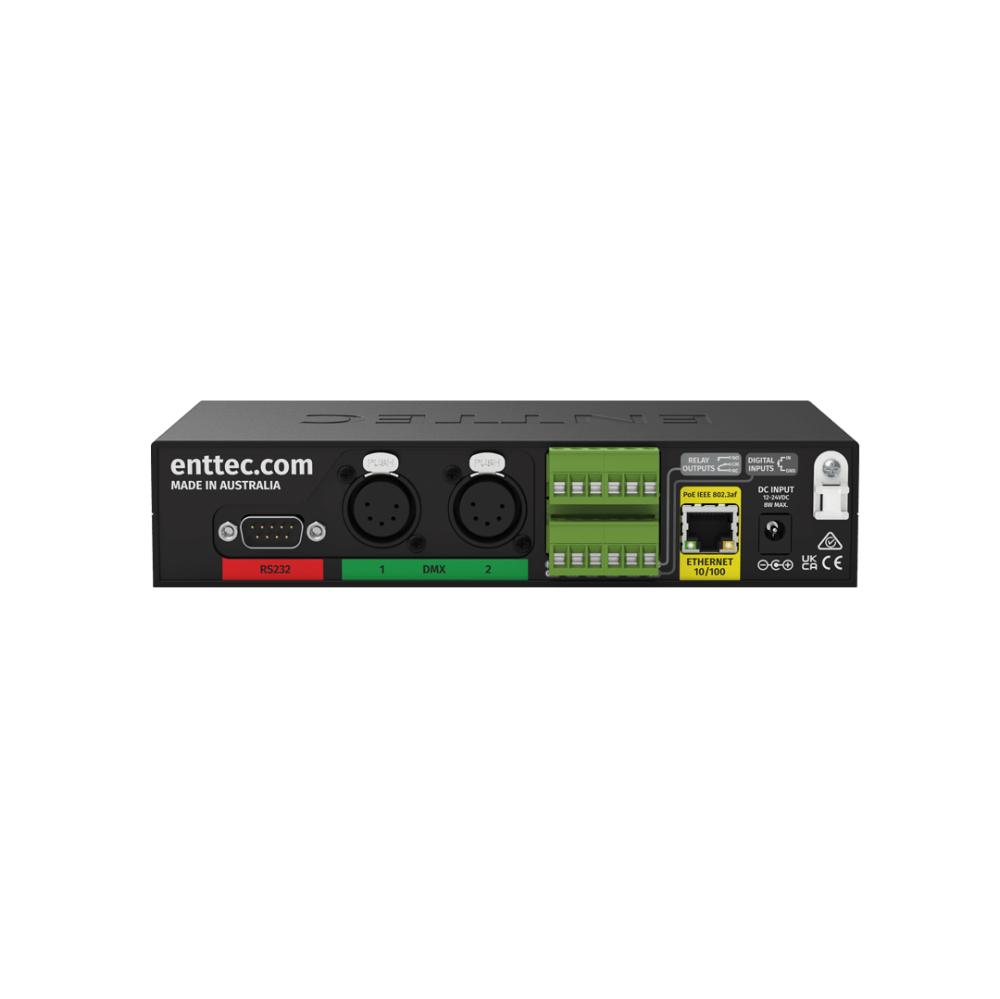

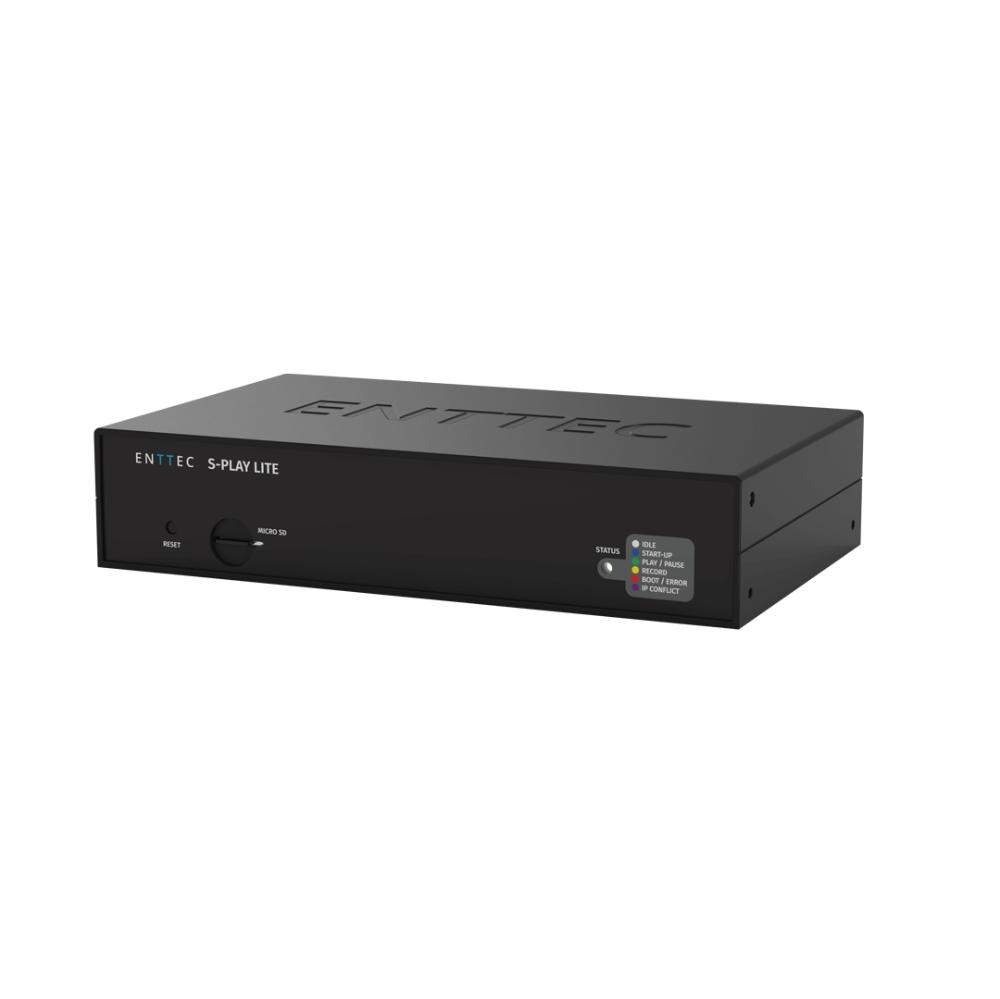

Enttec S-Play Lite - Record, Edit and Playback light shows up to 16 Universes light show

ENTTEC’s S-PLAY LITE is a smart show recorder and playback controller designed for professional, hassle-free light shows and automation. It handles light shows, video, and machinery with precision, allowing for simultaneous playback and flexible mounting. Combining a scene creation engine, 16-universe DMX recorder, and multiple AV protocol host, it also supports custom web interfaces. With its built-in effects generator and intuitive controls, it makes creating impressive shows easy, even for those without extensive lighting experience.

Engineered for projects that require precise automation, the S-PLAY LITE smart light show controller is your all-in-one solution for the recording, triggering, and activation of not only light shows but video, non-lighting events, and much more.

Specifications

• Input voltage - 12V DC to 24V DC
• Power input - DC jack (12V PSU & international plugs included)
• Max power draw - 8W
• Ethernet port / PoE - RJ45 / PoE IEEE 802.3af
• DMX port - 2 x 5-pin XLR (female)
• Digital input - 4 digital inputs + 1 GND + 1 5V (6-pin screw terminal)
• Relay - 2 x relay 6-pin screw terminal (max limits, 50V DC or 60W)
• Internal show storage capacity - 8GB (~20 hours of 16 universes at 40fps)
• Expandable storage / external memory - Micro SD card
• LED indicators - Yes
• Factory reset - Web interface
• Mounting - Rack, surface & TS35 DIN rail mountable (ears, clips & screws included)
• IP rating - IP20
• Environmental operating temperature - 0°C to 50°C / 32°F to 122°F
• Environmental operating humidity - 0 to 95% (non-condensing)
• Cooling method - Convection
• Body material - ABS plastic & anodised aluminium
• Unit dimensions - 200mm x 120mm x 42 mm
• Unit weight - 0.47kg / 1.04lbs
• Shipping dimensions - 335mm x 265mm x 78mm
• Compliance - RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty -  3-year return to base manufacturer warranty

Software

• DMX universe playback - 2U (1024 channels of USITT DMX512-A)
• Art-Net / sACN universe playback - 16U (8,192 channels)
• Max refresh rate (FPS) - Art-Net & sACN: 60 / USITT DMX512-A: 40
• Max playlist count - 100
• Max cue track per playlist - 4
• Max Cues (including Static, Dynamic and Effect) - 100
• Max Triggers - 150
• Max Events - 150
• Max custom interface - 5
• OSC API - Yes
• HTTP API - Yes
• Scheduler - Yes
• Remote access - No
• Multi-sync - No
