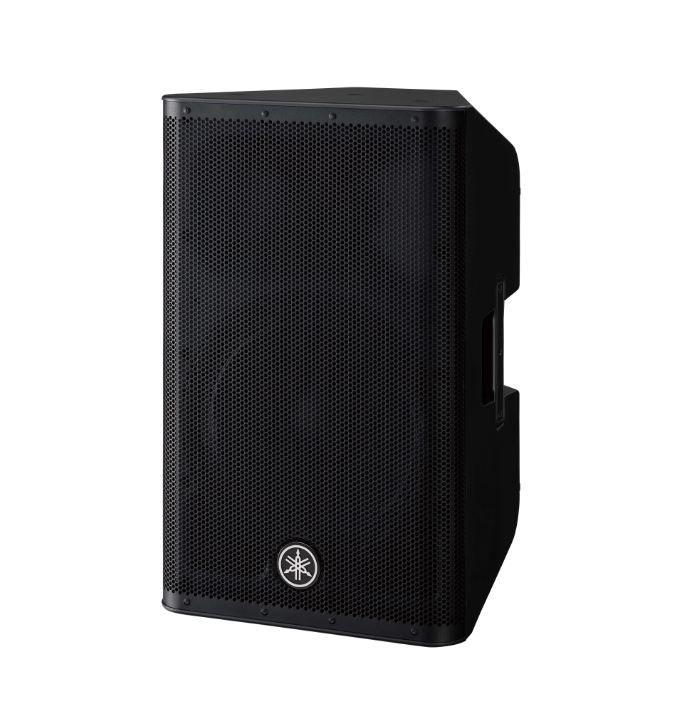

Yamaha DXR12MKII 12" 2-Way Powered Speaker

SKU: VCC4860
$1,159.00 $1,499.00
Out of Stock, contact for ETA
By Yamaha
This product is unavailable

The Yamaha DXR12 mkII is a powerful 12-inch powered speaker. With 1100W (peak) of power, the DXR12 mkII delivers extremely high output in a portable format, with exceptional high resolution clarity. The DXR12 mkII suits a variety of applications with a well-balanced sound and a punchy bass response. Need even more low end? The Yamaha DXR12 mkII also pairs well with Yamaha DXS15 mkII and DXS18 mkII subwoofers for added low end punch and power.

The Yamaha DXR mkII Series powered loudspeakers have more SPL and feature a larger, yet much lighter 1.75” Neodymium HF compression drivers for extremely clear voice reproduction and musicality. Yamaha worked in tight collaboration with touring loudspeaker specialists NEXO, adding deep industry insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.

The Yamaha DXR12 mkII features 48bit DSP processing for high definition sound quality, and Yamaha's proprietary FIR-X tuning which simultaneously optimizes frequency and phase response while adjusting the time alignment between the HF and LF transducers. This creates a very smooth response around the crossover point, providing much better clarity and imaging than what is possible with typical crossovers.

Suitable for both fixed applications or mobile live performances, the Yamaha DXR12 mkII is up to the task, combining raw power with Yamaha's proprietary advanced DSP functions for all the reliability and outstanding clarity you’ve come to expect from the DXR Series, and more!


Brand Yamaha
Gross Shipping Weight - Volumetric (kgs) 18.6000
Speaker Size (Inches) 12"
Vertical Coverage Angle 60 Degrees
Output Power - Peak (Watts) 1100
Output Power - RMS (Watts) 700
Signal Processing (DSP) Yes
Mounting Options Floor Wedge, Fly , Pole, Tilted Pole
Maximum Peak SPL 134dB

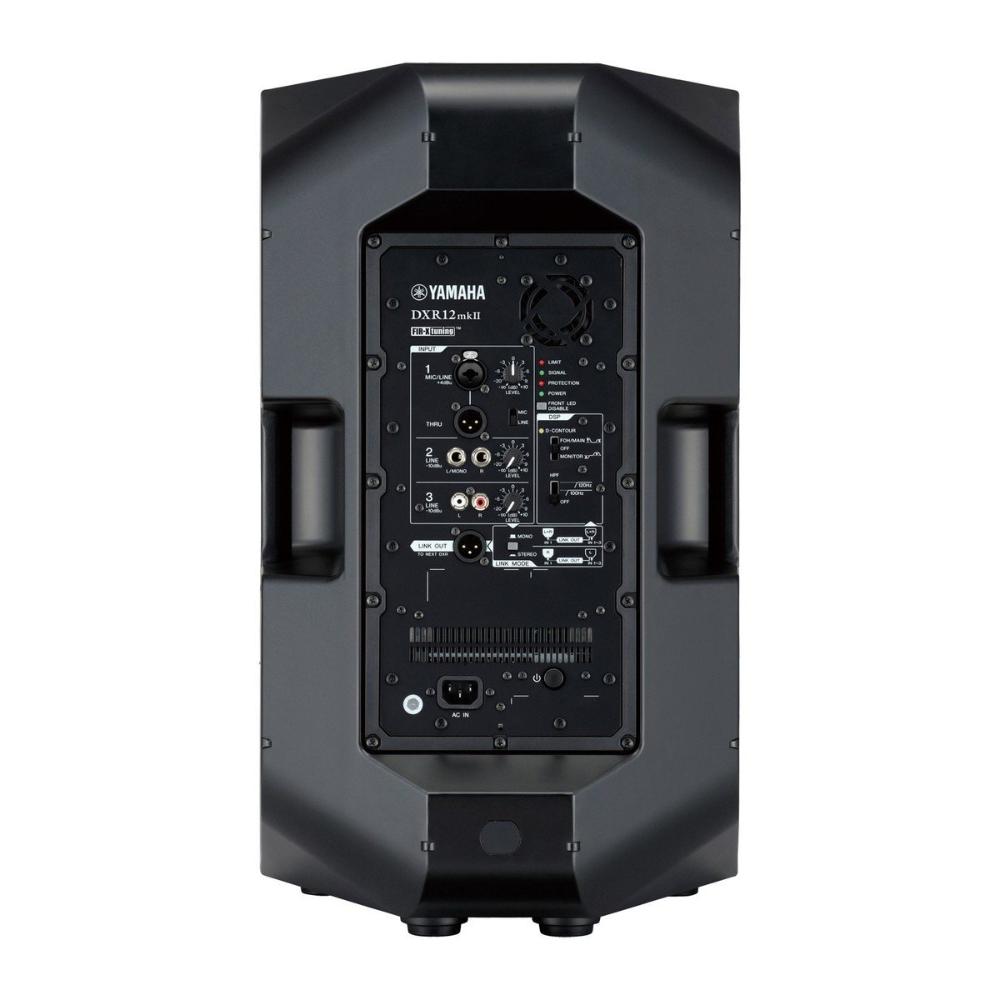

Analog Inputs 1x XLR , 1x Stereo 1/4-inch TRS, 1x Stereo RCA, 1 XLR Thru (Parallel with Input 1)
Analog Outputs 1x XLR Link Out
Frequency Range 52Hz - 20kHz
Speaker Type Powered
Cabinet Type ABS
HF Driver Size 1.75-inch
Horizontal Coverage Angle 90°
LF Driver Size 12-inch cone, with 2-inch voice coil
