Yamaha DXR8MKII 8" 2-Way Powered Speaker - OPEN BOX
SKU: VCC5040-OB
In stock: 2
By Yamaha
Description
Yamaha DXR8 8" Active Loudspeaker - OPEN BOX
The most compact of the DXR Series speakers, the DXR8 makes the most of its 1100W of power, delivering extremely high output while maintaining outstanding resolution. Adding a DXS12 subwoofer gives you an ultra-compact high-power SR system.
| Speaker type | 8" 2-way, Bi-amp powered speaker, Bass-reflex type | |
|---|---|---|
| Frequency Range (-10dB) | 57Hz - 20kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | Diameter:8" cone, Voice Coil:2", Magnet:Ferrite |
| HF | Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite | |
| Crossover | FIR-X tuning™ (linear phase FIR filter) | |
| Output power | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | |
| Maximum output level (1m; on axis) | 129dB SPL | |

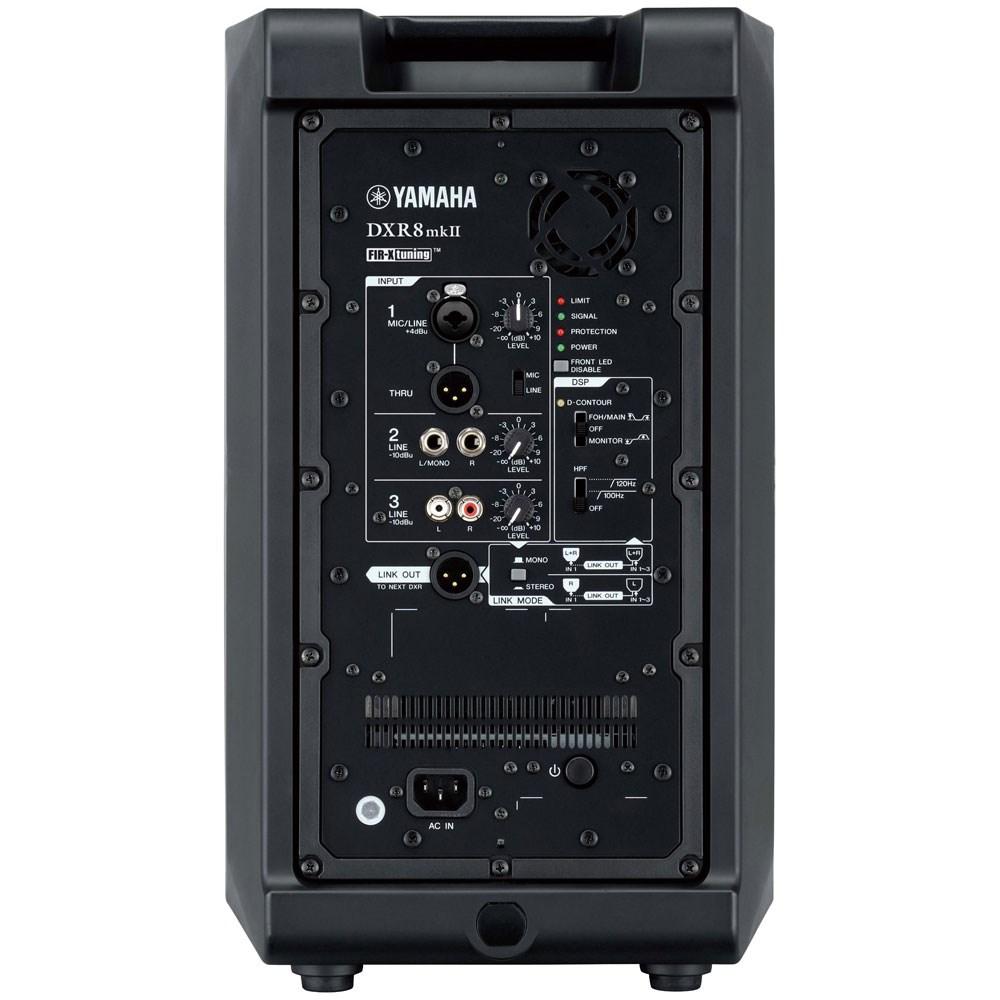

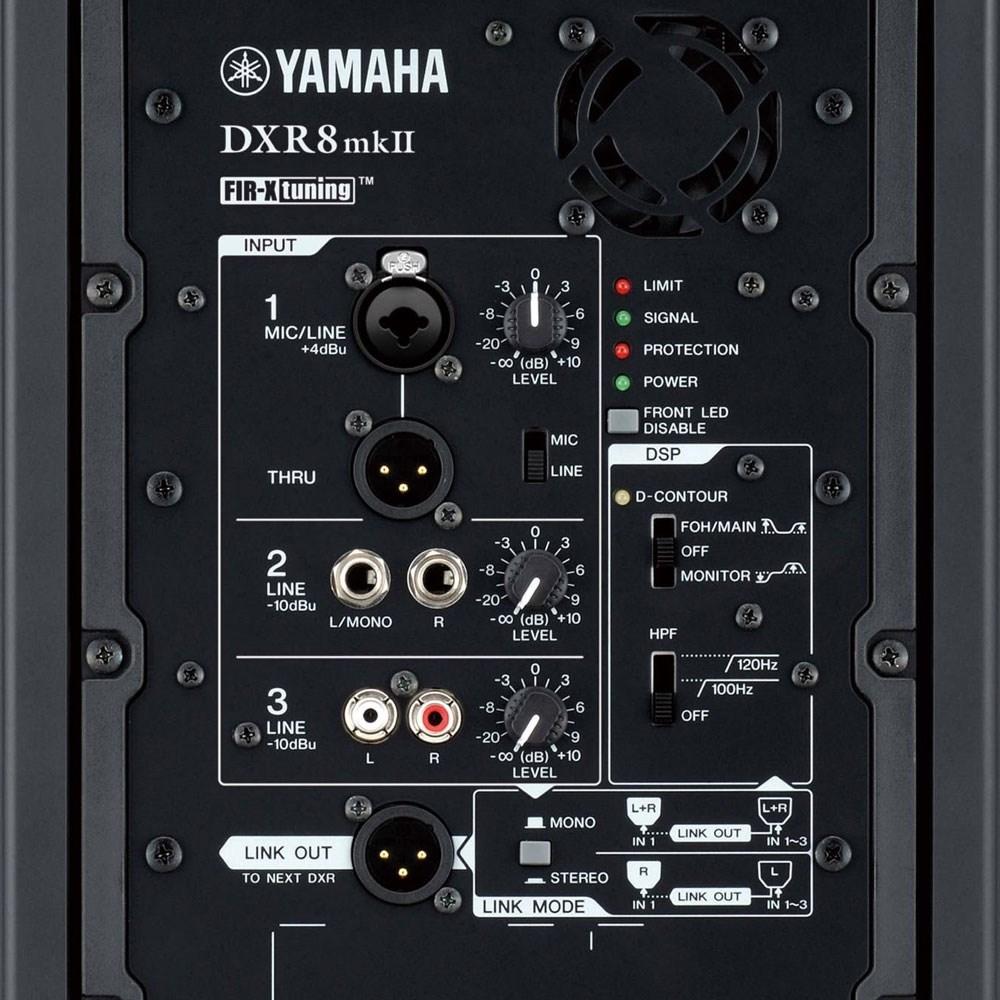

| I/O connectors | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1 | |
| Processors | D-CONTOUR :FOH / MAIN, MONITOR, OFF | |
| Power requirements | 100V - 240V, 50Hz/60Hz | |
| Power consumption | 90W | |
| Flying and mounting hardware | Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) | |
| Pole socket | 35mm with 2-way features (0 or 7 degrees) | |
| Dimensions | W | 280mm (11") |
| H | 458mm (18") | |
| D | 280mm (11") | |
| Net weight | 13.5kg (29.8lbs) | |
| Accessories | UB-DXR8 (U-bracket) | |
| Others | Material: ABS (Matte Finish, Black) | |
