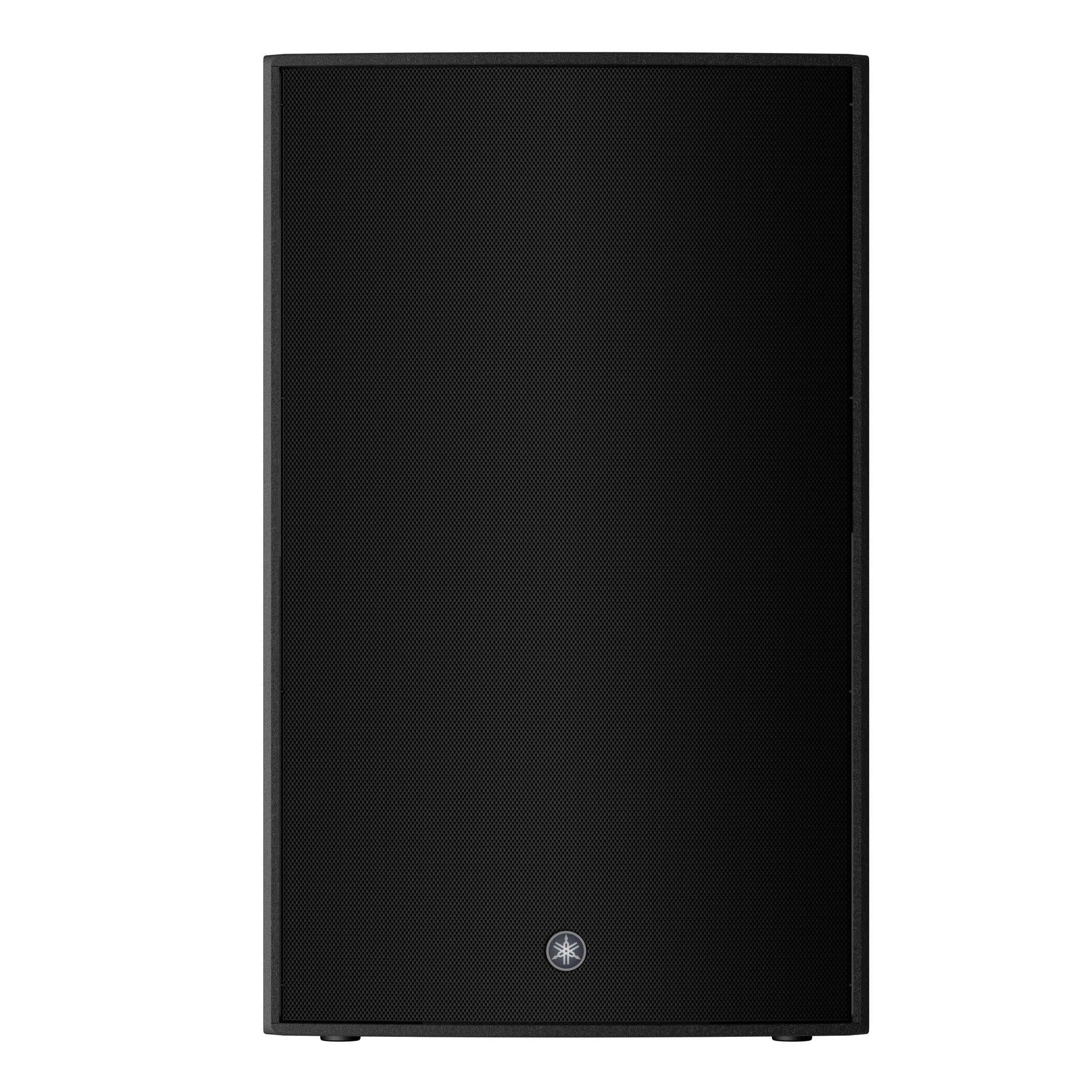

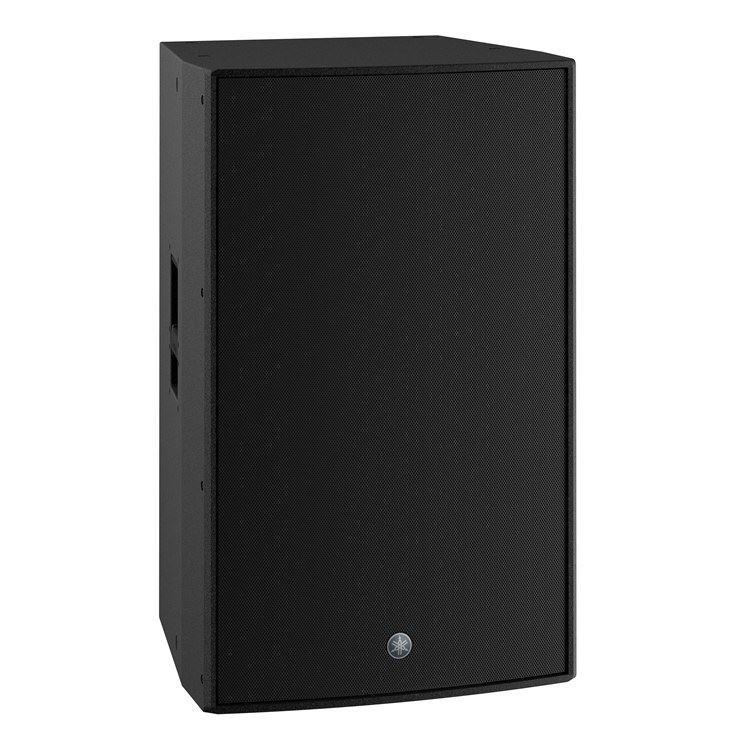

Yamaha DZR315-D 3-Way Bi-Amped 15" LF 8" MF Powered Speaker Dante Connectivity Black

SKU: DZR315-D
$2,349.00 $2,799.00
In stock: 4
By Yamaha
Minus Plus
Description

Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.

Key Features

  • 3-way powered loudspeaker with a 2” HF, an 8 ” MF and a 15" LF
  • Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DZR315)
  • Durable Black or white finish



Specifications

  • Speaker type: 3-way, Bi-ampled Powered Speaker, Bass-reflex
  • Frequency range (-10dB): 31Hz - 20kHz
  • Coverage area: H75゚ x V50゚
  • Low Frequency: 15" Cone, 3" Voice Coil, Neodymium magnet
  • Mid Frequency: 8" Cone, 1.5" Voice Coil, Ferrite magnet
  • High Frequecy: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
  • Crossover: 700Hz (FIR-X), 2.5kHz (Passive)
  • Internal Sampling Freqency Rate: 96kHz and FIR Filter
  • A/D D/A Converters: 96kHz AD/DA
  • Maximum output level (1m; on axis): 143dB SPL *1
  • SRC: Yes
  • Dynamic Power: 2000W (LF: 1000W, MF/HF: 1000W) *2
  • Burst Power (20ms): 1100W (LF: 1000W, MF/HF: 100W)
  • Continuous Power: 950W (LF: 850W, MF/HF: 100W)

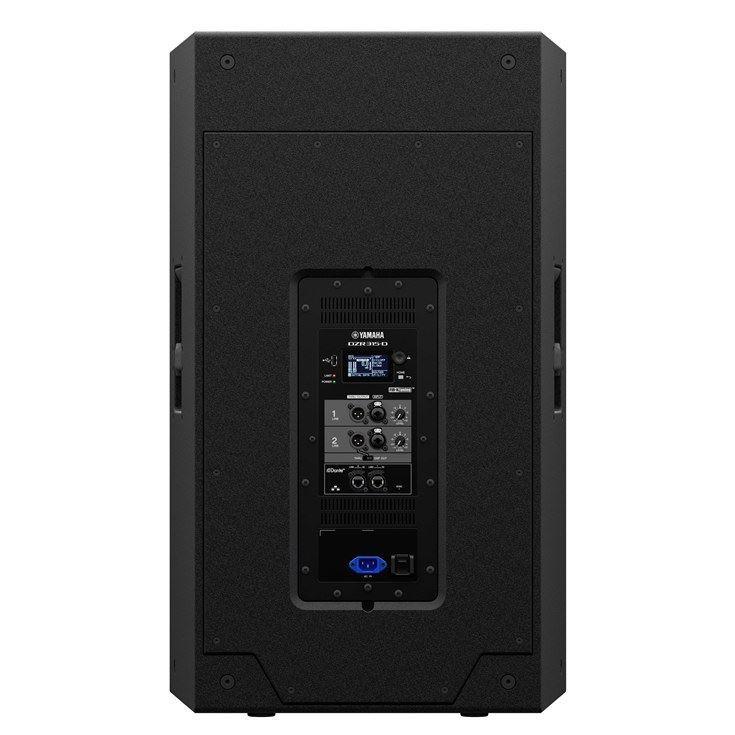

  • Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
  • Digital I/O: Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
  • Others I/O: USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • AC I/O: IEC AC inlet x1 (V-Lock)
  • Amplifier class: Class-D
  • Cooling: Fan cooling, Variable speeds
  • Power consumption: 45W (Idle), 150W (1/8)
  • Handle: Aluminium die-cast, Side x2
  • Rigging: M10 x16
  • Width: 550 mm (21.6")
  • Height: 897 mm (35.3") (with rubber feet)
  • Depth: 520 mm (20.5")
  • Net weight: 41.6kg (91.7lbs)
  • Options: Cover: SPCVR-DZR315
  • Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
