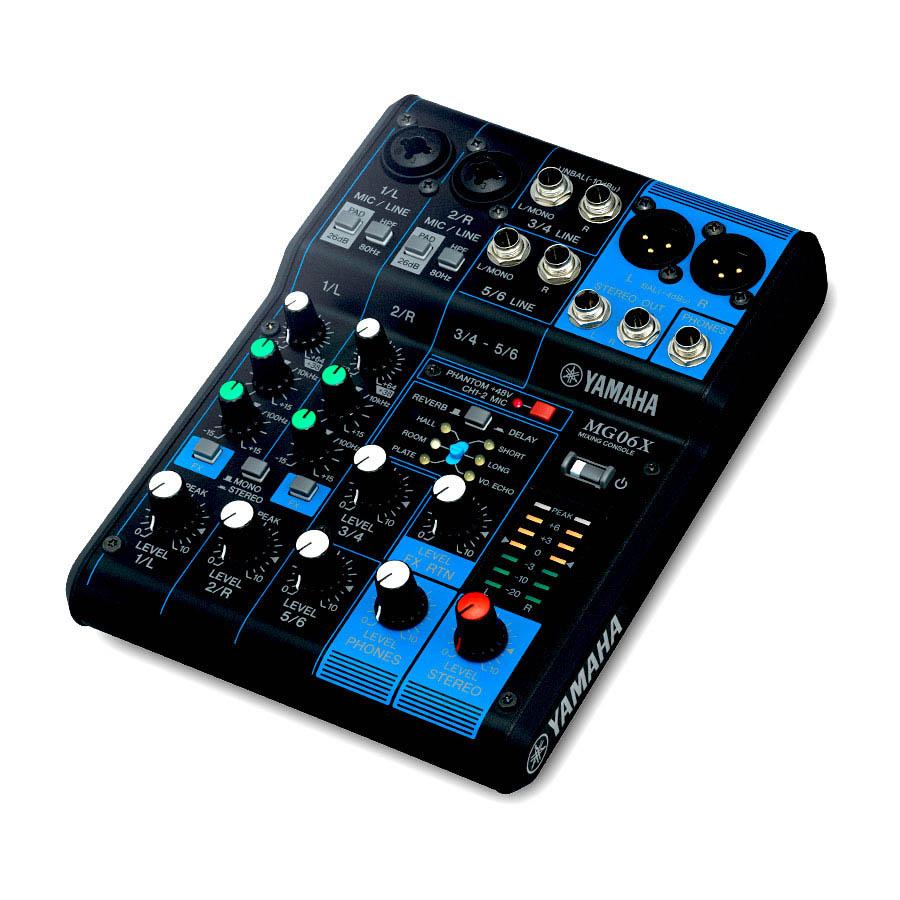

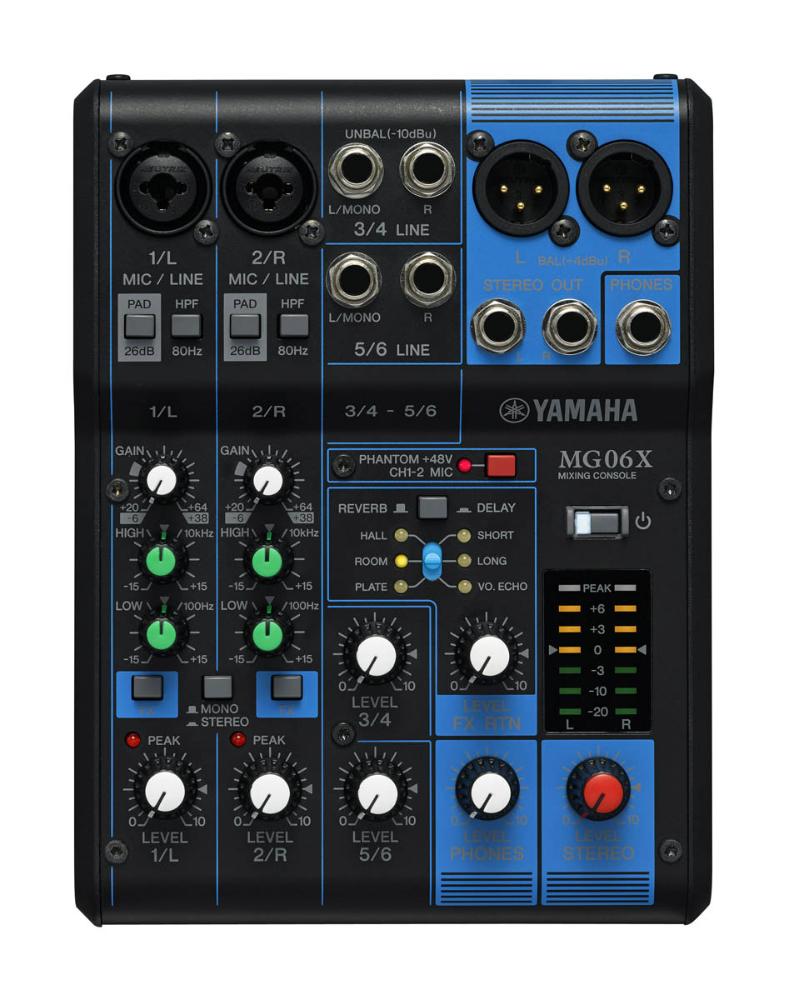

Yamaha MG06X//AU 2X Mic 2X Stereo Input SPX Digital Effects Mixing Console
Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a "signature" sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.
All models feature high-quality Neutrik™ balanced XLR connectors on mono microphone/line channels and XLR equipped stereo channels. Each of the mono inputs is equipped with combo jack and accepts both MIC and LINE level signals. Two of the stereo inputs are equipped with XLR and two phone connectors with XLR accepting MIC level signals while two phone connectors accepting LINE level signals and can be used either mono or stereo. (except for 10ch model) The function of another two stereo channel vary depending on model:
The MG X / XU models features Yamaha's acclaimed SPX digital multi-effect processor, offering a 24 editable digital effects perfect for enhancing your mix. In particular, the high-quality reverb and delay expand the spatial quality of the sound with remarkable realism and naturalness.
Built to last, MG Series mixers feature a rugged, impact-resistant, powder-coated metal chassis, offering an unrivalled level of durability. With a sleek design contoured for optimal convection cooling, the internal layout separates the power supply from the analog circuitry for superior noise reduction, and further extends the life of the components inside.
- 6-Channel Mixing Console
- Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
- 1 Stereo Bus
- “D-PRE” mic preamps with an inverted Darlington circuit
- High-grade effects: SPX with 6 programs
- XLR balanced outputs
- PAD switch on mono inputs
- +48V phantom power
- Metal chassis
- Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
- Net Weight: 0.9 kg (1.98 lbs.)
